Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

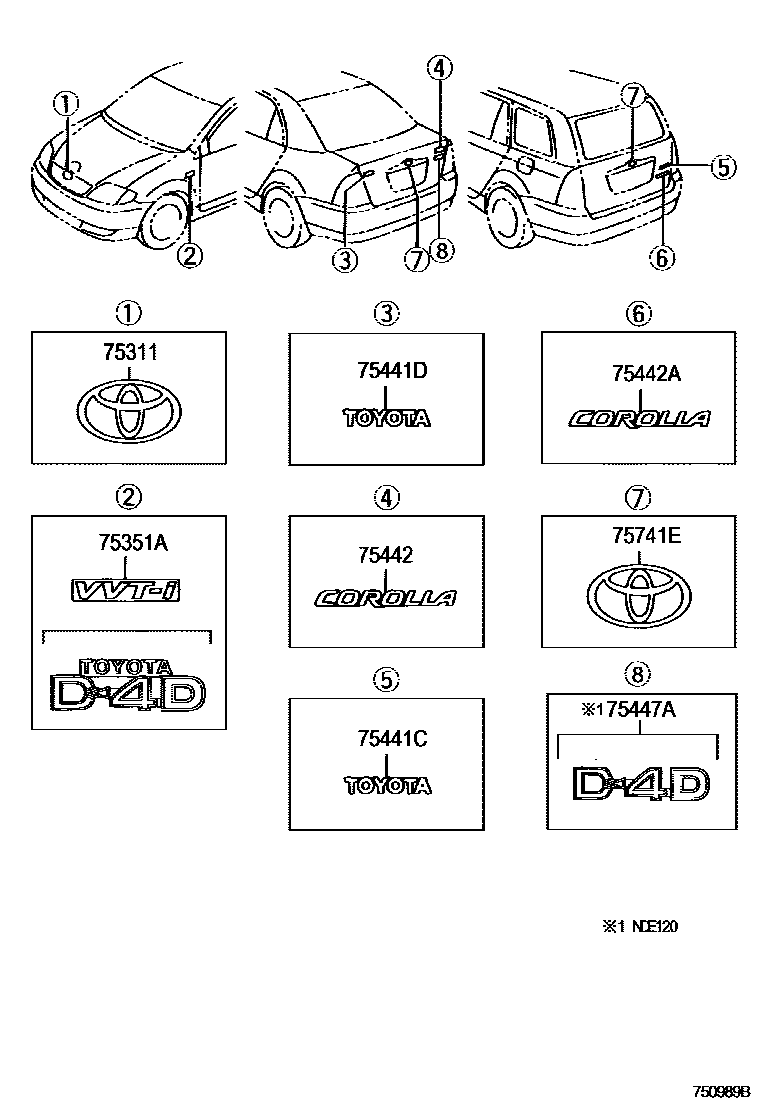

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750989B
丰田徽标和铭牌(车外和车内) — 750989B (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-1E100 · 90975-02042
75351AFront fender label75351-12160 · 75351-12170
75441CBack door nameplate75441-13210
75441DTrunk door No. 1 name plate75441-12840
75442Trunk door number plate No. 275442-1A470
75442ANo. 2 nameplate on back door75442-13250
75447ANo. 7 nameplate on back door75447-12030
75741Elogo90975-02011 · 90975-02039
