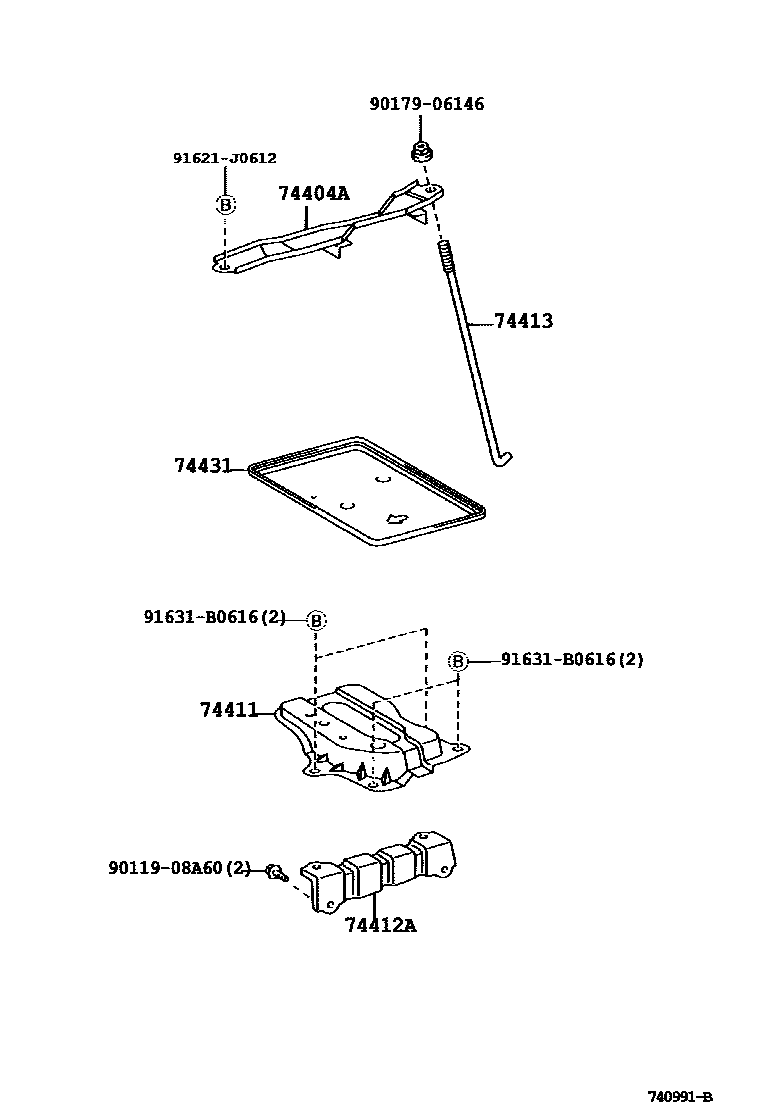

Toyota COROLLA battery holder — Figure 7402
Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-12410 · 74404-12420 · 74404-13030 |
| 74411 | battery holder | 74411-12140 |
| 74412A | No. 2 battery holder | 74412-12020 |
| 74413 | Battery clamp bolt | 74451-12130 · 74451-12140 |
| 74431 | battery tray | 74431-12040 · 74431-12051 · 74431-12060 · 74431-12090 |
