Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

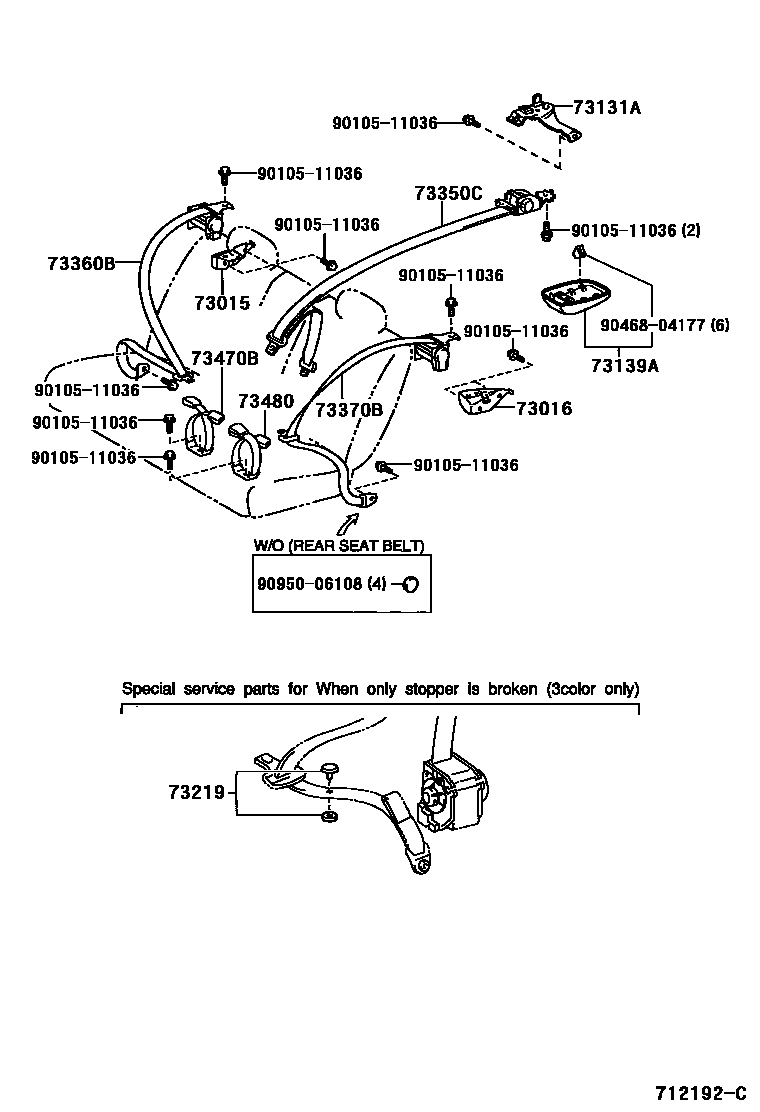

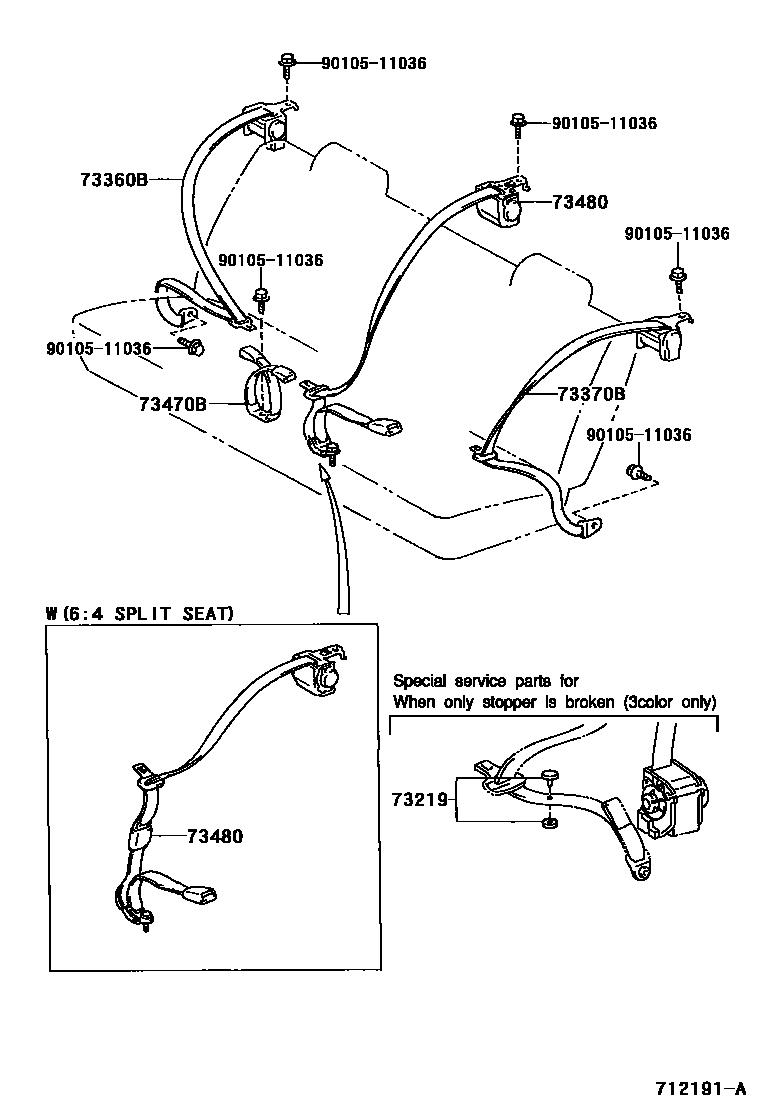

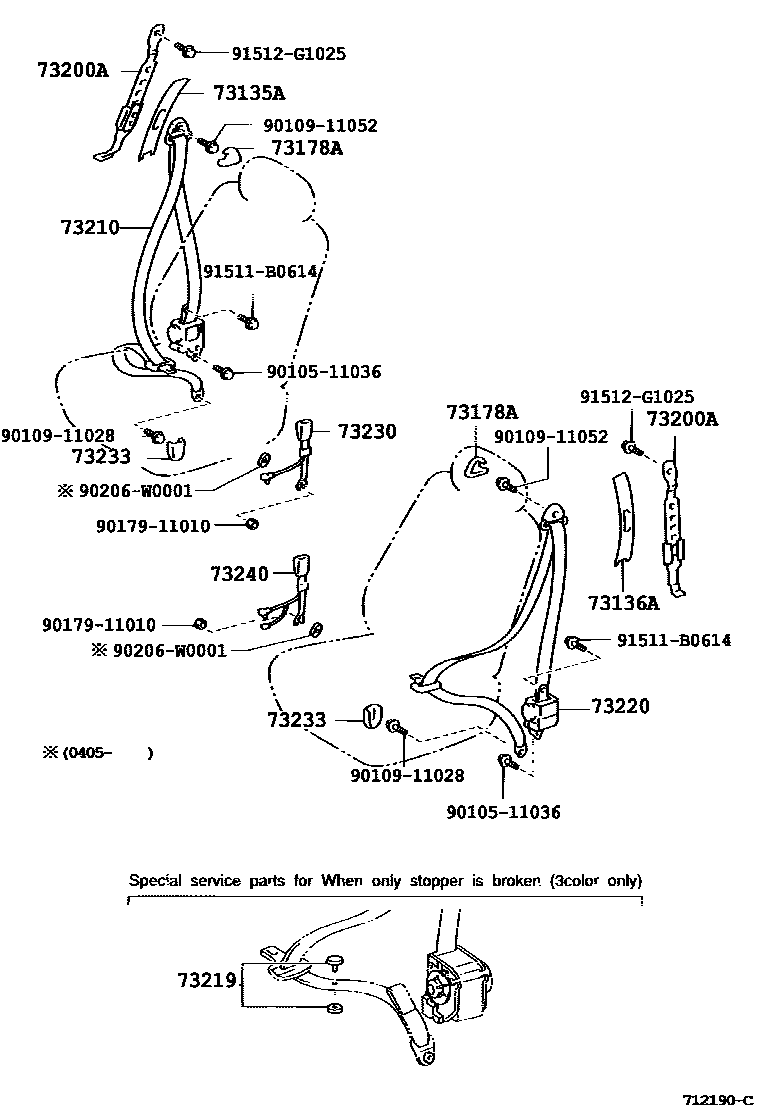

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-13010 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-13010 |
| 73131A | seat belt bracket | 73131-13010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
