Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

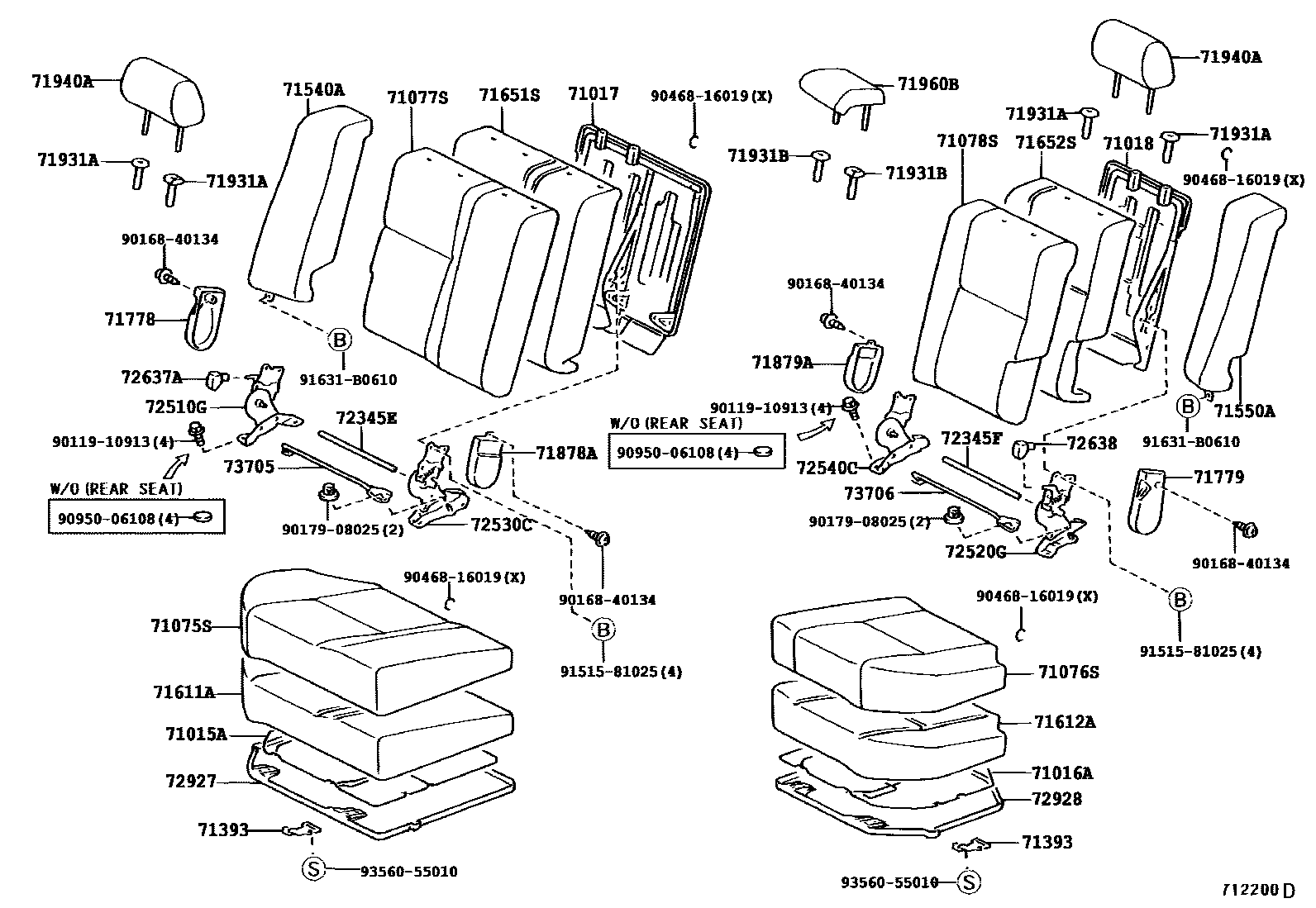

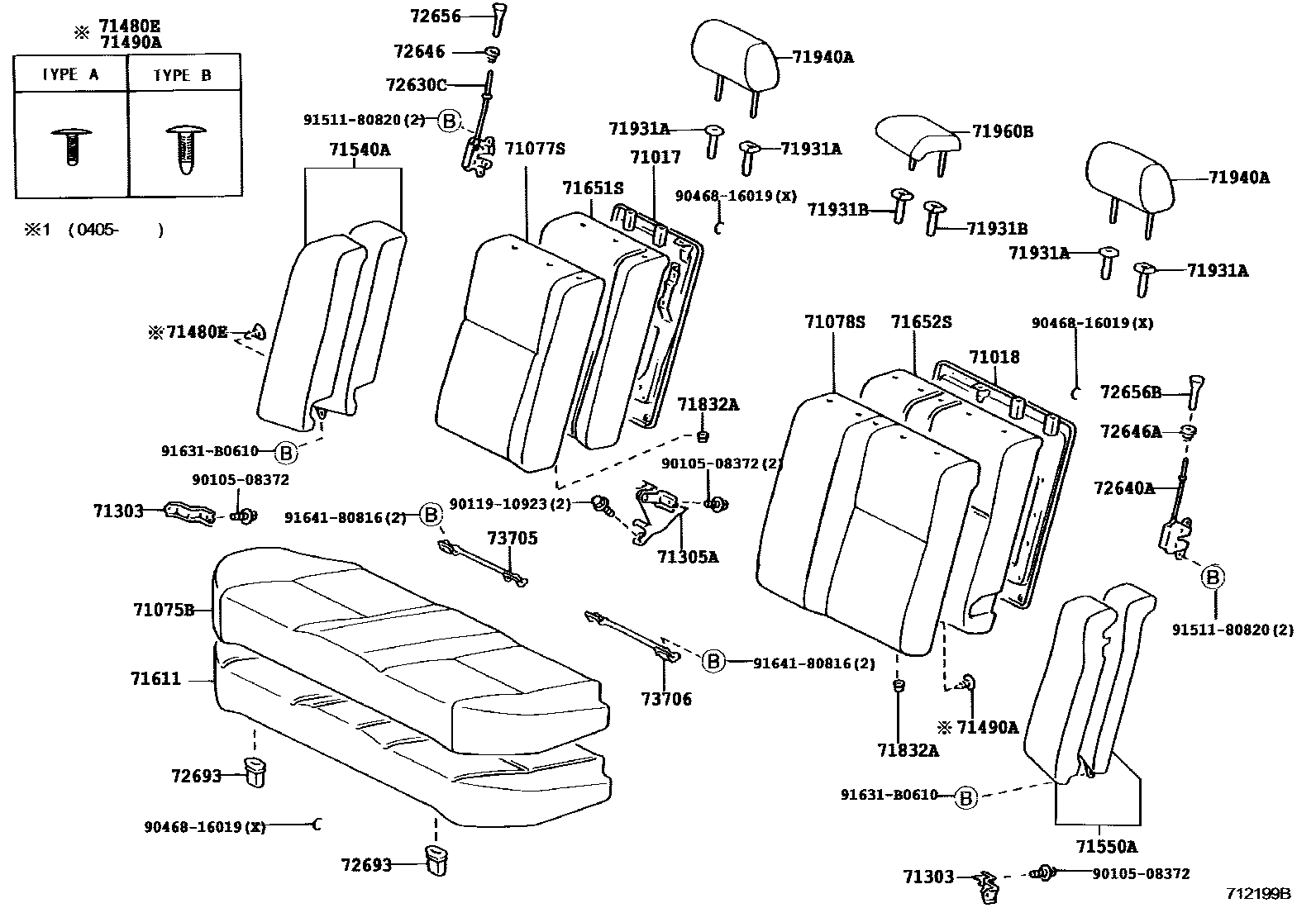

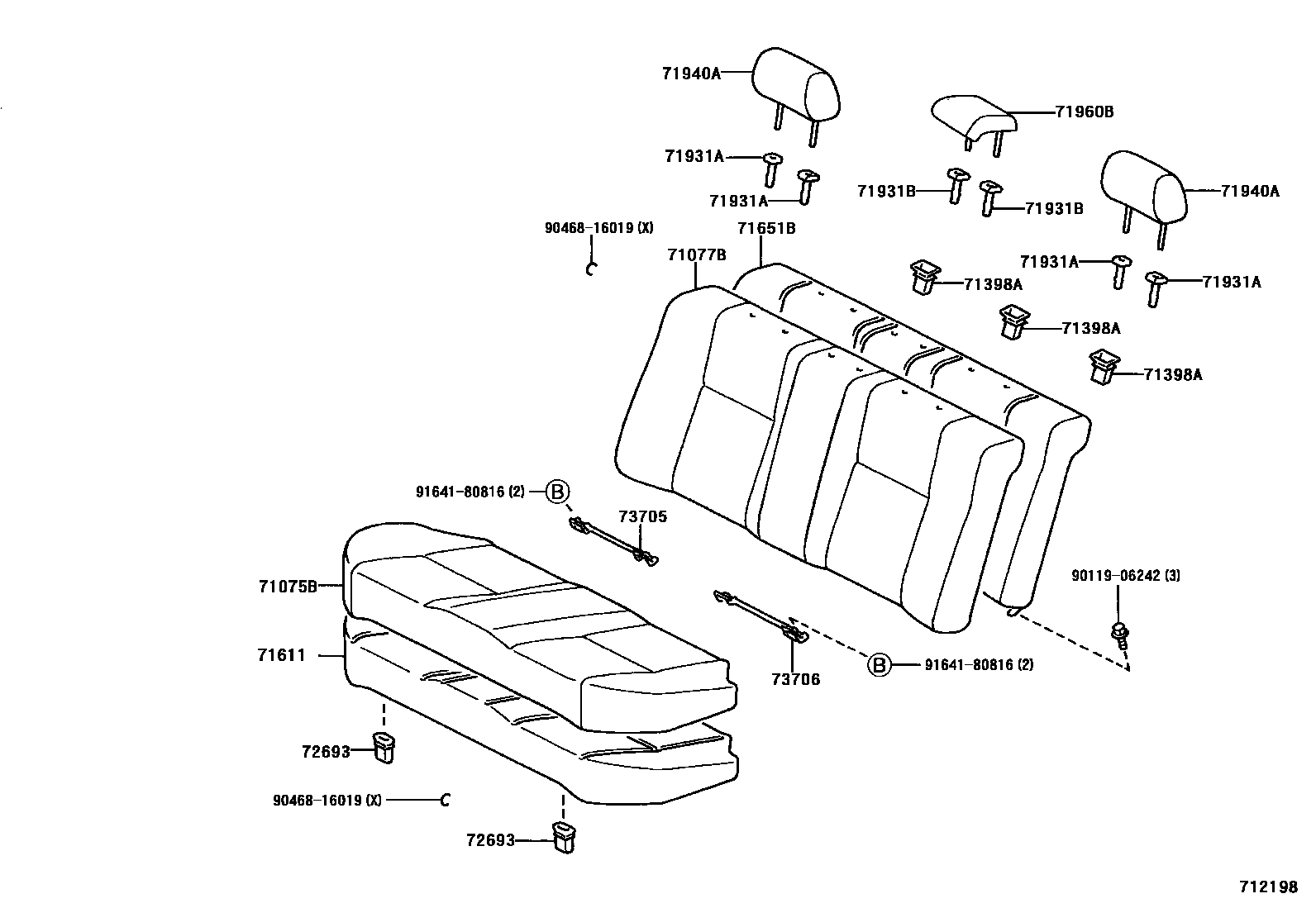

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12530 · 71017-13280 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12300 · 71018-13120 |
| 71303 | Rear seat back hinge sub-assembly | 71303-33010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12170 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-12130 |
| 71611A | Rear right seat cushion | 71611-13240 |
| 71612A | Rear left seat cushion | 71612-13110 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12240 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12790 · 71651-13320 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12670 · 71652-13170 |
| 72345E | Seat back recliner connecting tube | 72345-13050 |
| 72345F | Right seat back recliner connecting pipe | 72345-13050 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13020 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13020 |
| 72530C | Rear right seat backrest inclination angle inner adjuster assembly | 72530-13050 |
| 72540C | Rear left seat backrest inclination angle inner adjuster assembly | 72540-13040 |
| 72630C | Rear right seat back lock assembly | 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-47010 |
| 72656 | Rear seat back stop release button | 72661-32030 |
| 72656B | Rear seat back stop release button | 72661-32030 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72927 | Rear right seat cushion lower cover | 72927-13040 |
| 72928 | Rear left seat cushion lower cover | 72928-13030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-12030 · 73705-13010 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-12030 · 73706-13010 |
