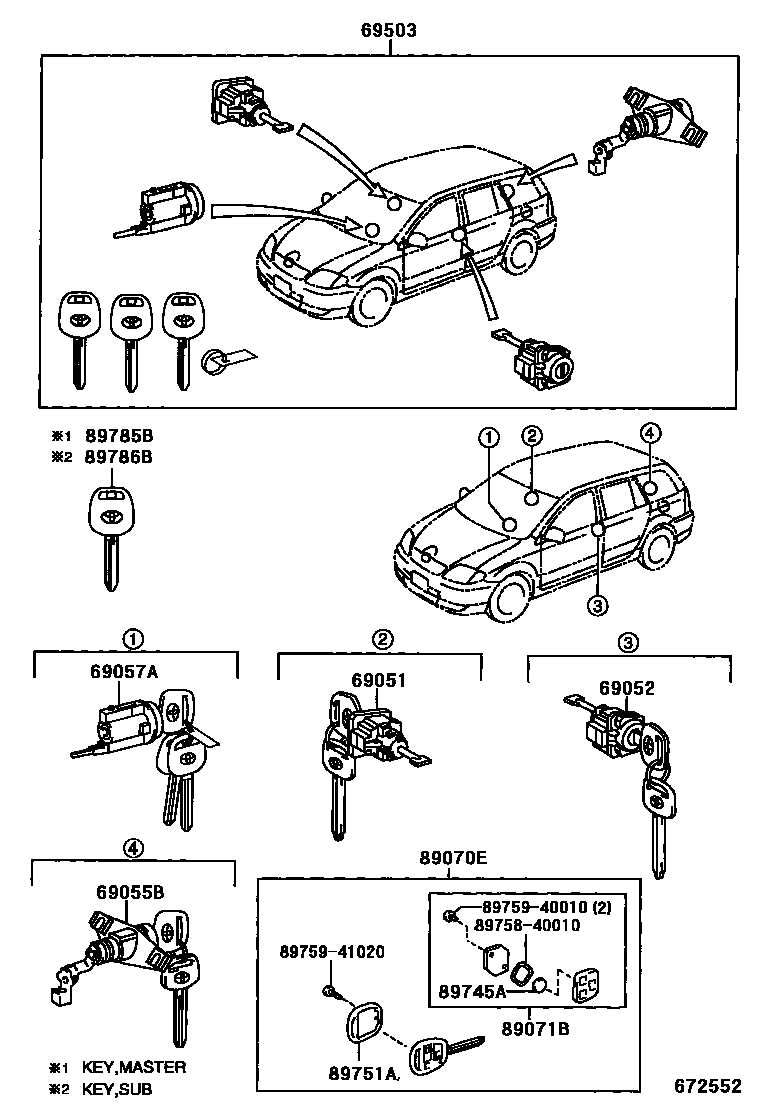

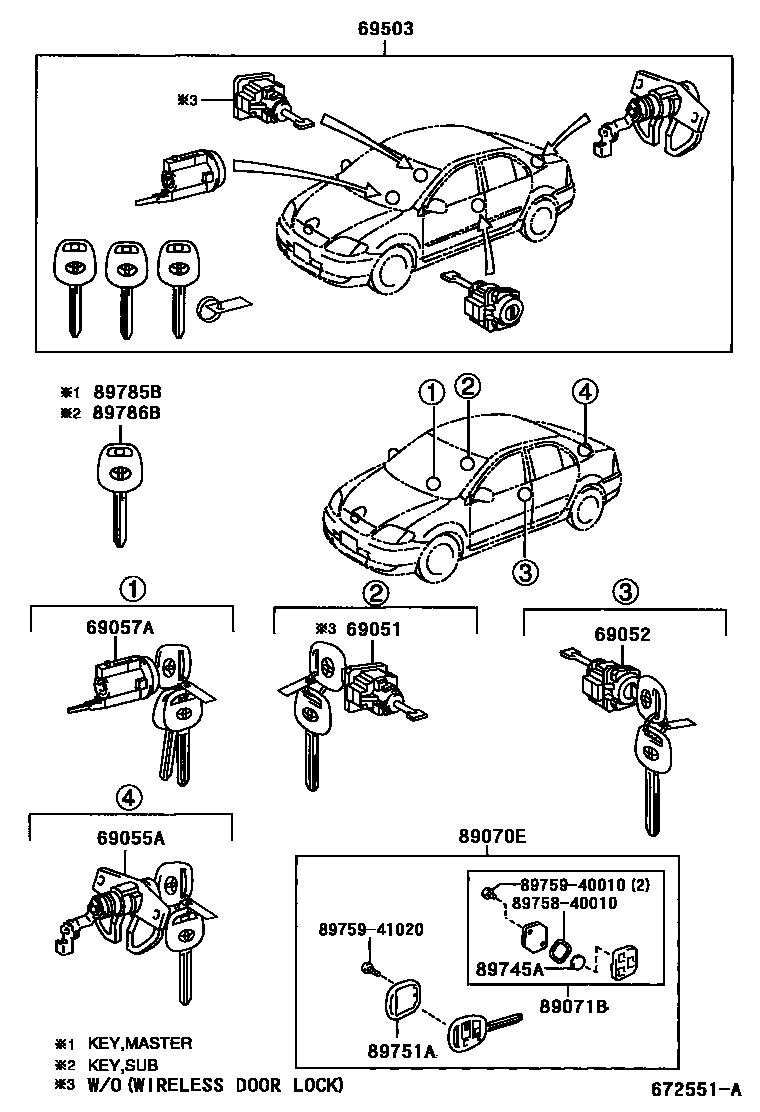

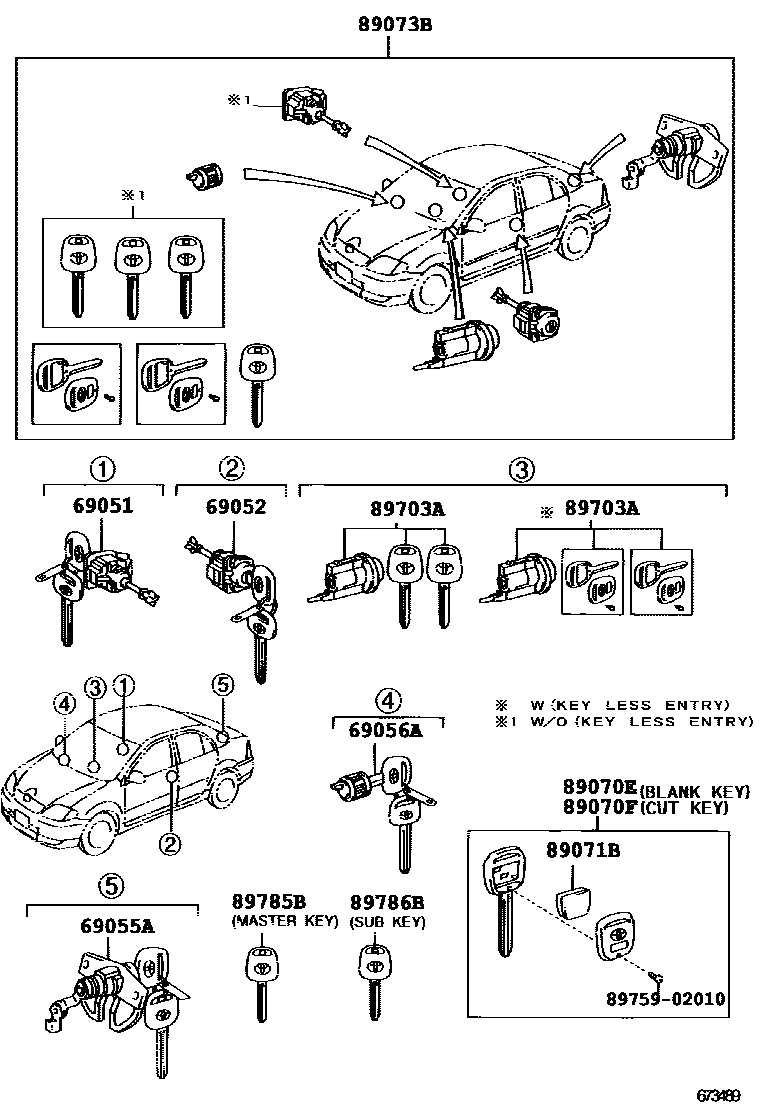

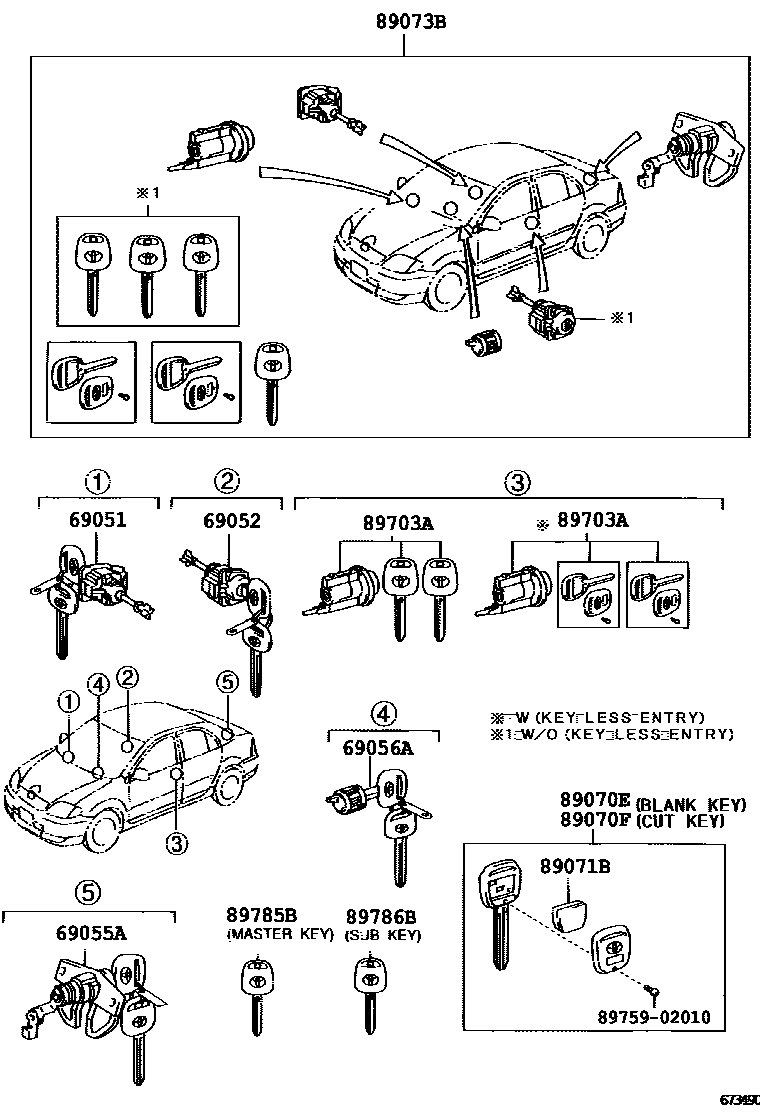

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0W010 · 69051-13230 · 69051-13240 |
| 69052 | Left door lock cylinder and key assembly | 69052-0W010 · 69052-12600 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02070 · 69055-1A410 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13290 |
| 69056A | Glove box lock cylinder and key assembly | 69056-02010 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12580 · 69057-12590 |
| 69503 | Door lock cylinder components | 69005-13680 · 69005-13690 · 69005-13700 · 69005-13710 · 69005-1E440 · 69005-1E620 |
| 89070E | Remote key assembly | 89070-0D020 · 89070-44090 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0D030 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D010 · 89071-60081 |
| 89073B | Lock cylinder assembly with transmitter housing (without module) | 89073-0W030 · 89073-0W040 · 89708-0W040 |
| 89703A | Ignition lock cylinder and key assembly with transceiver | 89073-02040 · 89703-02040 |
| 89745A | Transmitter battery | 89745-40010 |
| 89751A | Transmitter housing cover | 89751-13010 |
| 89785B | transceiver key master transmitter | 89785-05030 · 89785-26020 |
| 89786B | transceiver key secondary transmitter | 89786-05030 · 89786-60050 |
