Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

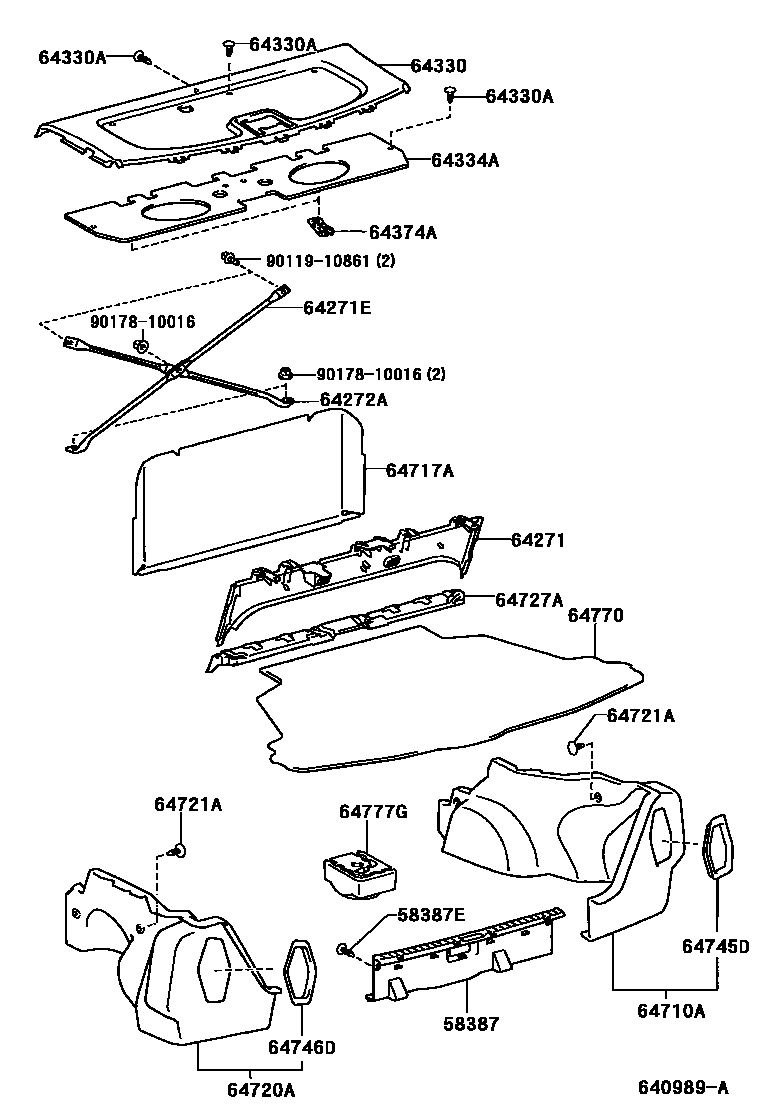

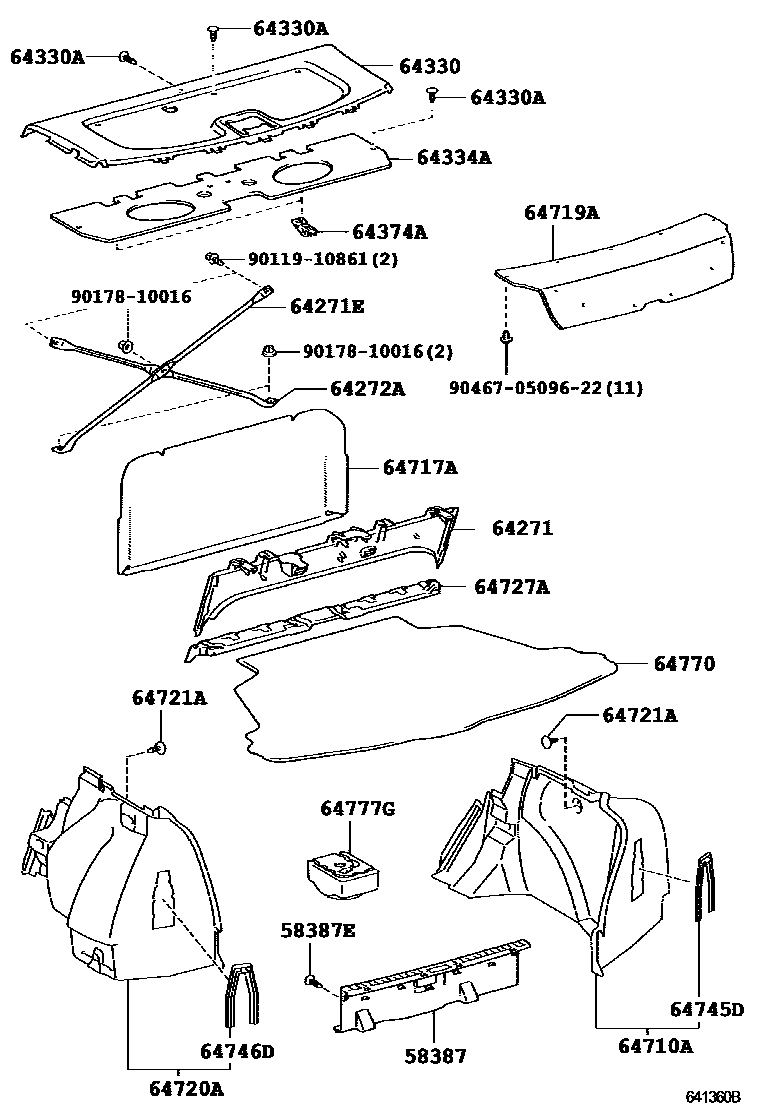

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64271E | compartment partition | 64241-12020 · 64241-12030 |
| 64272A | Left compartment partition | 64242-12021 |
| 64334A | Glove box decorative mat | 64334-12360 |
| 64374A | Glove box decorative panel bracket | 64374-12020 |
| 64727A | Luggage interior decorative mat | 64727-12020 |
| 64777G | Spare tire cushion | 64777-12030 |
