Toyota COROLLA 侧梁 — Figure 6101

Toyota COROLLA EPC diagram 6101, 侧梁, with 5 images and 86 PNC and OE references.

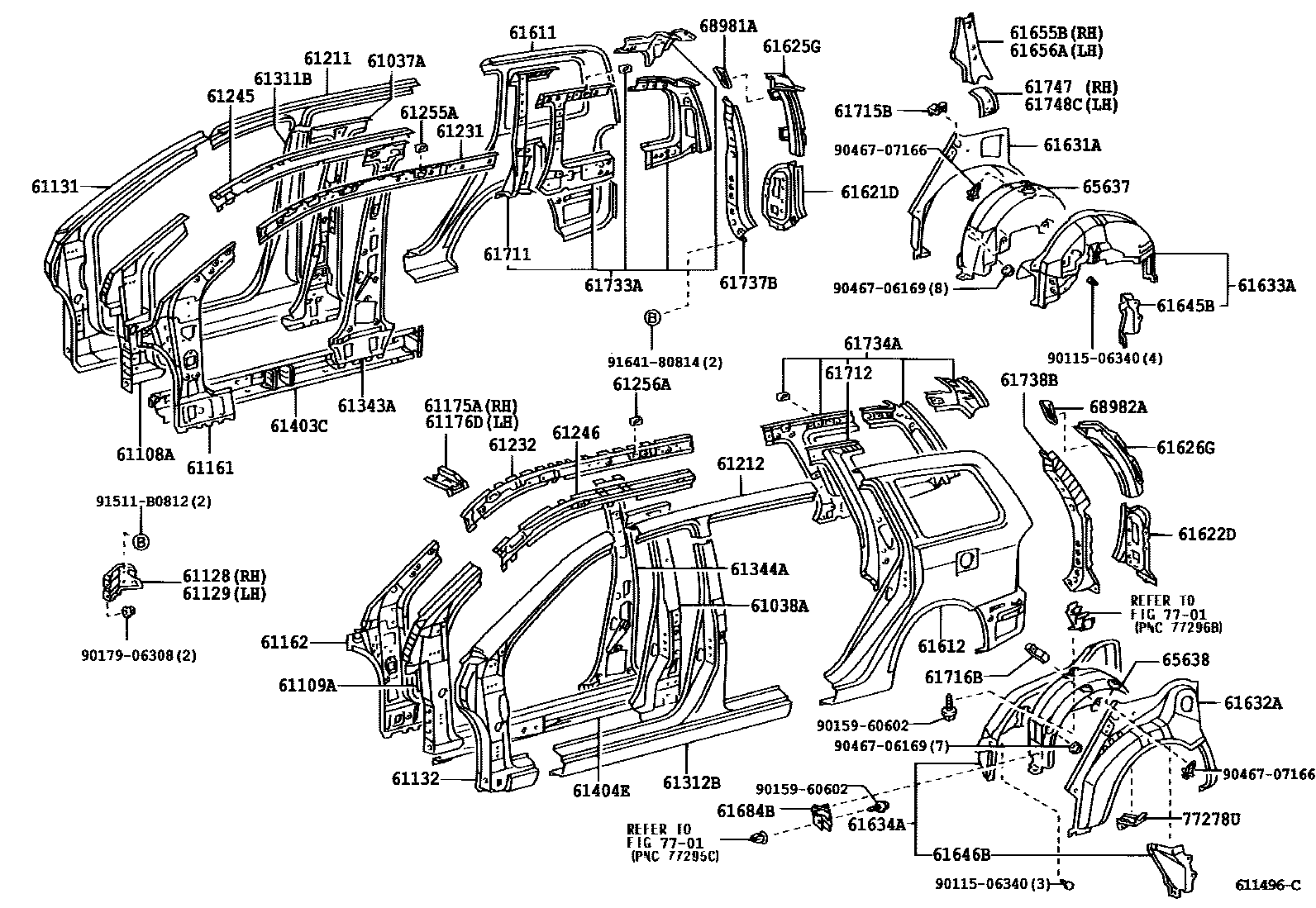

Toyota COROLLA 侧梁 EPC diagram — 611496C
侧梁 — 611496C (200110 – 200405)

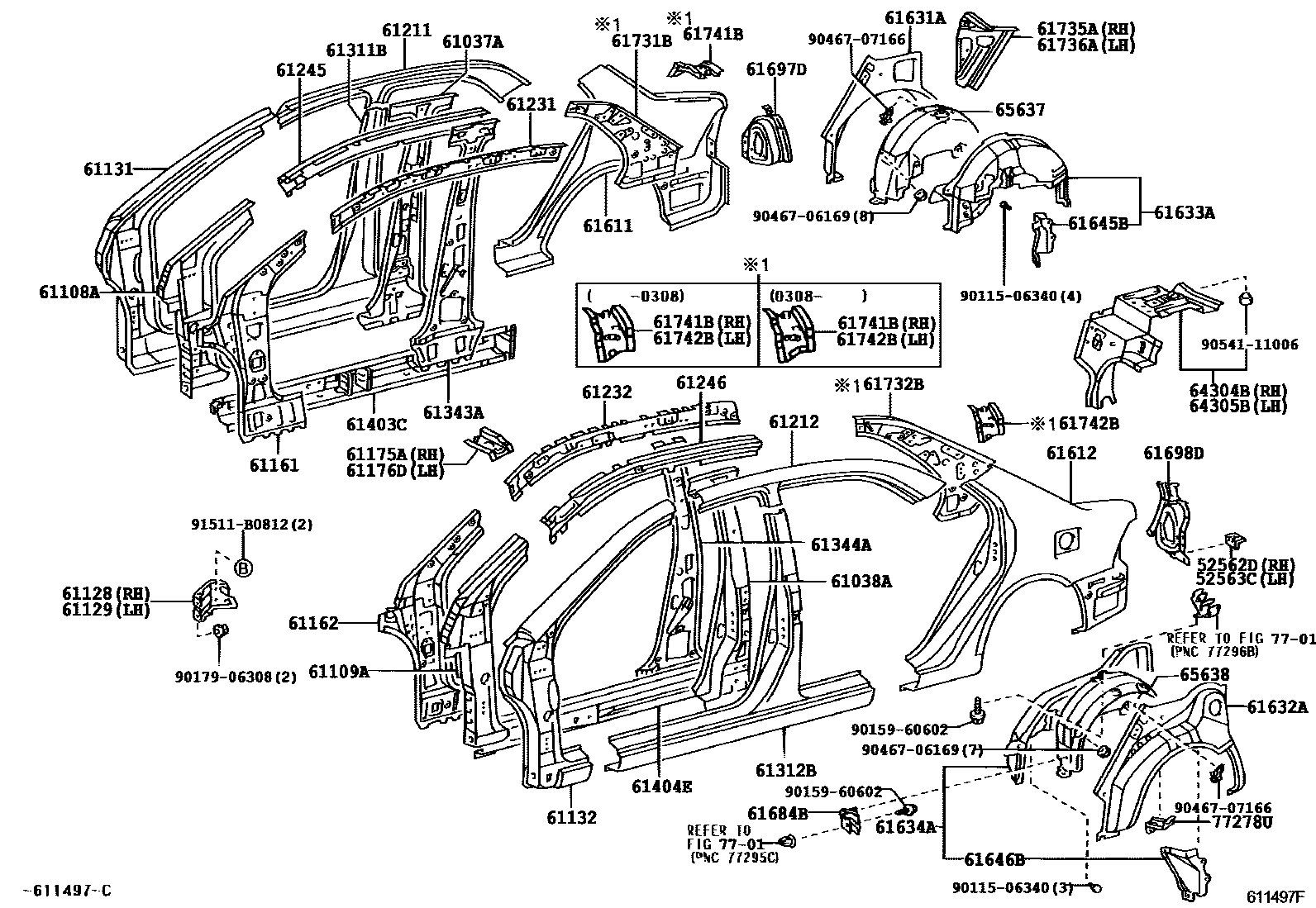

Toyota COROLLA 侧梁 EPC diagram — 611497F
侧梁 — 611497F (200110 – 200405)

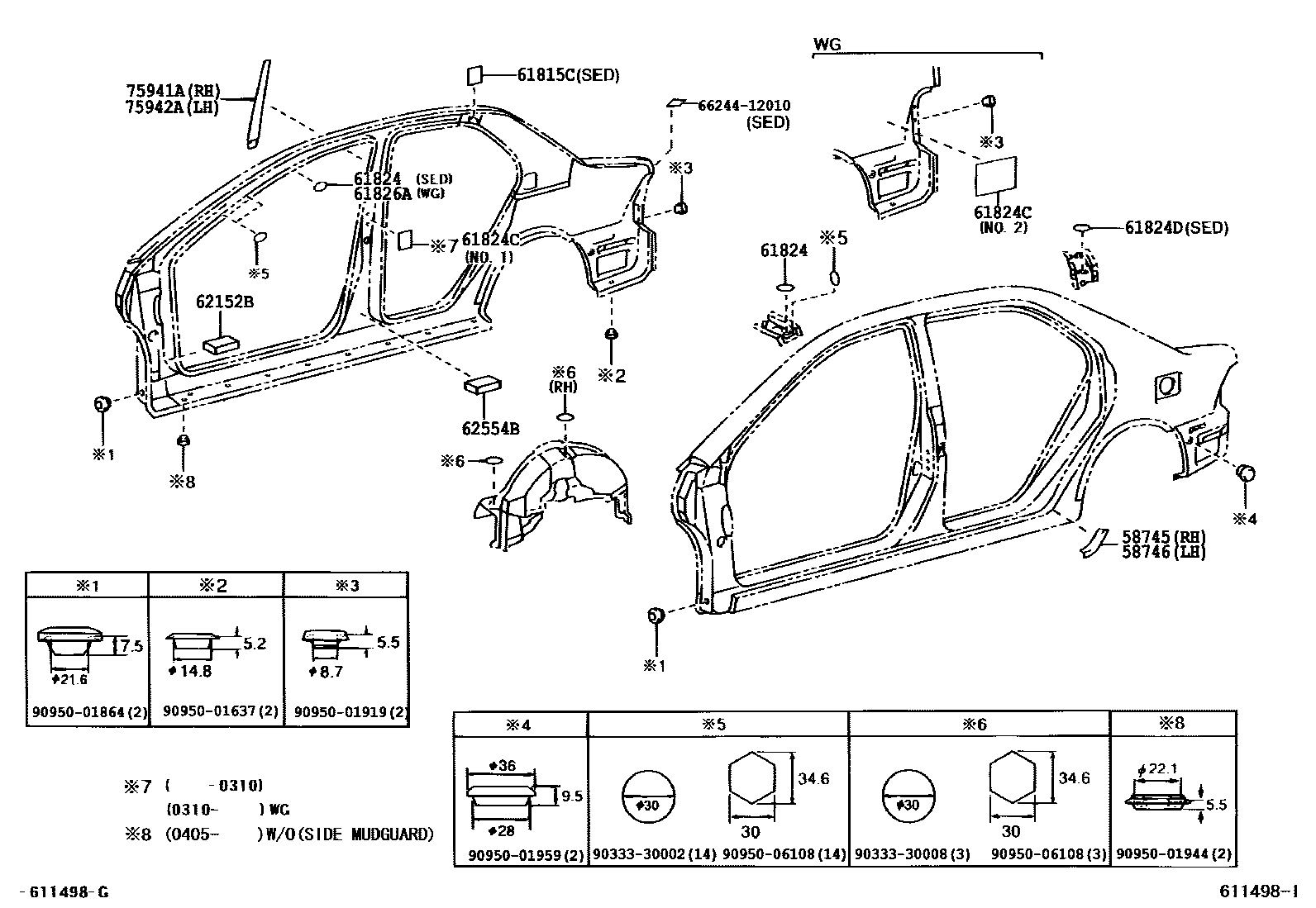

Toyota COROLLA 侧梁 EPC diagram — 611498I
侧梁 — 611498I (200110 – 999999)

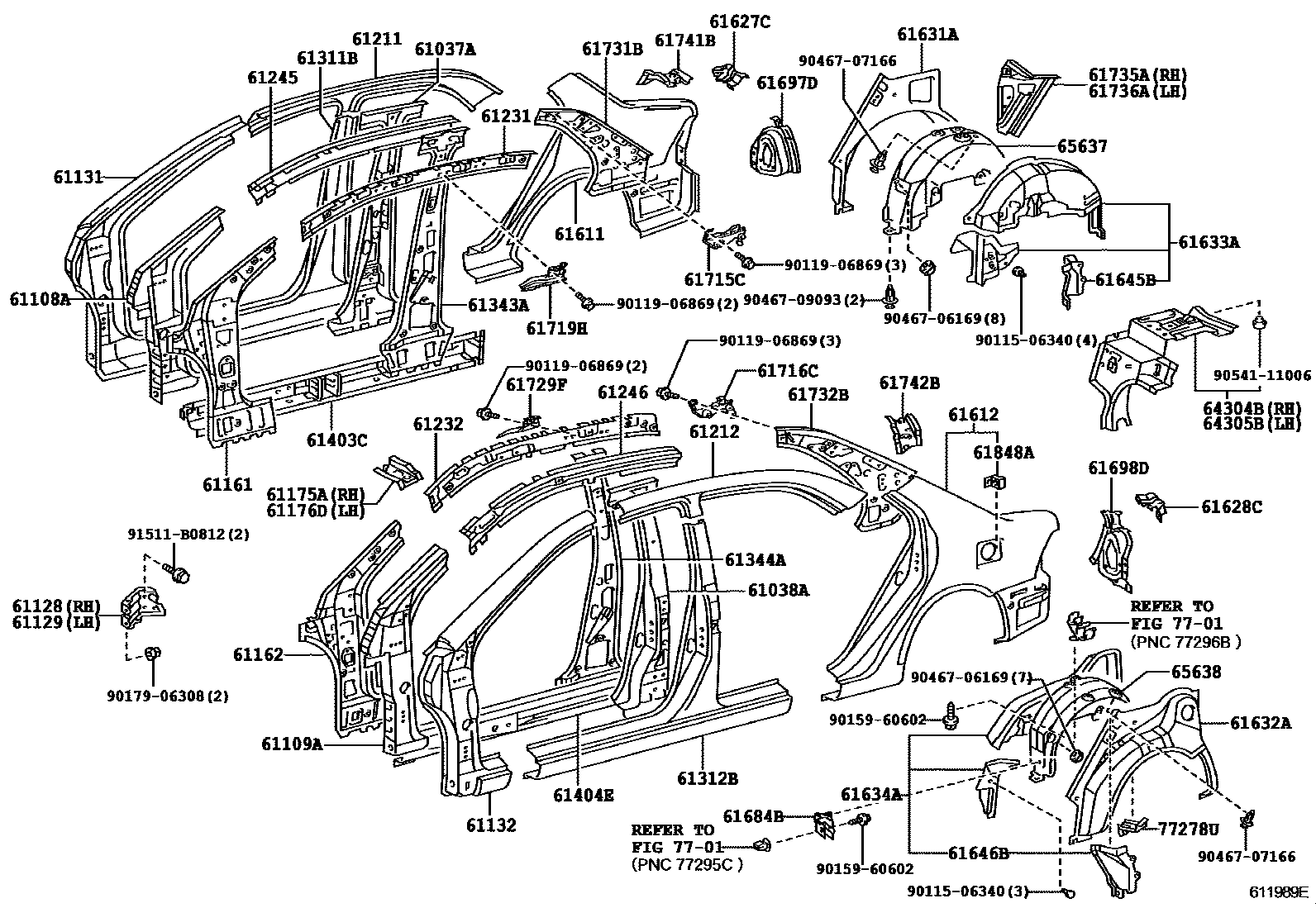

Toyota COROLLA 侧梁 EPC diagram — 611989E
侧梁 — 611989E (200405 – 200512)

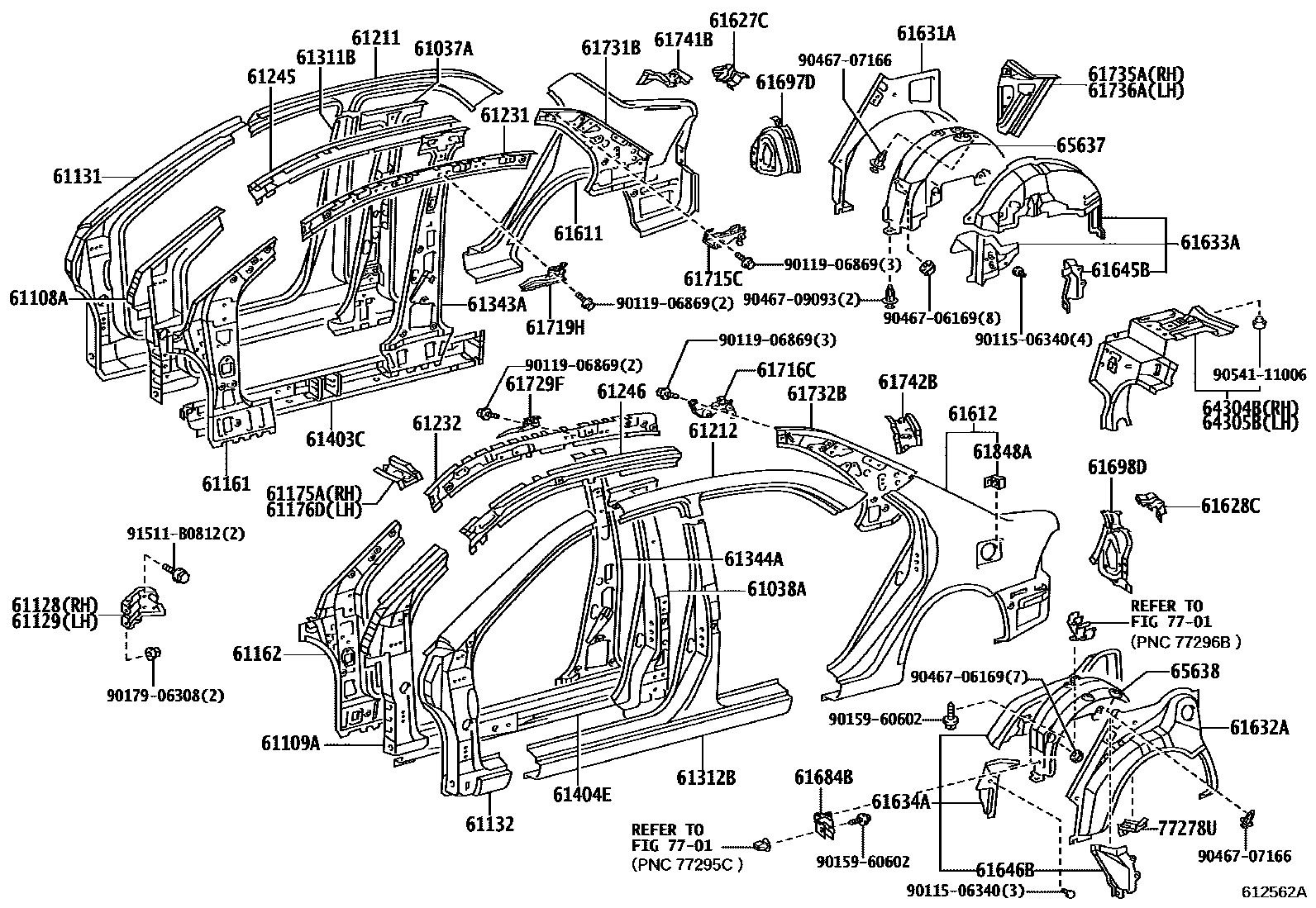

Toyota COROLLA 侧梁 EPC diagram — 612562A
侧梁 — 612562A (200512 – 999999)

PNC and OE references

PNCPart nameOE numbers
52562DRear bumper upper right side fixing bracket52562-12070
52563CRear bumper upper left side fixing bracket52562-12070
58745Right front side panel protector58741-12160
58746Left front side panel protector58742-12140
61037ARight body center pillar reinforcement sub-assembly61037-12903
61038ALeft body center pillar reinforcement sub-assembly61038-12903
61108ARight body front pillar lower reinforcement sub-assembly61108-12230
61109ALeft side body front pillar lower reinforcement sub-assembly61109-12220
61128Right front wall side panel reinforcement61103-12190 · 61103-12200
61129Left front wall side panel reinforcement61104-12220 · 61104-12230
61131Right body outer front upper pillar61131-12600
61132Left body outer front upper pillar61132-12610
61161Right upper body inner front pillar61023-12320 · 61023-12350
61162Left side inner front upper pillar61024-12320 · 61024-12350
61175ANo. 2 right outer front pillar upper reinforcement61175-12140 · 61175-12200
61176DNo. 2 left body exterior front pillar reinforcement61176-12150 · 61176-12201
61211Roof right outer longitudinal beam61211-12410 · 61211-12411 · 61211-13070
61212Roof left outer longitudinal beam61212-12410 · 61212-12411 · 61212-13070
61231Inner longitudinal beam on the right side of the roof61231-13200 · 61231-1A100 · 61231-1A140
61232Roof left inner longitudinal beam61232-12870 · 61232-13180 · 61232-1A020
61245Roof right outer longitudinal beam reinforcement61245-12040 · 61245-12060 · 61245-13030
61246Roof left outer longitudinal beam reinforcement61246-12040 · 61246-12060 · 61246-13030
61255ARoof right outer longitudinal beam panel61255-13020
61256ARoof left outer longitudinal beam panel61255-13020
61311BRight body outer center pillar61311-12330
61312BLeft body outer center pillar61312-12370
61343ARight body inner center pillar61343-12240
61344ALeft body inner center pillar61344-12190 · 61344-12240
61403CRight door outer sill reinforcement sub-assembly61403-12010
61404ELeft door outer sill reinforcement sub-assembly61404-12011
61611Right side hoarding61601-13531 · 61601-13650 · 61601-1H130 · 61601-1H131
61612left side panel61602-13591 · 61602-13710 · 61602-1E860 · 61602-1E861
61621DBack door right opening slot61621-13050
61622DRear door left opening slot61622-13050
61625GRight rear side panel extension61625-13060
61626GLeft rear side panel extension61626-13060
61627CRight side enclosure inner panel reinforcement61627-12901
61628CLeft side enclosure inner panel reinforcement61628-12901
61631ARight wheel cover outer panel61631-12410
61632ALeft side wheel cover outer panel61632-12430
61633ARight wheel housing lining panel61607-12928 · 61607-12935 · 61607-12936 · 61607-12939 · 61607-12940
61634ALeft side wheel housing lining panel61608-12922 · 61608-12926 · 61608-12934 · 61608-12935
61645BRight rear side wheel housing corner panel61645-12150
61646BLeft rear side wheel housing corner panel61646-12140
61655BRight side wheel cover inner corner panel61655-13020
61656ALeft side wheel housing inner corner panel61656-13020 · 61656-13021
61684BNo. 1 left rear fender external panel bracket61684-12040
61697DRight side enclosure end cover61697-12900 · 61697-12904
61698DLeft side enclosure end cover61698-12900 · 61698-12904
61711Roof right side outer panel61711-13120 · 61711-13121
61712Roof left outer panel61712-13120 · 61712-13121
61715BRight front roof inner extension61715-13050
61715CRoof right bracket61715-12090
61716BLeft front roof inner extension61715-13050
61716CRoof left bracket61716-12100
61719HRoof right side longitudinal beam bracket sub-assembly61707-12040
61729FRoof left side longitudinal beam bracket sub-assembly61708-12030
61731BRoof right inner panel61731-12680 · 61731-12760 · 61731-12770
61732BRoof left inner panel61732-12640 · 61732-12710 · 61732-12720 · 61732-12721
61733ARight front roof inner panel61733-13900 · 61733-13903
61734ALeft front roof inner panel61734-13900 · 61734-13903
61735ARight rear roof inner panel61735-12380
61736ALeft rear roof inner panel61736-12370
61737BRight inner lower panel of the roof61737-13060
61738BRoof left inner lower panel61738-13050
61741BRear window opening right reinforcement61741-12120 · 61741-12121
61742BRear window opening left reinforcement61742-12090 · 61742-12091
61747Roof right inner panel to wheel housing bracket61747-13050
61748CRoof left inner panel to wheel arch bracket61748-13080
61815CInner roof cover61815-28010 · 61815-32020 · 61826-52020
61824Noise Control Panel No. 161824-12040 · 61824-12060
61824CNo. 1 silencer panel gasket61824-13020 · 61824-50020 · 61824-52040
61824DNoise Control Panel No. 161824-12040 · 61824-12060
61826ANoise Control Panel No. 361826-12020 · 61826-52020
61848ALeft side panel fixing61848-52010
62152BNo. 2 silencer pad on cowl side62152-12050 · 62152-12060
62554BNo. 4 column pad62554-12170 · 62554-12180
64304BGlove box bracket right reinforcement sub-assembly64304-12040
64305BGlove box bracket left reinforcement sub-assembly64305-12040
65637Right rear wheel house lining65637-13010
65638Left rear wheel house lining65638-13010
68981ABack door right side support rod fixing68981-13030
68982ABack door left support rod fixing68982-13030
75941ARight center pillar trim75941-12010 · 75941-12011
75942ARight center pillar trim75942-12010 · 75942-12011
77278UFuel tank filler pipe protection device bracket77278-32050
