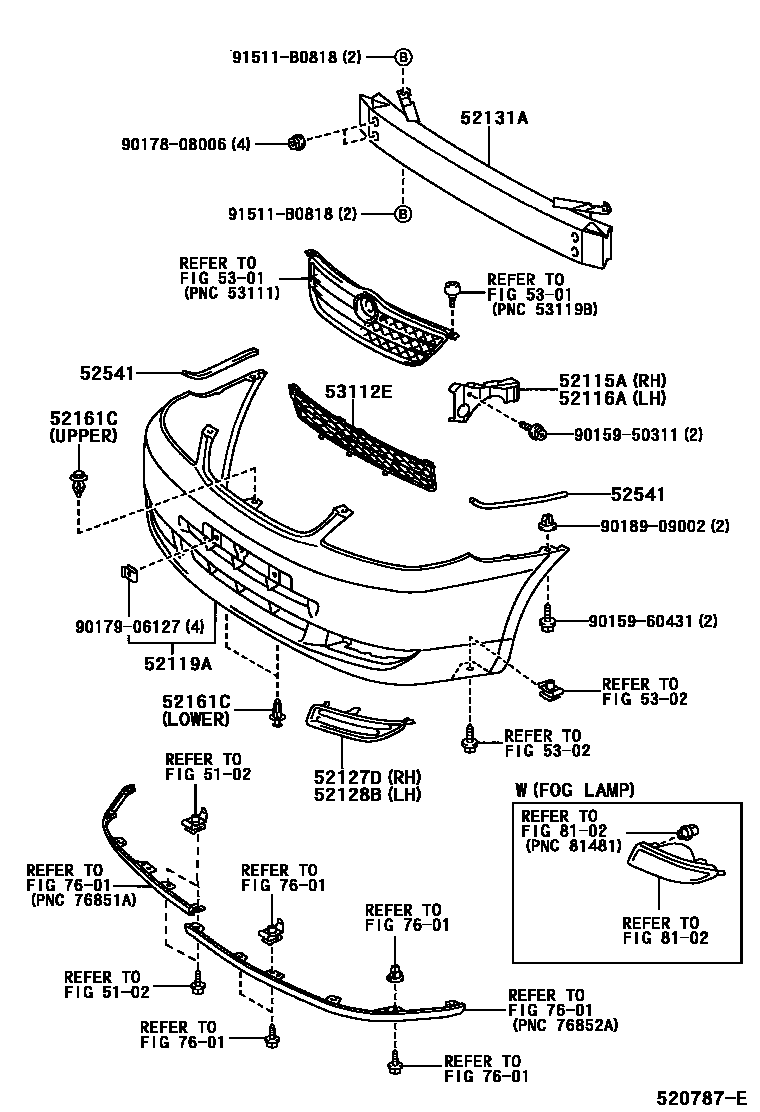

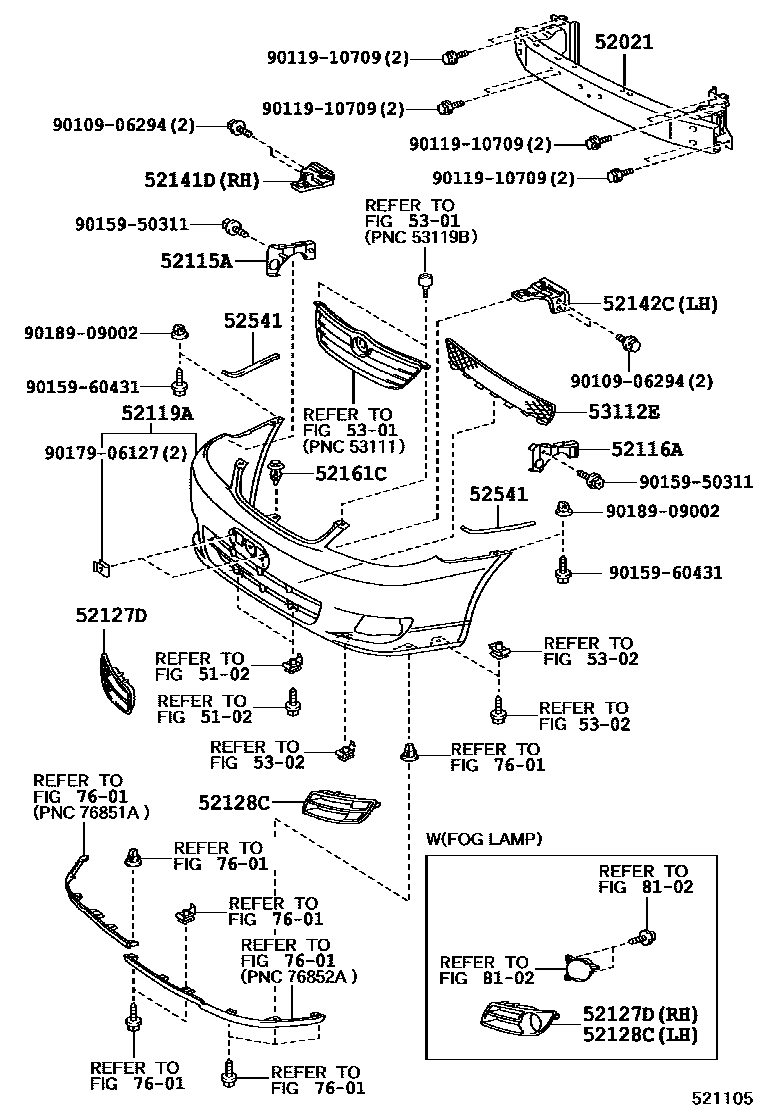

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-13030 |
| 52115A | Front bumper right side bracket | 52115-12380 |
| 52116A | Front bumper left bracket | 52116-12340 |
| 52119A | front bumper cover | 52119-12930 · 52119-12931 · 52119-13907 · 52119-1E920 |
| 52127D | Front bumper right hole cover | 52127-12150 · 52127-12170 · 52127-12200 |
| 52128B | Front bumper left hole cover | 52128-12070 |
| 52128C | Front bumper left hole cover | 52128-12090 · 52128-12100 · 52128-12110 · 52128-12120 |
| 52131A | Front bumper reinforcement | 52021-13020 |
| 52141D | Front bumper right side stay | 52081-12010 |
| 52142C | Front bumper left stay | 52082-12010 |
| 52161C | front bumper insert | 52161-16010 · 90467-09093 |
| 52541 | front bumper protector | 52541-12020 |
| 53112E | No. 1 radiator lower grille | 53112-02050 · 53112-12110 |
