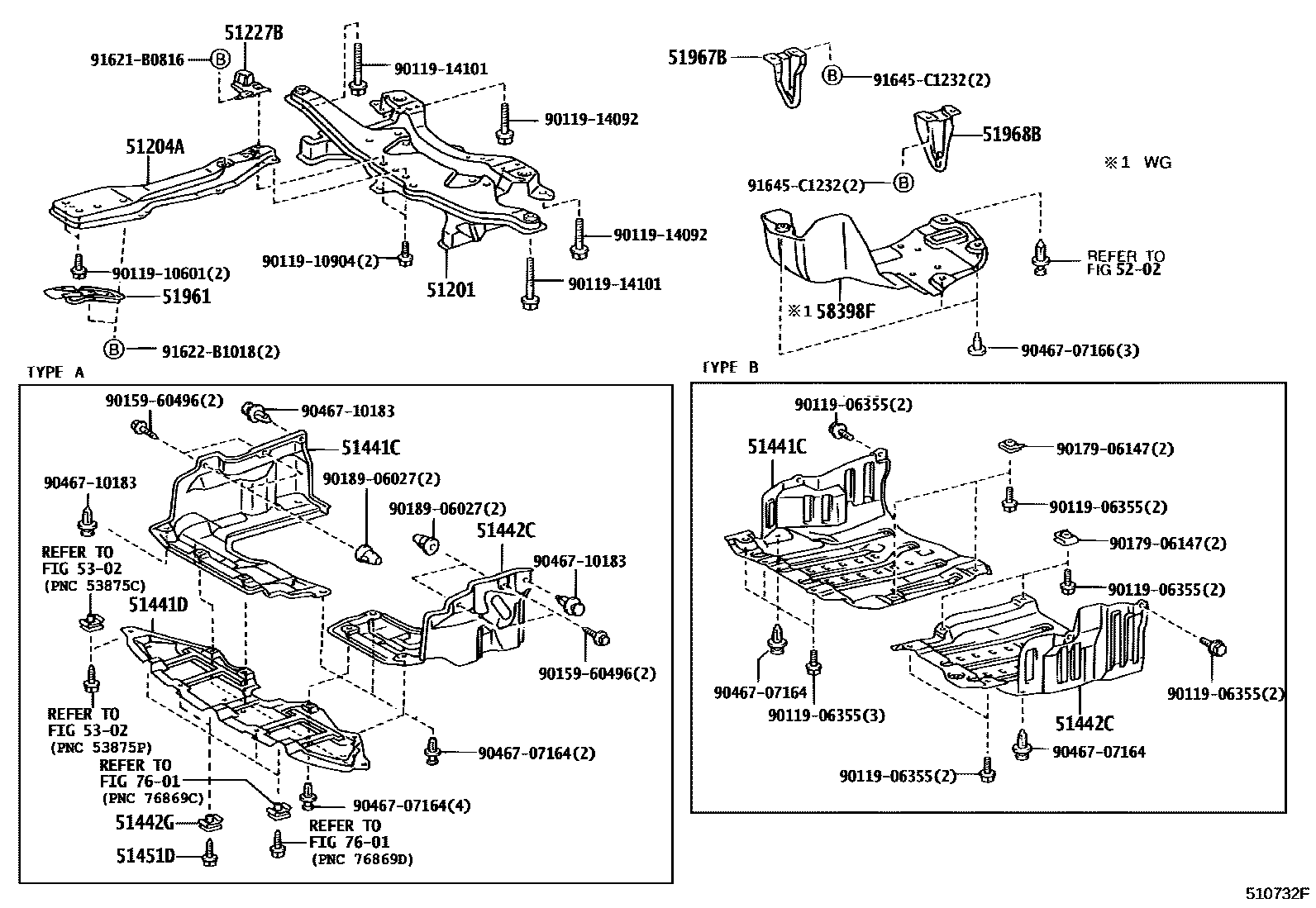

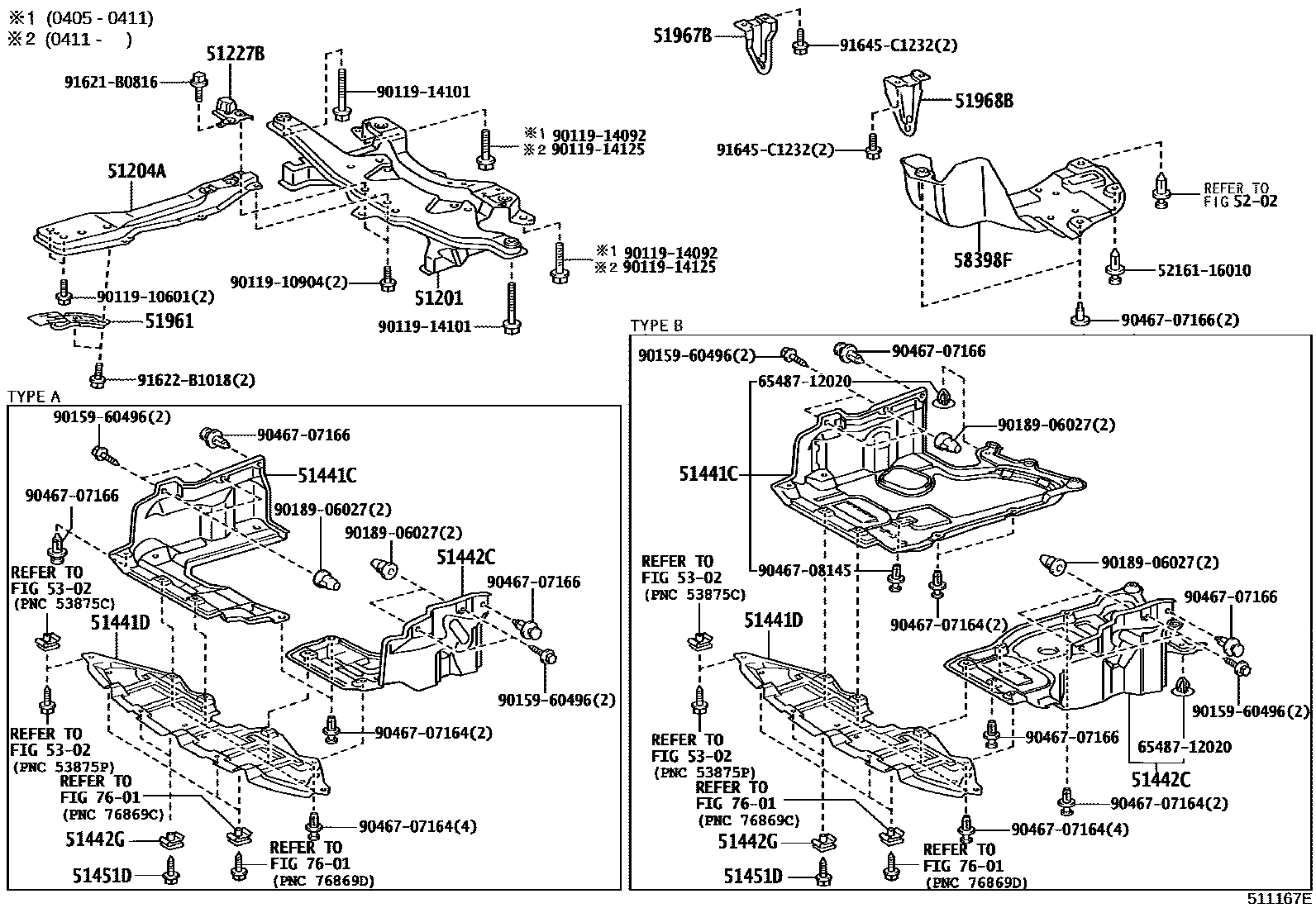

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-20350 · 51201-20351 |
| 51204A | Engine center mount beam sub-assembly | 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-12080 · 51227-12081 |
| 51441C | Engine right bottom cover | 51408-12080 · 51410-12040 · 51410-12060 |
| 51441D | engine cover | 51451-12020 |
| 51442C | Engine left bottom cover | 51409-12060 · 51420-12030 · 51420-12040 · 51420-12050 |
| 51442G | No. 1 engine bottom cover clip | 90467-05138 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51961 | No. 1 hook | 51960-13010 |
| 51967B | right rear transport hook | 51967-12270 |
| 51968B | Left rear transport hook | 51968-12170 |
| 58398F | No. 1 floor under cover | 58398-02020 · 58398-12020 |
