Toyota COROLLA 制动助力器和真空管 — Figure 4703

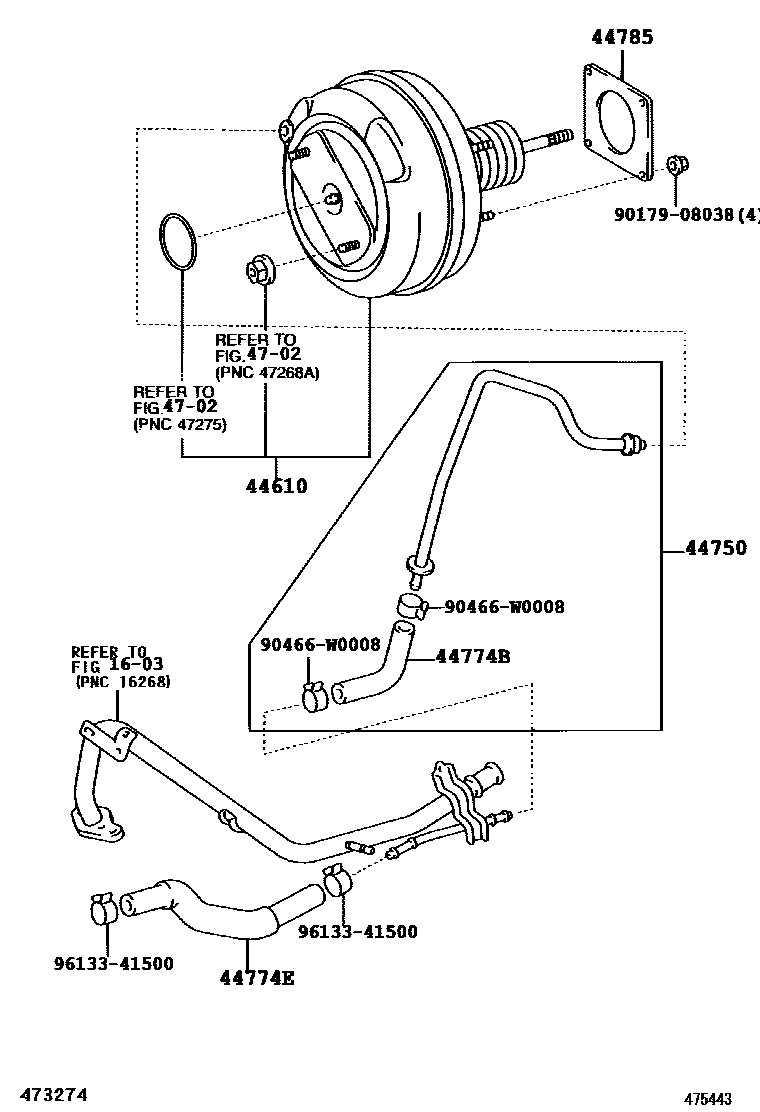

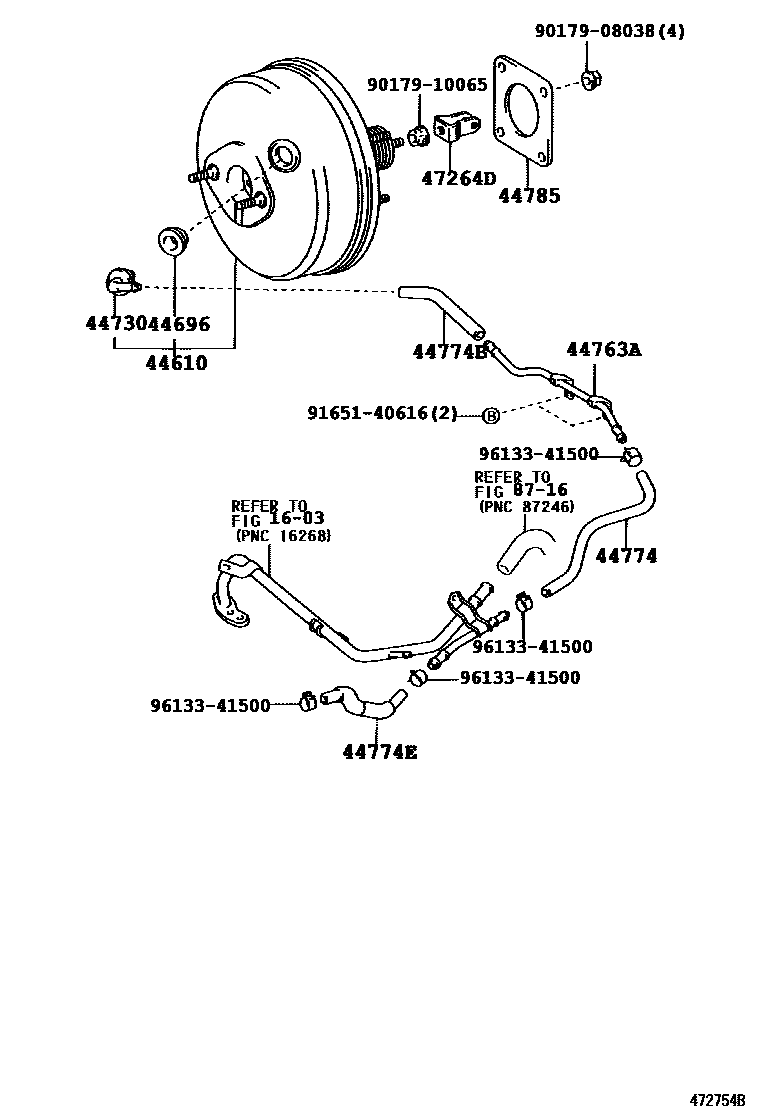

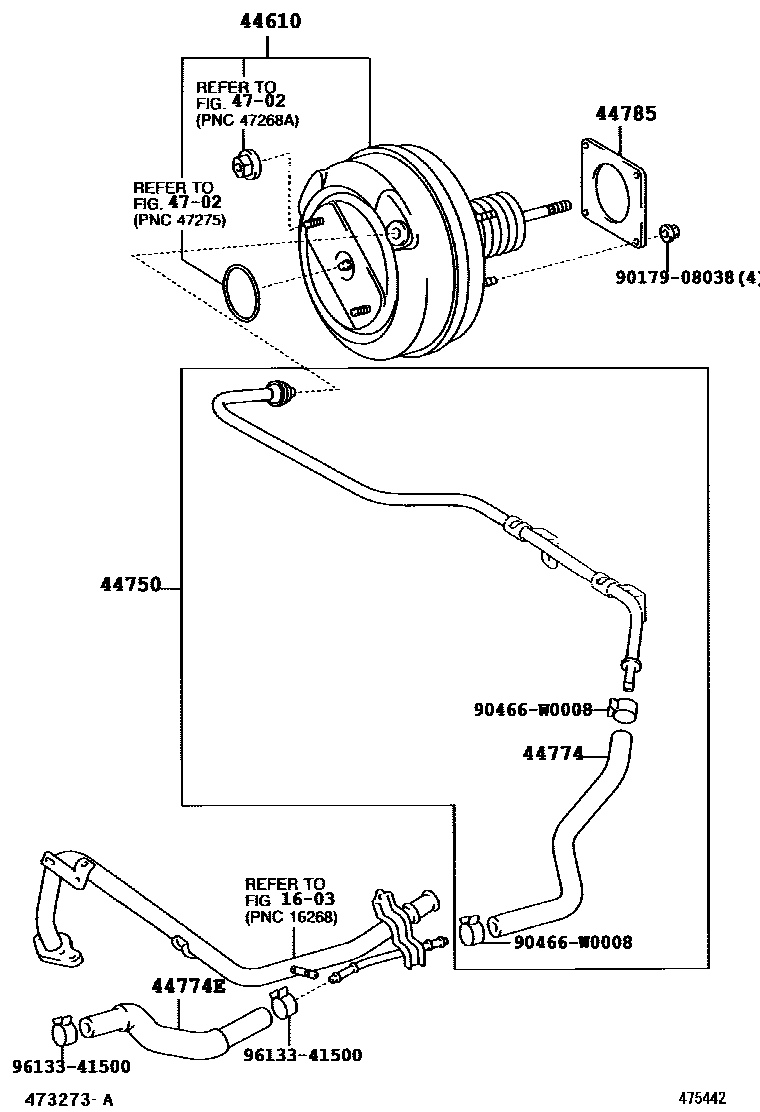

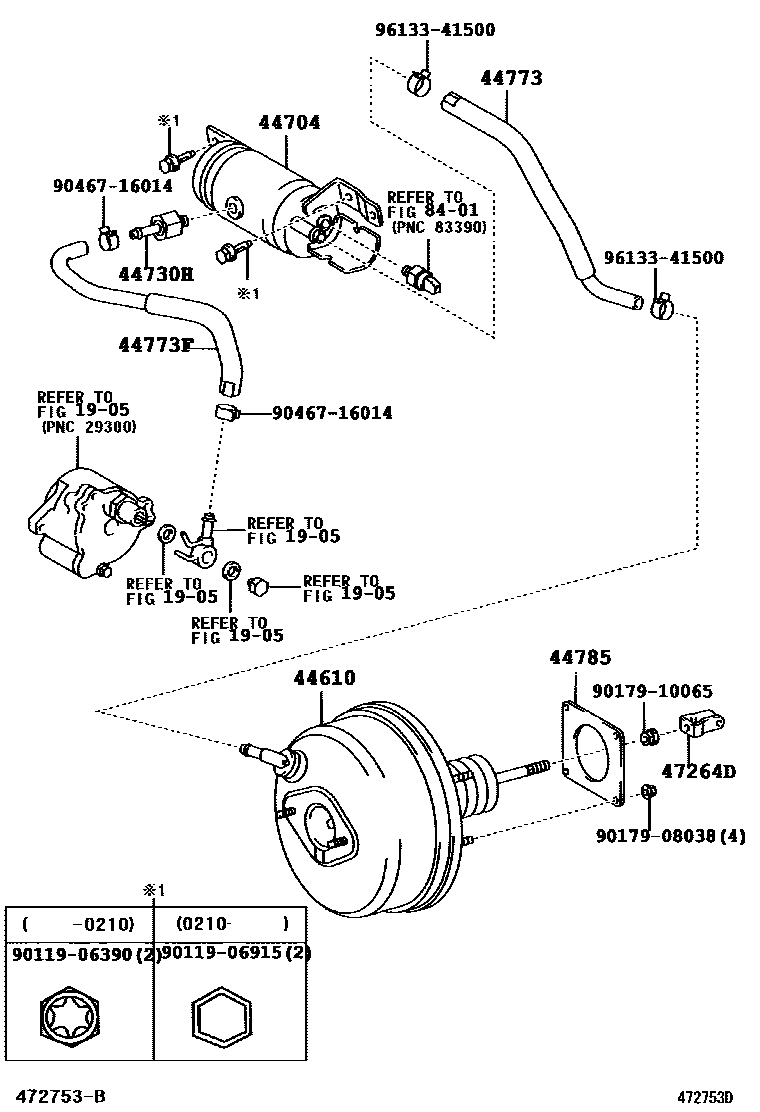

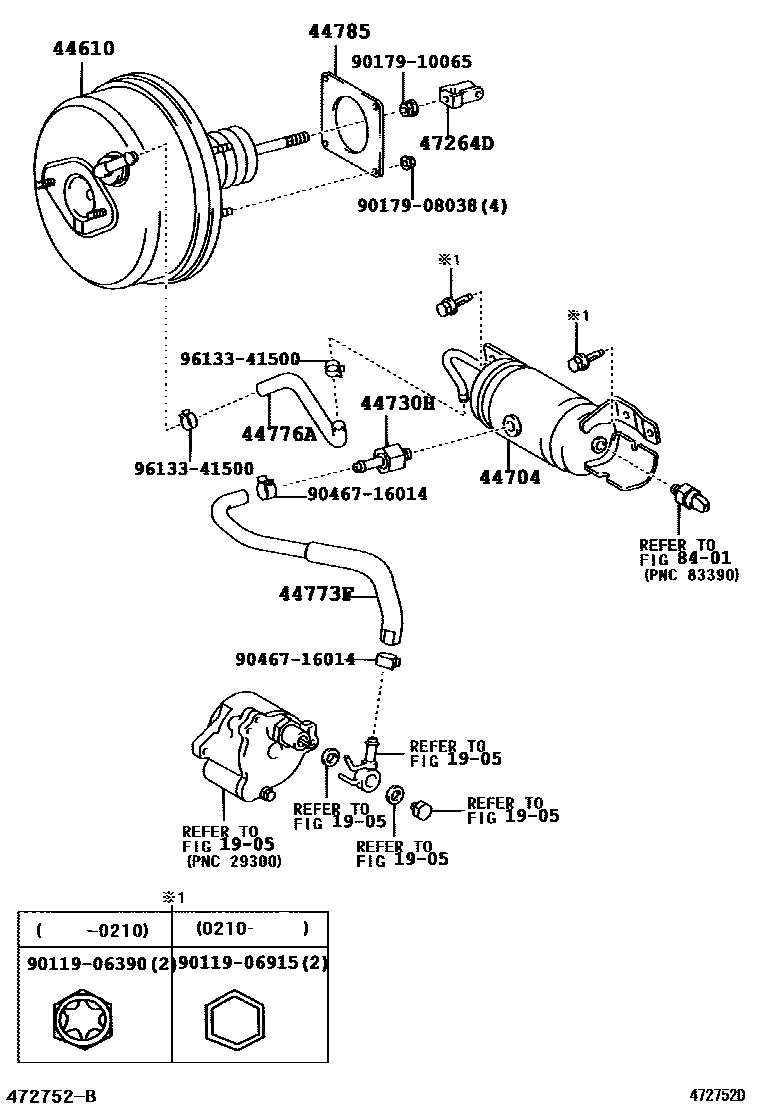

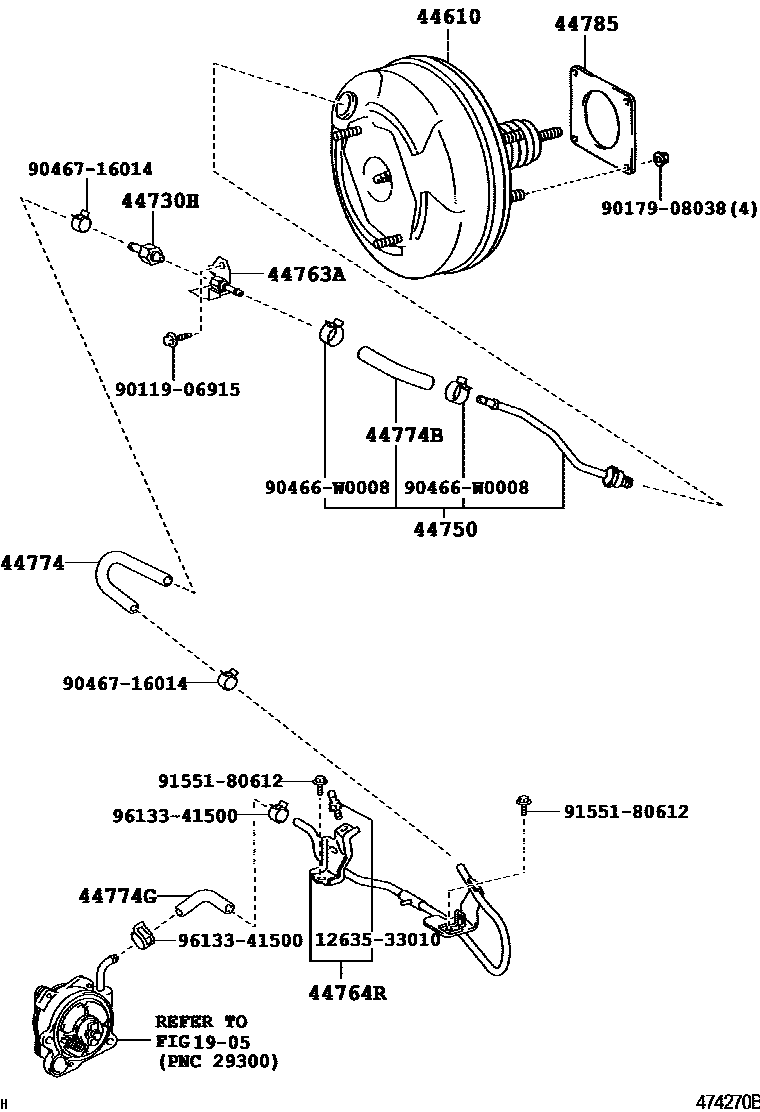

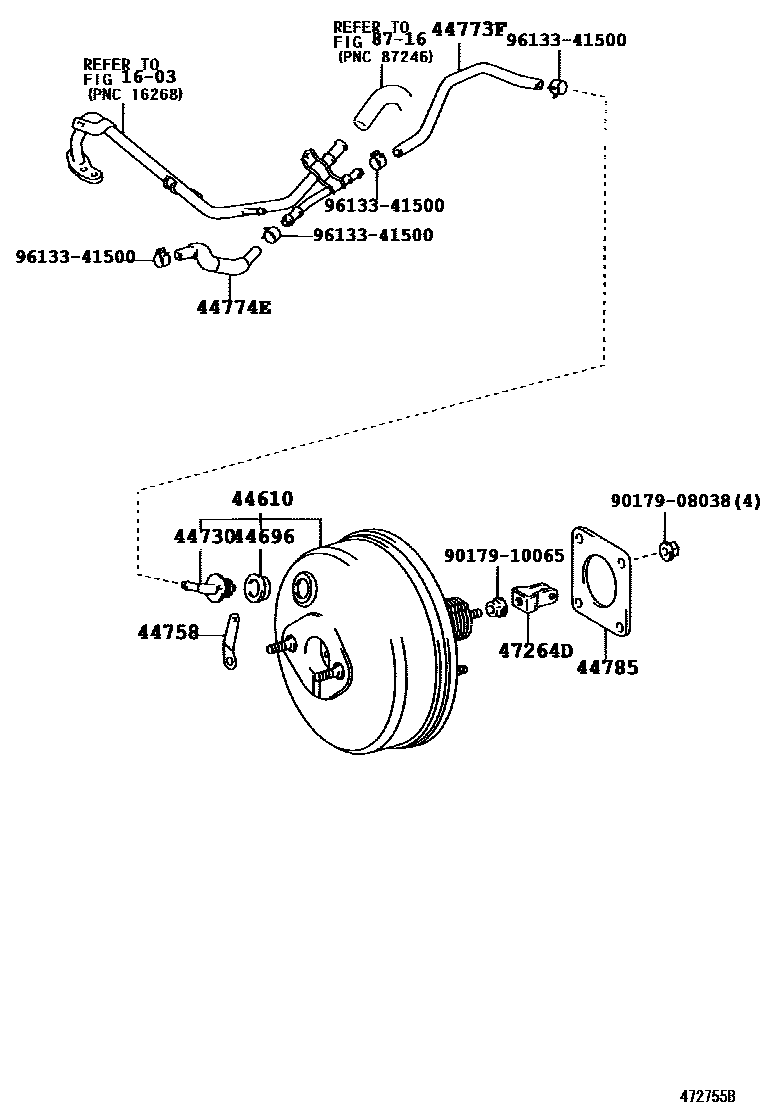

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09070 · 44610-09080 · 44610-09100 · 44610-09360 · 44610-09370 · 44610-09380 · 44610-13080 · 44610-13090 · 44610-13110 · 44610-13120 |
| 44696 | One-way valve seal | 90480-24015 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-13020 · 44704-13030 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-28010 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 · 44730-60050 |
| 44750 | Vacuum hose assembly | 44750-02080 · 44750-02150 · 44750-02160 |
| 44758 | Vacuum check valve bracket | 44758-42010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 · 44763-12370 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44773 | No. 2 vacuum hose | 44773-13050 |
| 44773F | Hoses (connector to check valve) | 44773-12710 · 44773-12750 |
| 44774 | Hoses (joints to connector tubes) | 44774-12420 · 44774-12480 |
| 44774B | Hoses (joints to connector tubes) | 44774-02040 · 44774-12500 · 95446-09180 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 |
| 44774G | Hoses (connector to solenoid valve) | 44774-52021 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-13010 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63010 |
