Toyota COROLLA 制动总泵 — Figure 4702

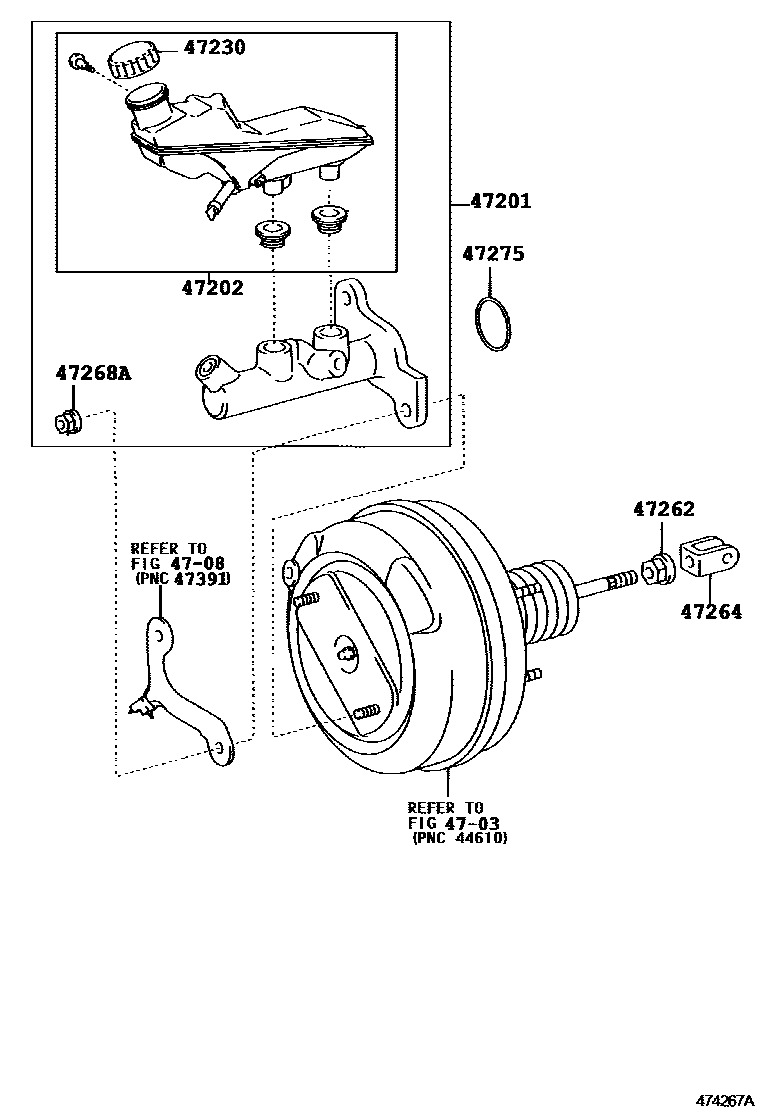

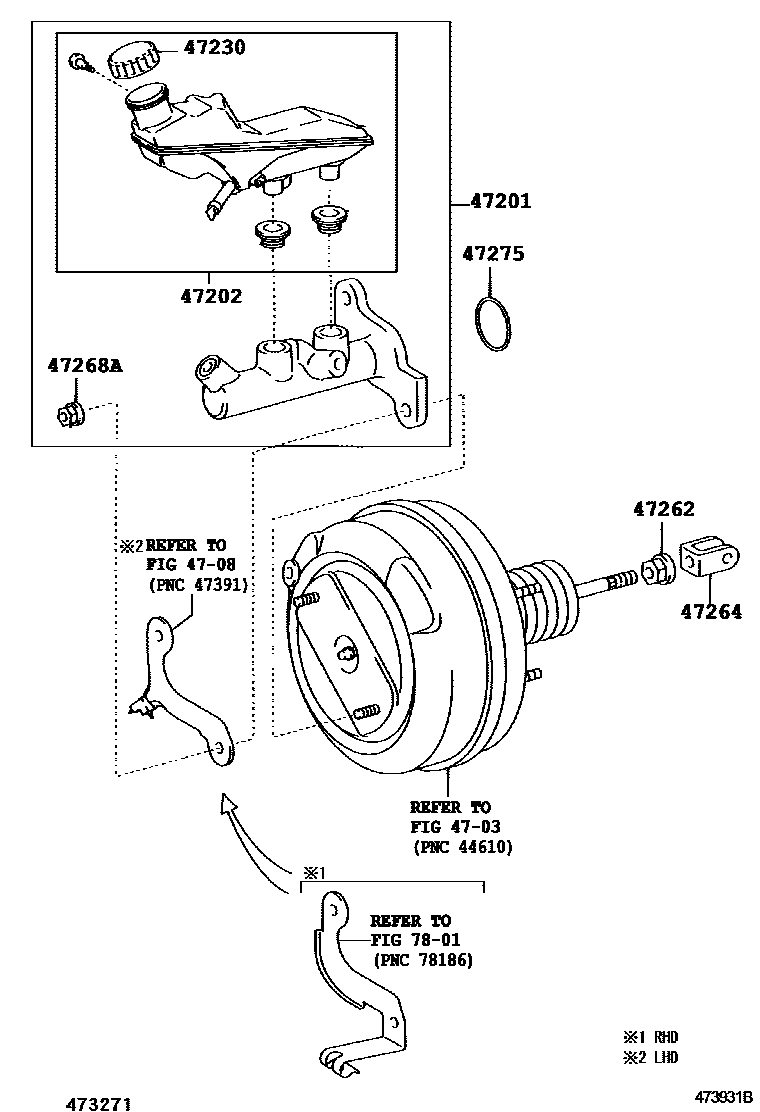

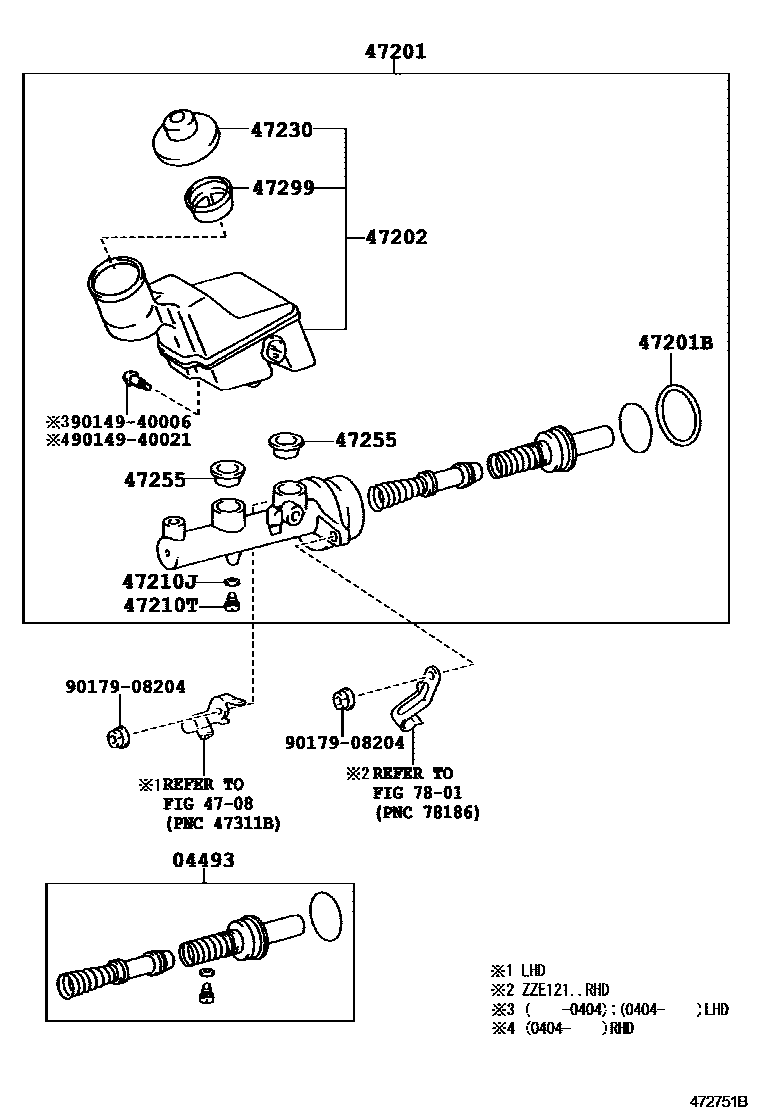

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-1A010 |
| 47201 | Brake master cylinder sub-assembly | 47201-09040 · 47201-09050 · 47201-09060 · 47201-09070 · 47201-09250 · 47201-09260 · 47201-09270 · 47201-1A340 · 47201-1A360 · 47201-1A370 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09010 · 47220-09020 · 47220-12130 · 47220-12131 · 47220-12140 · 47220-12150 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02100 · 47230-12040 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47262 | master cylinder push rod nut | 47262-02010 · 47262-02011 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-02020 · 47264-02050 |
| 47268A | brake master cylinder nut | 47268-02010 · 47268-0K030 |
| 47275 | brake master cylinder gasket | 47275-02010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
