Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

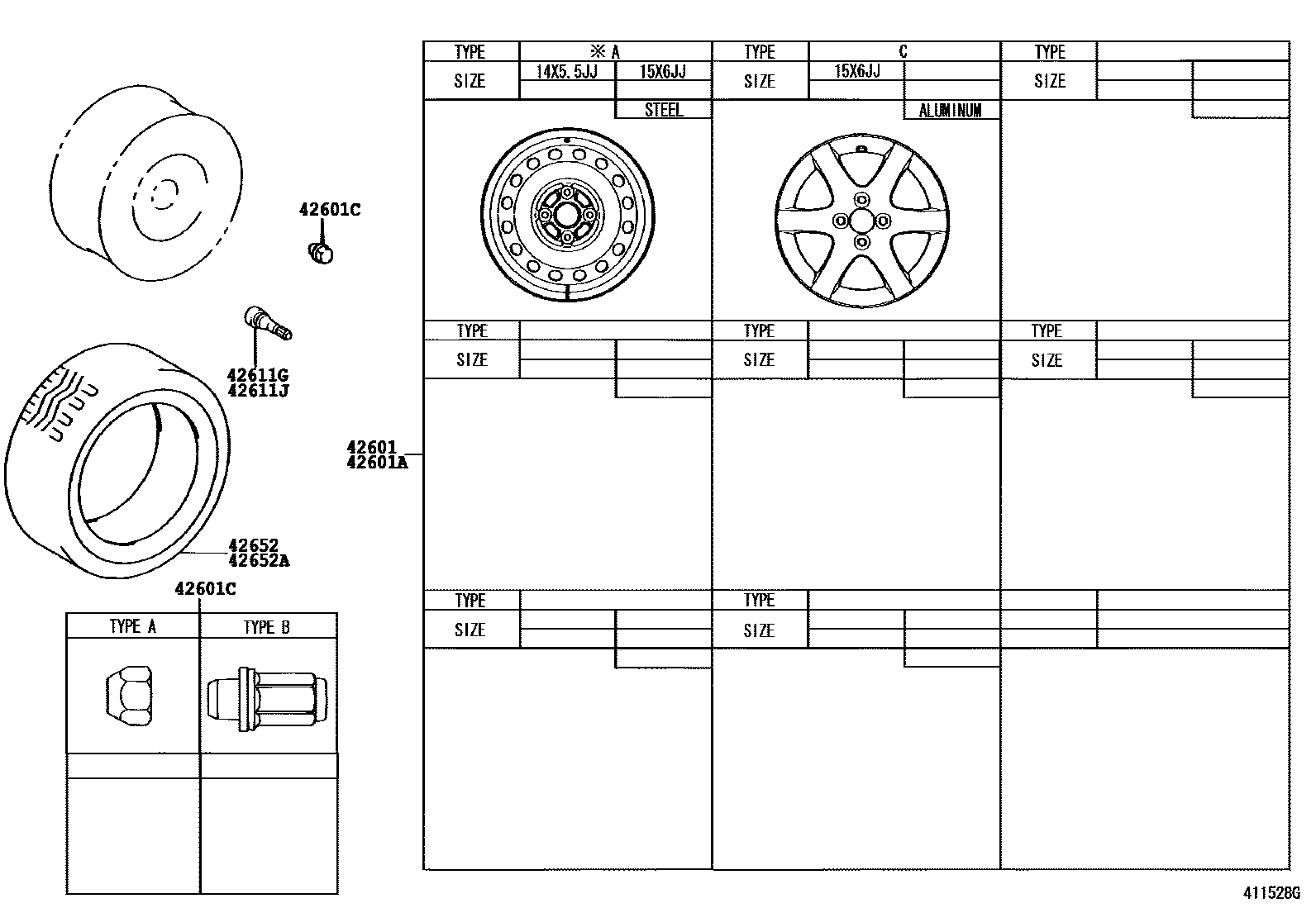

| 42601 | spoke wheel | 42611-1A450 · 42611-1A480 · 42611-1A510 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A450 · 42611-1A480 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 |

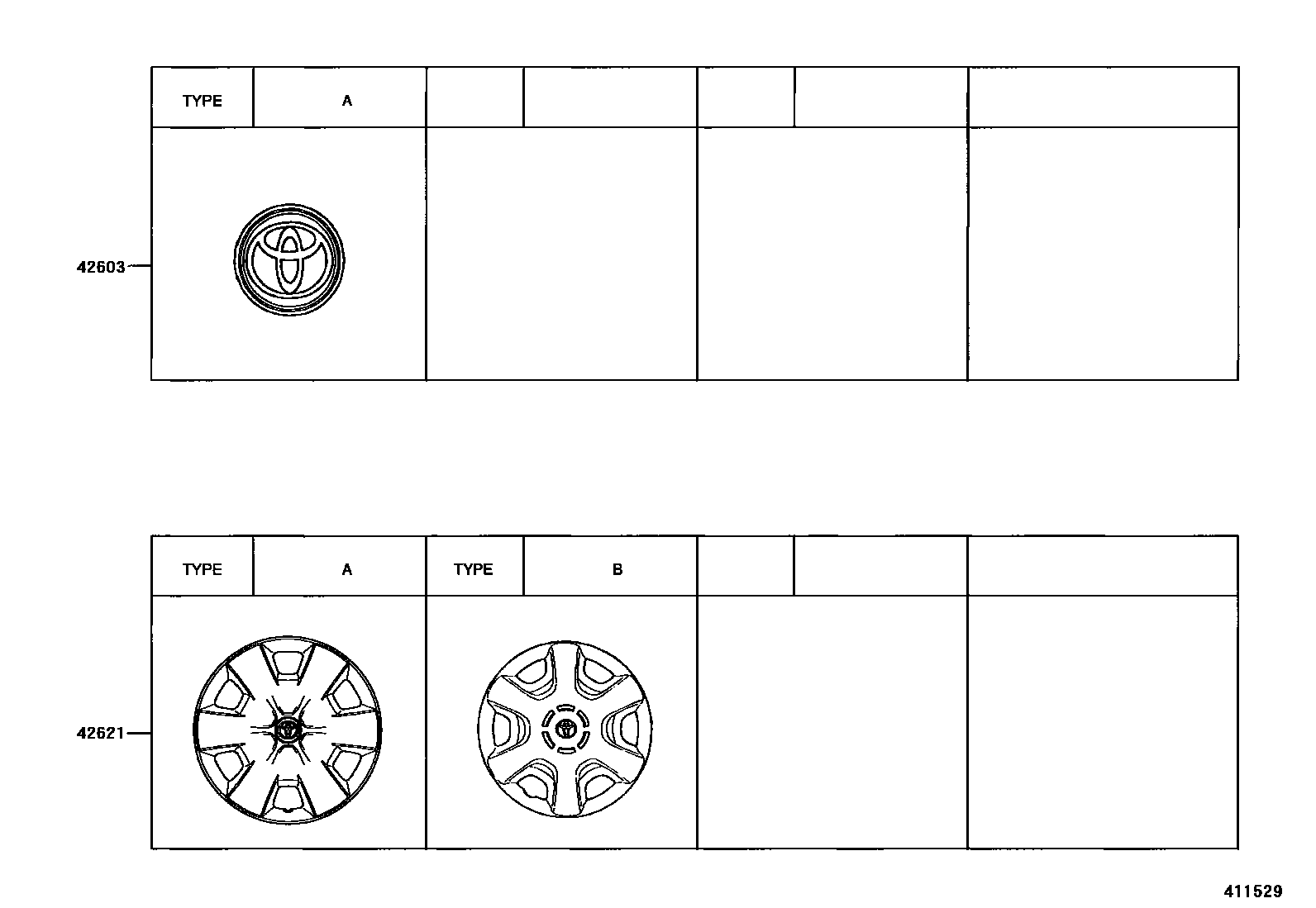

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12710 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12620 · 42602-12650 |
| 42652 | tires | 42652-1A570 · 42652-1A571 |
| 42652A | Tire (for Spare Wheel) | 42652-1A570 · 42652-1A571 |
