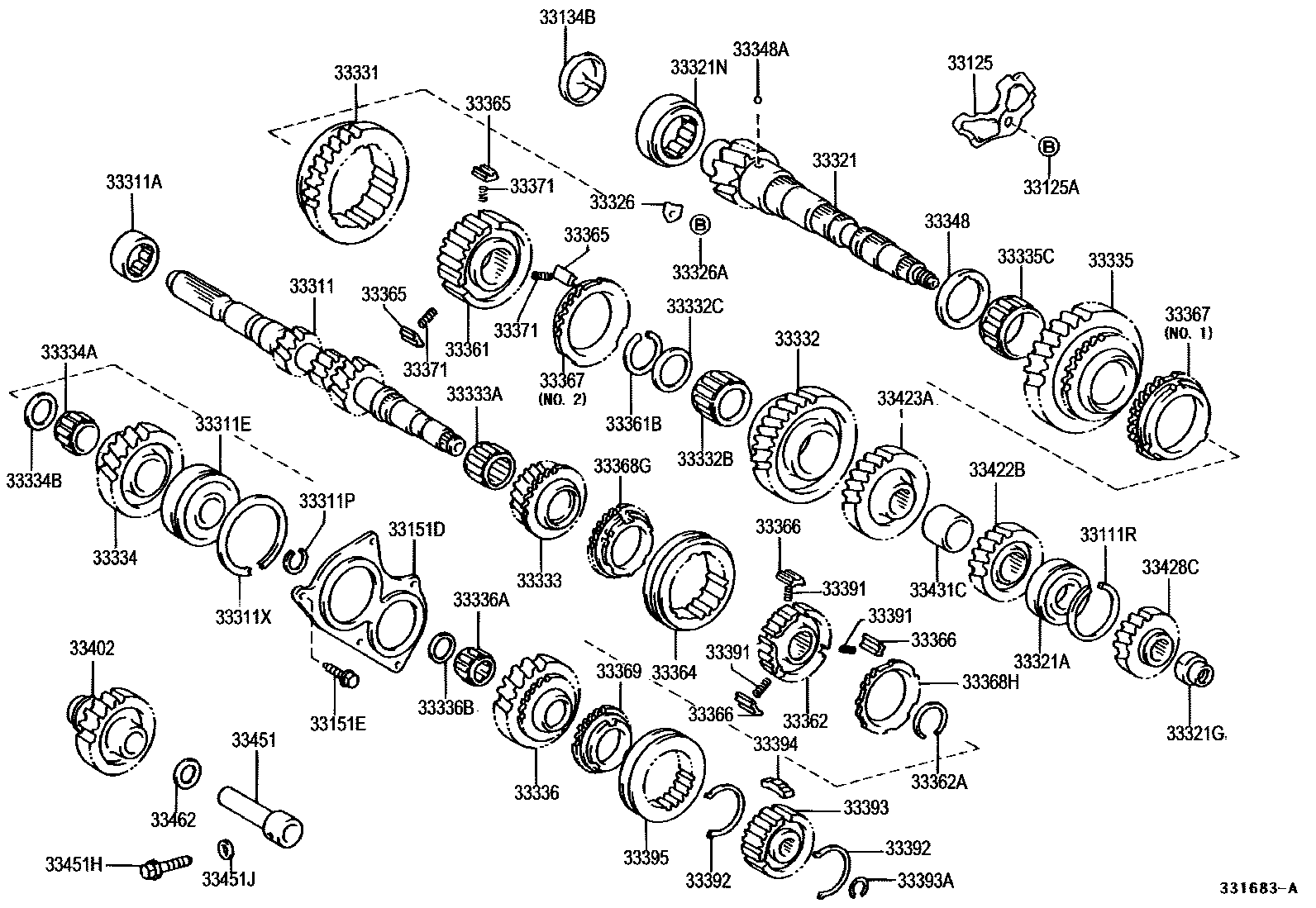

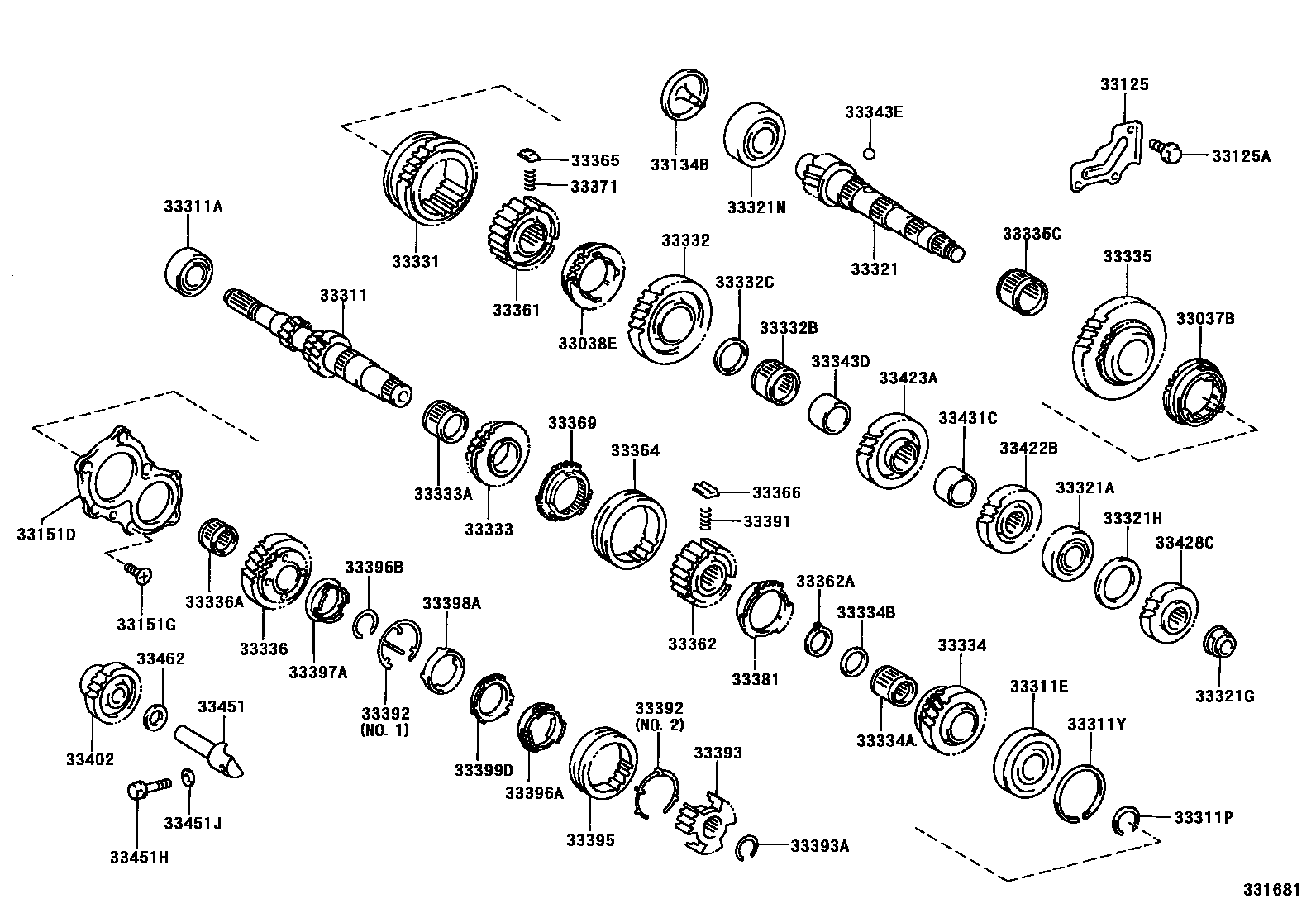

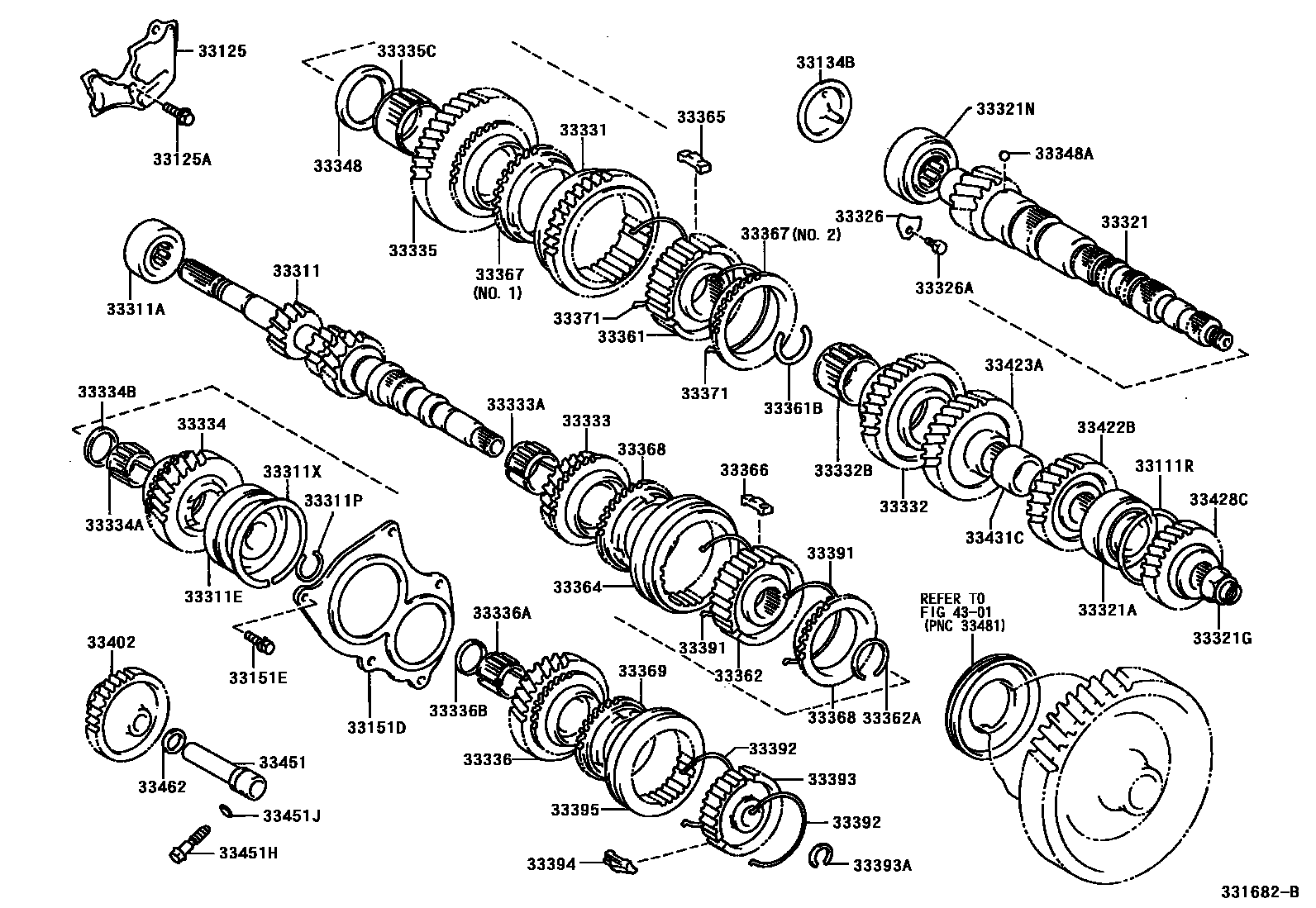

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-28010 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-28010 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 90520-57002 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-12011 · 33125-20010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60812 · 91611-B0616 · 91611-B0812 |
| 33134B | Output shaft cover (MTM) | 33134-12022 · 33134-20010 |
| 33151D | Rear bearing retainer (MTM) | 33151-12021 · 33151-28020 · 33151-52010 |
| 33151E | Bolt (for rear bearing retainer) | 90119-08944 |
| 33151G | Screw (for rear bearing retainer) | 90149-80029 |
| 33311 | input shaft | 33311-10061 · 33311-10062 · 33311-12152 · 33311-12153 · 33311-12170 · 33311-12230 |
| 33311A | Bearing (for front input shaft) | 90365-25021 · 90365-30023 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-25048 · 90363-25065 · 90363-25068 · 90363-33007 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-22006 · 90520-22007 · 90520-22008 · 90520-22009 · 90520-22010 · 90520-22011 · 90520-30008 · 90520-30009 · 90520-30010 · 90520-30011 · 90520-30012 · 90520-30013 · 90520-30021 · 90520-30022 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90520-64002 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-76003 |
| 33321 | output shaft | 33302-28010 · 33321-02030 · 33321-10081 · 33321-17011 |
| 33321A | Bearings (for rear output shaft) | 90363-25067 · 90366-28002 · 90903-63009 · 90903-63010 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18005 · 90179-20012 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-59001 · 90564-59002 · 90564-59003 · 90564-59004 · 90564-59005 · 90564-59006 · 90564-59007 · 90564-59008 · 90564-59009 · 90564-59010 · 90564-59011 · 90564-59012 · 90564-59013 · 90564-59014 · 90564-59015 · 90564-59016 · 90564-59017 · 90564-59018 · 90564-59019 · 90564-59020 · 90564-59021 · 90564-59022 · 90564-59023 · 90564-59024 · 90564-59025 |
| 33321N | Bearing (for front output shaft) | 90365-33005 · 90365-33006 · 90366-32025 |
| 33326 | Bearing locking plate | 33326-12010 |
| 33326A | Bolt (for bearing locking plate) | 91611-60812 · 91611-B0812 |
| 33331 | reverse gear | 33331-12060 · 33331-28020 |
| 33332 | Second gear | 33033-10030 · 33033-12060 · 33332-20120 · 33332-28020 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32014 · 90364-32017 · 90364-44001 |
| 33332C | Spacer (for second gear bearing) | 90560-32008 · 90560-44001 |
| 33333 | Third gear | 33034-10050 · 33034-10051 · 33034-12110 · 33034-12111 · 33034-28030 · 33034-28031 |
| 33333A | Needle roller bearing (for third gear) | 90364-31002 · 90364-31004 · 90364-36011 |
| 33334 | fourth gear | 33035-20160 · 33035-20161 · 33035-28010 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-29002 · 90364-36014 |
| 33334B | Spacer (for fourth gear bearing) | 90560-29001 · 90560-36002 |
| 33335 | first gear | 33032-10040 · 33032-12060 · 33335-28040 |
| 33335C | Needle roller bearing (for first gear) | 90364-38007 · 90364-38008 · 90364-45007 |
| 33336 | fifth gear | 33036-12100 · 33036-20060 · 33036-20070 · 33336-20081 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-24006 · 90364-28023 |
| 33336B | Spacer (for fifth gear bearing) | 90560-25006 |
| 33343D | Second gear bushing | 33343-12020 |
| 33343E | Steel ball (for second gear bushing) | 90360-05012 |
| 33348 | First gear thrust washer | 33348-12010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12030 · 33361-12060 · 33361-28010 · 33361-52030 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29018 · 90520-29019 · 90520-29020 · 90520-29021 · 90520-29022 · 90520-29023 |
| 33362 | No. 2 transmission clutch hub | 33362-12020 · 33362-12040 · 33362-28021 · 33362-42012 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-27046 · 90520-27047 · 90520-27048 · 90520-27049 · 90520-27050 · 90520-27051 · 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 · 90520-30032 · 90520-30033 · 90520-34003 · 90520-34004 · 90520-34005 · 90520-34006 · 90520-34007 · 90520-34008 · 90520-34009 |
| 33364 | No. 2 transmission hub sleeve | 33364-12050 · 33364-20030 · 33364-20031 · 33364-20051 · 33364-28011 |
| 33365 | No. 1 synchromesh shift key | 33365-12021 · 33365-12040 · 33365-12051 · 33365-52020 · 33365-52030 |
| 33366 | No. 2 synchromesh shift key | 33366-12020 · 33366-12031 · 33366-12041 · 33366-52020 · 33366-52030 |
| 33367 | Synchronizer lock ring No. 1 | 33038-20010 · 33367-12140 · 33367-12150 · 33367-20070 · 33367-20080 |
| 33368 | Synchronizer lock ring No. 2 | 33368-12130 · 33368-12140 · 33368-12200 |
| 33368G | Synchronizer locking ring (for third gear) | 33368-12121 · 33368-12210 |
| 33368H | Synchronizer ring (for fourth gear) | 33368-12210 · 33368-20071 |
| 33369 | No. 3 synchronizer lock ring | 33369-20040 · 33369-28010 · 33369-28011 |
| 33371 | No. 1 synchromesh shift key spring | 33371-12020 · 33371-12040 · 33371-52020 · 33371-52030 · 90501-08112 |
| 33381 | Second gear synchronizer outer locking ring | 33381-28010 |
| 33391 | No. 2 synchromesh shift key spring | 33391-12020 · 33391-12040 · 33391-20030 · 33391-52010 · 33391-52020 · 90501-08131 |
| 33392 | No. 3 synchromesh shift key spring | 33391-12030 · 33392-12010 · 33392-12020 |
| 33393 | No. 3 transmission clutch hub | 33393-12031 · 33393-12040 · 33393-42010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-18002 · 90520-18003 · 90520-18004 · 90520-18006 · 90520-18007 · 90520-18008 · 90520-18009 · 90520-27061 · 90520-27062 · 90520-27063 · 90520-27064 · 90520-27065 · 90520-27066 · 90520-27067 · 90520-27068 · 90520-27069 |
| 33394 | No. 3 synchromesh shift key | 33394-12011 · 33394-52020 |
| 33395 | No. 3 transmission hub sleeve | 33395-20040 · 33395-20041 · 33395-42010 |
| 33396A | synchronizer extension ring | 33396-28010 |
| 33396B | Snap ring (for synchronizer extension ring) | 90520-46035 |
| 33397A | No. 5 synchronizer inner locking ring | 33397-28010 |
| 33398A | No. 5 synchronizer intermediate locking ring | 33398-12010 |
| 33399D | No. 5 synchronizer outer locking ring | 33399-12011 |
| 33402 | Reverse idler gear sub-assembly | 33402-10030 · 33402-10031 · 33402-12041 · 33402-12042 · 33402-28020 |
| 33422B | Fourth gear driven gear | 33422-12030 · 33422-12050 |
| 33423A | Third gear driven gear | 33423-10011 · 33423-12010 · 33423-12030 |
| 33428C | fifth speed driven gear | 33428-12050 · 33428-12060 · 33428-12070 · 33428-20071 |
| 33431C | Output gear spacer | 33431-12010 · 33431-20080 |
| 33451 | Reverse gear idler shaft | 33451-10021 · 33451-12021 · 33451-12032 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 · 90109-08097 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-12010 · 33462-20050 |
