Toyota COROLLA 离合器总泵 — Figure 3103

Toyota COROLLA EPC diagram 3103, 离合器总泵, with 4 images and 4 PNC and OE references.

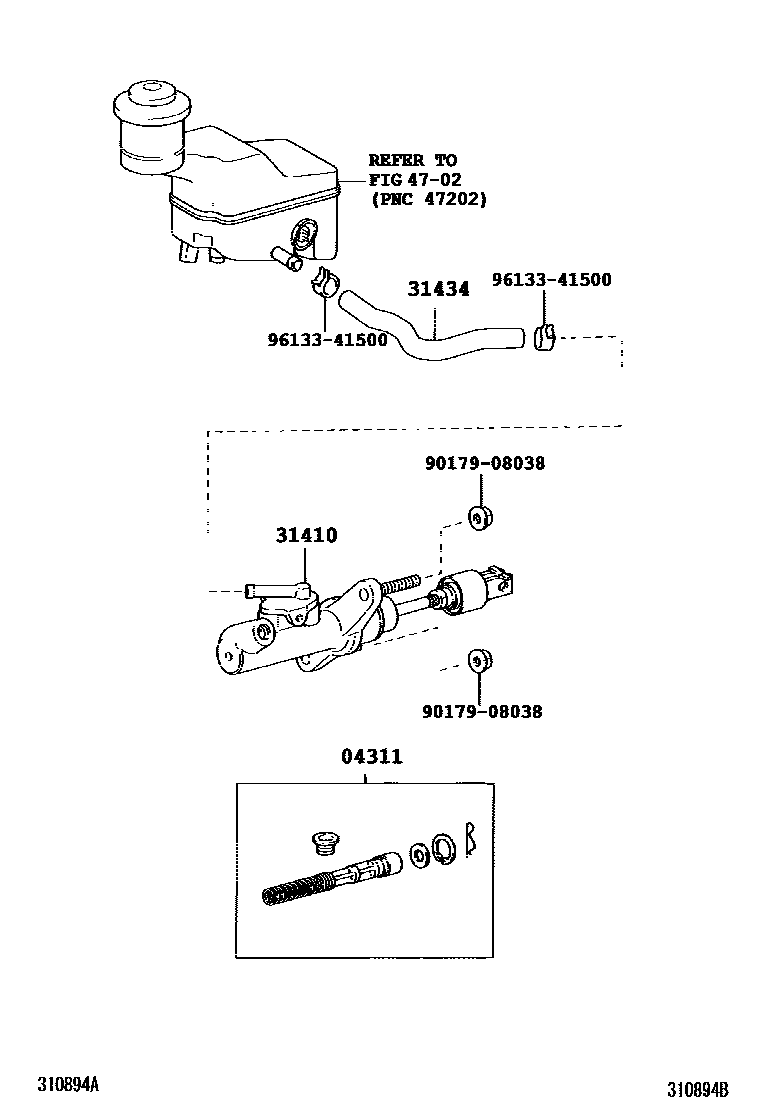

Toyota COROLLA 离合器总泵 EPC diagram — 310894B
离合器总泵 — 310894B (200110 – 200405)

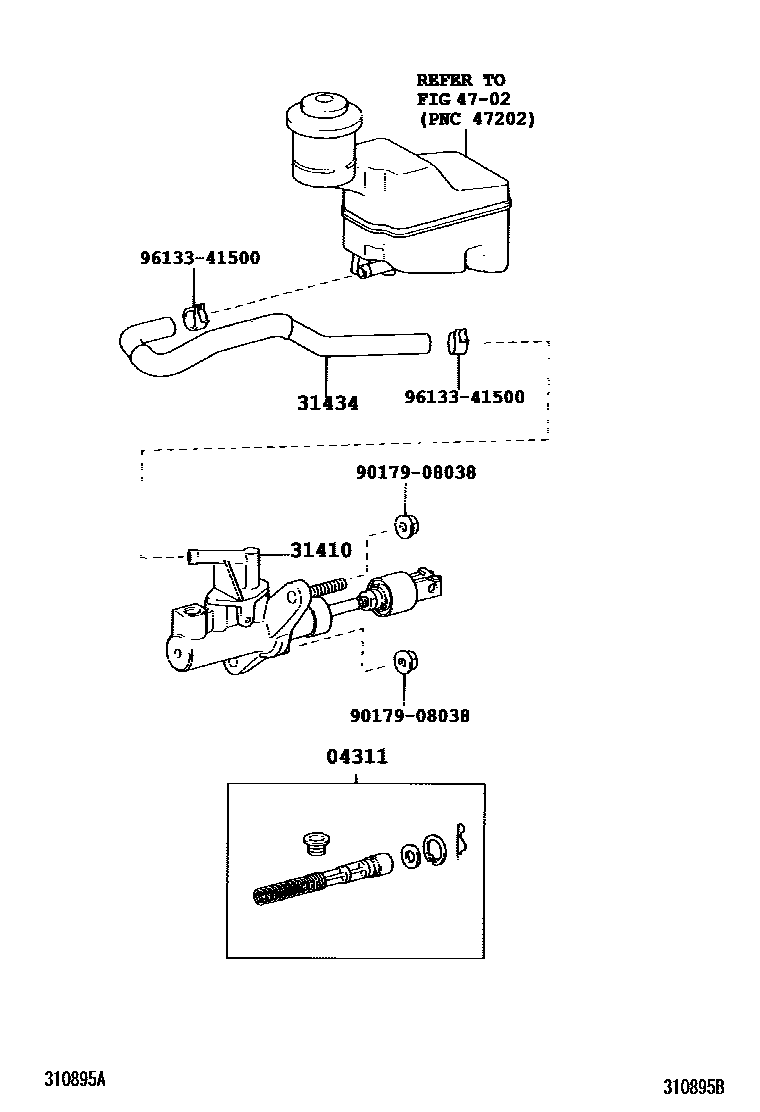

Toyota COROLLA 离合器总泵 EPC diagram — 310895B
离合器总泵 — 310895B (200110 – 200405)

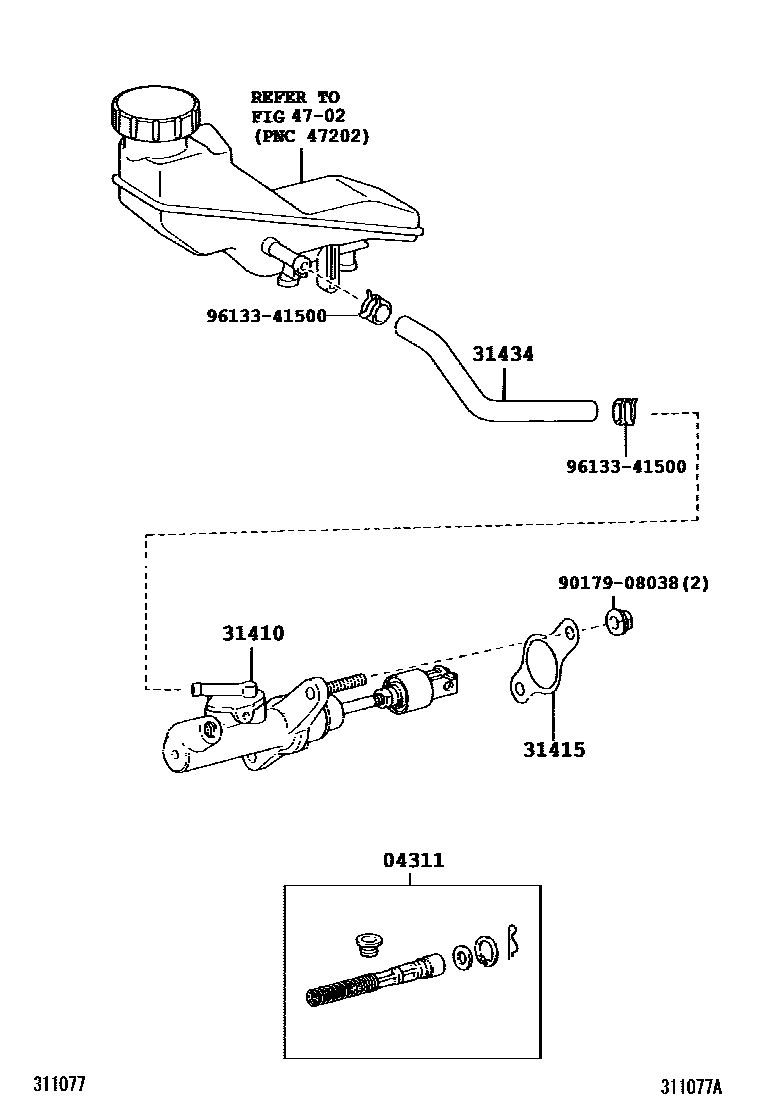

Toyota COROLLA 离合器总泵 EPC diagram — 311077A
离合器总泵 — 311077A (200405 – 999999)

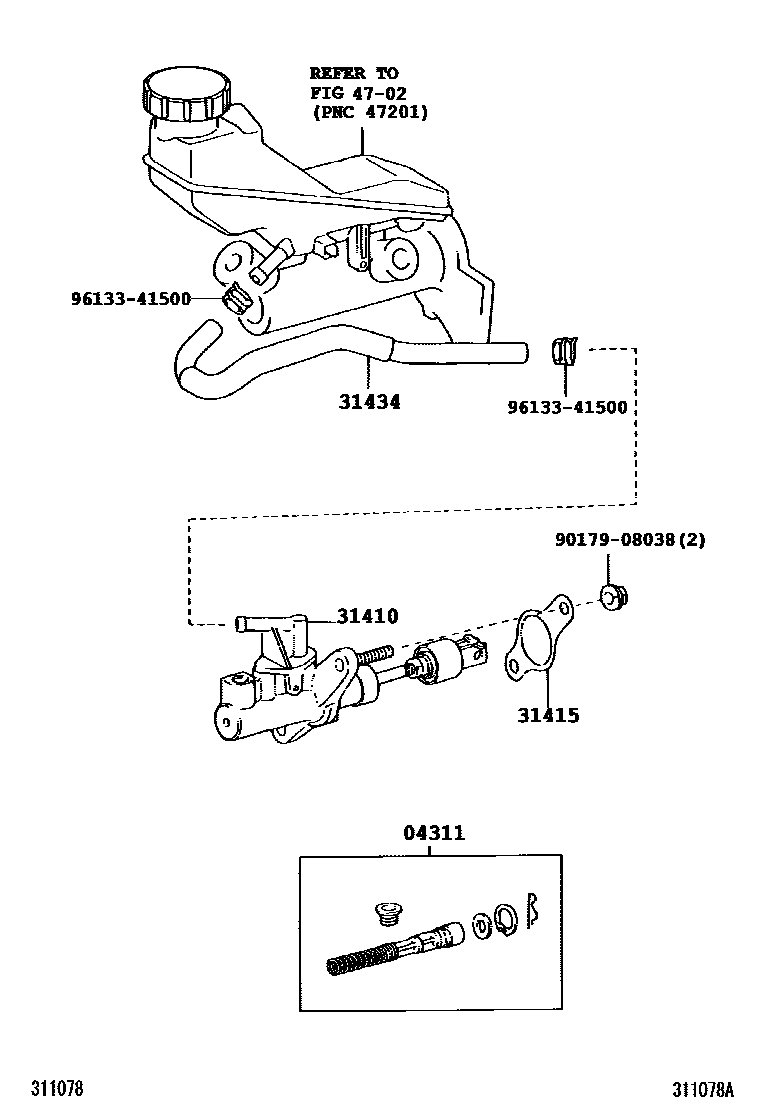

Toyota COROLLA 离合器总泵 EPC diagram — 311078A
离合器总泵 — 311078A (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
04311Clutch master cylinder assembly04311-12110
31410Clutch master cylinder assembly31420-12010 · 31420-20070
31415Clutch master cylinder gasket31415-10010
31434Clutch reservoir connecting pipe31434-12010 · 31434-12030 · 31434-12040 · 31434-13020
