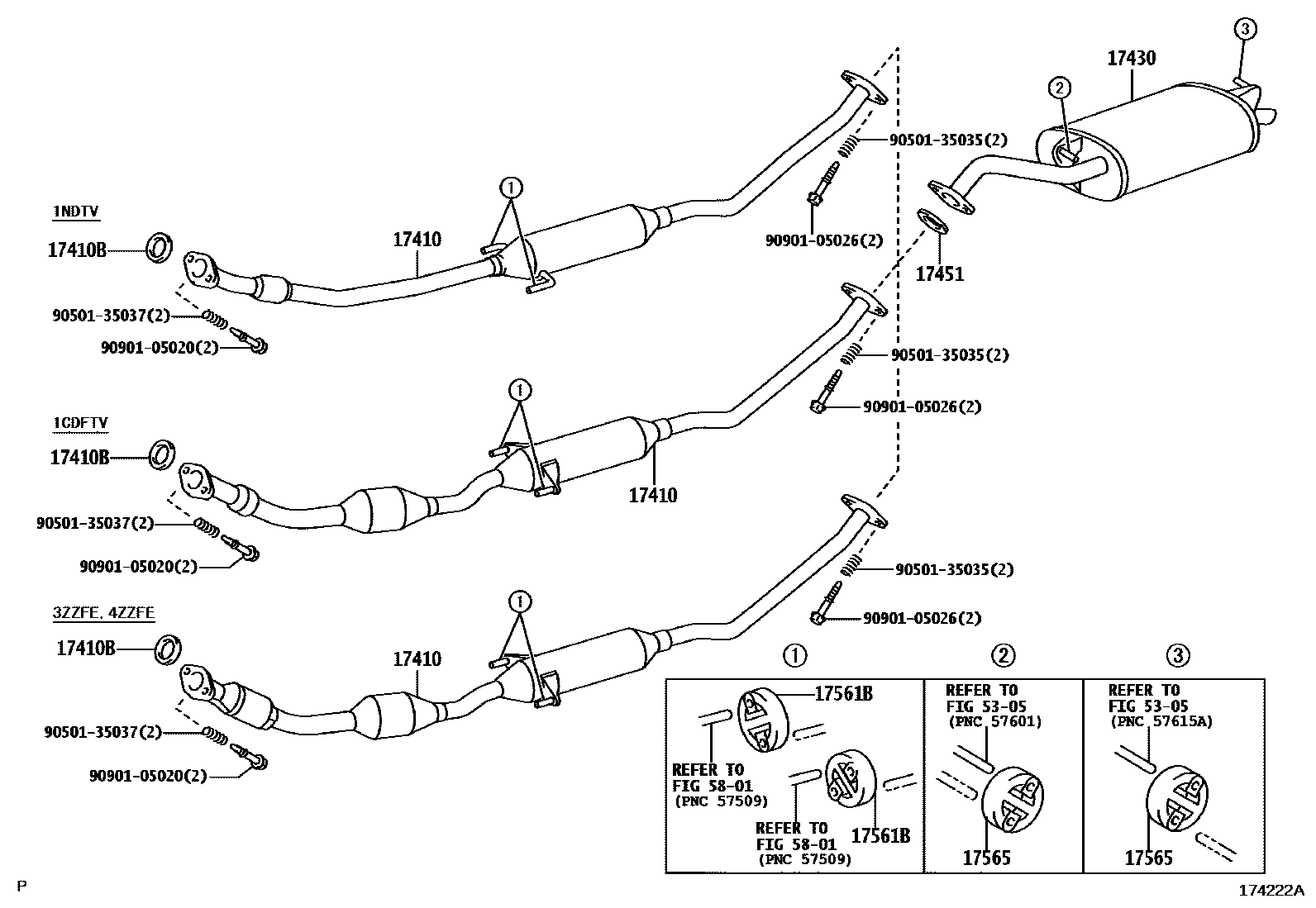

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-22310 · 17410-22490 · 17410-27140 · 17410-33130 |
| 17410B | Exhaust pipe gasket | 17451-22060 · 17451-22070 |
| 17430 | Exhaust tailpipe assembly | 17430-22320 · 17430-22450 · 17430-27150 |
| 17451 | Exhaust pipe gasket | 17451-16030 · 17451-23010 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-21030 · 17565-22030 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-21040 |
