Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

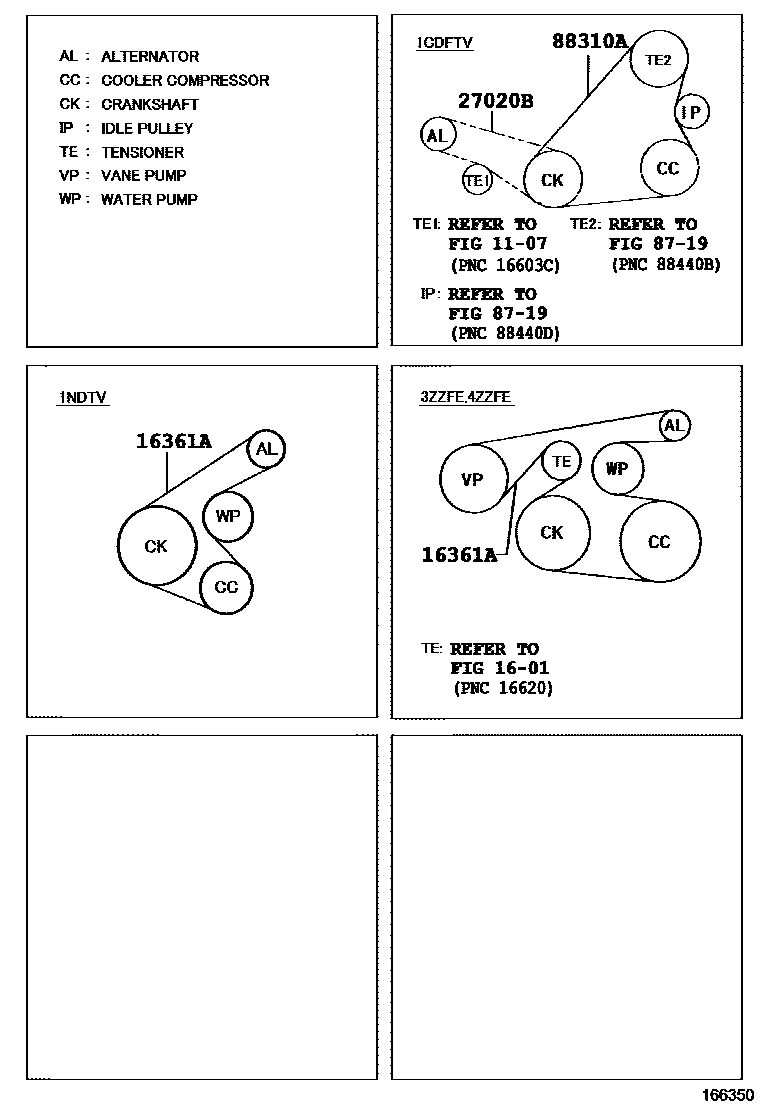

Toyota COROLLA V-Belt EPC diagram — 166350
V-Belt — 166350 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02516 · 90916-02539 · 90916-02546 · 99366-C0970 · 99366-C1220
27020BV-belt (for generator)90916-02517
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99365-91110
