Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 13 PNC and OE references.

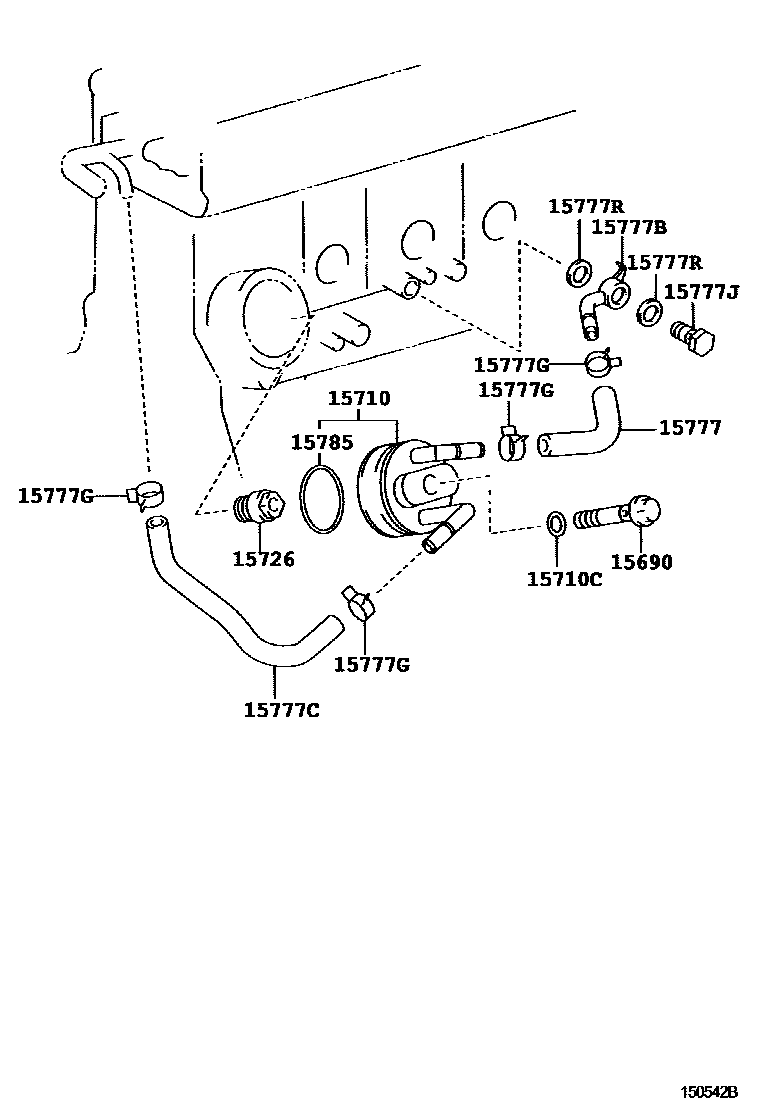

Toyota COROLLA Engine Oil Cooler EPC diagram — 150542B
Engine Oil Cooler — 150542B (200110 – 999999)

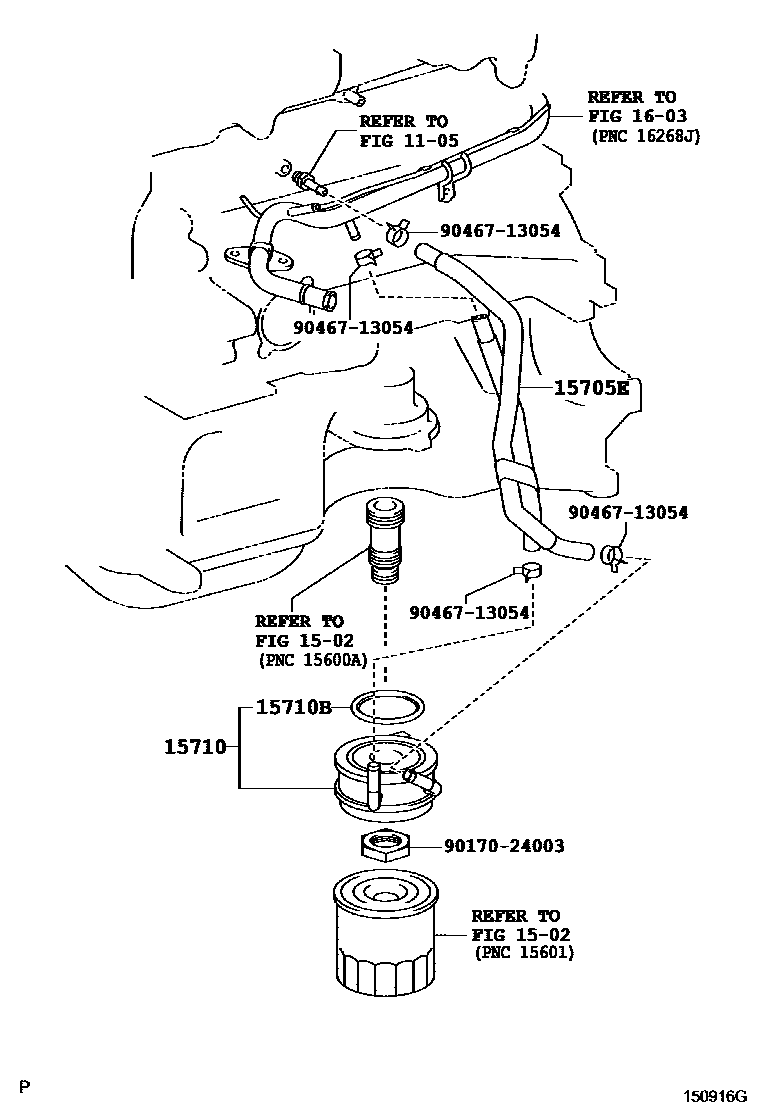

Toyota COROLLA Engine Oil Cooler EPC diagram — 150916G
Engine Oil Cooler — 150916G (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
15690Oil cooler pressure reducing valve assembly90401-19009
15705EOil cooler hose sub-assembly15705-33040
15710Oil cooler assembly15710-27030 · 15710-33030
15710BO-ring (for oil cooler)90301-58002
15710CGasket (for oil cooler)90301-24017
15726Oil cooler joint bolt connector15726-27010
15777oil cooler hose15777-27020
15777Boil cooler pipe15768-27020
15777Coil cooler hose15778-27050
15777GHose clips or clips96134-41900
15777JConnector bolt (for oil cooler pipe)90401-20004
15777RGasket (for oil cooler pipe joint bolts)90430-20014
15785oil cooler gasket15785-27010
