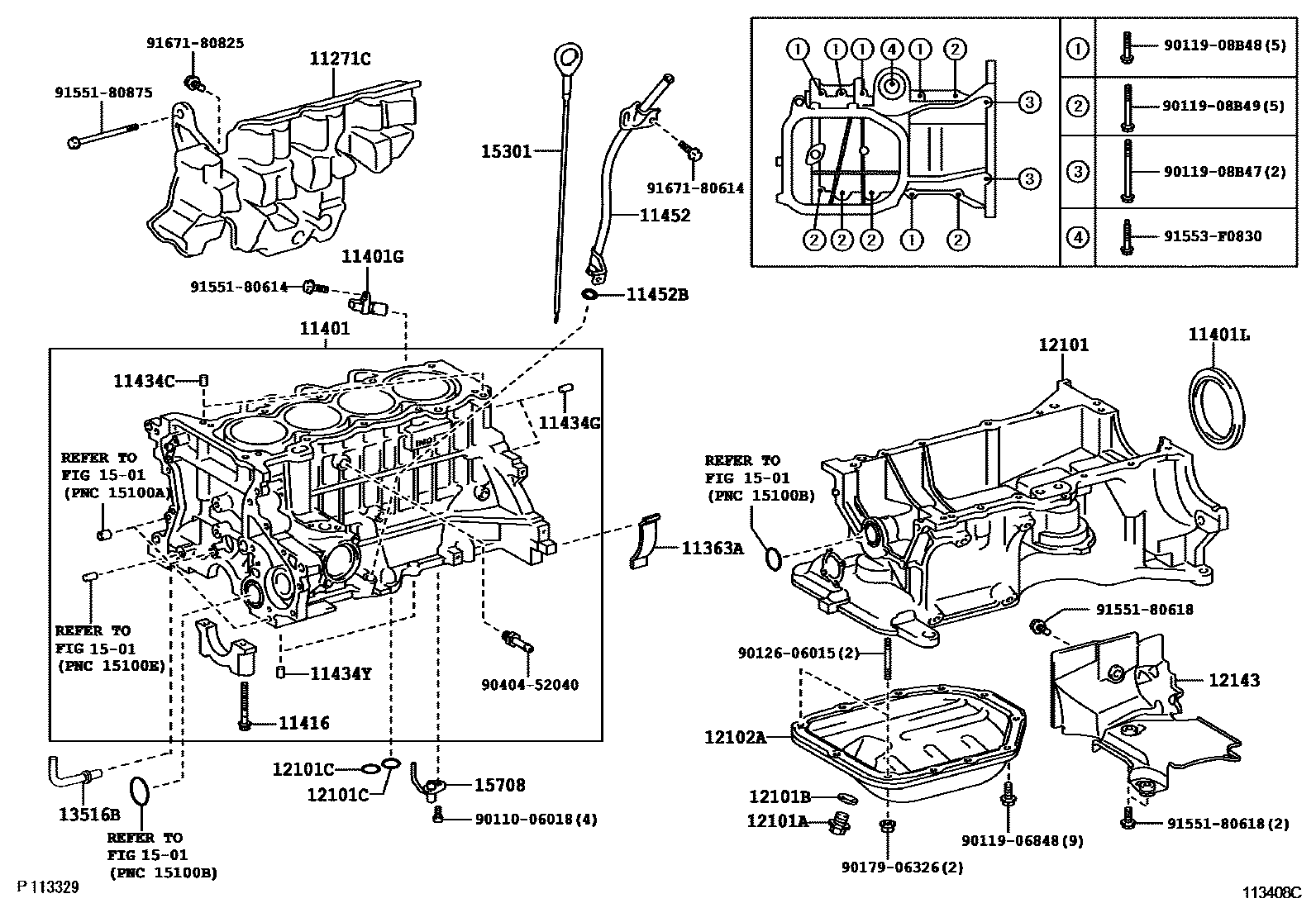

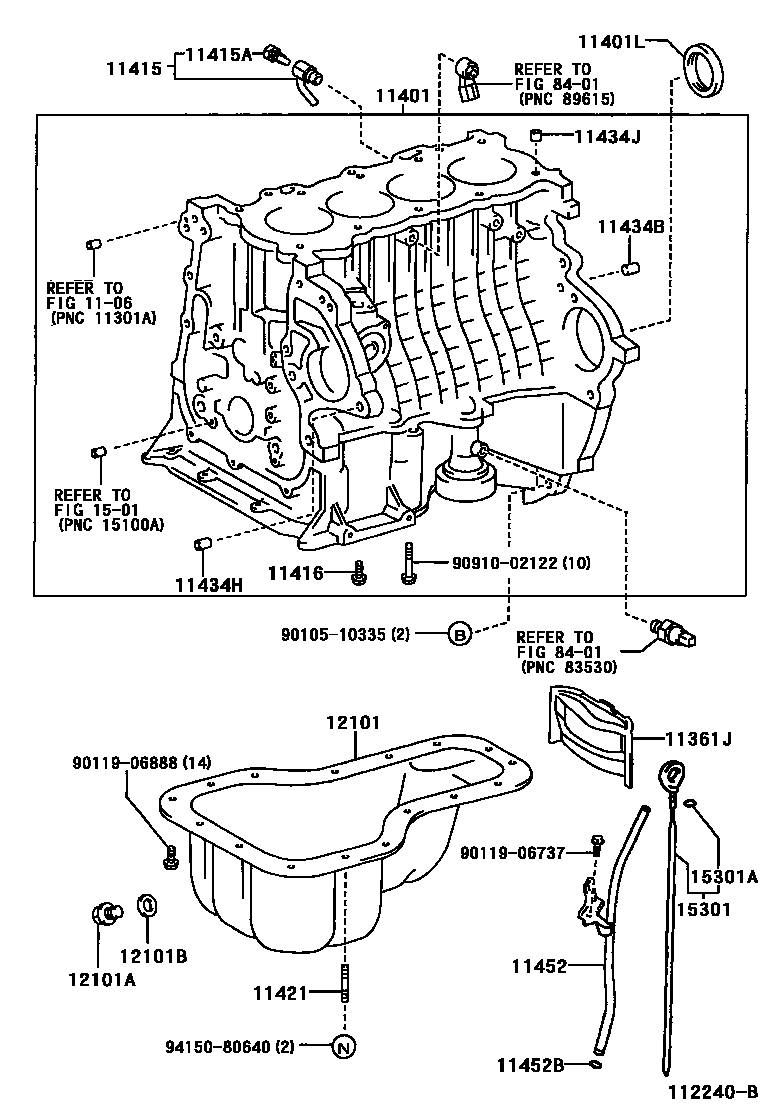

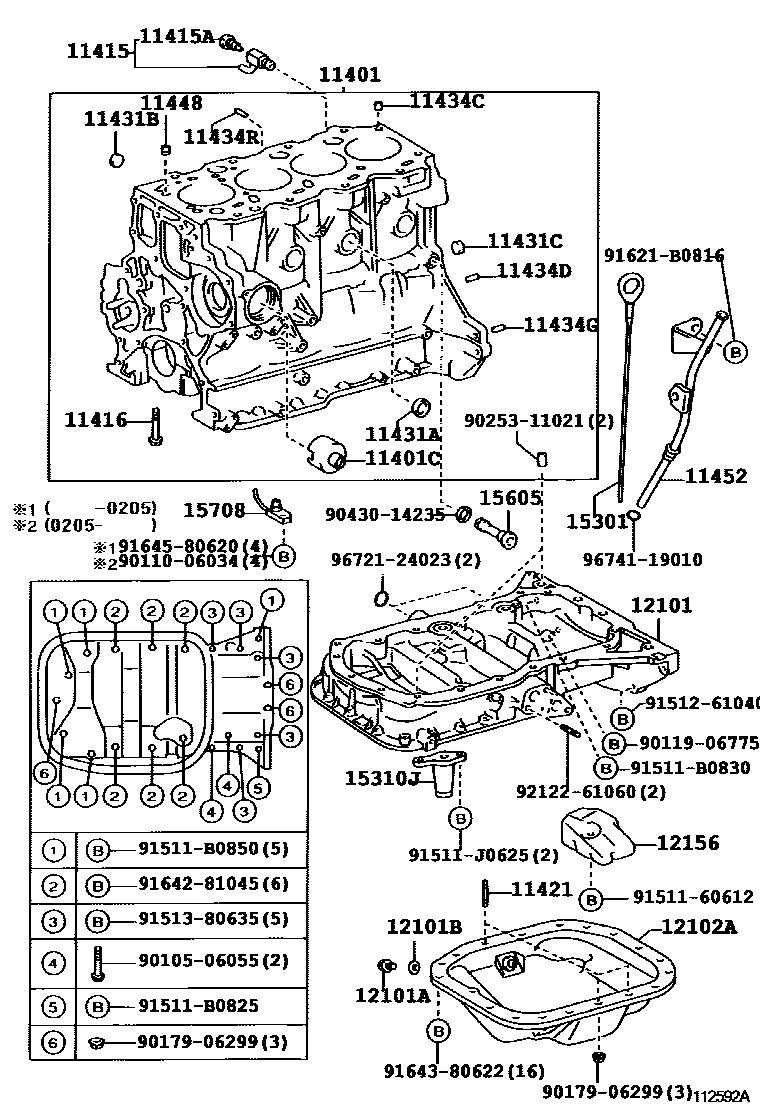

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271C | Cylinder block side cover | 11271-33020 · 11271-33021 |
| 11361J | Flywheel housing bottom cover | 11361-22021 |
| 11363A | Flywheel housing side cover | 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11401-29745 · 11401-39636 · 11401-39716 · 11410-29047 · 11410-29057 · 11410-29145 · 11410-29155 |
| 11401C | Flange (for water bypass pipe) | 16353-27010 · 16353-27011 |
| 11401G | crankshaft position sensor | 90919-05063 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75016 · 90311-76001 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02135 · 90910-02147 · 91511-K0840 |
| 11421 | Stud bolts (for oil pan) | 90116-06164 · 90126-06010 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-14004 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11448 | Cylinder block oil orifice | 11448-64010 |
| 11452 | Engine oil level gauge guide | 11452-22030 · 11452-27040 · 11452-33040 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-22024 · 12101-27011 · 12101-33020 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 96722-24020 |
| 12102A | No. 2 oil pan sub-assembly | 12102-21010 · 12102-27030 |
| 12143 | oil pan cover | 12143-33020 |
| 12156 | Oil pan vibration isolation pad | 12156-27030 |
| 13516B | oil nozzle | 13516-21020 |
| 15301 | Engine oil level scoring assembly | 15301-22030 · 15301-22050 · 15301-27040 · 15301-33020 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15310J | Oil regulator assembly | 15310-27020 |
| 15605 | Oil check valve sub-assembly | 15703-27010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-33010 · 15790-27010 · 15790-27020 |
