Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

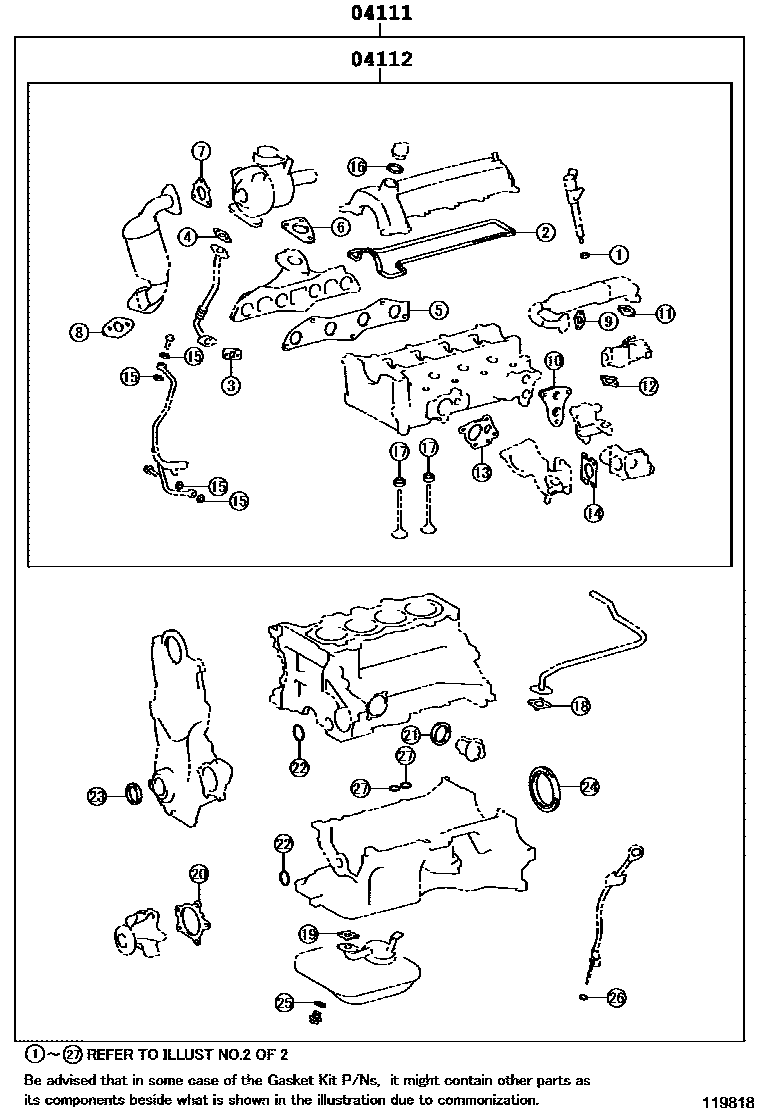

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119818
Engine Overhaul Gasket Kit — 119818 (200408 – 999999)

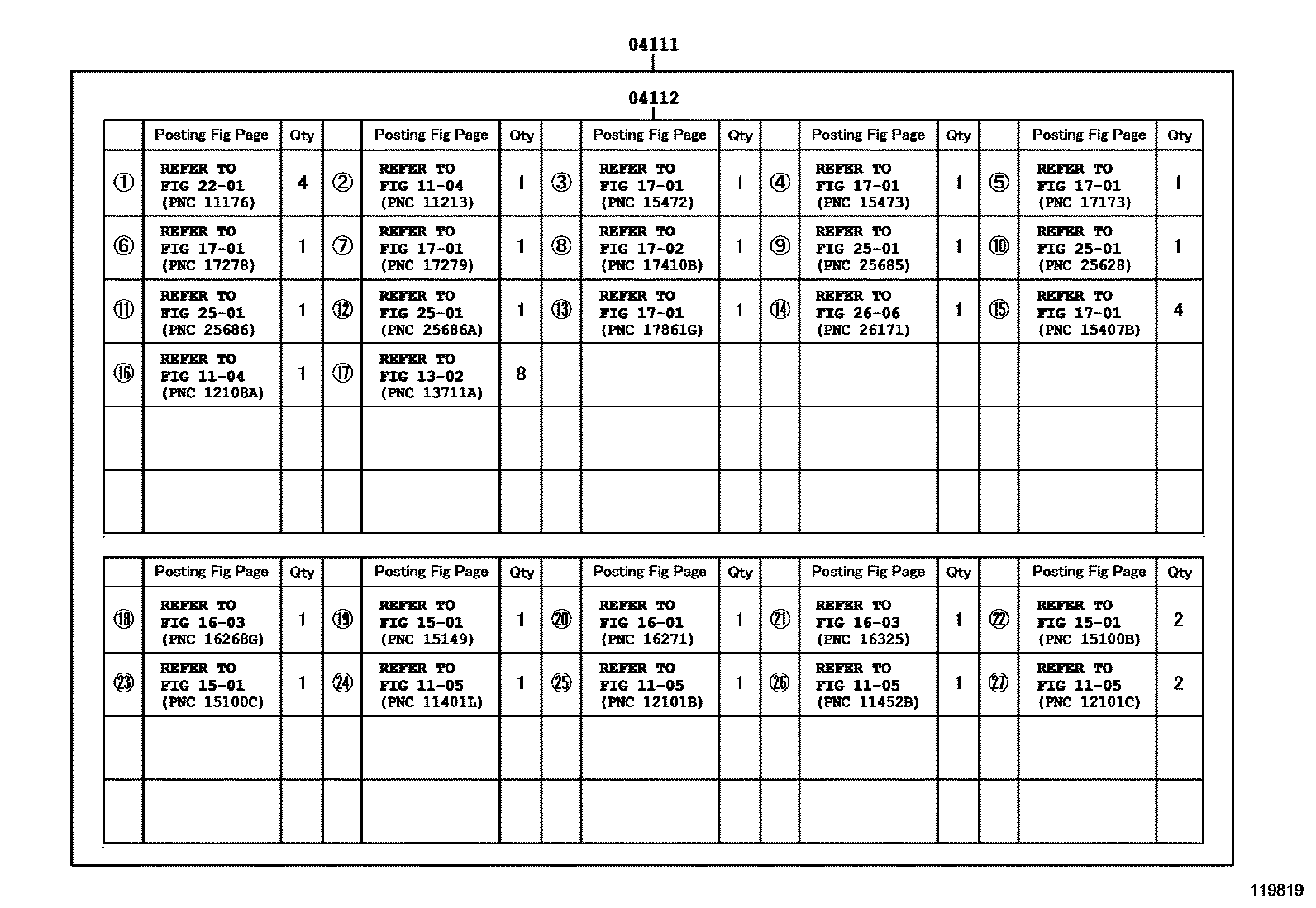

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119819
Engine Overhaul Gasket Kit — 119819 (200408 – 999999)

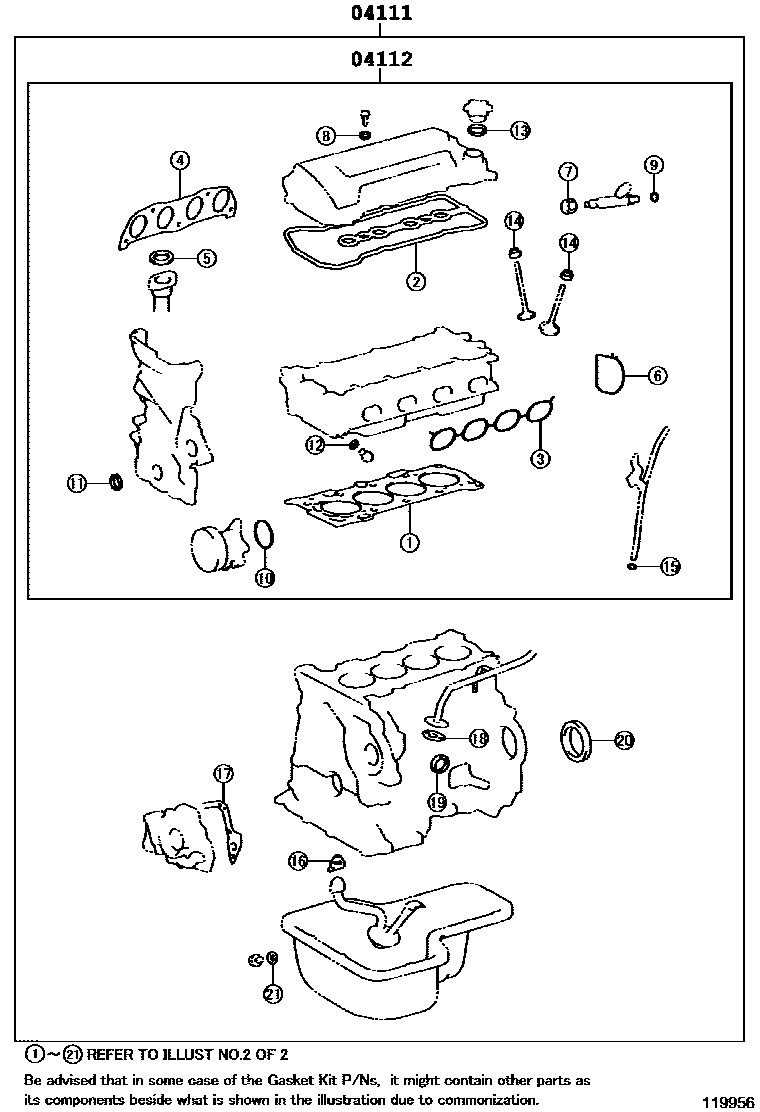

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119956
Engine Overhaul Gasket Kit — 119956 (200110 – 200405)

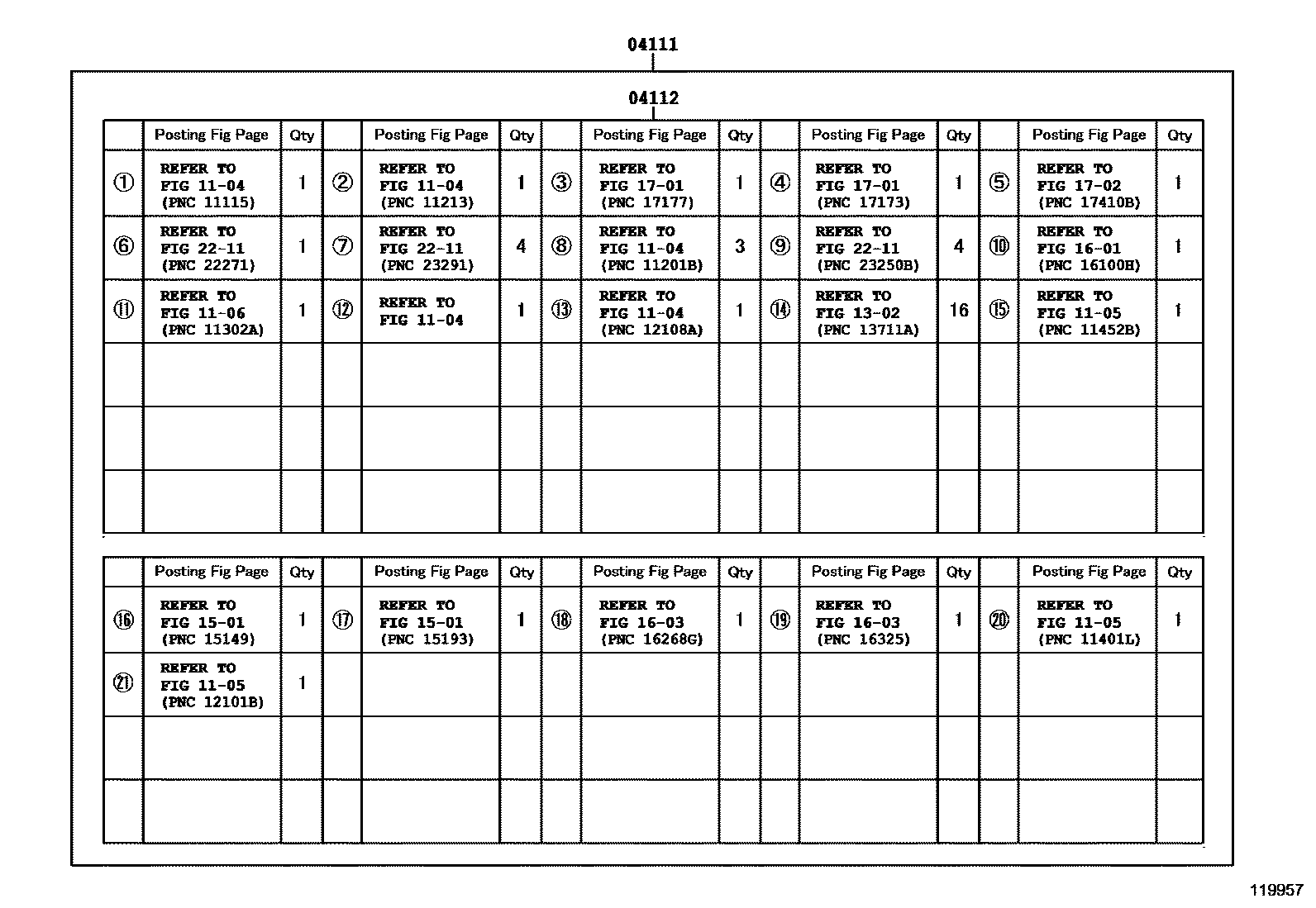

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119957
Engine Overhaul Gasket Kit — 119957 (200110 – 200405)

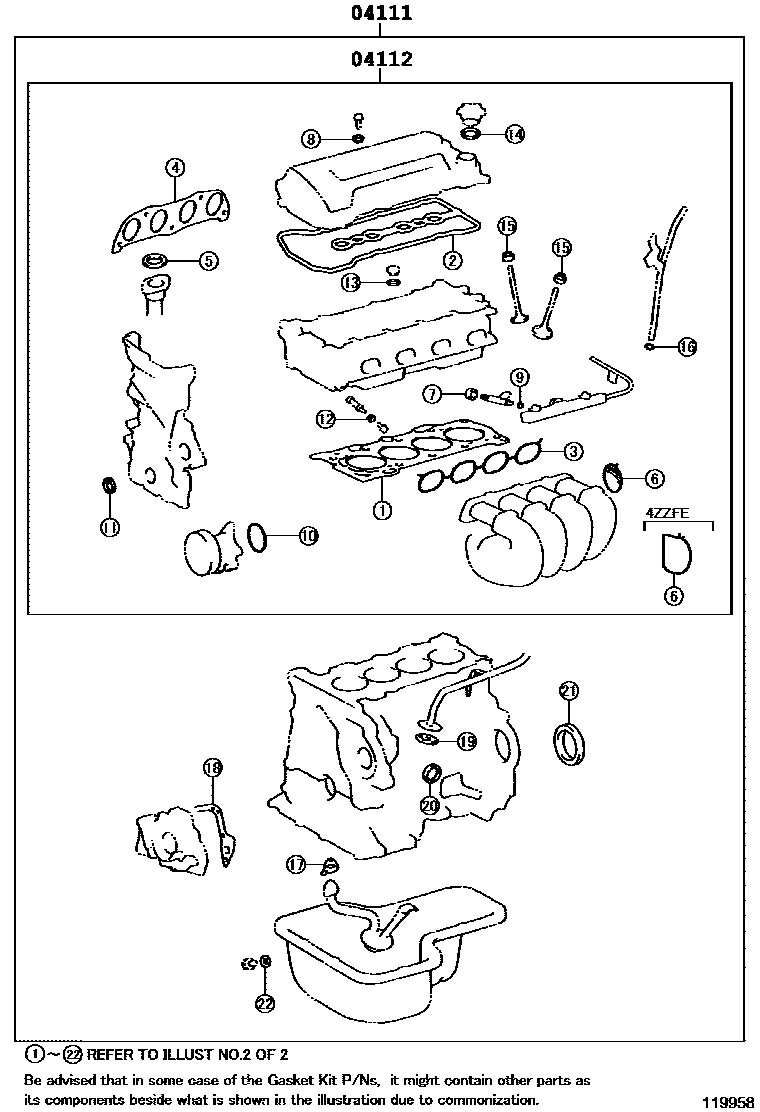

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119958
Engine Overhaul Gasket Kit — 119958 (200405 – 999999)

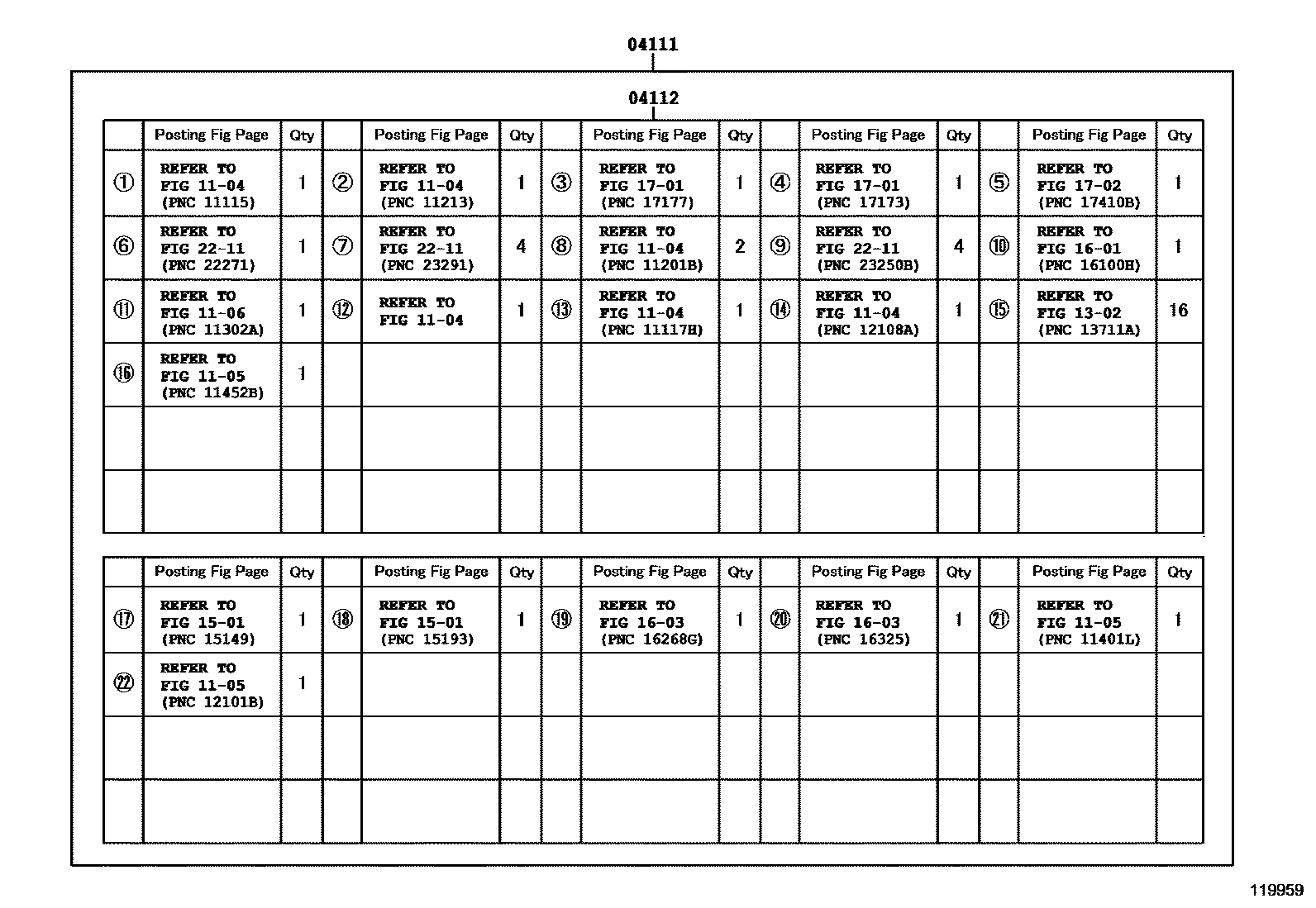

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119959
Engine Overhaul Gasket Kit — 119959 (200405 – 999999)

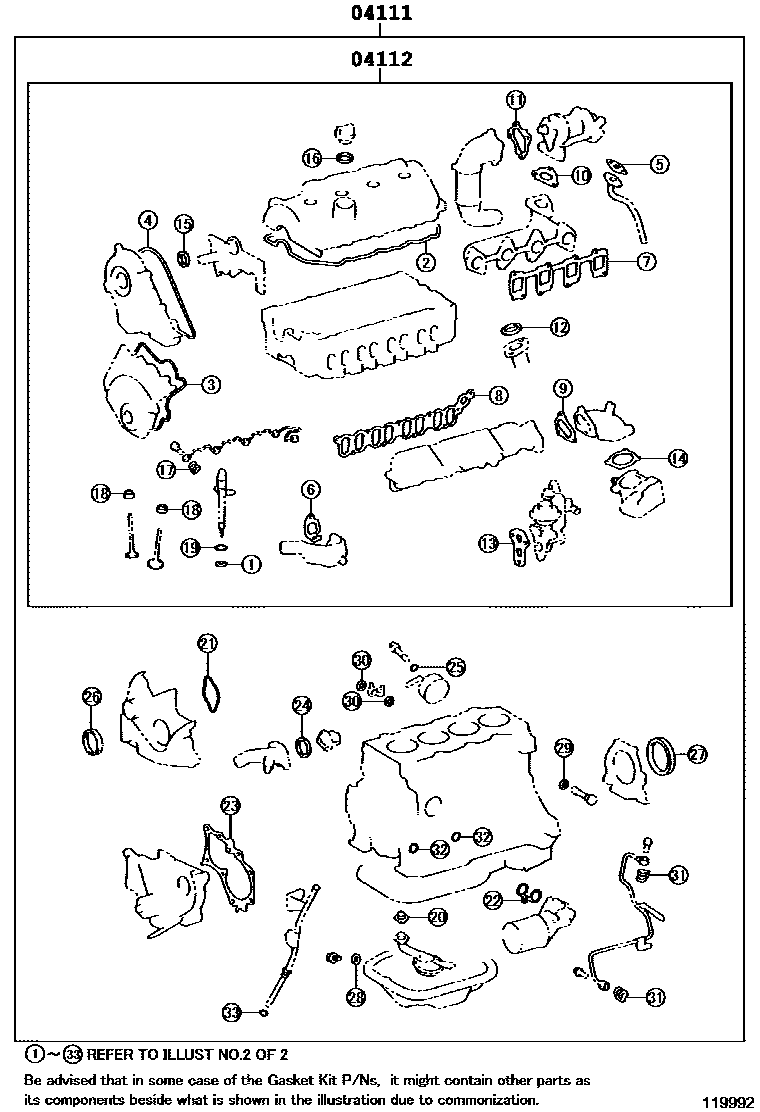

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119992
Engine Overhaul Gasket Kit — 119992 (200110 – 999999)

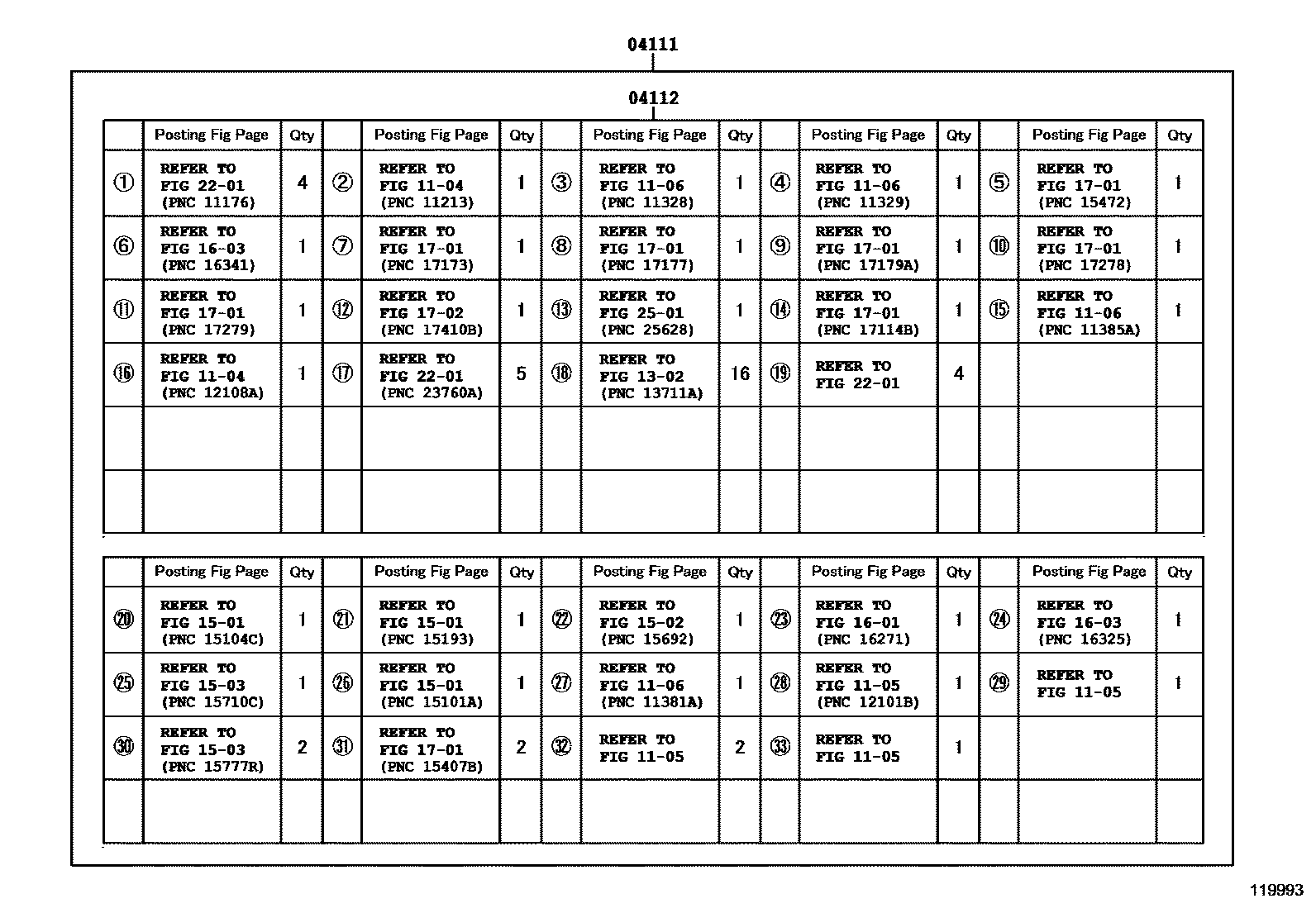

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119993
Engine Overhaul Gasket Kit — 119993 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22080 · 04111-22081 · 04111-22082 · 04111-22690 · 04111-22700 · 04111-27100 · 04111-33090
04112Engine valve grinding pad assembly04112-22080 · 04112-22081 · 04112-22082 · 04112-22610 · 04112-22620 · 04112-27090 · 04112-33090
