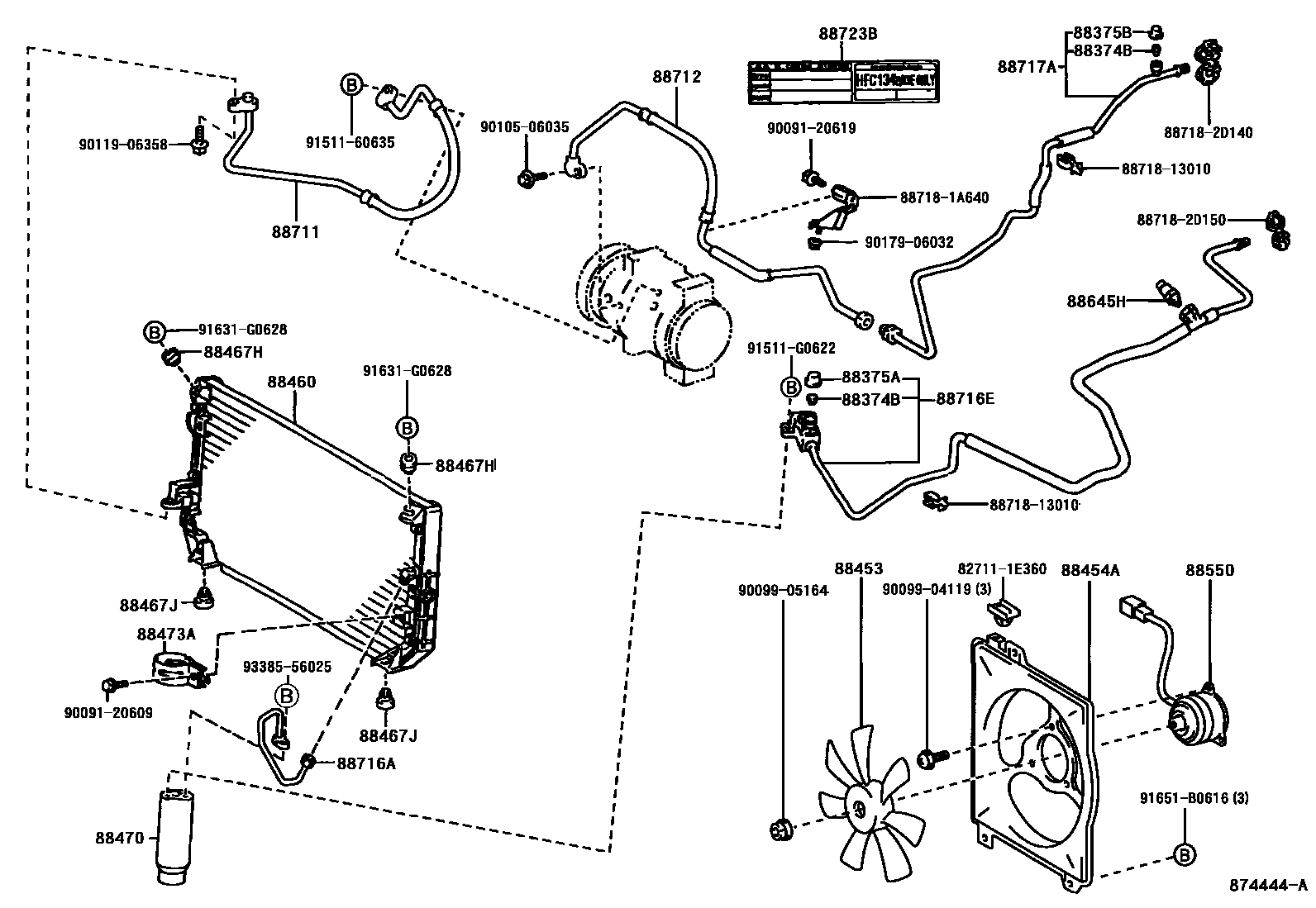

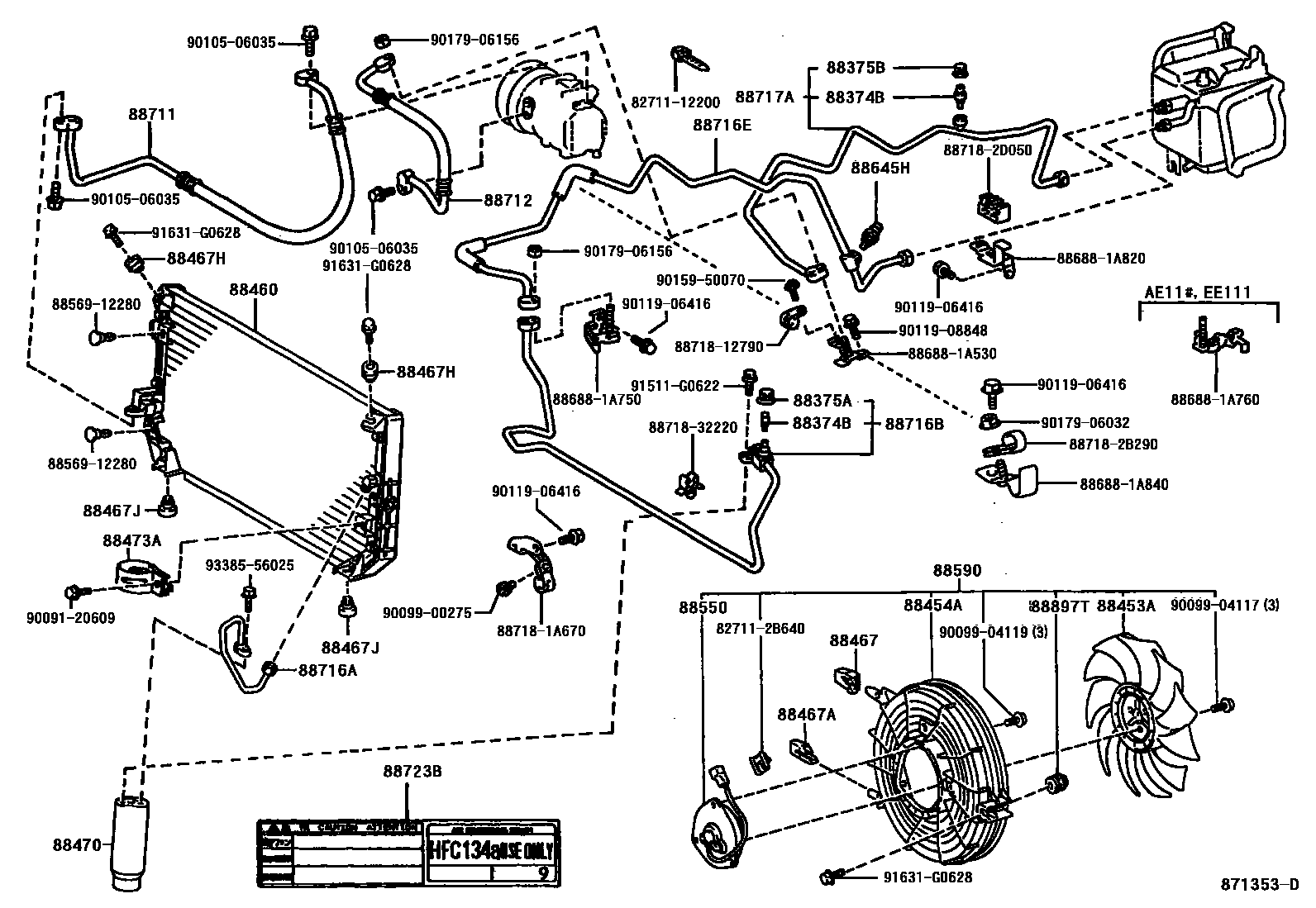

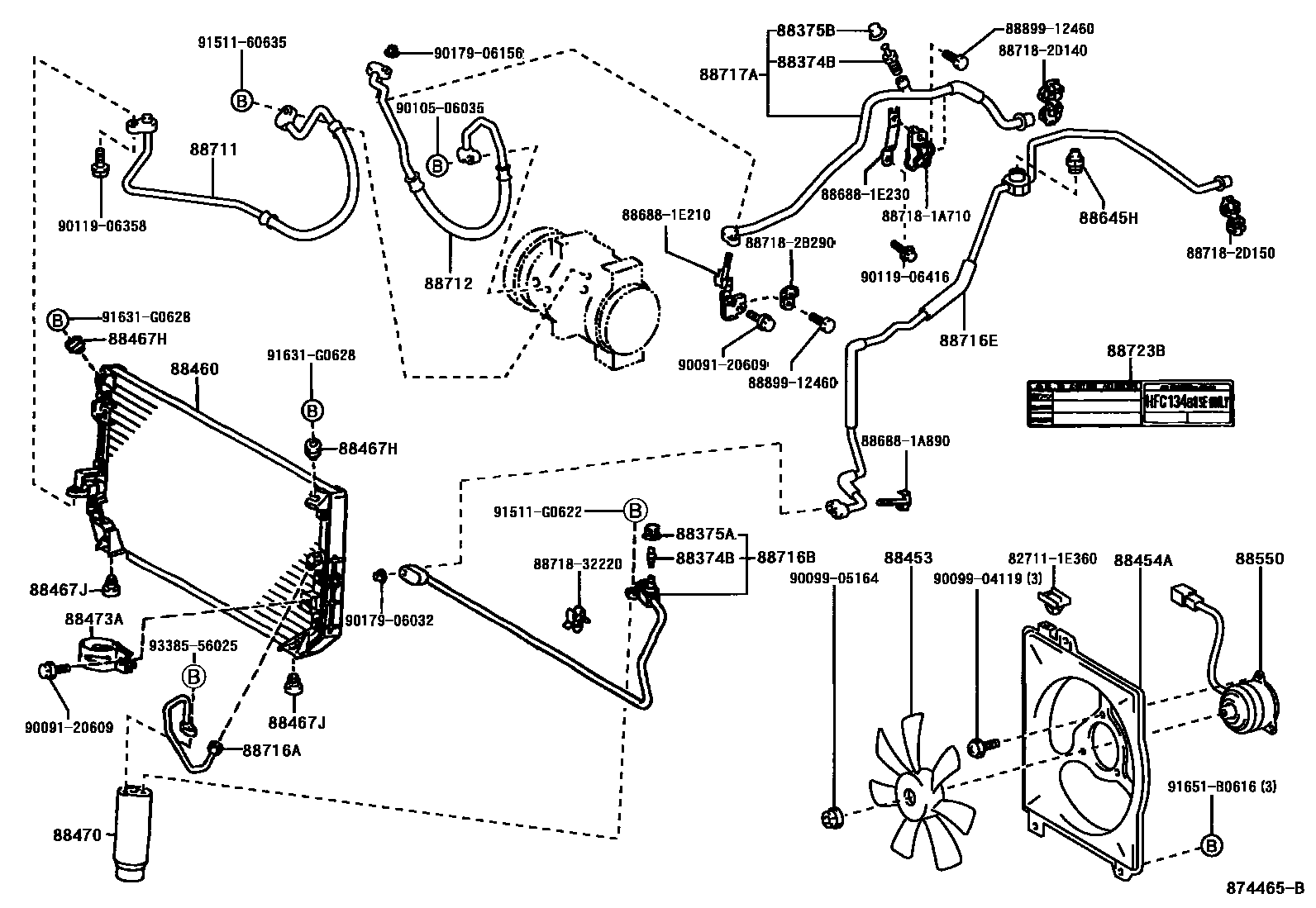

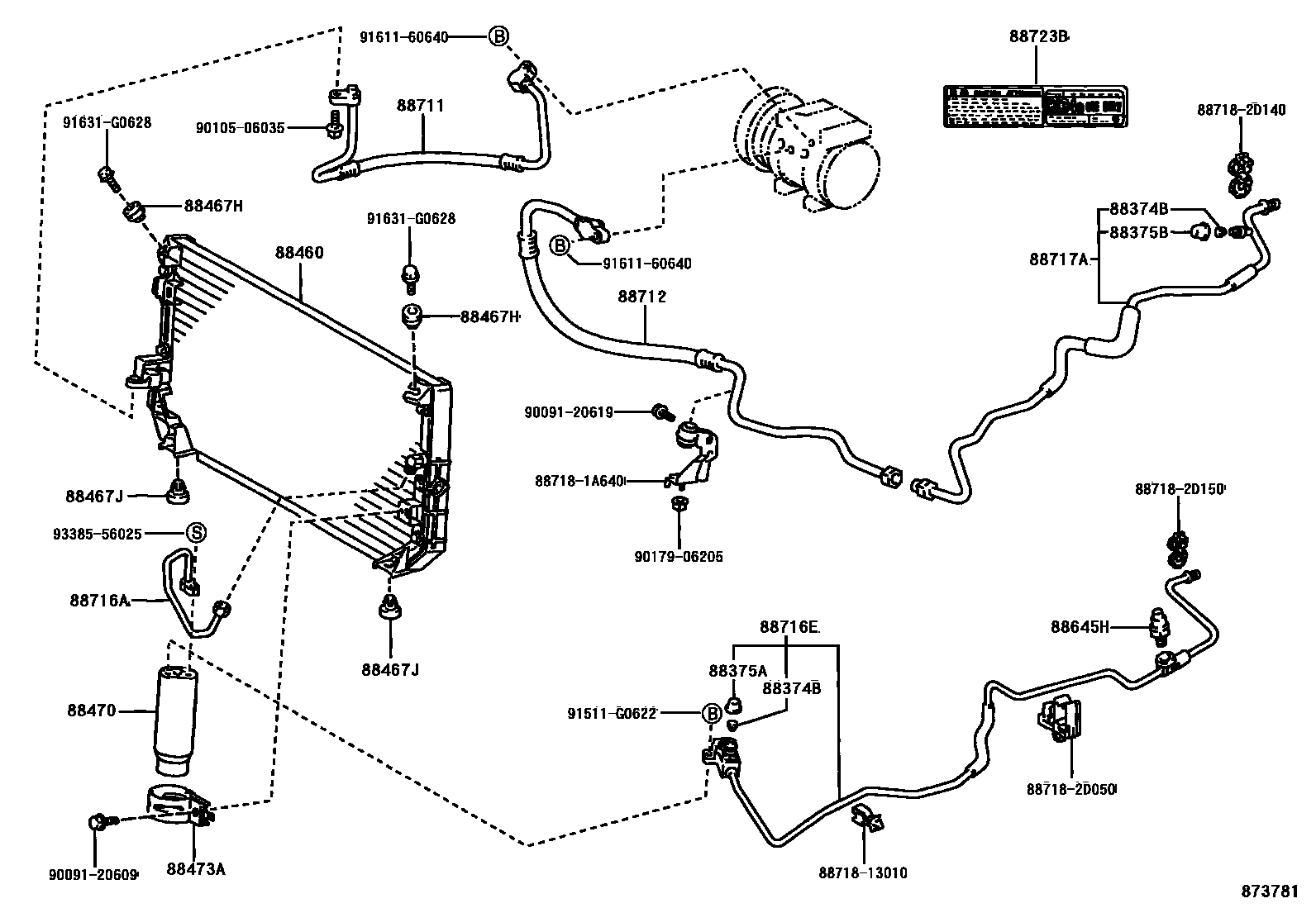

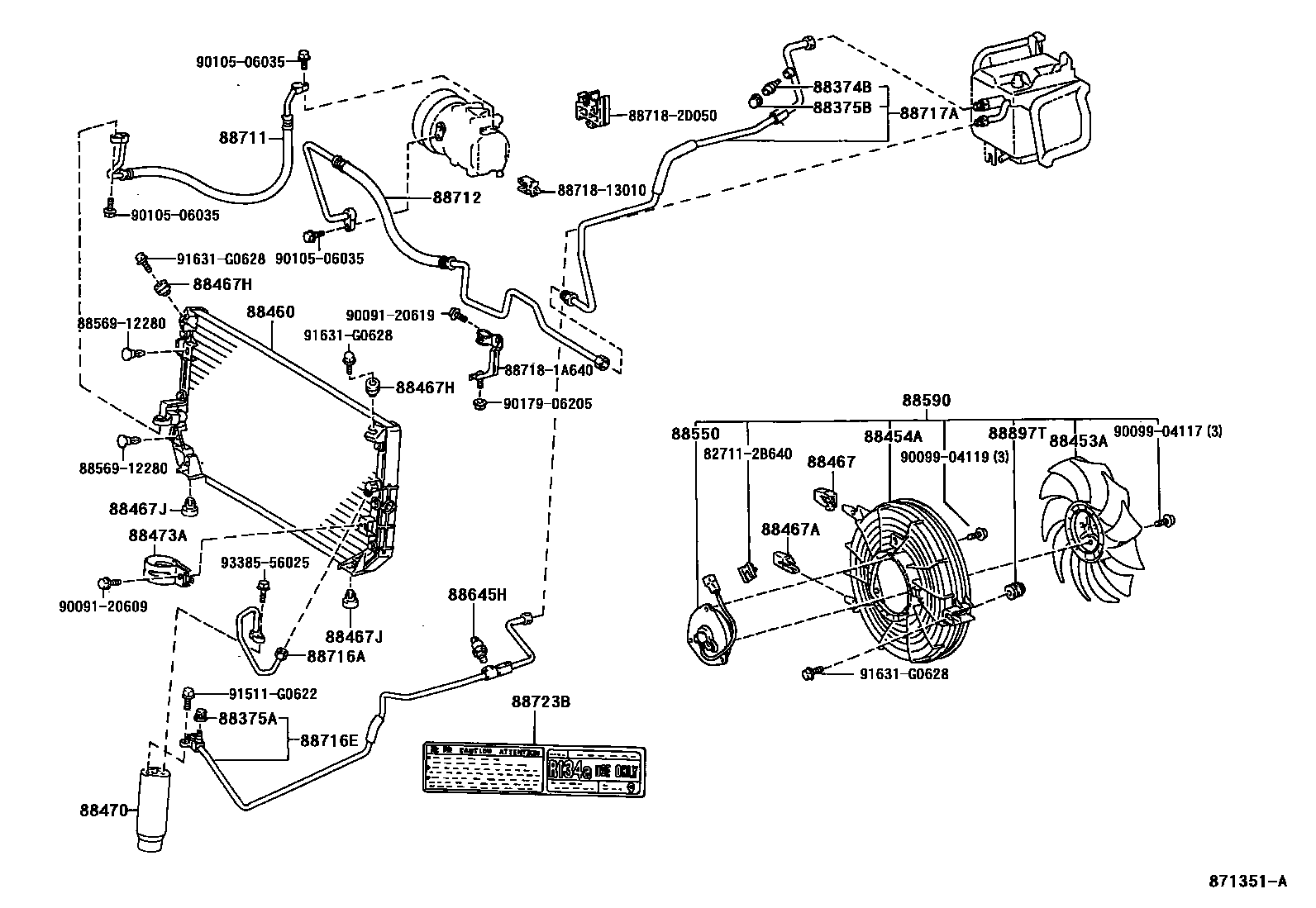

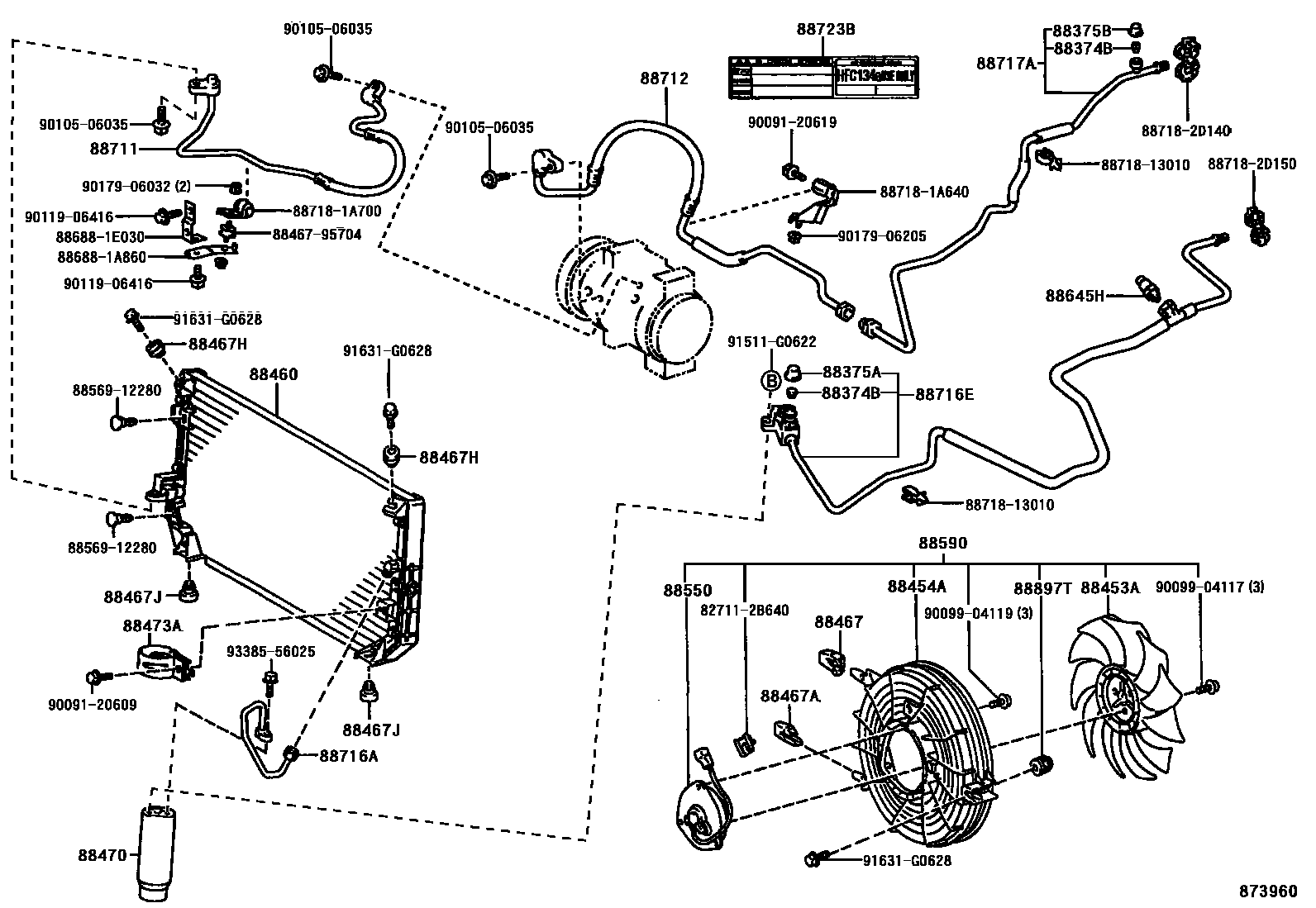

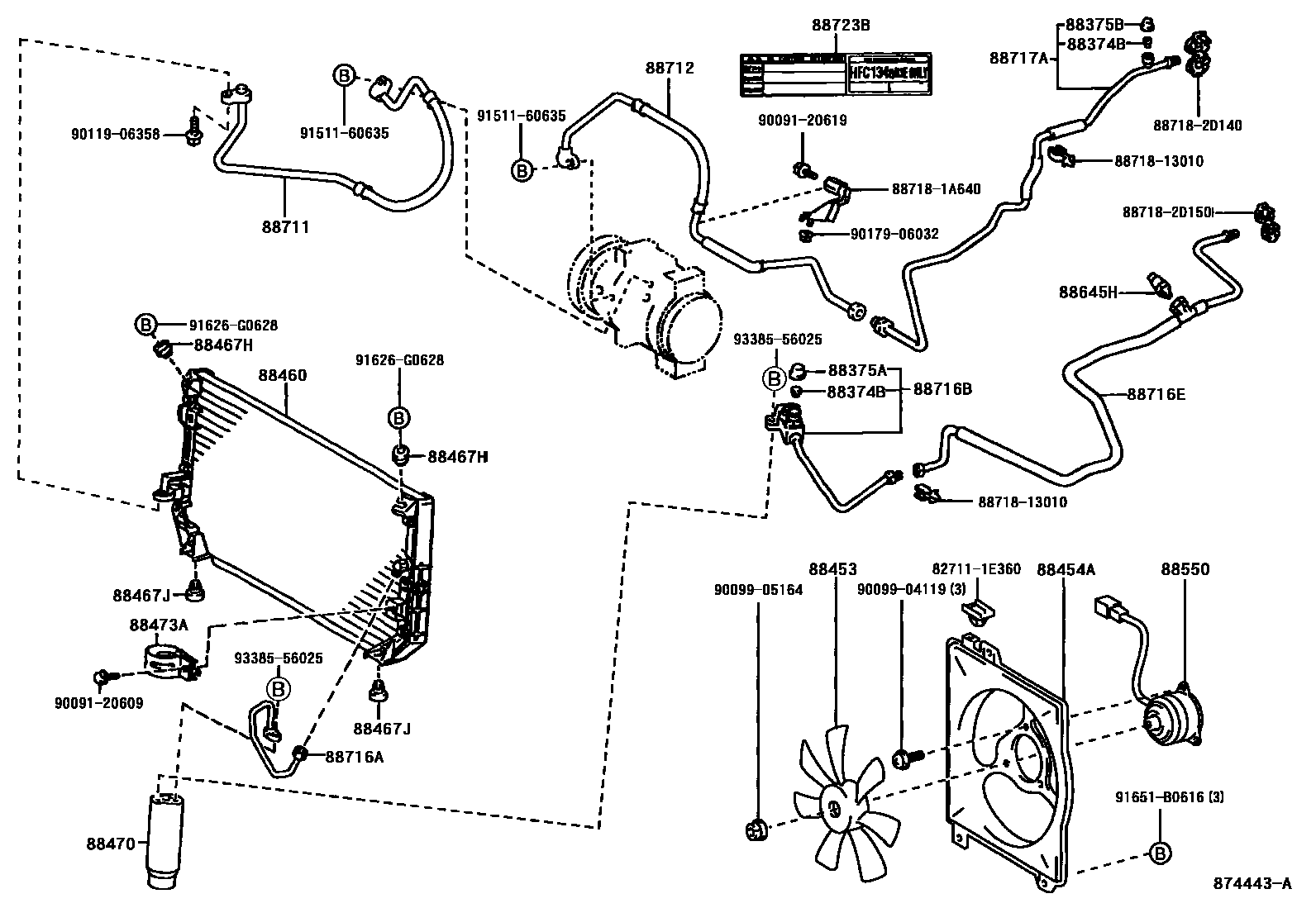

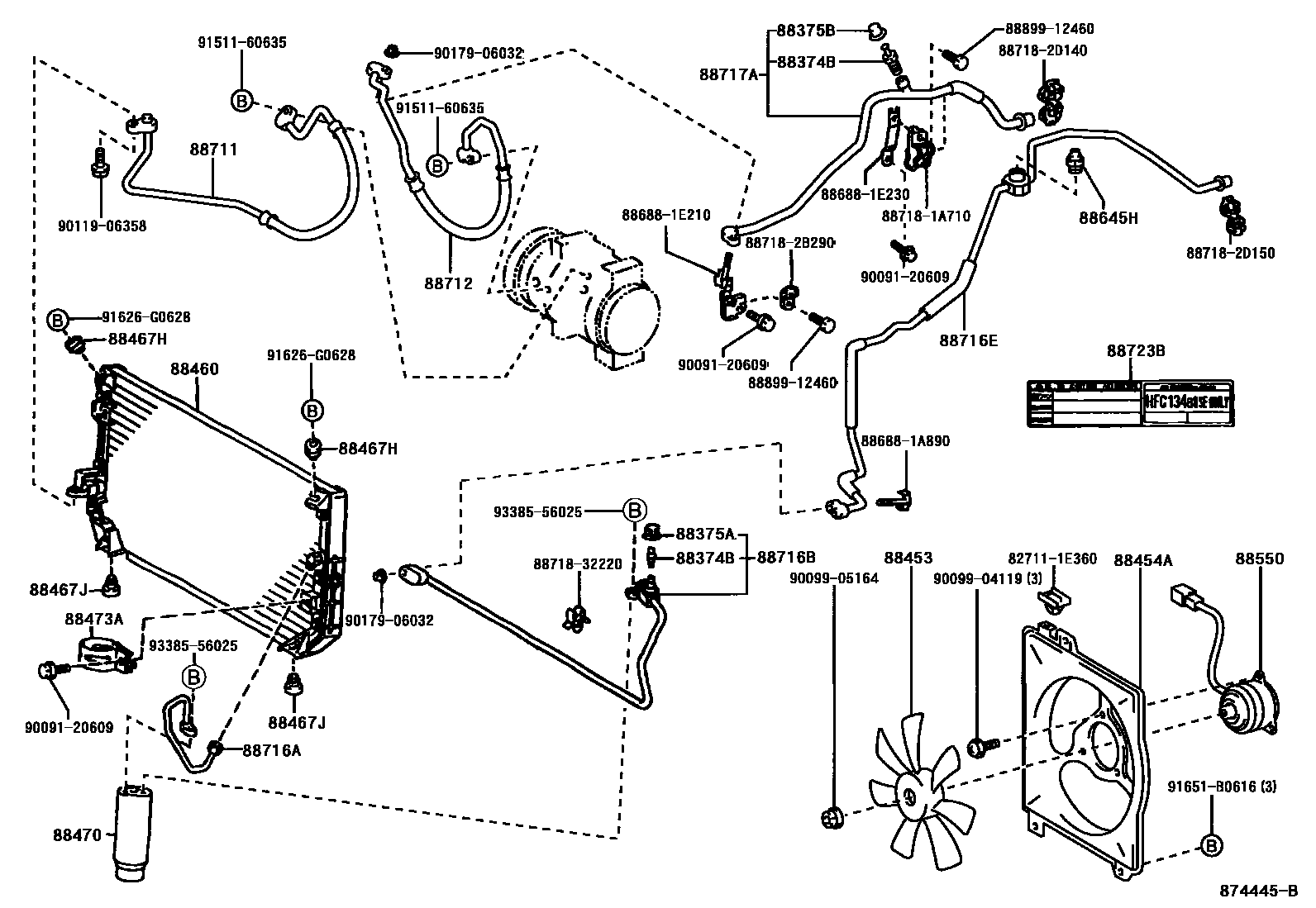

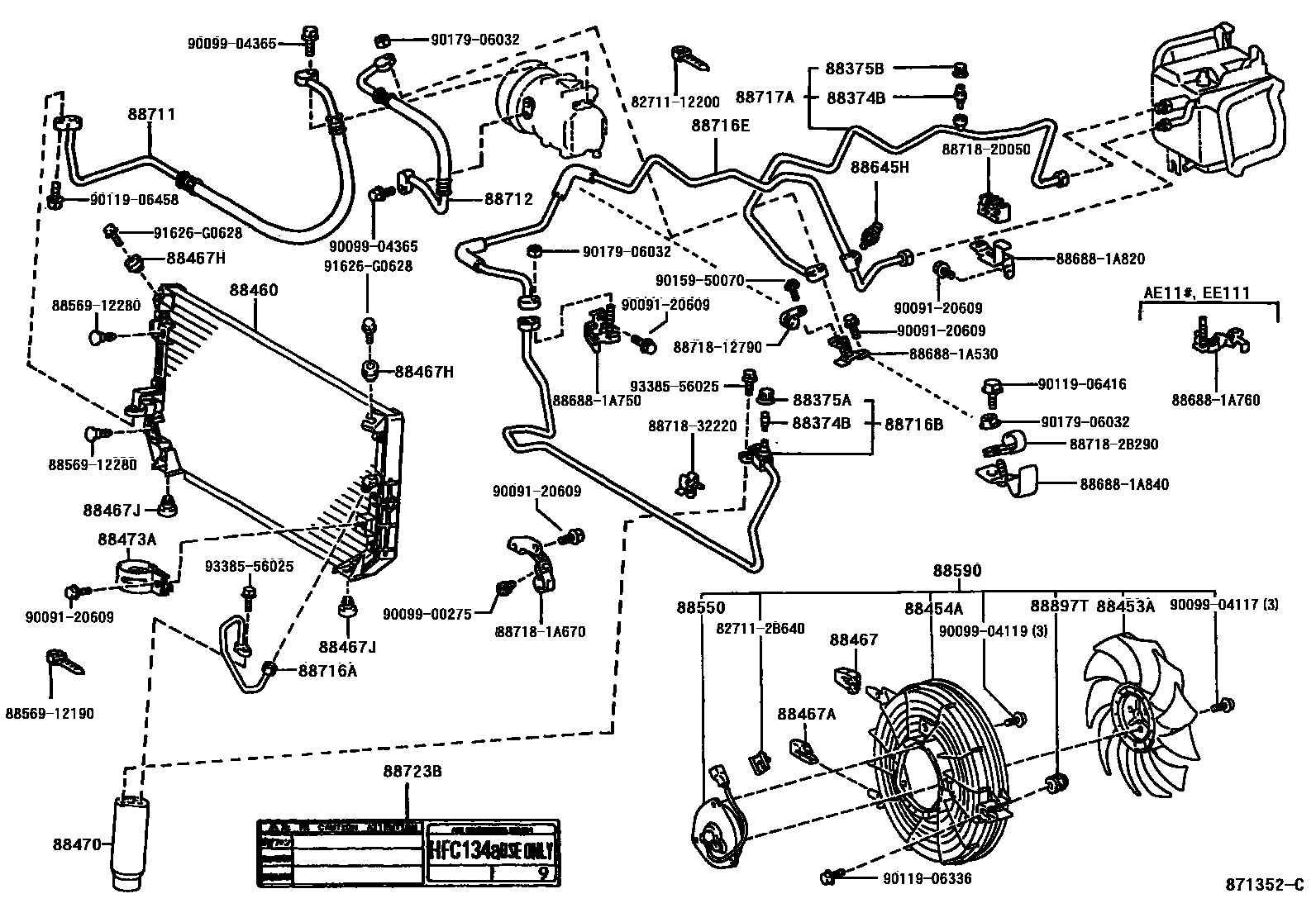

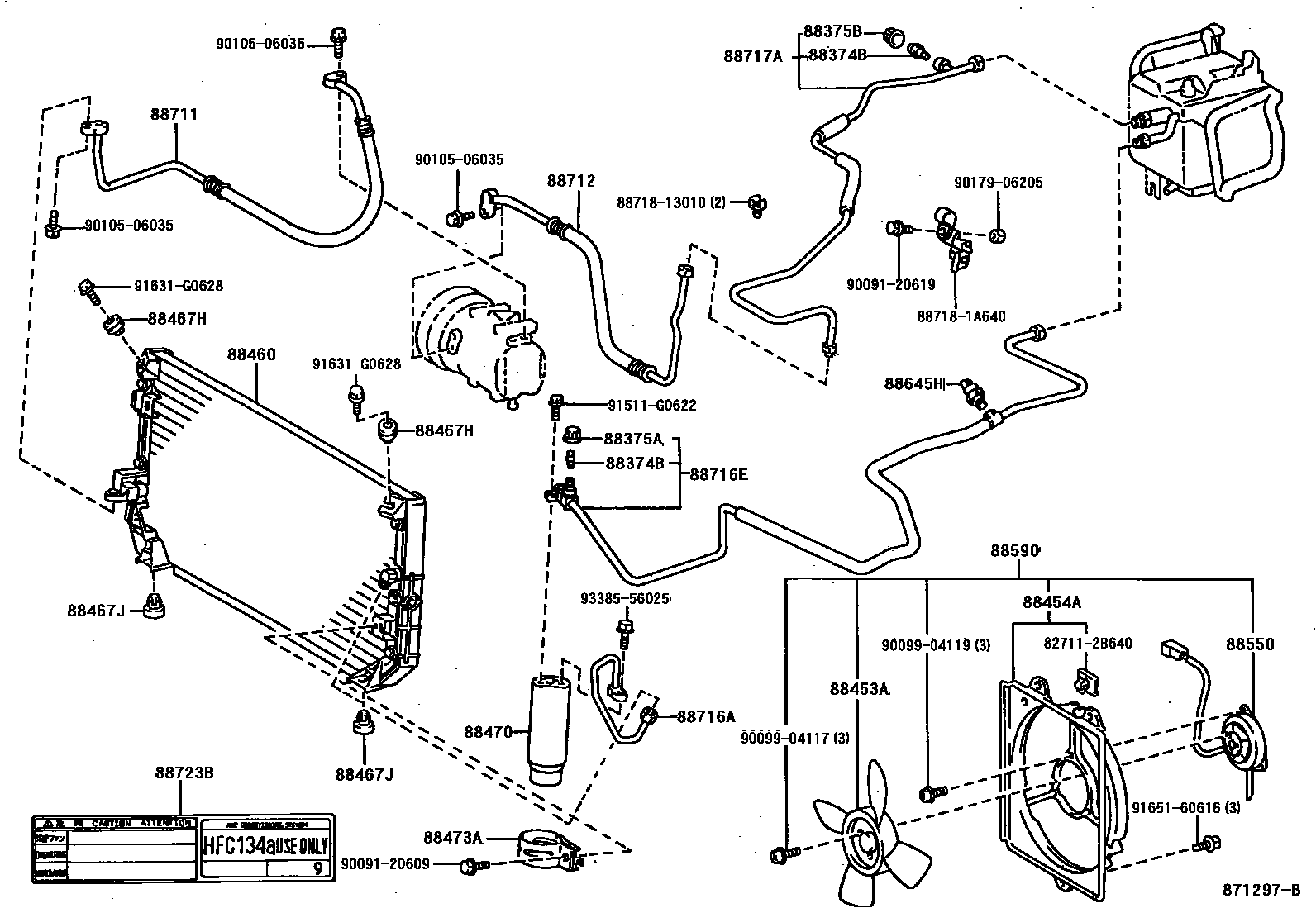

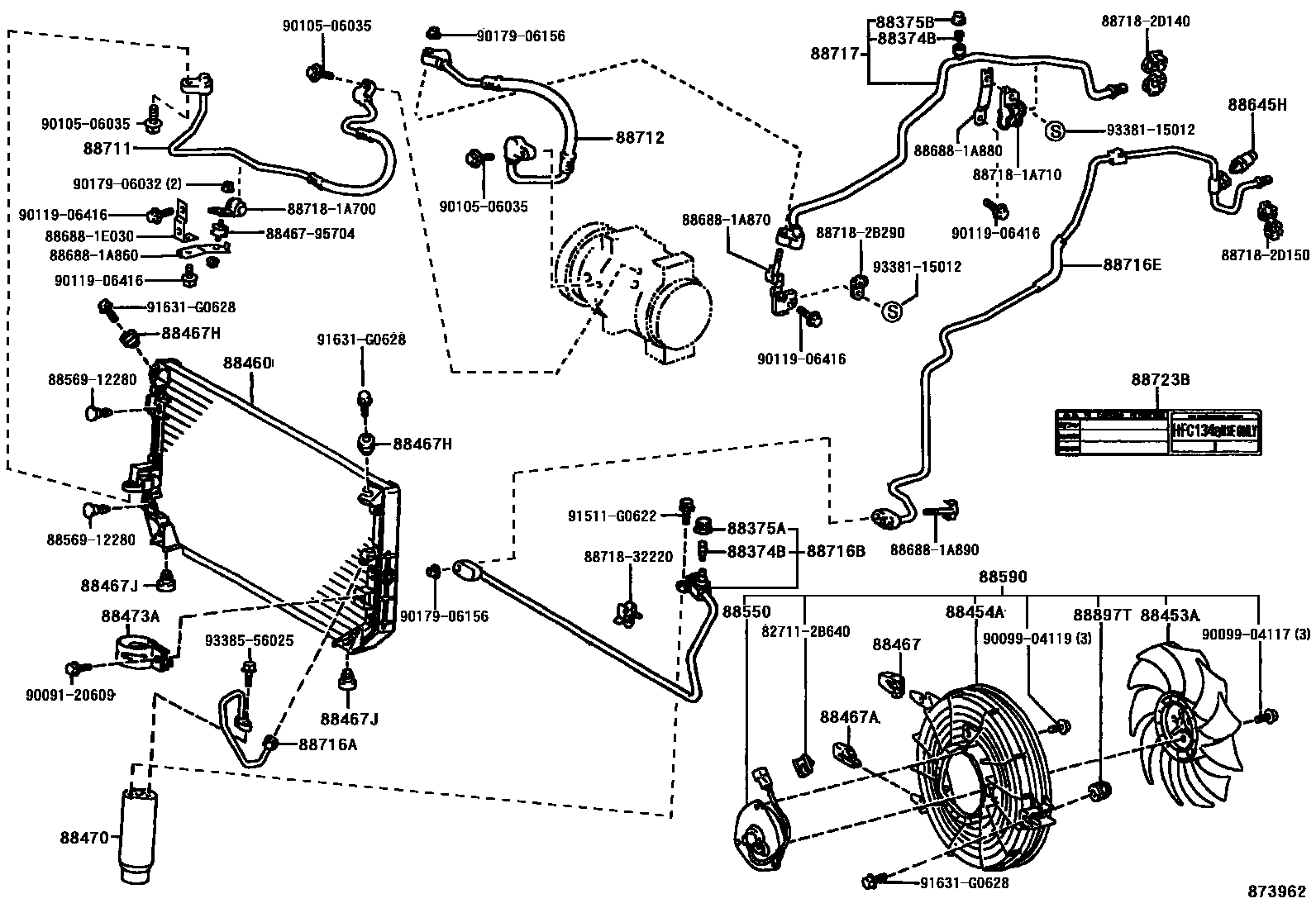

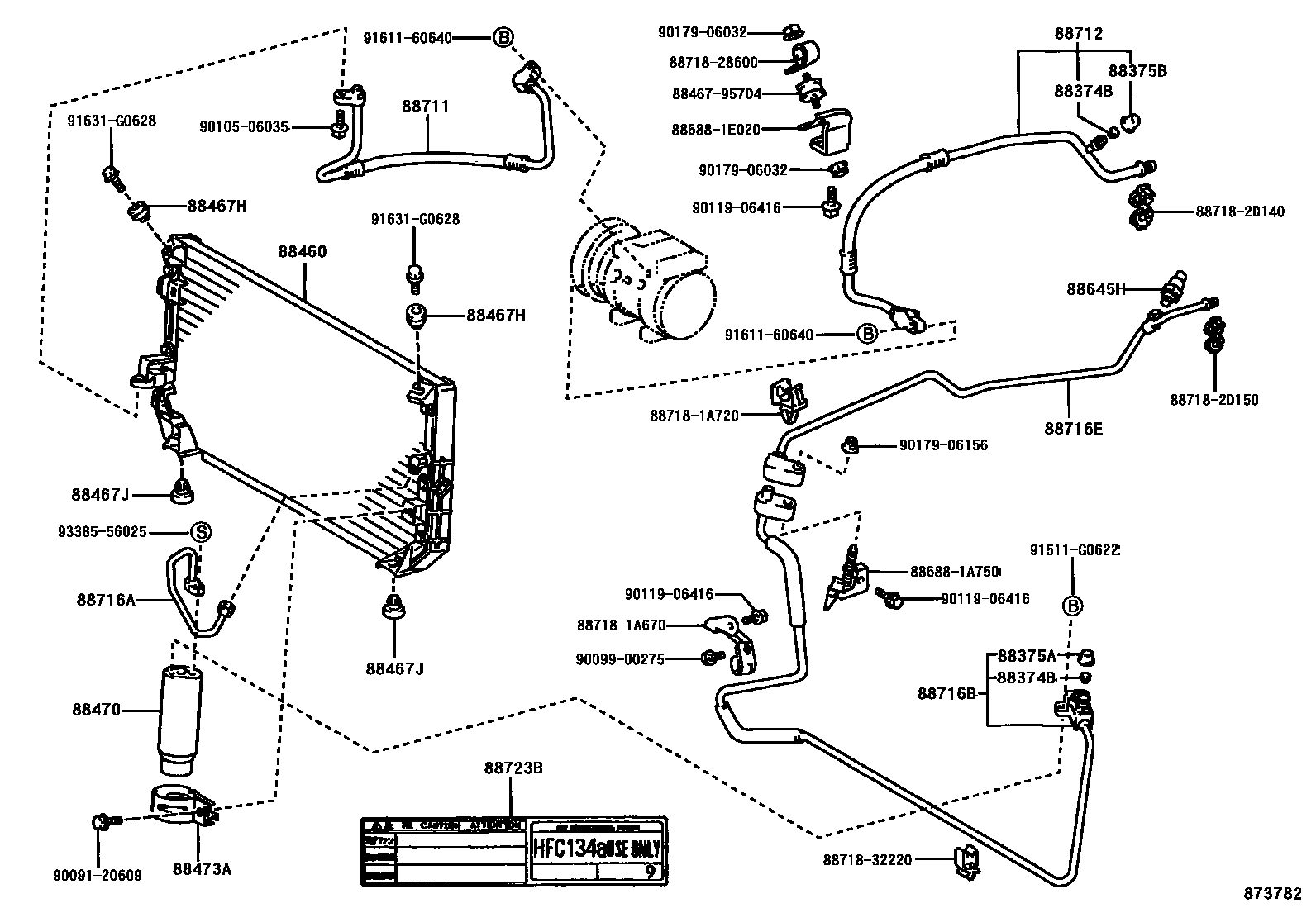

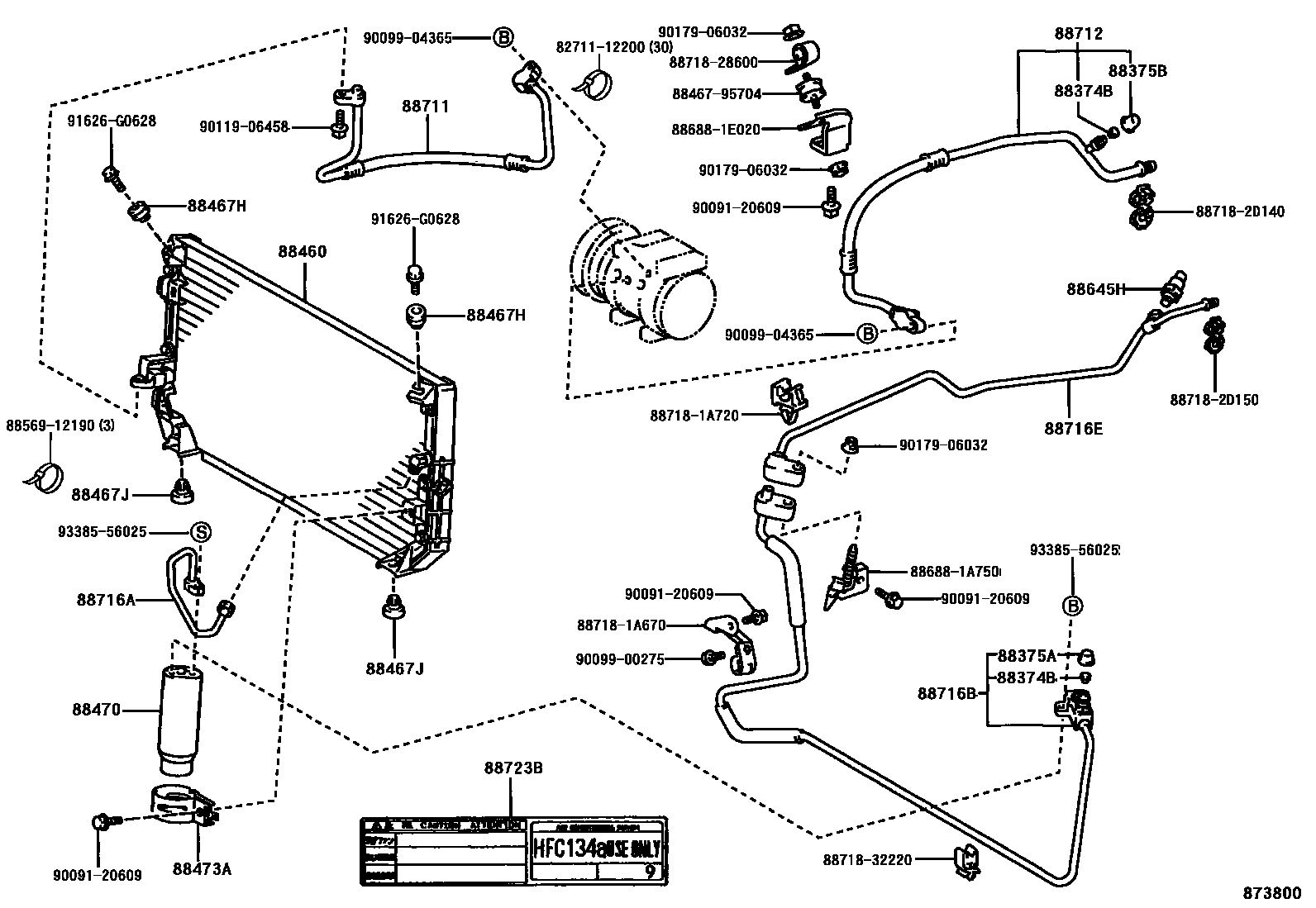

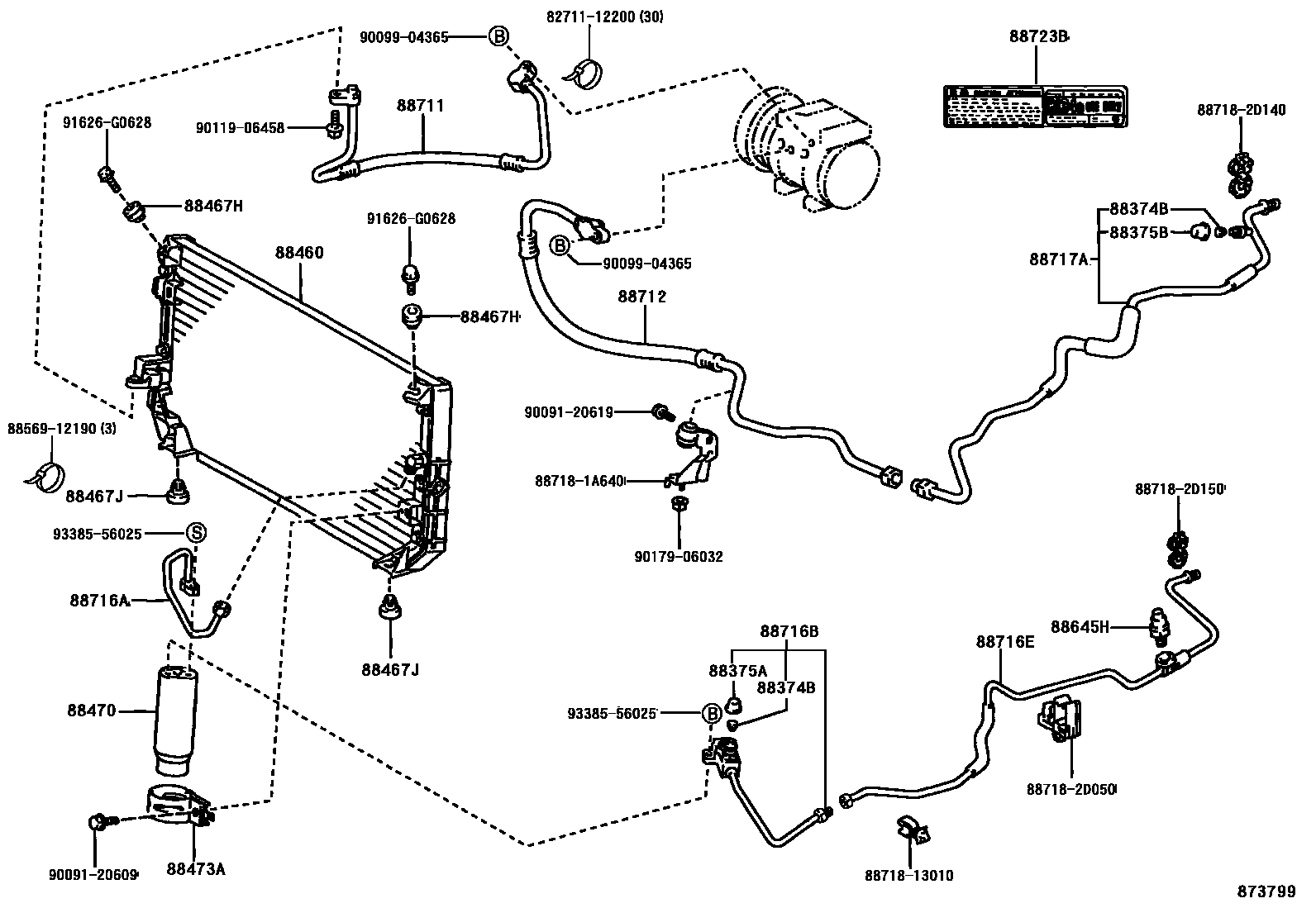

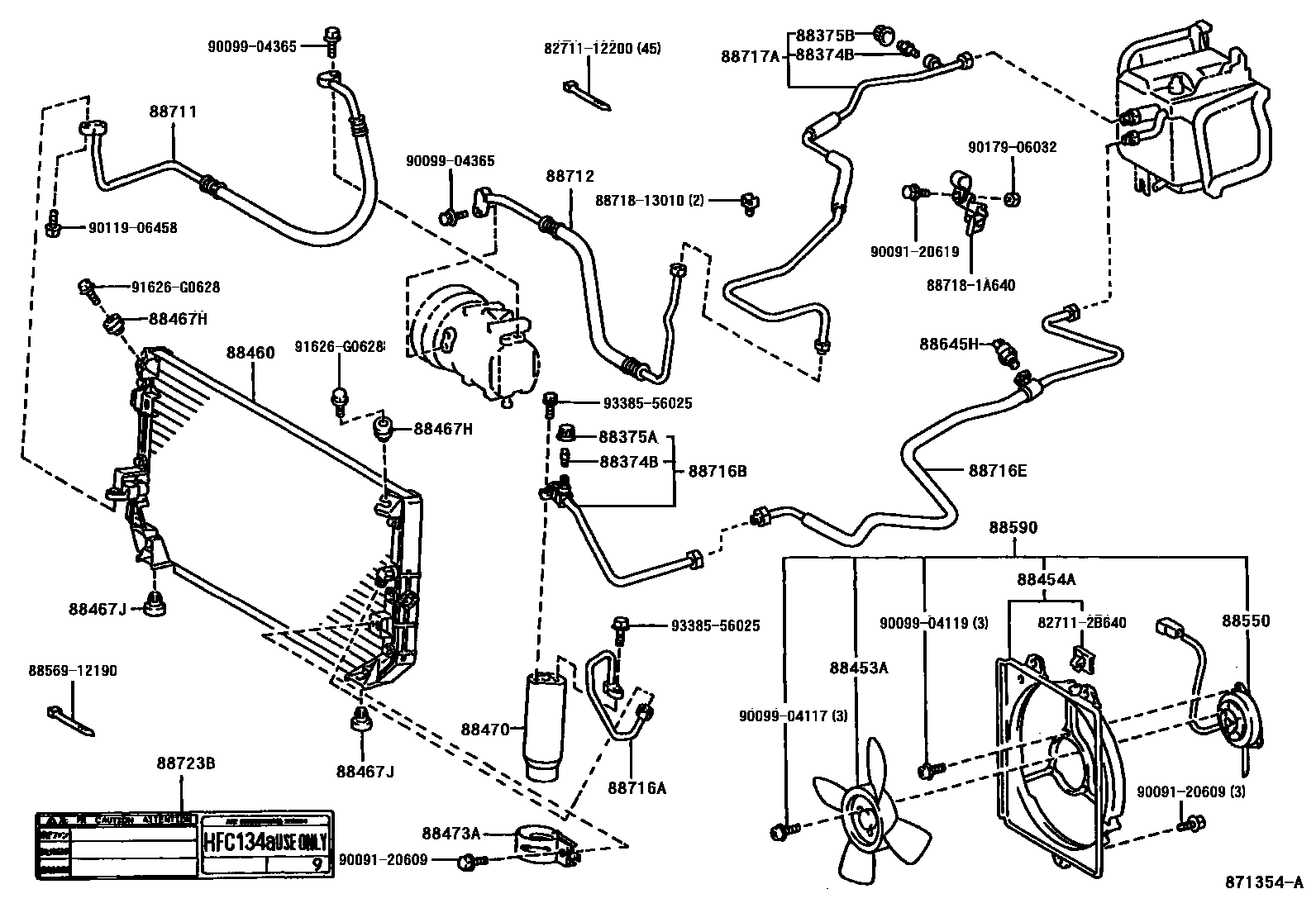

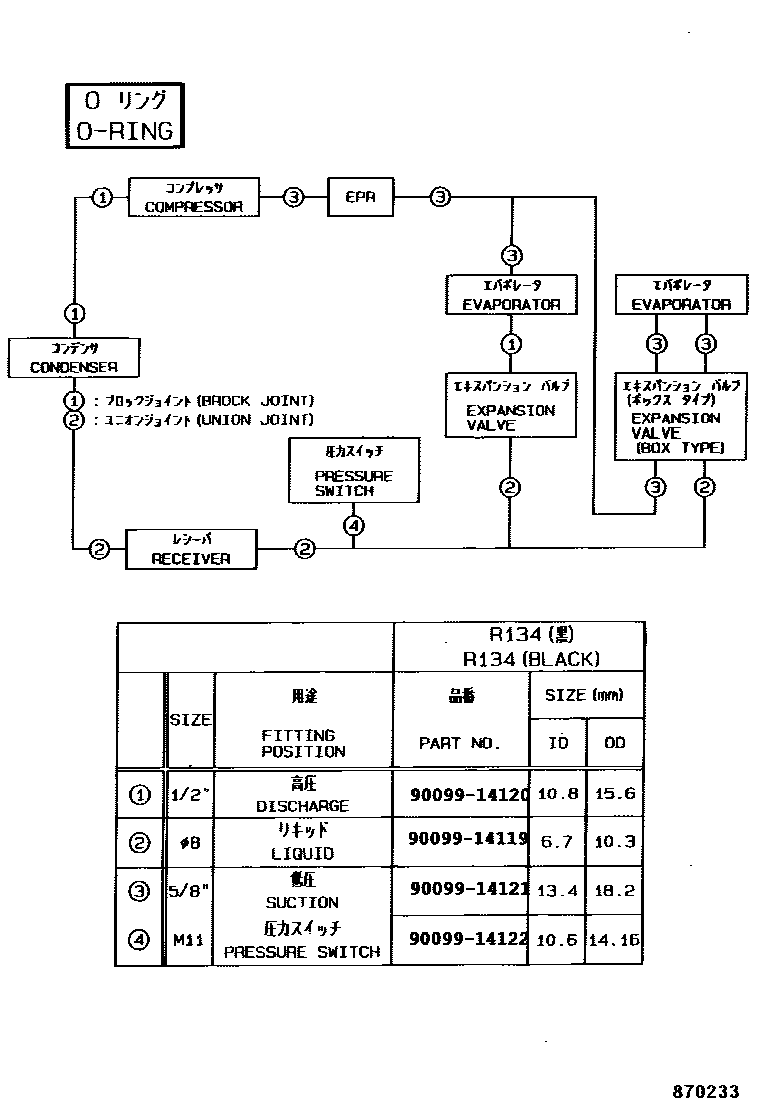

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

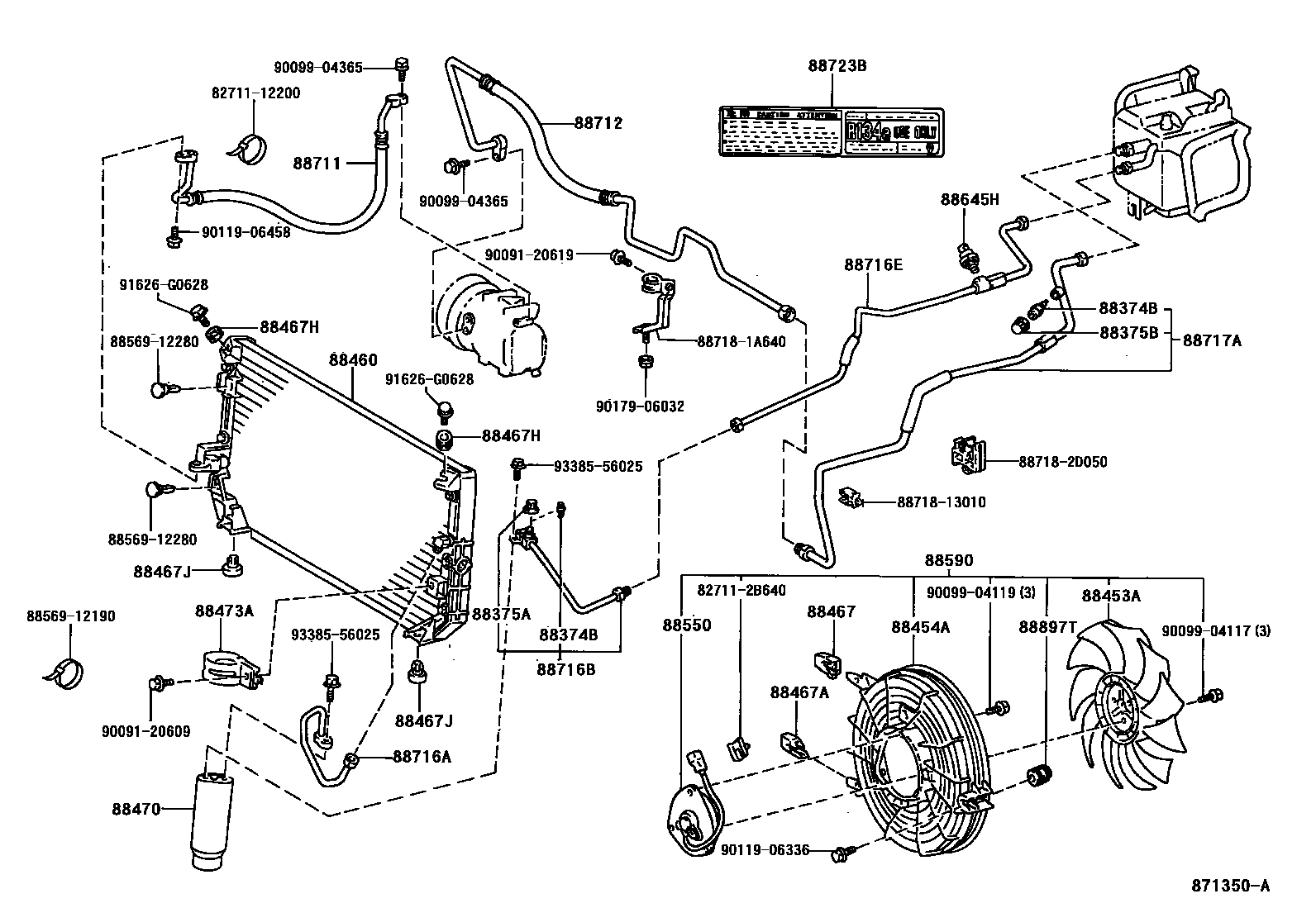

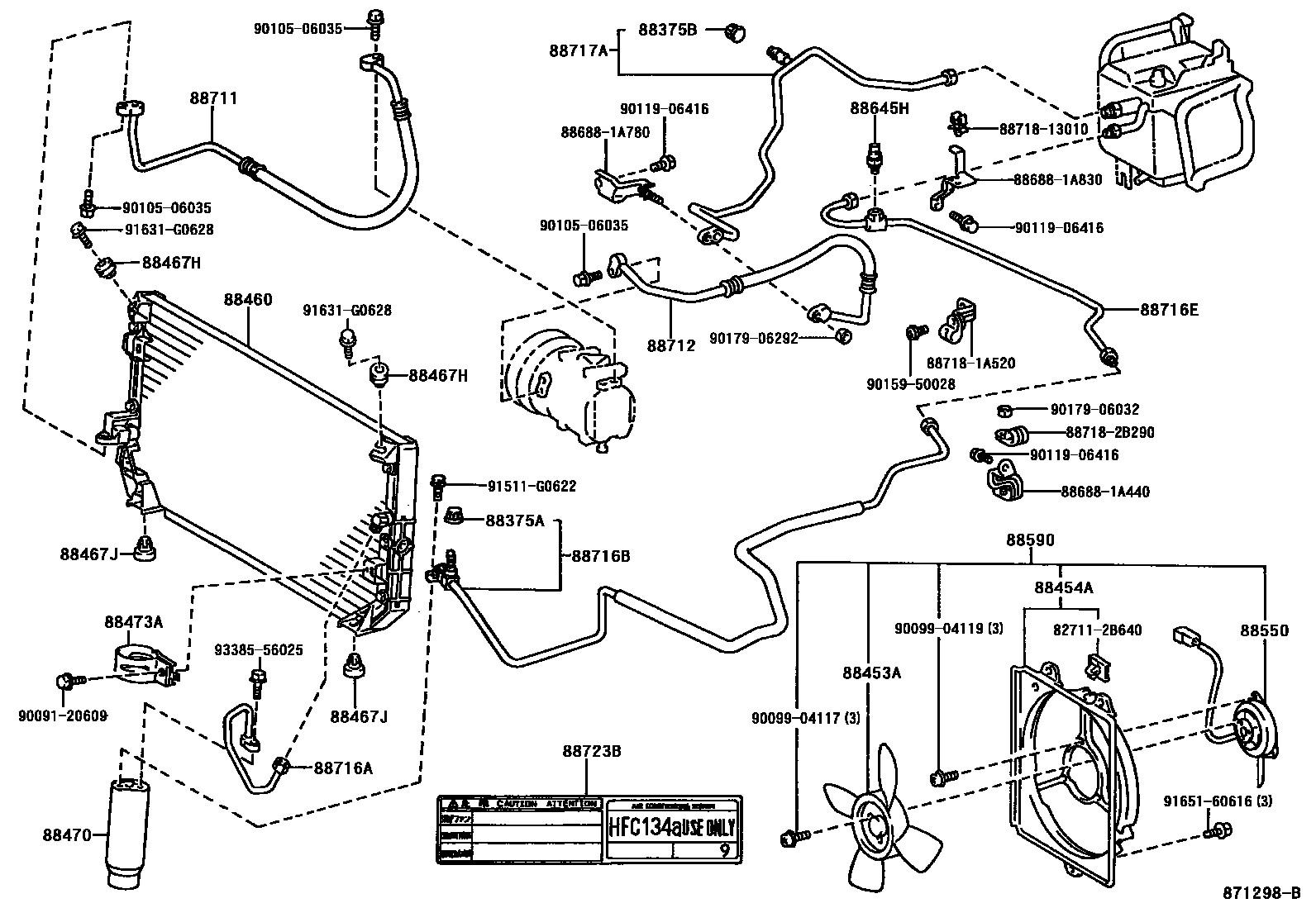

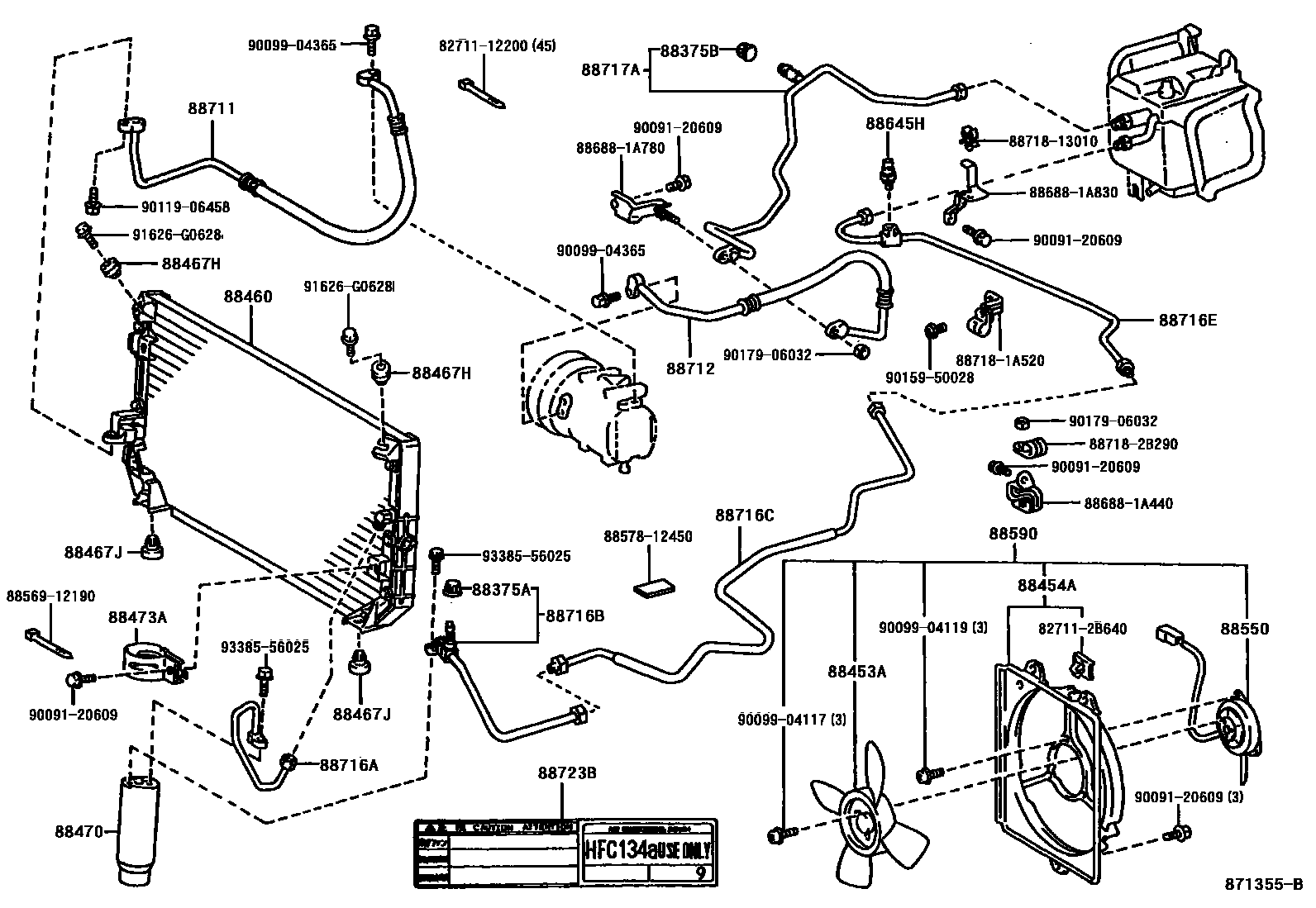

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 21 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453 | Cooling fan (for condenser) | 16361-74130 |
| 88453A | cooling fan | 88453-10022 · 88453-12070 |
| 88454A | fan cover | 16712-27040 · 88454-12140 · 88454-12160 |
| 88460 | Air conditioning condenser assembly | 88460-12480 · 88460-12530 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12130 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-12140 |
| 88467H | No. 1 condenser bracket buffer pad | 88897-12250 |
| 88467J | No. 2 condenser bracket buffer pad | 88467-12100 |
| 88470 | Cooler reservoir and dryer assembly | 88471-60010 |
| 88473A | Reservoir tank fixings | 88473-20070 |
| 88550 | Blower motor assembly (for condenser) | 16363-27020 · 88550-12130 · 88550-12160 |
| 88590 | Blower assembly with hood | 88590-12220 · 88590-12250 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-1A431 · 88711-1A490 · 88711-1A491 · 88711-1A500 · 88711-1A520 · 88711-1A530 · 88711-1A560 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-1A440 · 88712-1A460 · 88712-1A570 · 88712-1A580 · 88712-1A590 · 88712-1A600 · 88712-1A620 · 88712-1A630 · 88712-1A640 · 88712-1A650 · 88712-1A660 · 88712-1A670 · 88712-1A730 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12470 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A410 · 88716-1A460 · 88716-1A470 · 88716-1A490 · 88716-1A580 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-1A510 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-13010 · 88716-1A400 · 88716-1A420 · 88716-1A430 · 88716-1A440 · 88716-1A450 · 88716-1A480 · 88716-1A500 · 88716-1A540 · 88716-1A550 · 88716-1A560 · 88716-1A570 · 88716-1A590 · 88716-1A600 · 88716-1A630 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88717-1A130 |
| 88717A | Cooler refrigerant suction pipe A | 88717-13020 · 88717-1A050 · 88717-1A060 · 88717-1A070 · 88717-1A080 · 88717-1A090 · 88717-1A100 · 88717-1A110 · 88717-1A160 |
| 88723B | Cooler maintenance warning label | 88723-10030 · 88723-12120 |
| 88897T | cooler seal | 88897-12250 |
