Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

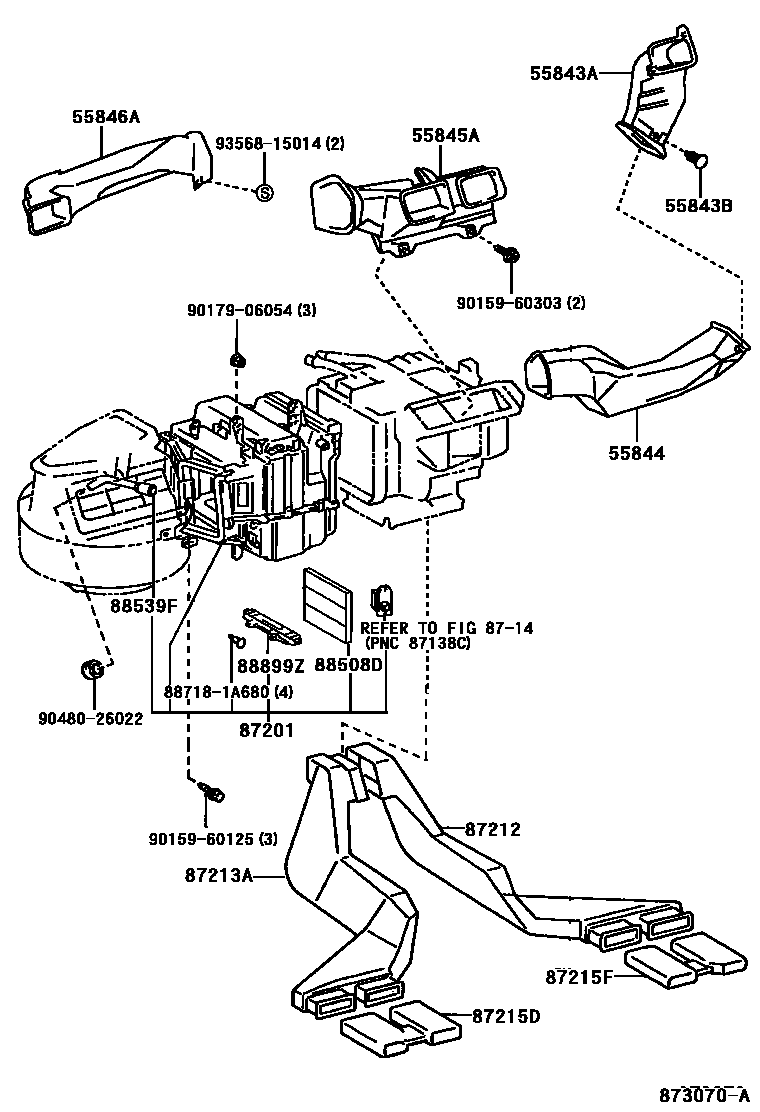

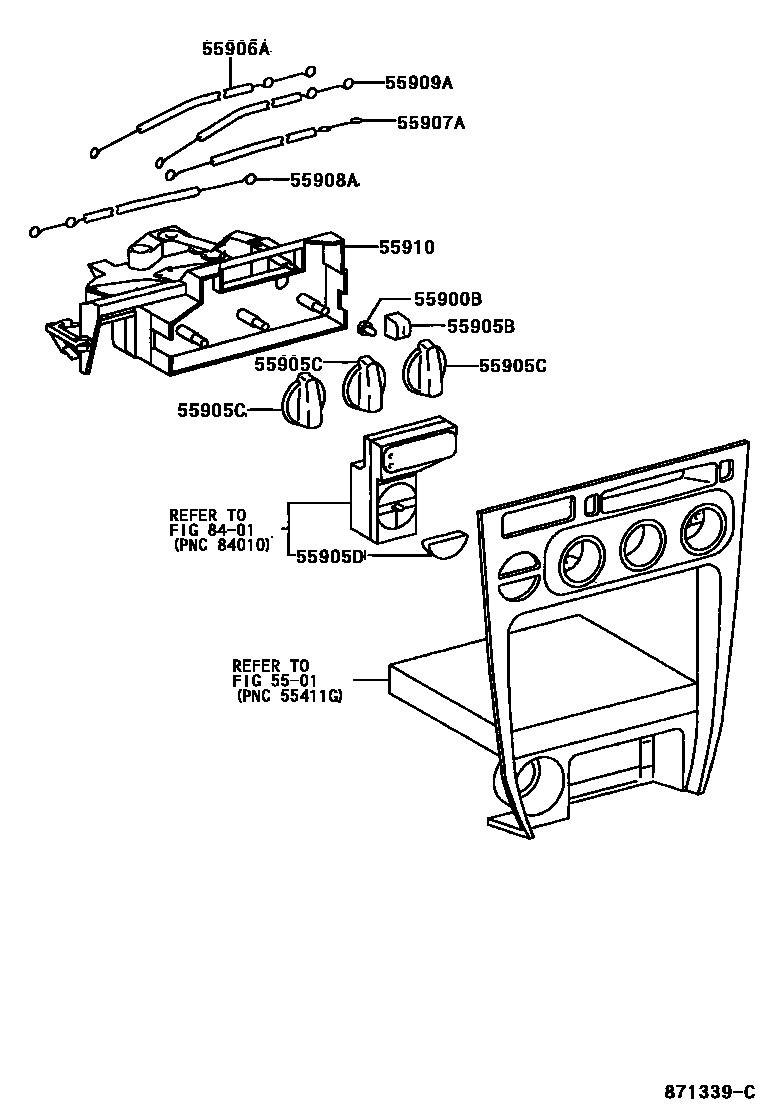

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-12260 · 55843-12270 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12420 · 55844-12430 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-12020 · 55870-12030 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12260 · 55846-12270 |
| 55900B | air conditioning control light bulb | 90981-11014 |
| 55905D | Control button sub-assembly | 55905-12500 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12380 · 55906-12390 |
| 55907A | Water valve control cable sub-assembly | 55907-12450 · 55907-12470 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12290 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12280 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12660 · 55910-12690 |
| 87201 | No. 1 air duct sub-assembly | 87201-12530 · 87201-12570 |
| 87212 | No. 1 rear air duct | 87212-12100 · 87212-13010 |
| 87213A | No. 2 rear air duct | 87213-12070 · 87213-13010 |
| 87215D | No. 4 rear air duct | 87216-12010 |
| 87215F | No. 3 rear air duct | 87215-12020 · 87215-12030 |
| 88508D | Air filter sub-assembly | 88508-12010 |
| 88539F | discharge hose | 88539-12160 |
| 88899Z | cover (for air cleaner) | 88899-12340 · 88899-12350 |
