Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

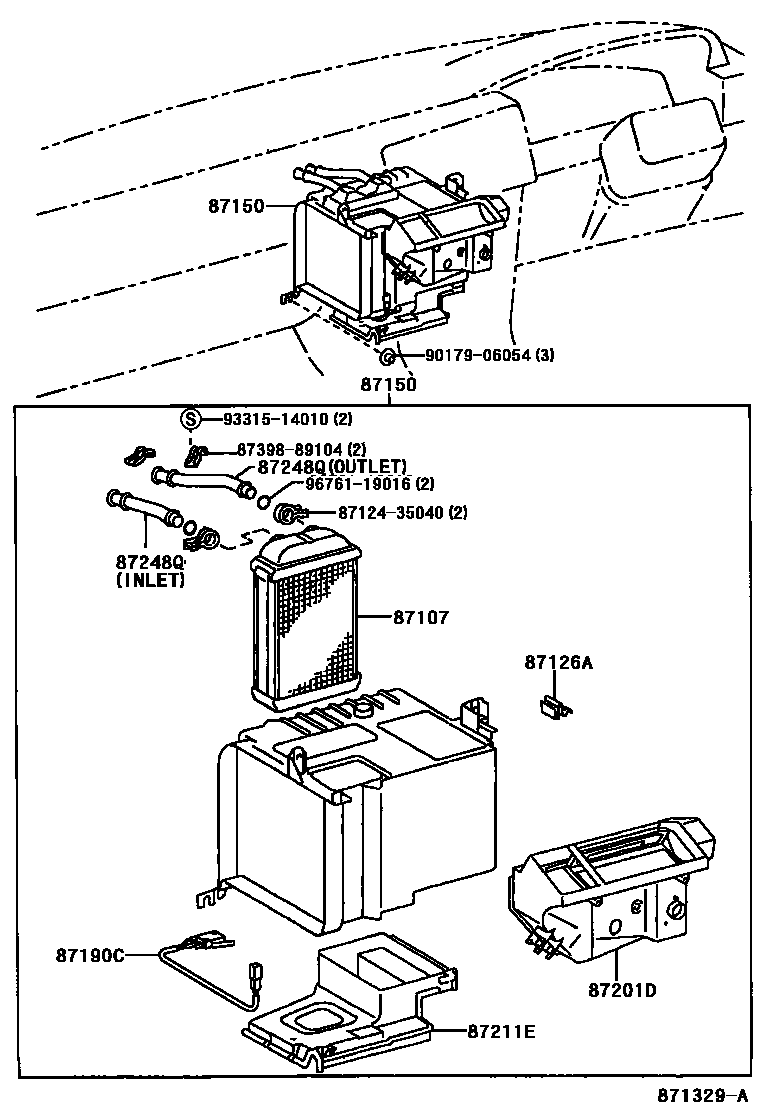

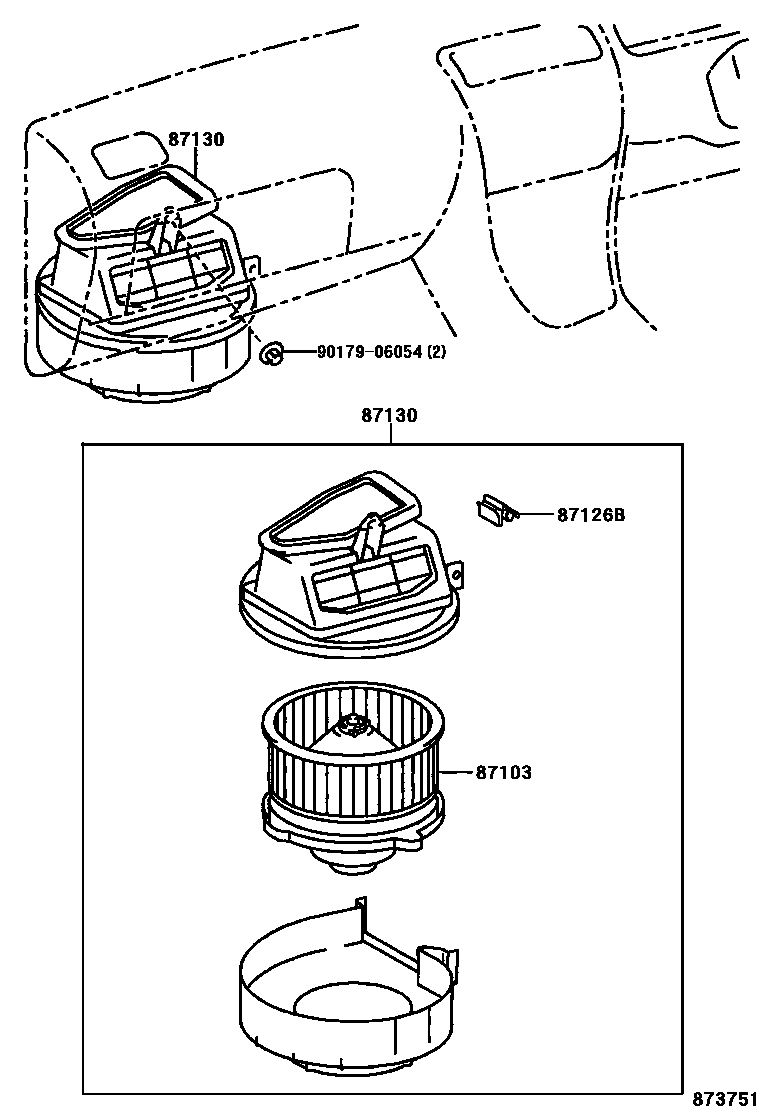

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12030 · 87103-12040 |
| 87107 | Heater radiator device sub-assembly | 87107-12500 · 87107-12510 · 87107-12520 · 87107-12530 · 87107-12531 |
| 87126A | heater control clip | 87126-13010 |
| 87126B | heater control clip | 87126-12040 |
| 87130 | Front heater blower assembly | 87130-12322 · 87130-12370 |
| 87150 | Heater radiator assembly | 87150-1A090 · 87150-1A091 · 87150-1A100 · 87150-1A101 · 87150-1A110 · 87150-1A111 · 87150-1A140 · 87150-1A150 · 87150-1A160 |
| 87190C | Temperature control switch assembly | 87190-12010 · 87190-12020 |
| 87201D | Air duct sub-assembly | 87201-12380 · 87201-12390 · 87201-12400 |
| 87211E | air duct | 87211-12240 · 87211-12250 · 87211-12251 · 87211-13010 |
| 87248Q | Front heater radiator water pipe | 87156-12020 · 87156-12030 · 87156-12040 · 87156-12050 · 87156-12060 · 87156-12061 · 87156-12070 · 87156-12080 · 87156-12090 |
