Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.

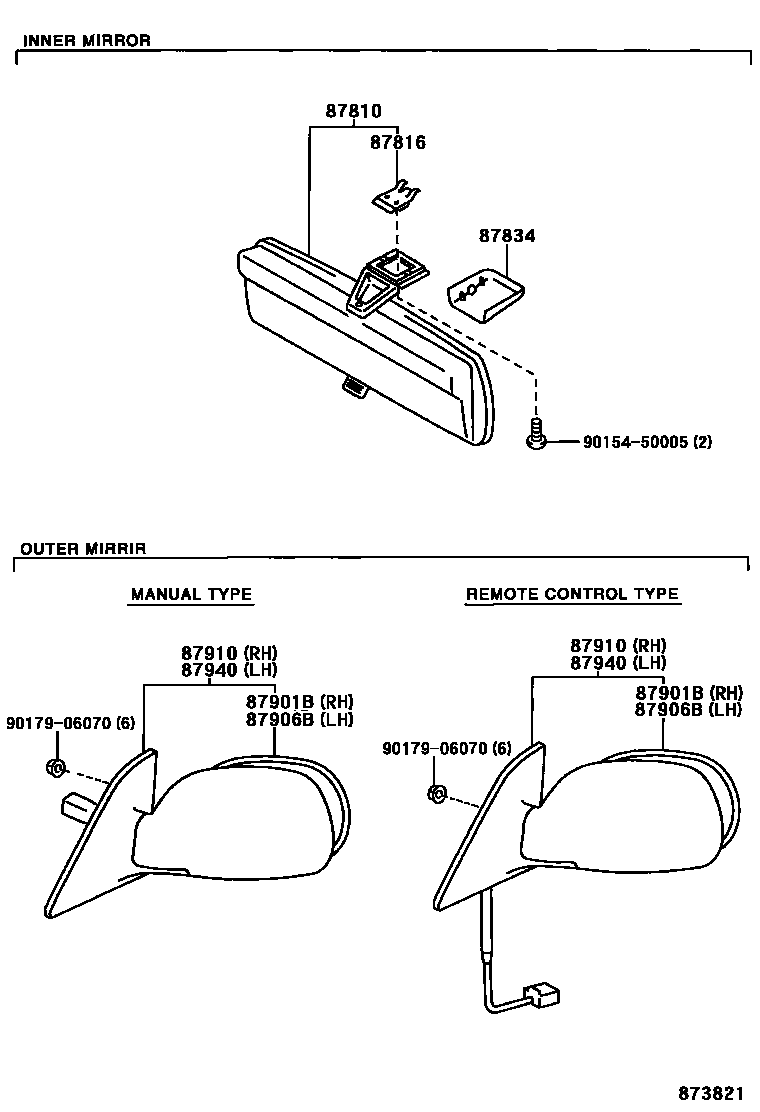

Toyota COROLLA 后视镜 EPC diagram — 873821
后视镜 — 873821 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-1A820 · 87931-1E630 · 87931-1E640 · 87931-1E641 · 87931-1E660 · 87931-1E661
87906BLeft exterior rearview mirror sub-assembly87961-1E820 · 87961-1E850 · 87961-1E851 · 87961-1E860 · 87961-1E880 · 87961-1E881
87910Right exterior rearview mirror assembly87910-1A800 · 87910-1E630 · 87910-1E650 · 87910-1E651 · 87910-1E652
87940Left exterior rearview mirror assembly87940-1E790 · 87940-1E860 · 87940-1E870 · 87940-1E871 · 87940-1E872
