Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 8 PNC and OE references.

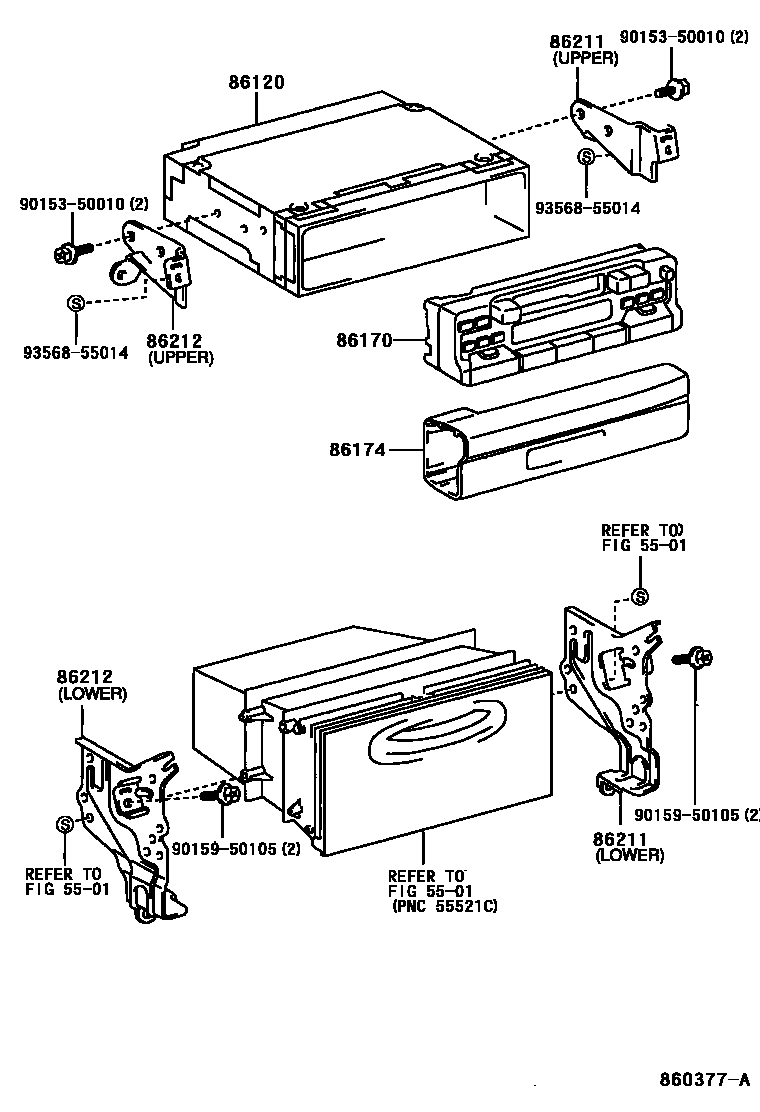

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 860377A
收音机、放大器和冷凝器 — 860377A (199704 – 199910)

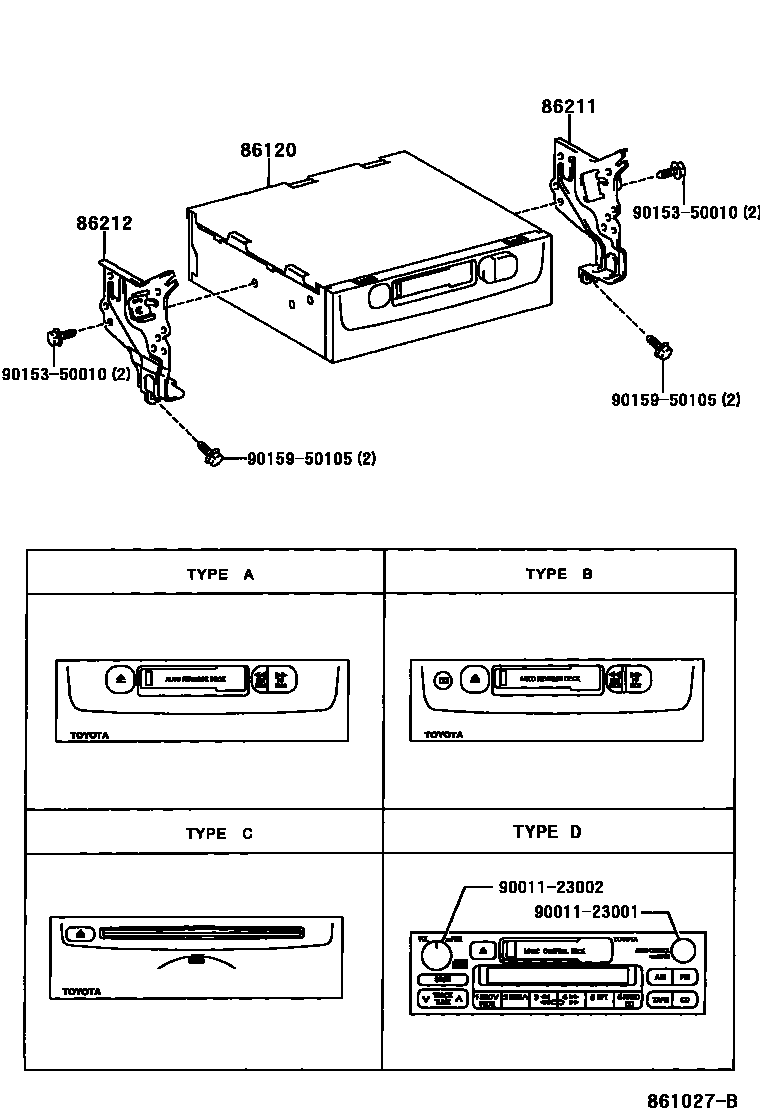

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 861027B
收音机、放大器和冷凝器 — 861027B (199910 – 999999)

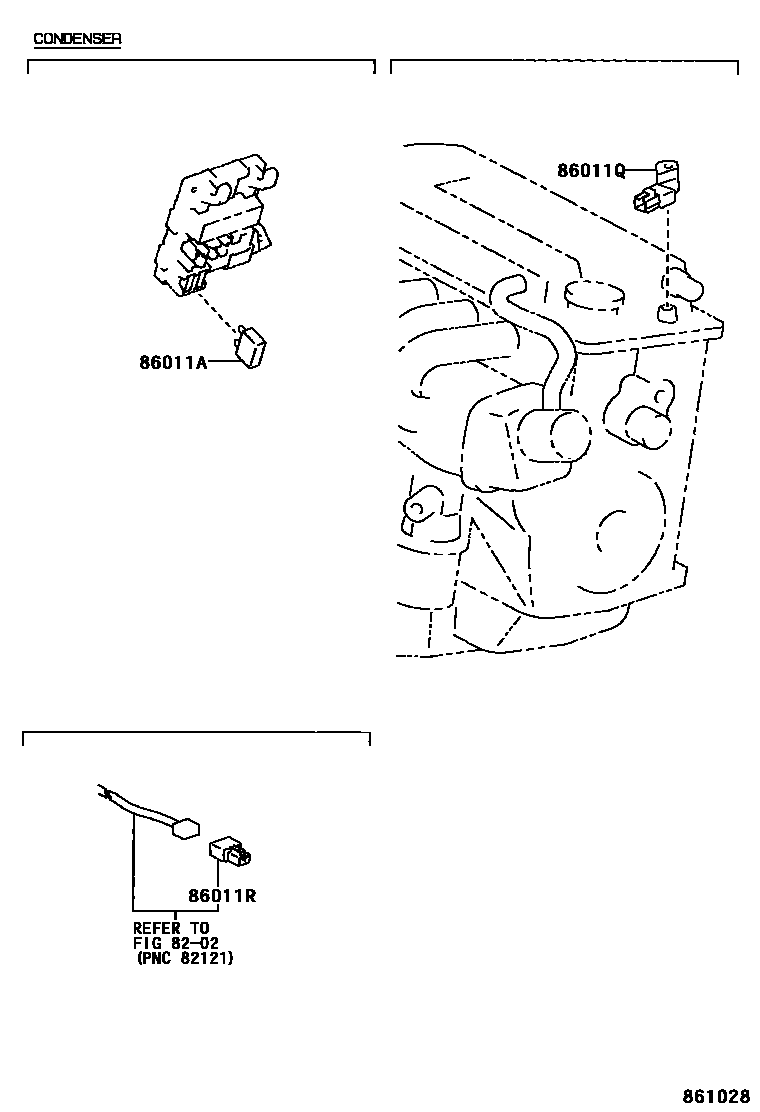

Toyota COROLLA 收音机、放大器和冷凝器 EPC diagram — 861028
收音机、放大器和冷凝器 — 861028 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04066
86011Qradio settings phase modulator90980-04154
86011Rradio settings phase modulator90980-04111
86120Radio assembly86120-1A110 · 86120-1A120 · 86120-1A130 · 86120-2B610 · 86120-60210
86170Radio switch and volume assembly86170-60010
86174Switch and volume box86174-60010
86211No. 1 radio bracket86211-12340 · 86211-12350
86212No. 2 radio bracket86212-12320 · 86212-12330
