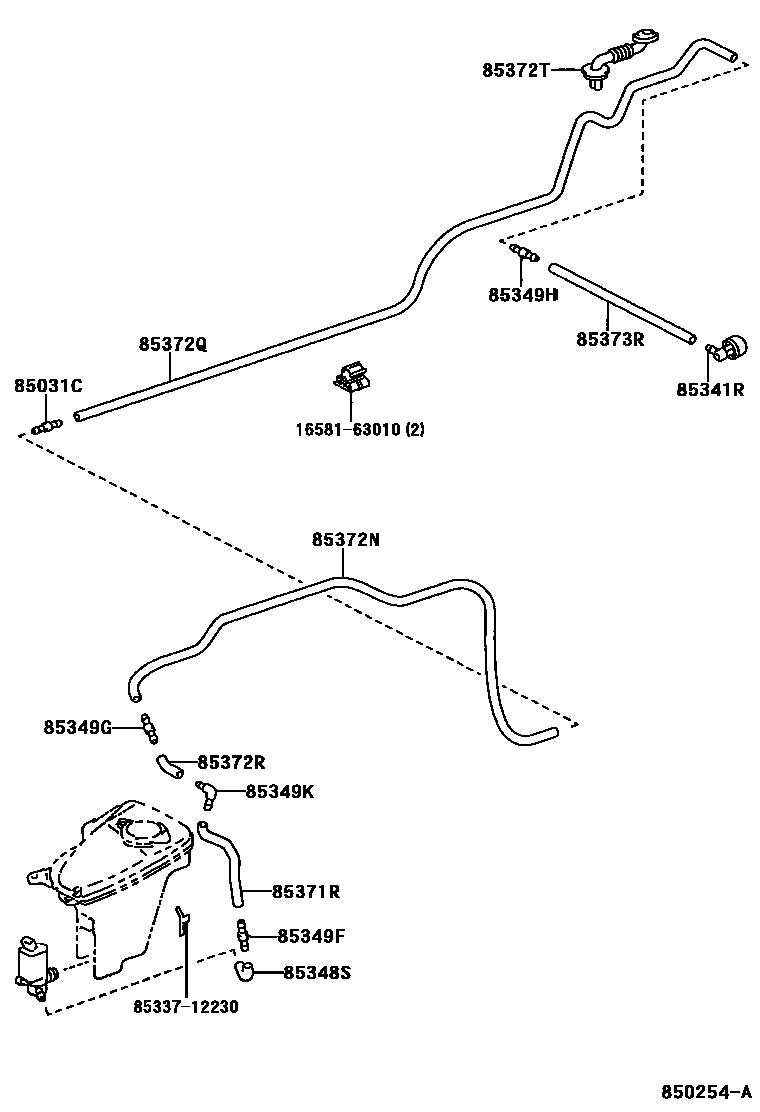

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85375-12520 |
| 85341R | Cleaner nozzle assembly | 85395-13020 |
| 85348S | No. 1 rear cleaner elbow joint | 85336-12230 · 85355-14481 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 · 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85349H | No. 3 rear washer hose connector | 85375-10260 |
| 85349K | No. 2 rear cleaner elbow joint | 85317-12230 |
| 85372T | Cleaner seal | 85372-12020 |
