Toyota COROLLA 防盗装置 — Figure 8424

Toyota COROLLA EPC diagram 8424, 防盗装置, with 5 images and 9 PNC and OE references.

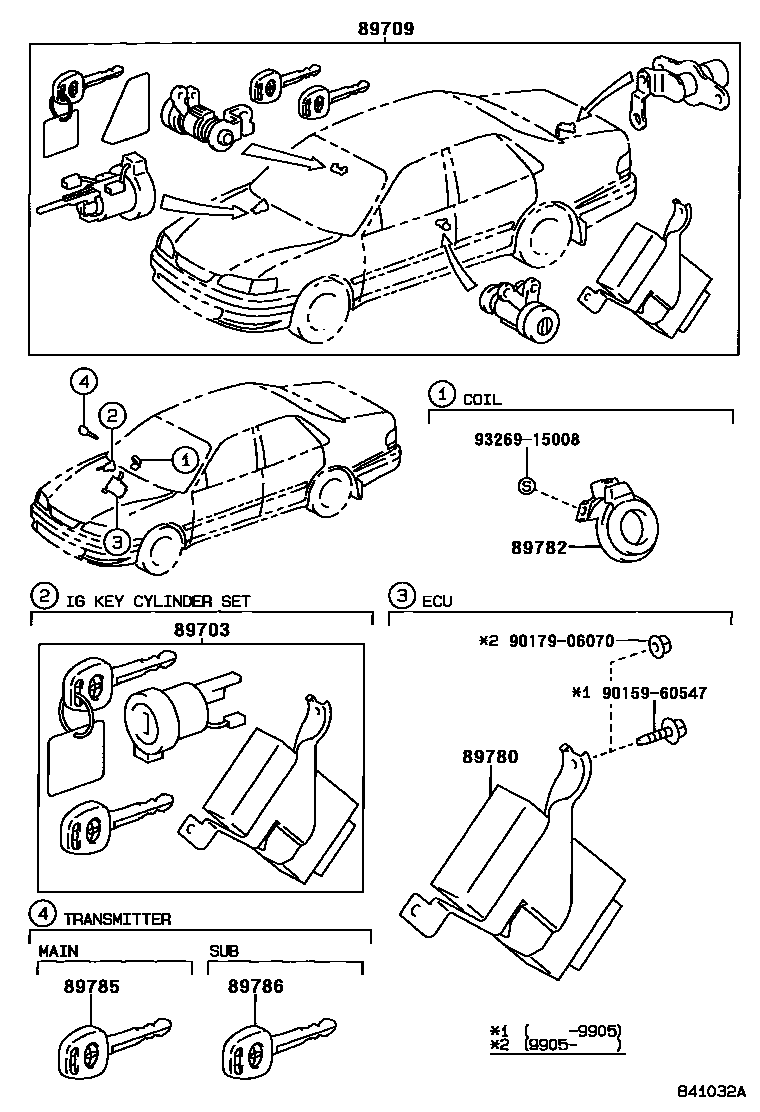

Toyota COROLLA 防盗装置 EPC diagram — 841032A
防盗装置 — 841032A (199704 – 199910)

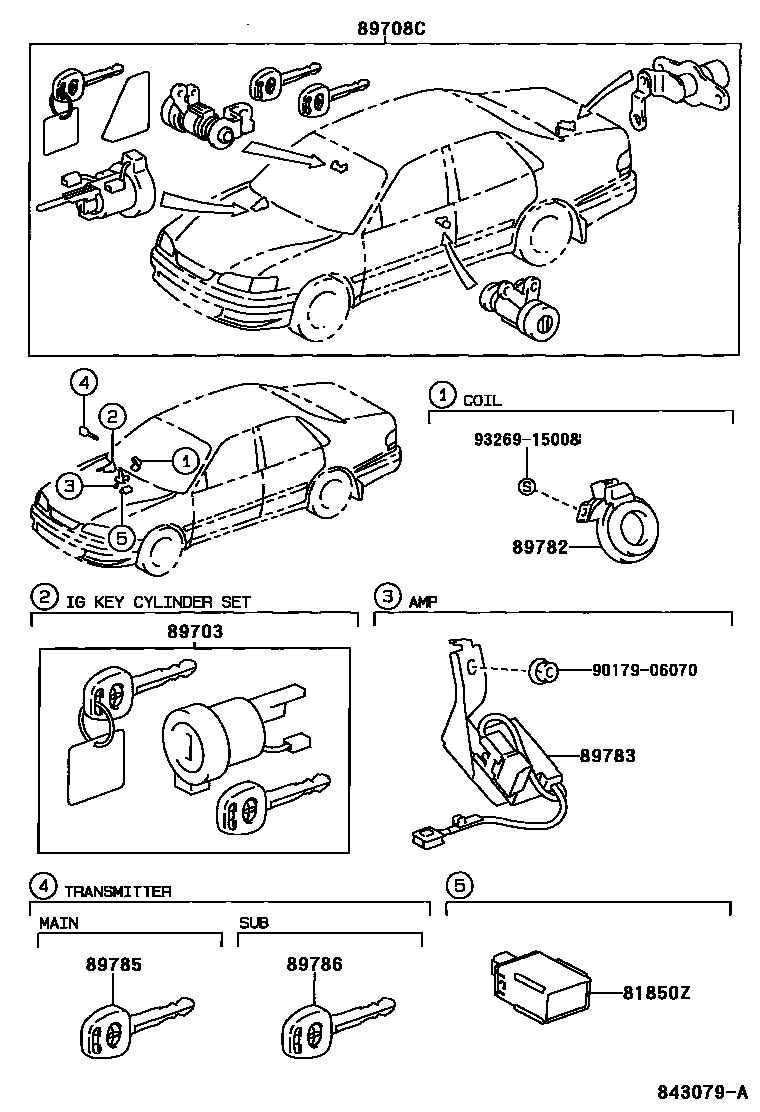

Toyota COROLLA 防盗装置 EPC diagram — 843079A
防盗装置 — 843079A (199910 – 999999)

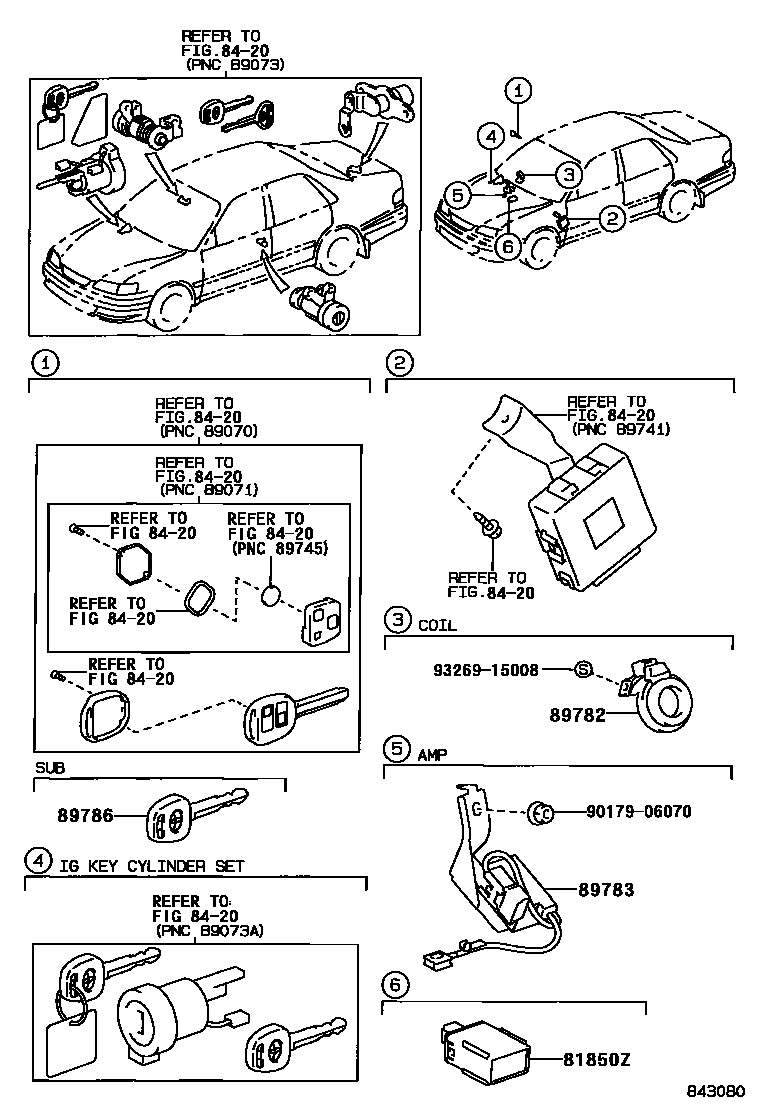

Toyota COROLLA 防盗装置 EPC diagram — 843080
防盗装置 — 843080 (199910 – 999999)

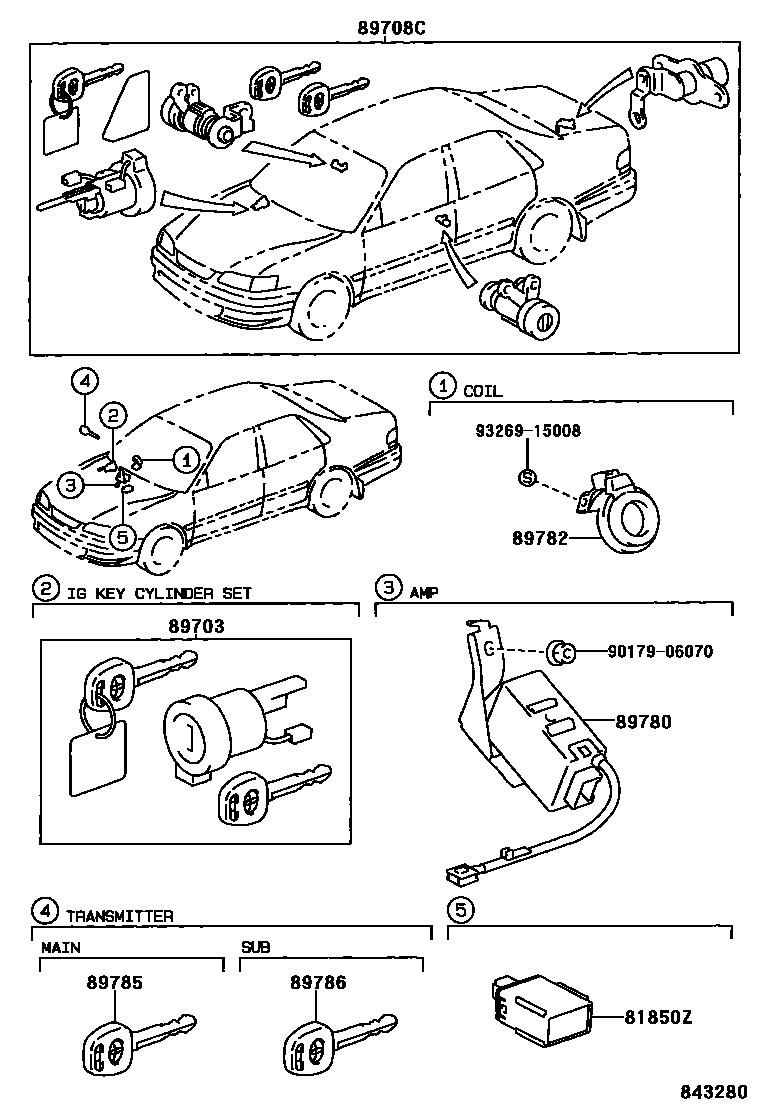

Toyota COROLLA 防盗装置 EPC diagram — 843280
防盗装置 — 843280 (200001 – 999999)

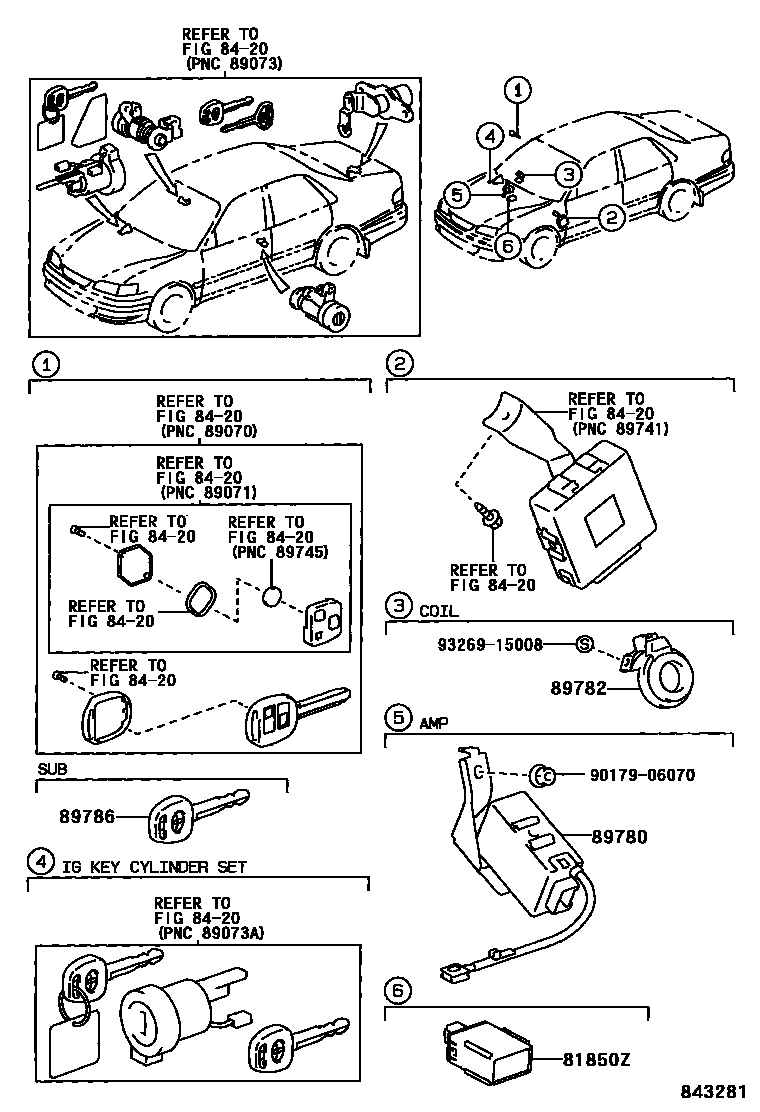

Toyota COROLLA 防盗装置 EPC diagram — 843281
防盗装置 — 843281 (200001 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850ZAnti-theft warning indicator light assembly81850-12250
89703Ignition lock cylinder and key assembly with transceiver89703-12050 · 89703-12051 · 89703-12060 · 89703-12061 · 89703-12140
89708CKey lock cylinder assembly with transceiver transmitter89708-12080 · 89708-12090
89709Transceiver key ECU assembly89709-12260 · 89709-12261 · 89709-12270 · 89709-12271 · 89709-12280 · 89709-12281 · 89709-12290 · 89709-12291
89780Transceiver key ECU assembly89780-12060 · 89780-12061 · 89780-12070 · 89780-12071 · 89780-12080 · 89780-12090 · 89780-12110 · 89780-12120
89782transceiver key coil89782-44010
89783transceiver key amplifier89783-12020 · 89783-12030
89785transceiver key master transmitter89785-26020
89786transceiver key secondary transmitter89786-26020 · 89786-60050
