Toyota COROLLA 空气囊 — Figure 8421

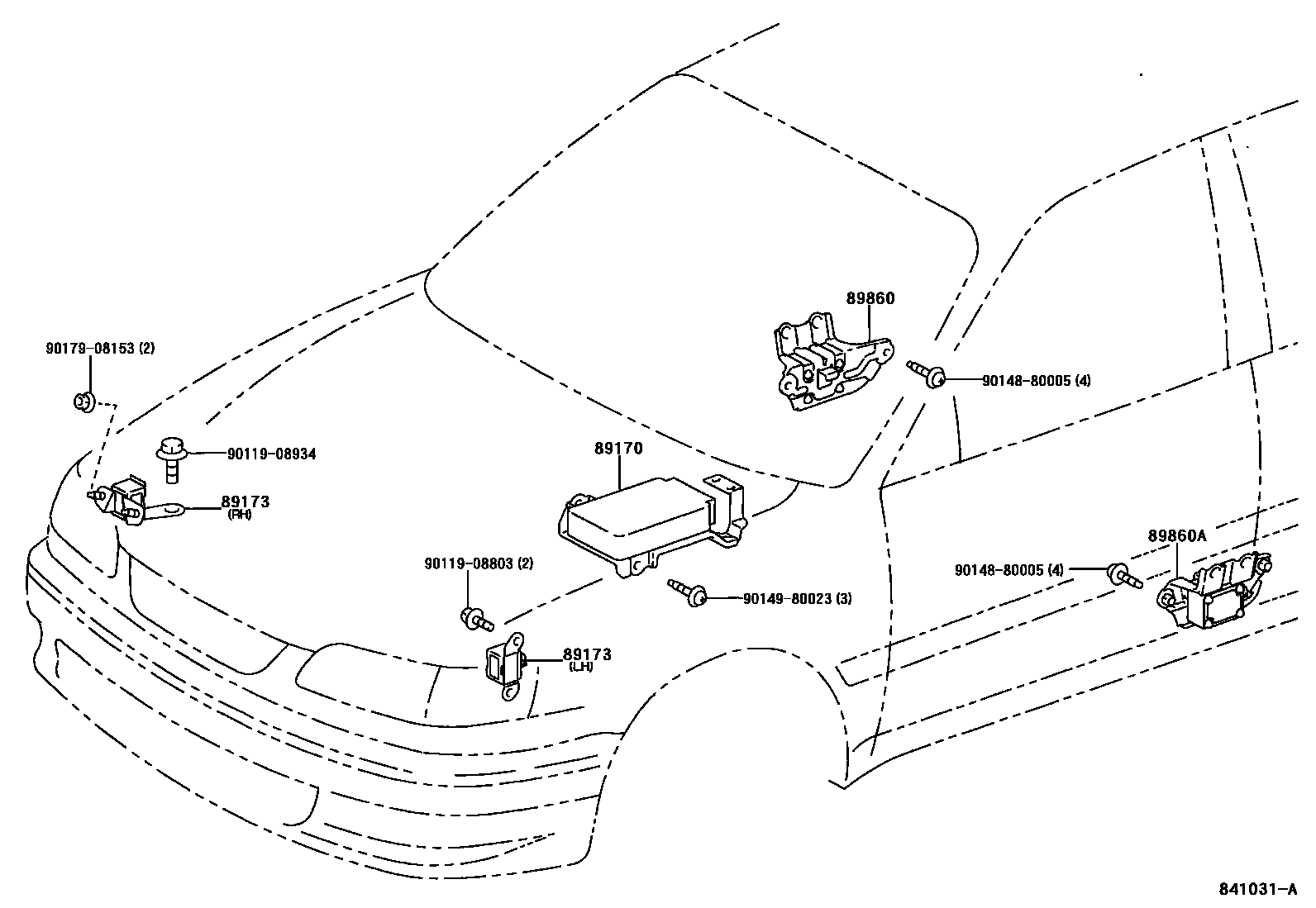

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-12070 · 89170-12080 · 89170-12090 · 89170-12250 · 89170-12270 · 89170-12280 · 89170-12300 · 89170-13020 |
| 89173 | front airbag sensor | 89173-19115 · 89173-19125 |
| 89860 | Right side airbag sensor assembly | 89860-12020 · 89860-12050 |
| 89860A | Left side air bag sensor assembly | 89830-12020 · 89830-12050 |
