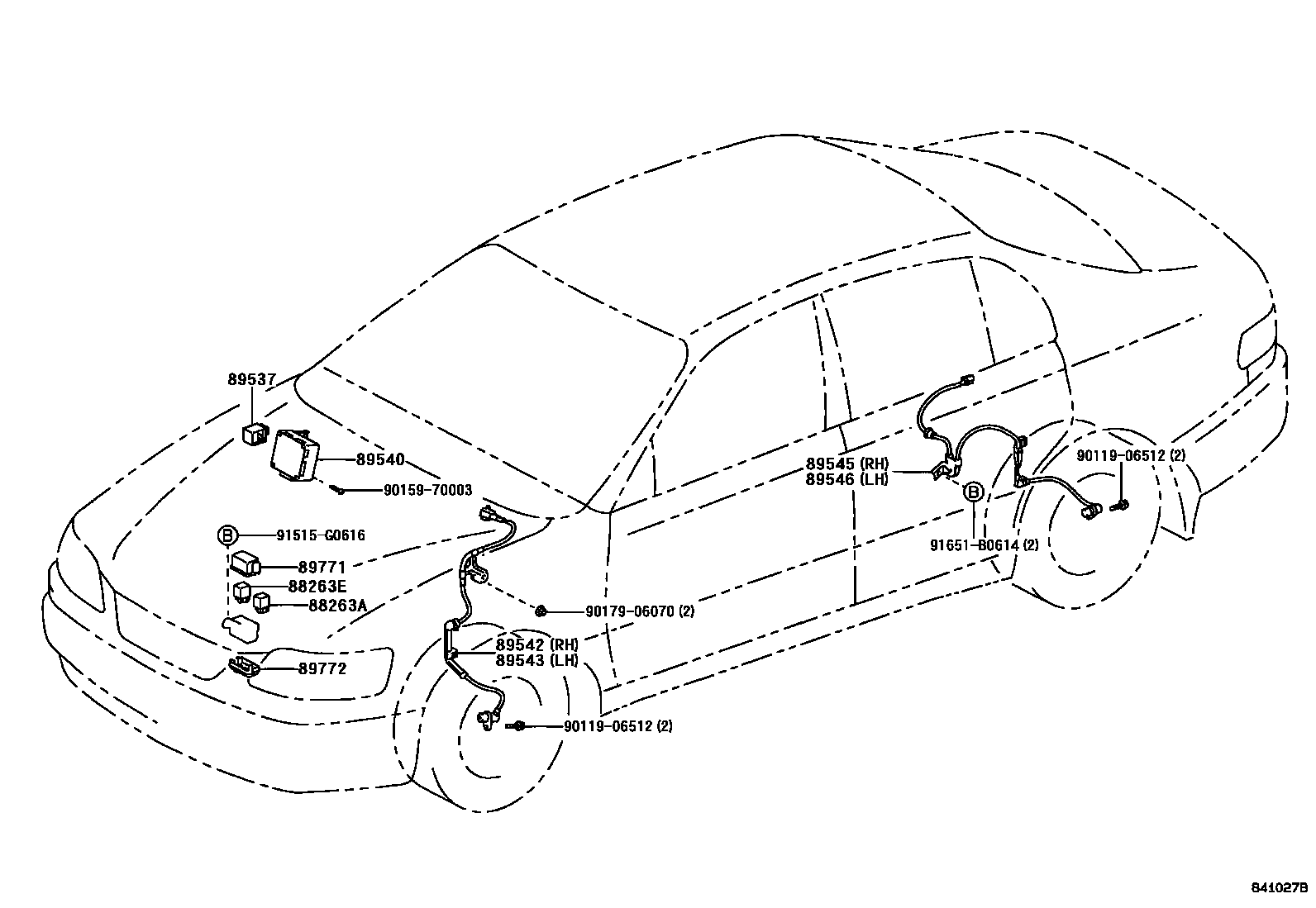

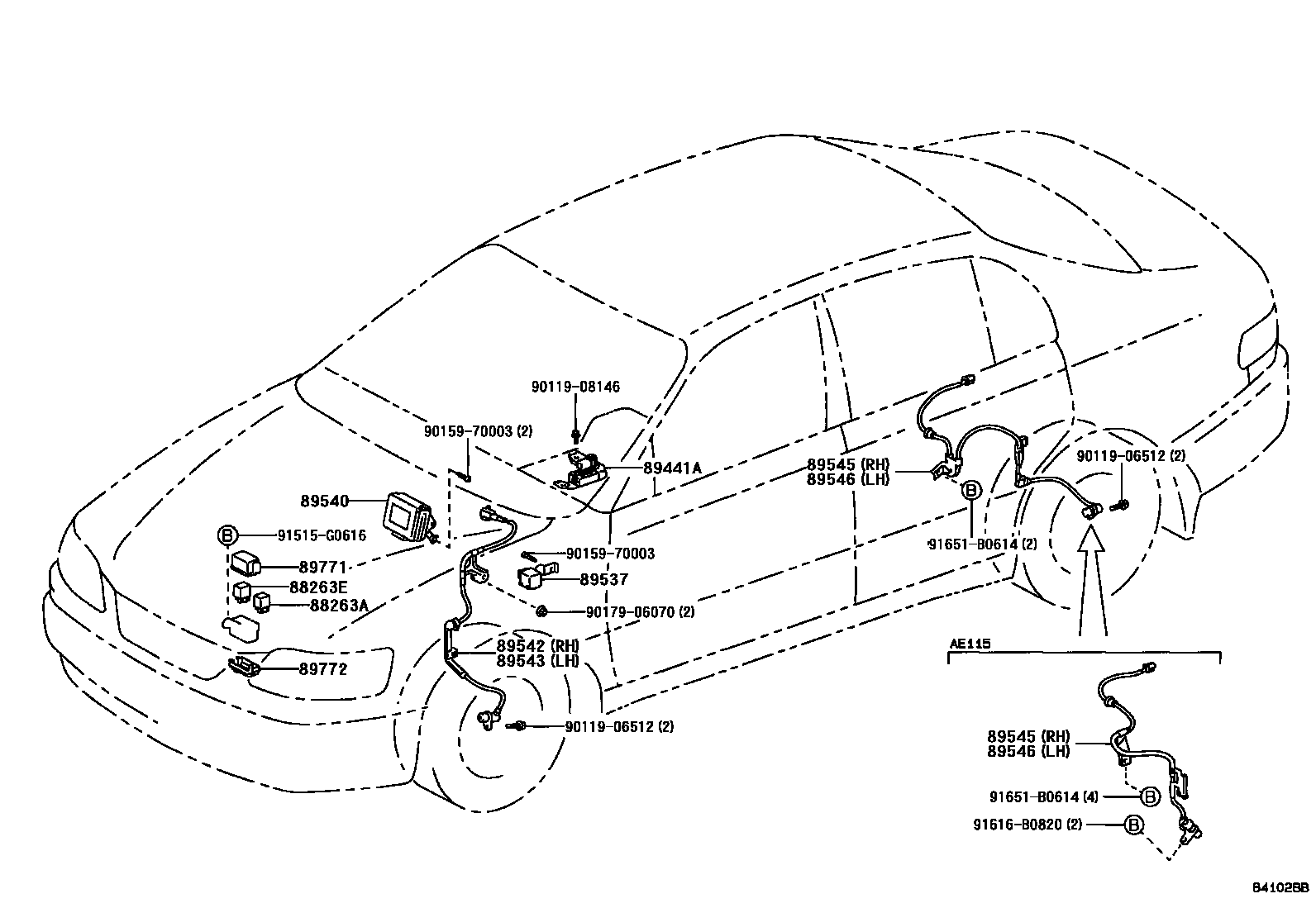

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263A | Anti-skid control relay | 88263-14110 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 89441A | deceleration sensor | 89440-12060 |
| 89537 | Active headlight relay | 89537-12010 · 89537-12020 |
| 89540 | Anti-skid control ECU assembly | 89540-12410 · 89540-12420 · 89540-12430 · 89540-12490 · 89540-12500 · 89540-12510 |
| 89542 | Right front wheel speed sensor | 89542-12040 |
| 89543 | Left front wheel speed sensor | 89543-12040 |
| 89545 | Right rear wheel speed sensor | 89545-12030 · 89545-12040 |
| 89546 | Left rear wheel speed sensor | 89546-12030 · 89546-12040 |
| 89771 | ABS relay box upper cover | 89771-12010 |
| 89772 | ABS relay box lower cover | 89772-12010 |
