Toyota COROLLA 开关和继电器和ECU — Figure 8401

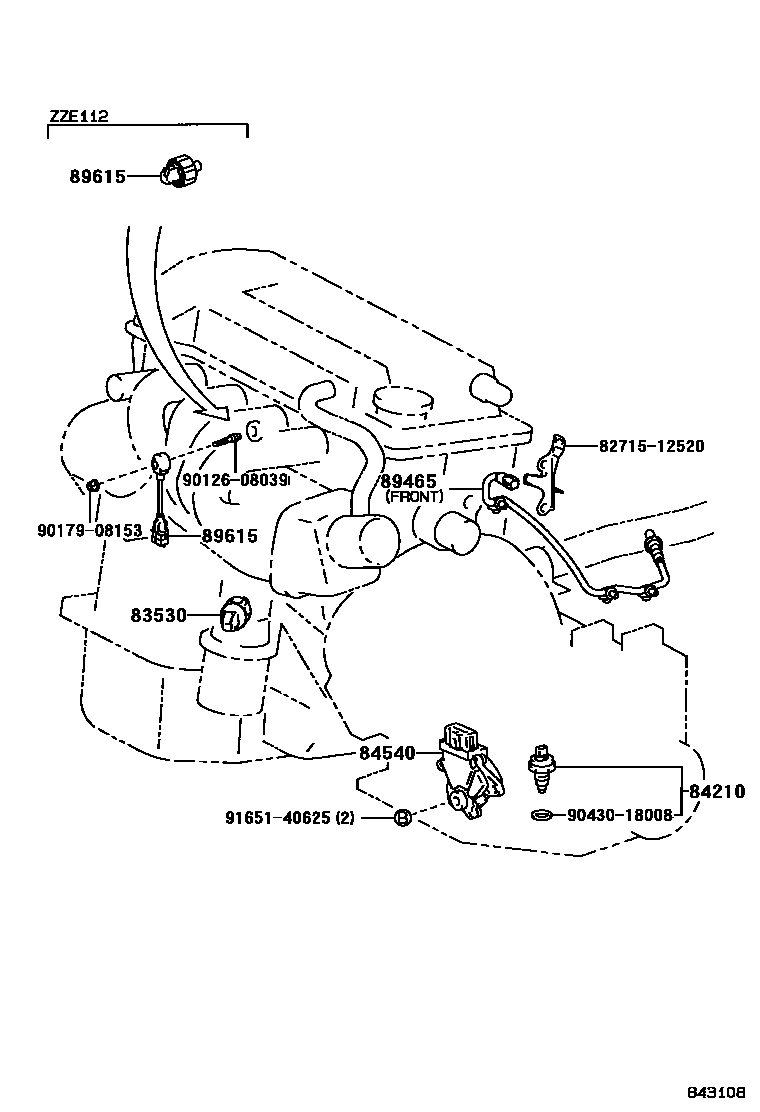

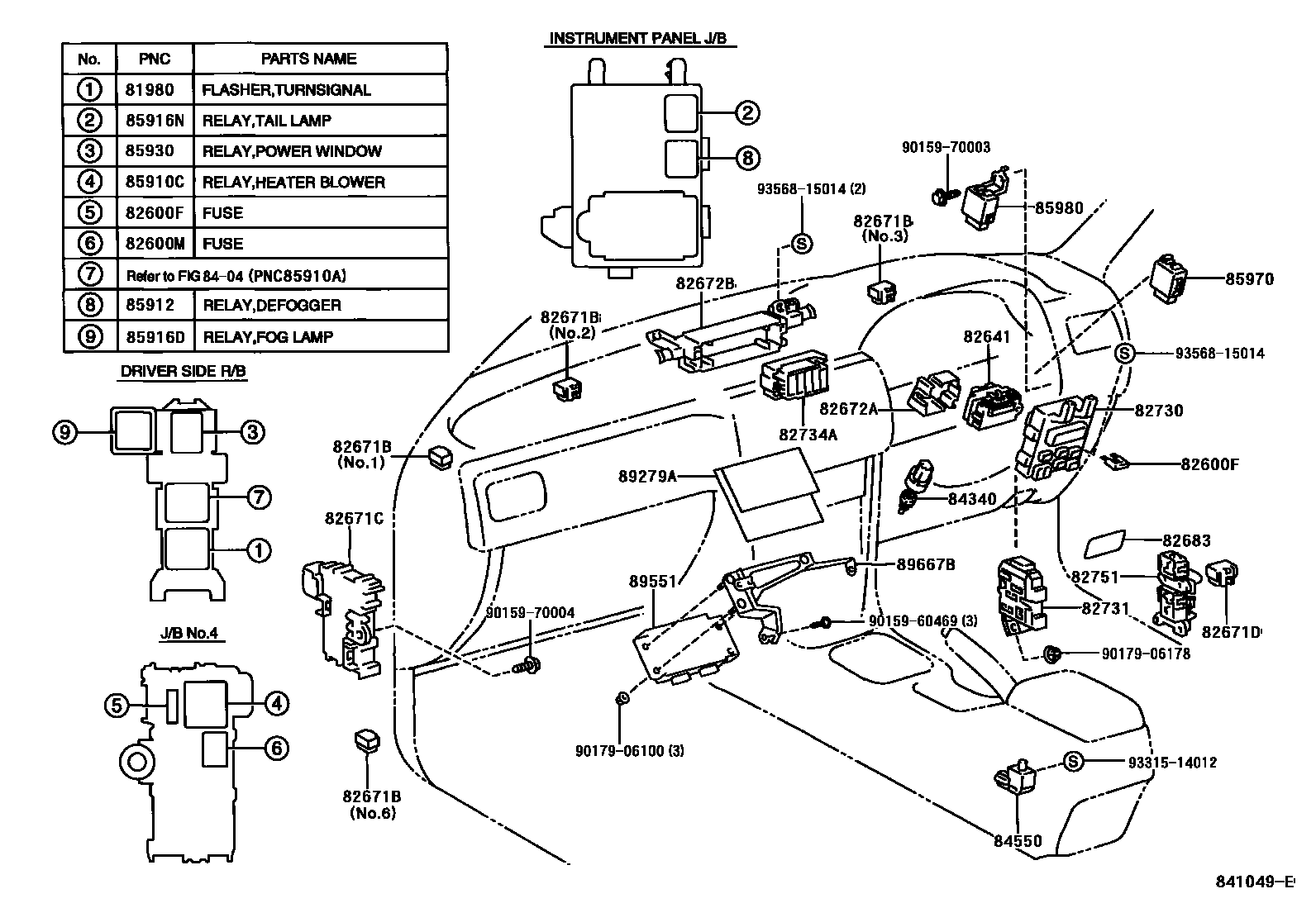

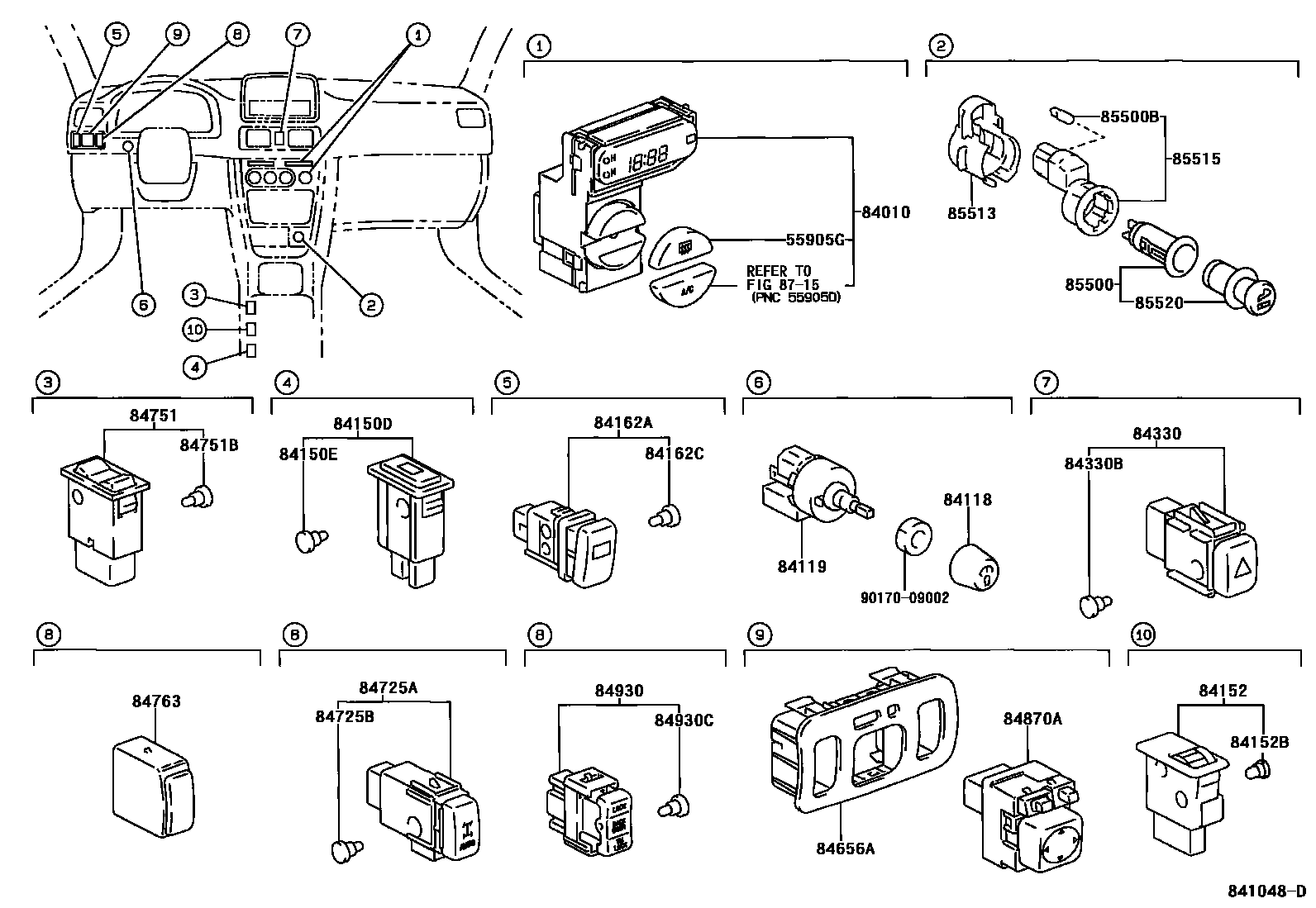

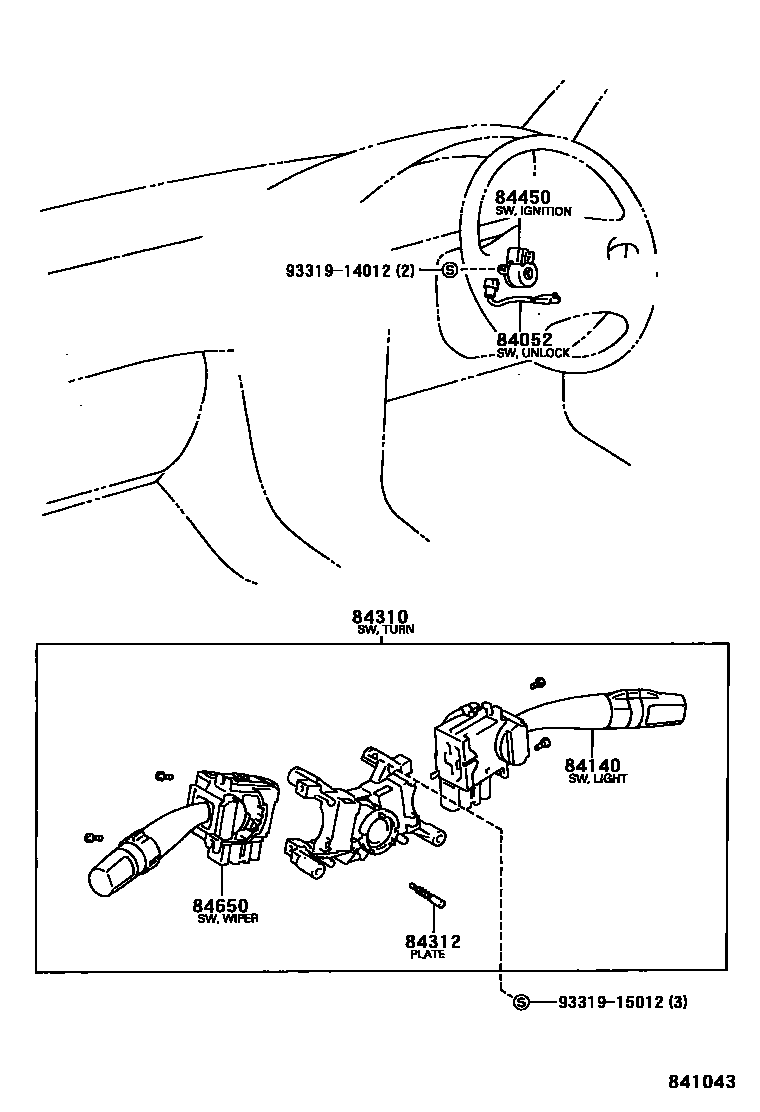

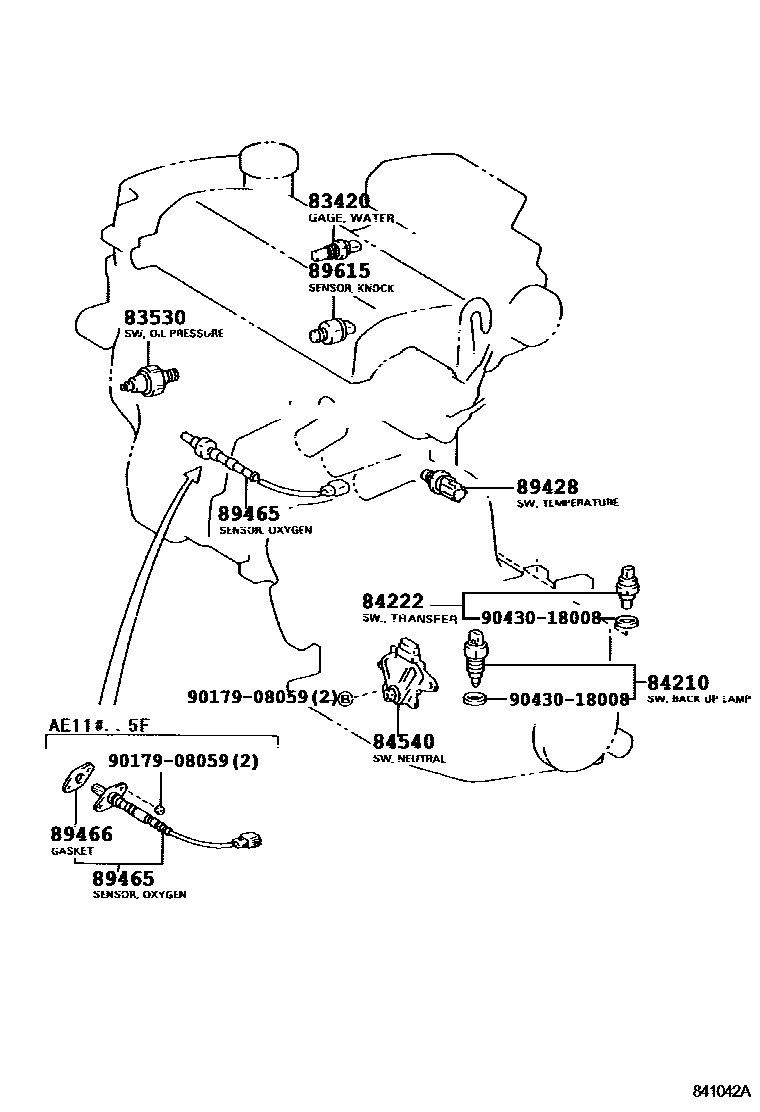

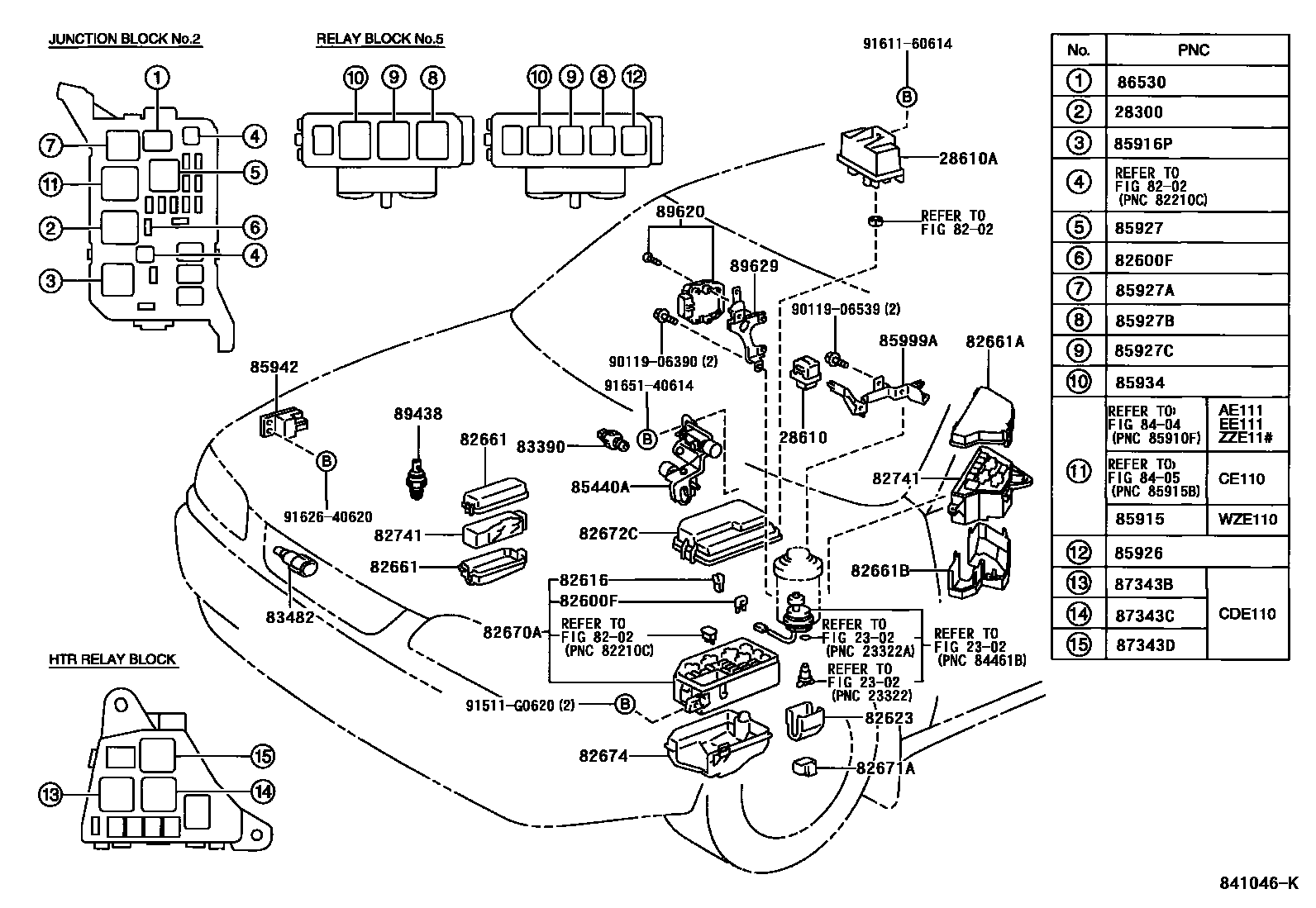

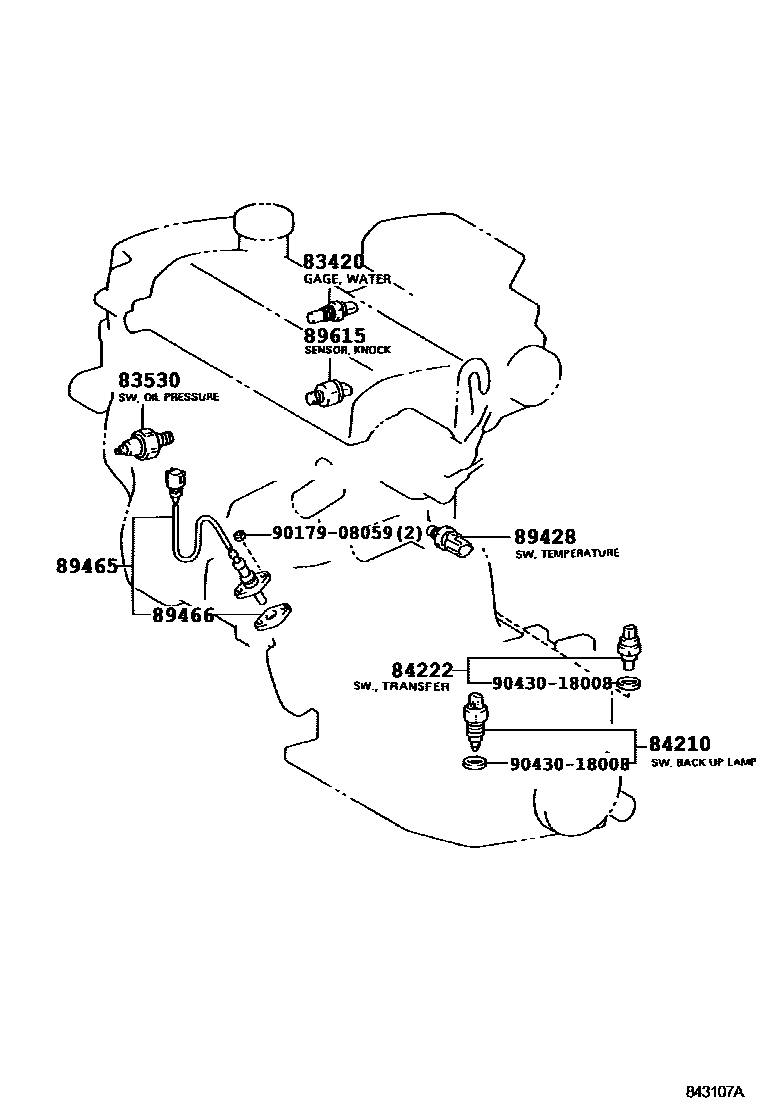

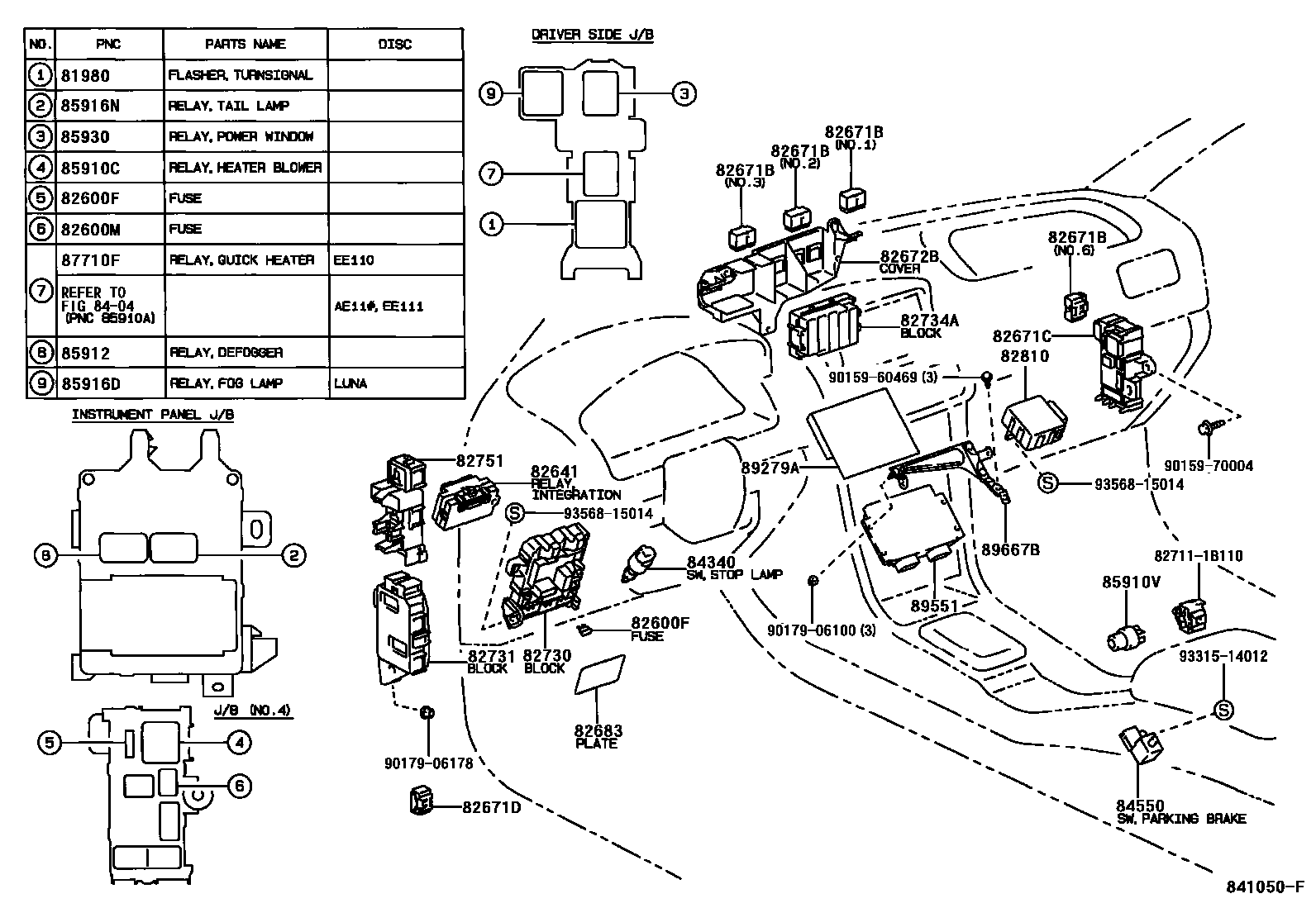

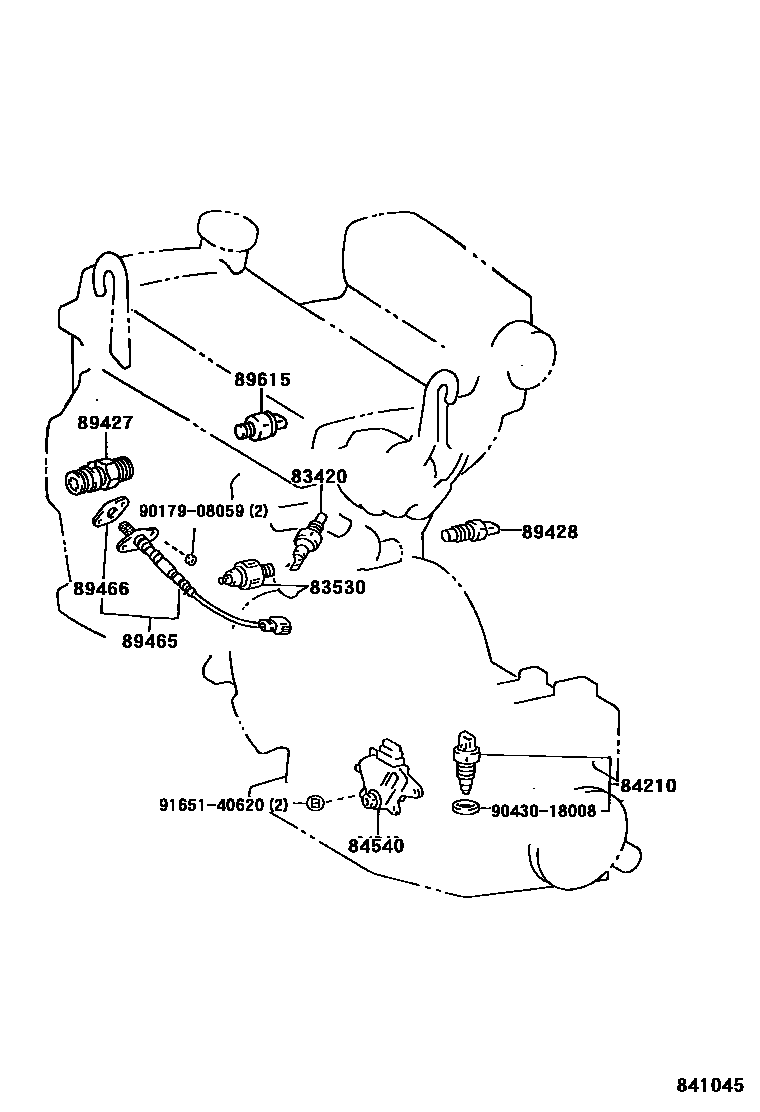

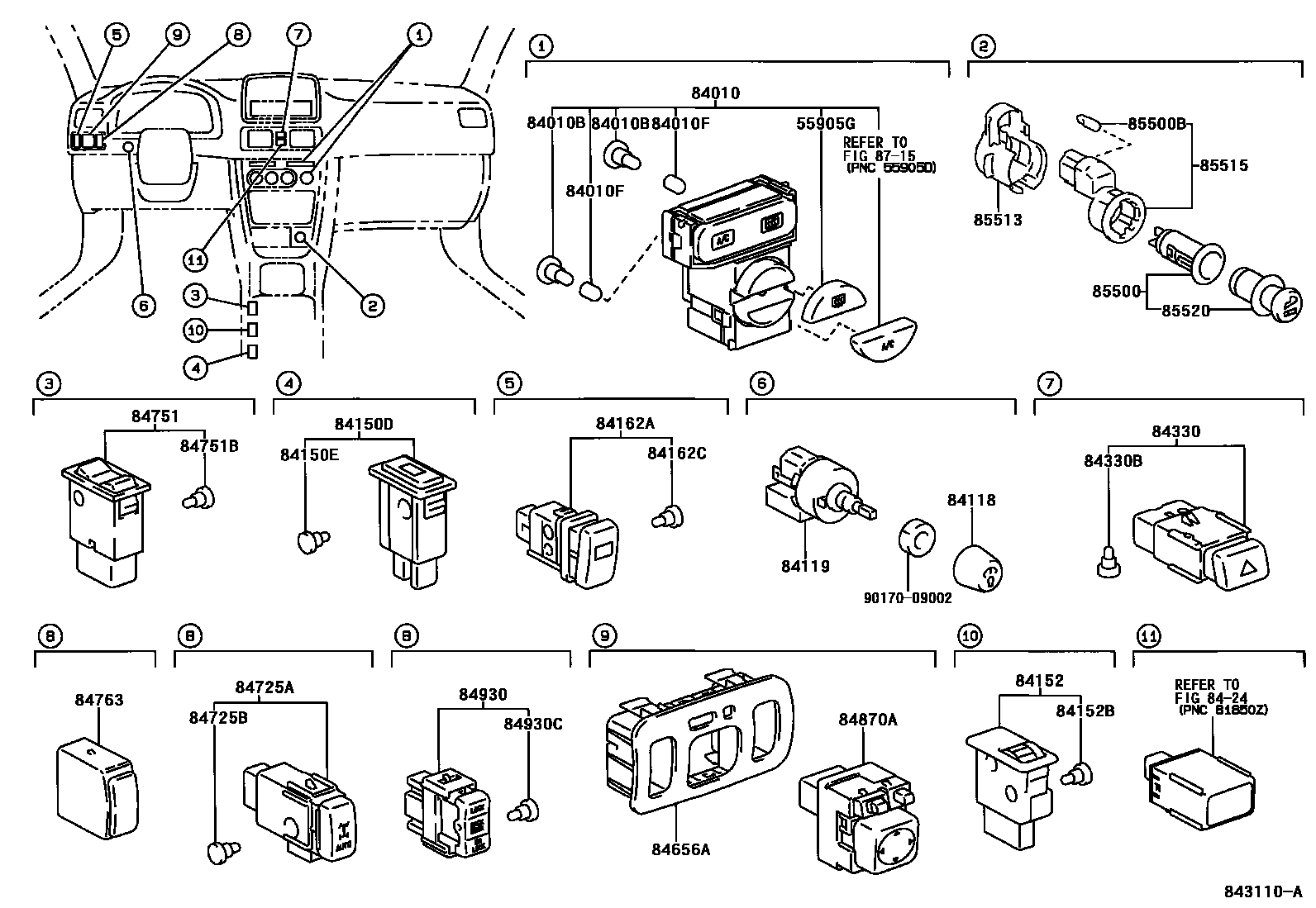

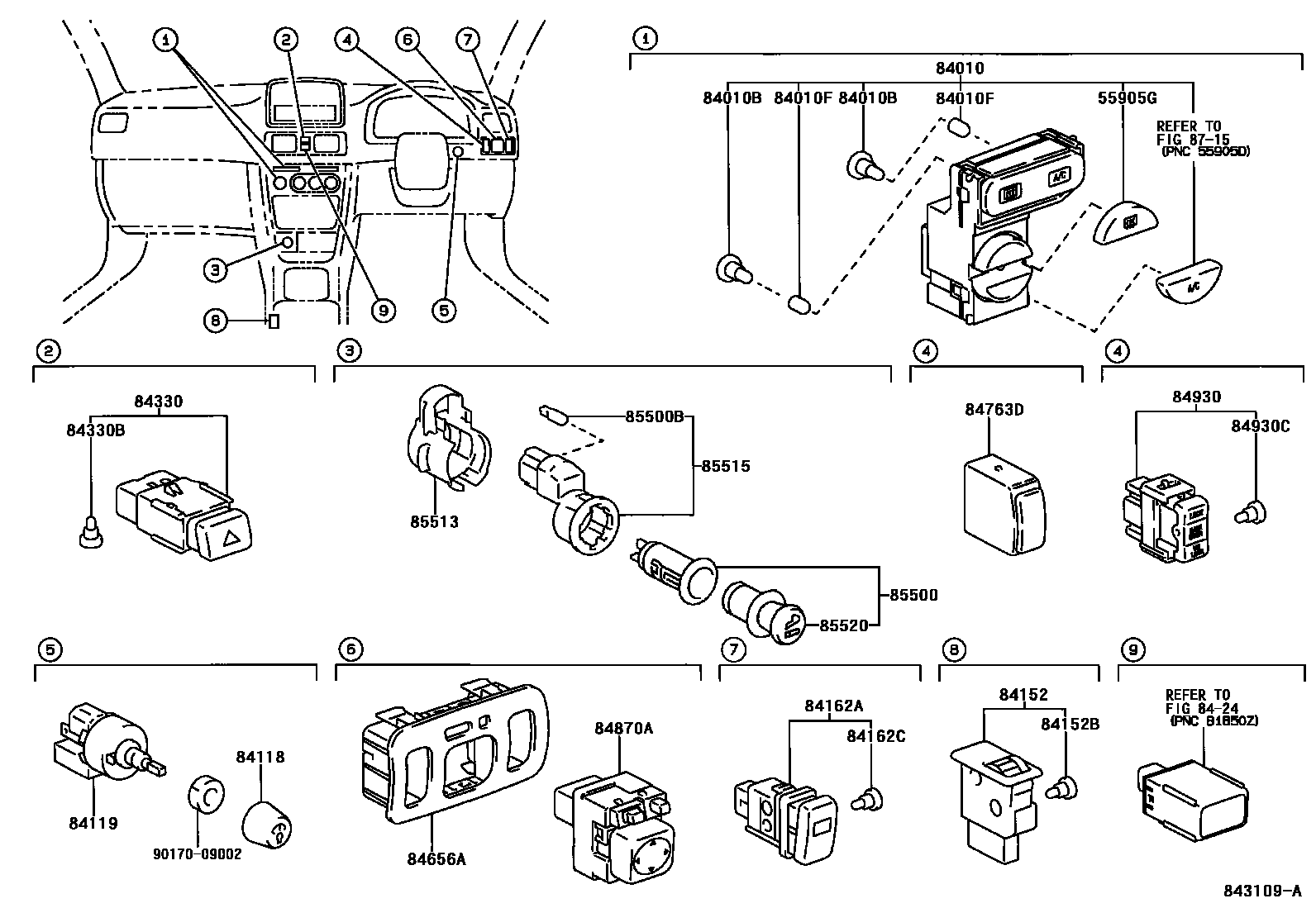

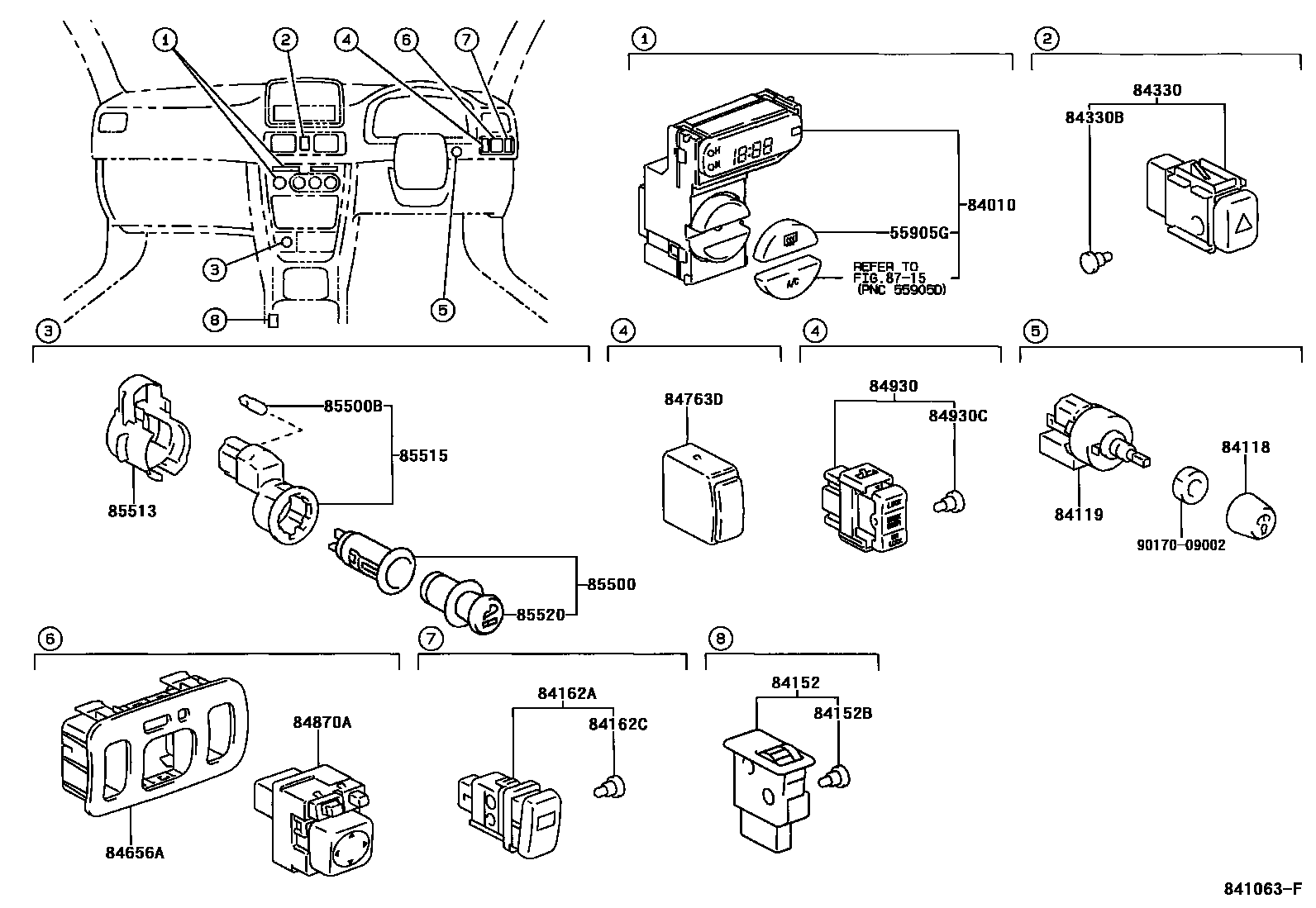

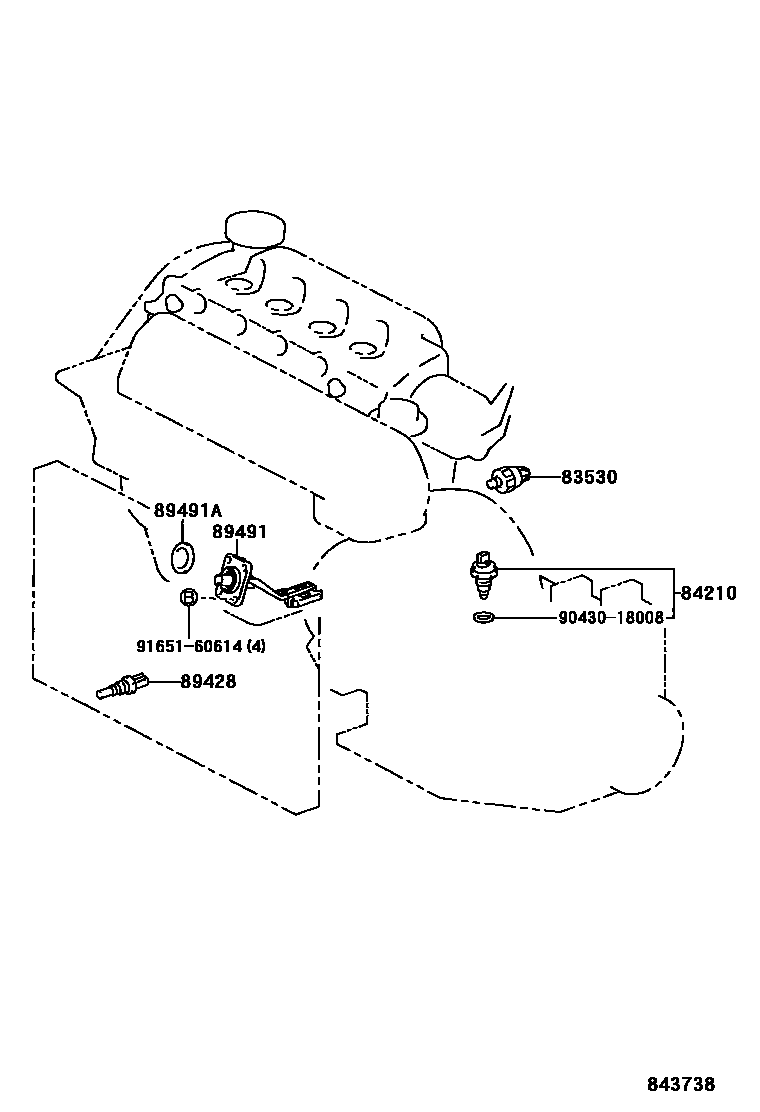

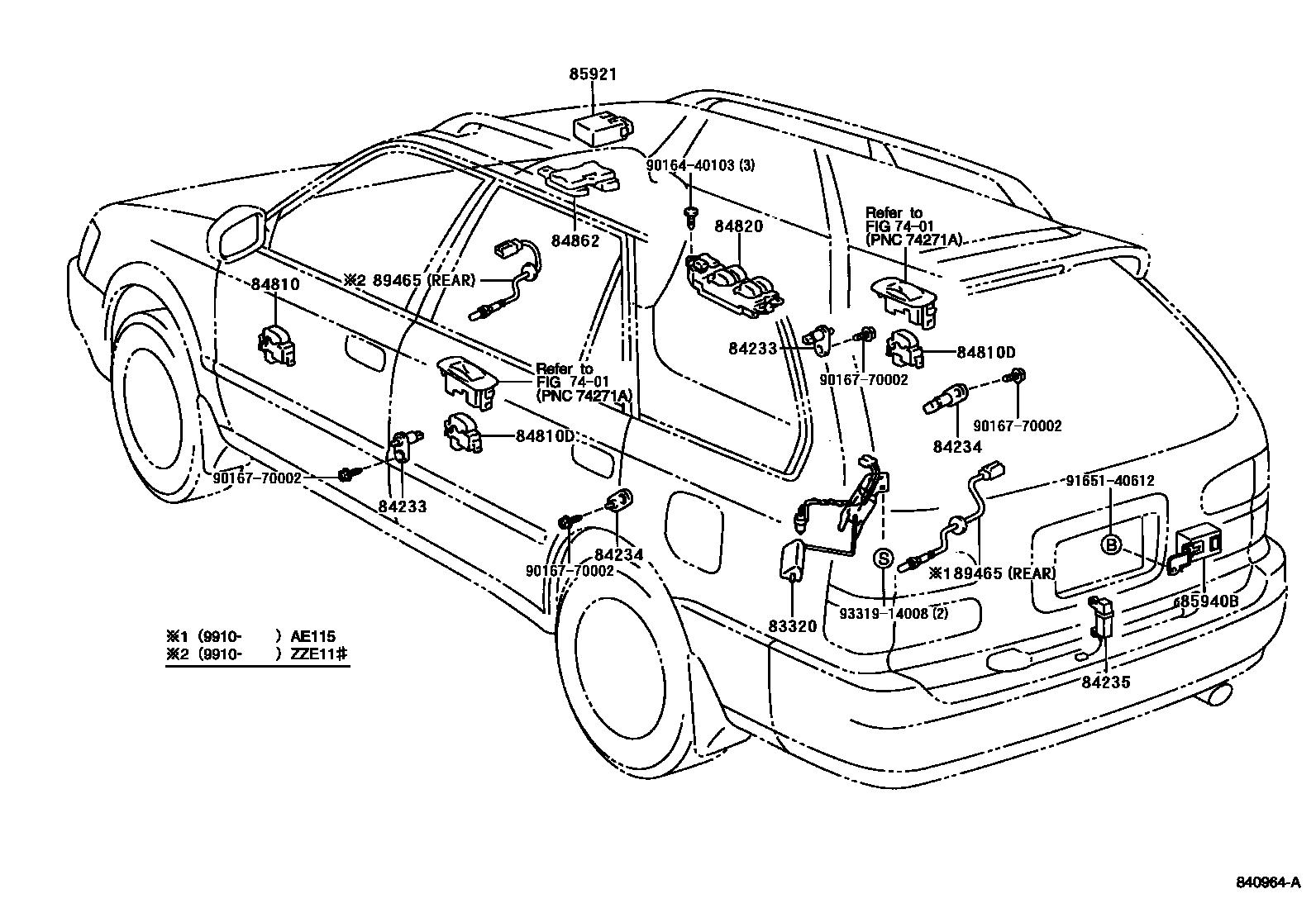

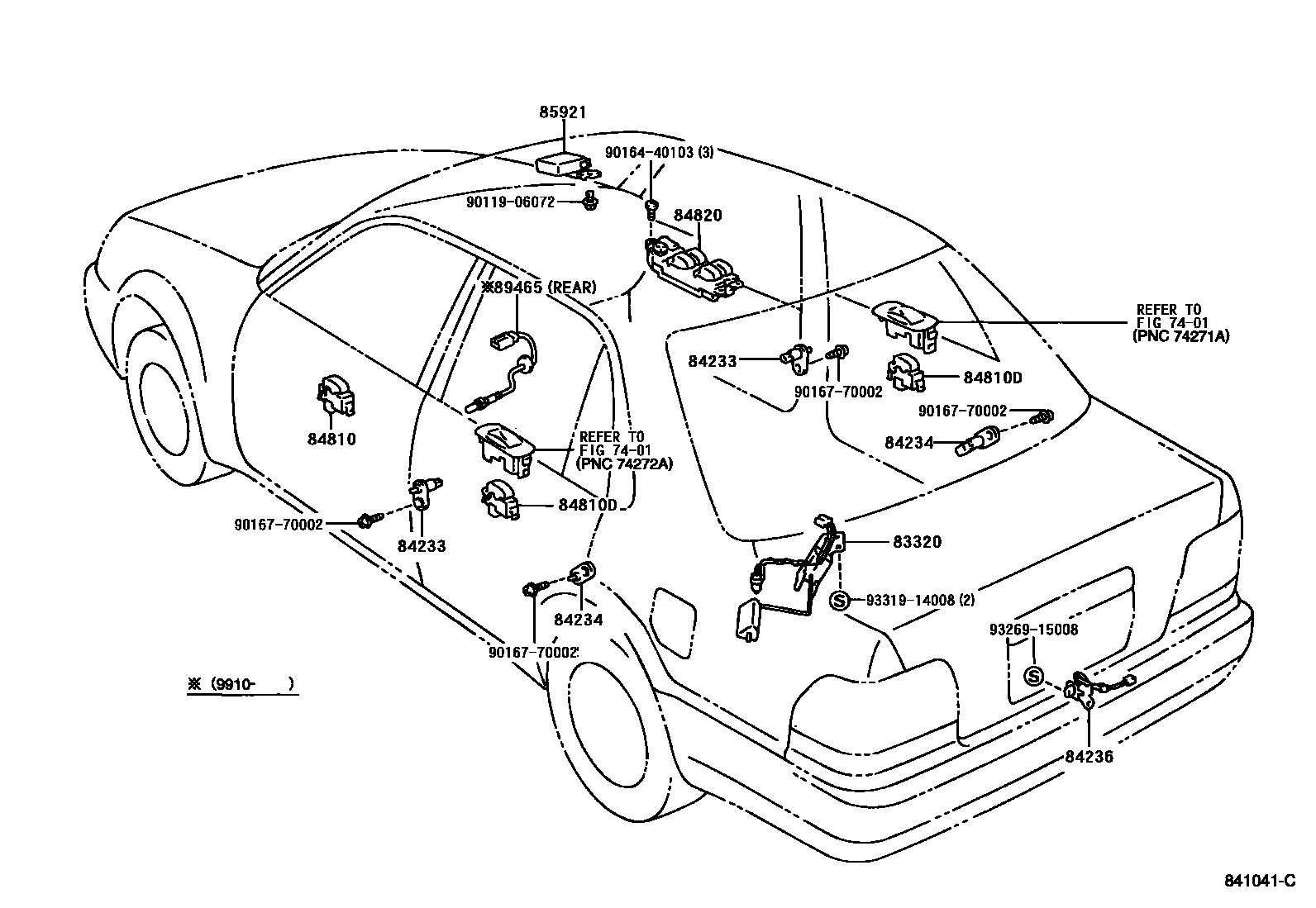

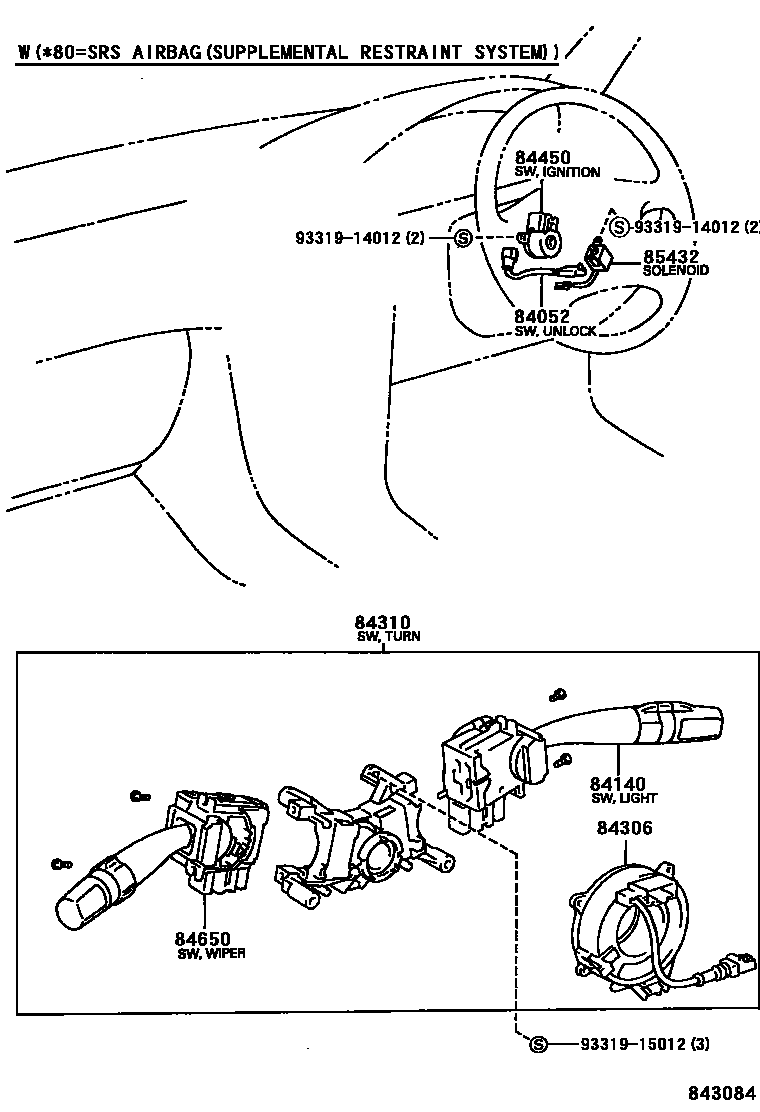

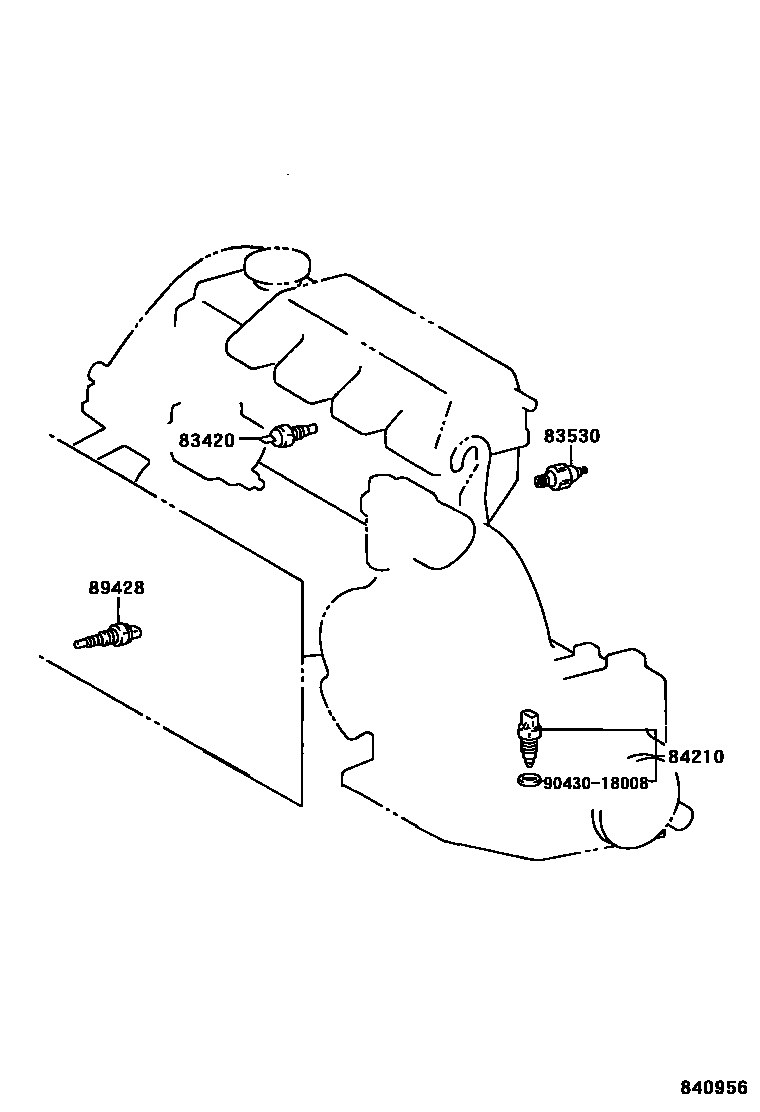

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 18 images and 117 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28610A | Sub glow plug relay assembly | 28601-0X010 |
| 81980 | Turn signal flasher relay assembly | 81980-0W010 · 81980-12110 · 81980-32010 · 81980-47010 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90982-09003 · 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09013 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82616 | fuse puller | 82616-20010 |
| 82623 | Fuse lower cover | 82623-02010 · 82623-12020 · 82623-13010 |
| 82641 | Integrated relay No. 1 | 82641-12100 · 82641-12150 |
| 82661 | No. 1 relay box cover | 82661-12200 · 82661-12210 · 82661-12220 |
| 82661A | No. 2 relay box cover | 82661-12270 |
| 82661B | No. 3 relay box cover | 82661-12260 |
| 82670A | No. 1 junction box assembly | 82720-12050 · 82720-12051 · 82721-12040 |
| 82671A | junction box | 82671-30370 |
| 82671B | junction box | 82671-30350 · 82671-30360 · 82671-30370 |
| 82671C | junction box | 82671-12140 · 82671-12200 |
| 82671D | junction box | 82671-30350 · 82671-30360 |
| 82672A | Junction box cover | 82672-12380 |
| 82672B | Junction box cover | 82672-12370 |
| 82672C | Junction box cover | 82672-12360 · 82672-12361 · 82672-12420 |
| 82674 | Junction box lower cover | 82674-12010 |
| 82683 | Fuse box warning nameplate | 82683-12210 · 82683-12220 |
| 82730 | Instrument panel junction box assembly | 82732-02010 · 82732-12040 · 82732-12060 |
| 82731 | Driver's side junction box | 82731-12010 · 82731-12020 |
| 82734A | central junction box | 82734-12010 |
| 82741 | Engine room relay box | 82741-02010 · 82741-12010 · 82741-12060 |
| 82751 | Driver's side relay box | 82751-12030 · 82751-13010 |
| 82810 | Driving light relay assembly | 82810-12160 |
| 83320 | Fuel gauge sensor assembly | 83320-12511 · 83320-12512 · 83320-12521 · 83320-12522 · 83320-12550 · 83320-12600 · 83320-12630 |
| 83390 | Vacuum warning switch assembly | 83390-20180 · 83390-32100 |
| 83420 | Water temperature sensor assembly | 83420-12030 · 83420-16020 · 83420-20020 · 83420-20040 |
| 83482 | Outside car ambient temperature sensor | 83482-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-02040 · 83530-28020 · 83530-30090 · 83530-30100 · 83530-60010 · 83530-60020 |
| 84010B | Integrated control and panel light bulbs | 90072-02004 |
| 84010F | Integrated control and panel light holder | 90072-01003 |
| 84052 | Unlock warning switch assembly | 84052-12070 |
| 84118 | Light control rheostat button | 84118-20030 |
| 84119 | Light control rheostat | 84119-12180 |
| 84140 | Headlight dimmer switch assembly | 84140-12430 · 84140-44010 |
| 84150D | Headlight washer switch assembly | 84150-12020 |
| 84150E | Headlight washer switch bulb | 84999-10320 |
| 84152 | Headlight beam height adjustment switch | 84152-20030 · 84152-44010 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 |
| 84162A | Rear fog light switch | 84165-12030 · 84165-12040 |
| 84162C | Bulb (for rear fog light switch) | 90010-09005 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-12160 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12170 |
| 84235 | Door control light switch assembly (for back door) | 84231-13070 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12130 |
| 84306 | Spiral cable sub-assembly | 84306-02030 · 84306-12070 |
| 84310 | Turn signal switch assembly | 84310-1E190 · 84310-1E240 · 84310-1E270 · 84310-1E290 · 84310-1E310 · 84310-1E460 · 84310-1E670 · 84310-1E680 · 84310-1E690 · 84310-1E700 |
| 84312 | Speaker contact piece | 84312-26010 |
| 84330 | Hazard warning signal switch assembly | 84332-12400 · 84332-12410 |
| 84330B | Hazard warning signal switch light bulb | 84999-10860 |
| 84340 | brake light switch assembly | 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-16050 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-1A610 · 84652-1A630 · 84652-1A750 · 84652-1A760 · 84652-44010 |
| 84725A | Differential lock switch | 84725-12060 |
| 84725B | Differential lock switch light bulb | 90010-01012 |
| 84751 | Seat heater switch | 84751-12050 |
| 84751B | Seat heater switch light bulb | 84999-10190 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-12340 · 84820-12350 · 84820-12360 · 84820-12370 · 84820-12390 · 84820-12400 · 84820-12440 · 84820-12450 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12130 |
| 84930 | Door control switch assembly | 84930-12160 · 84930-12170 |
| 84930C | Light bulb (for door control switch) | 84999-10310 |
| 85432 | Key interlock solenoid valve | 85432-12020 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-12040 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01015 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-12100 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85910V | seat heater relay | 90987-02004 |
| 85912 | defogger relay | 90080-87008 · 90987-02012 |
| 85915 | main relay | 90987-02012 |
| 85916D | fog light relay | 90987-02012 |
| 85916N | Tail light relay | 90080-87008 · 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12061 · 85921-13010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 85925-17010 · 90987-04002 |
| 85927A | Cooling fan relay No. 2 | 90084-98011 · 90987-03003 |
| 85927B | Cooling fan relay No. 3 | 90080-87009 · 90987-04004 |
| 85927C | No. 4 cooling fan relay | 90080-87008 · 90987-02012 |
| 85930 | Electric window relay assembly | 90080-87008 · 90987-02012 |
| 85934 | Electromagnetic clutch relay | 90080-87008 · 90987-02012 |
| 85940B | Rear wiper relay assembly | 85940-13030 |
| 85942 | Headlight washer control relay | 85942-33010 |
| 85970 | Door opening relay assembly | 85970-12010 |
| 85980 | Door control relay assembly | 85980-12260 |
| 85999A | No. 2 relay bracket | 85999-12220 |
| 86530 | Speaker relay assembly | 90987-02012 |
| 87343B | No. 1 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 87343C | No. 2 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 87343D | No. 3 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 87710F | Rapid heater relay | 90987-02012 |
| 89279A | ECU cover | 89279-12130 |
| 89422A | water temperature sensor | 89422-02020 |
| 89427 | Temperature detection switch | 89427-12090 |
| 89428 | No. 2 temperature detection switch | 89428-12160 · 89428-33010 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-02040 · 89465-02050 · 89465-12520 · 89465-12540 · 89465-12550 · 89465-12580 · 89465-19665 · 89465-19675 · 89465-19745 · 89465-19755 |
| 89466 | Oxygen sensor pad | 89466-12020 · 89466-20020 |
| 89491 | Engine oil level sensor | 89491-20071 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89551 | Emission control ECU | 89551-02010 · 89551-02011 |
| 89615 | knock control sensor | 89615-02010 · 89615-12030 · 89615-12090 · 89615-22030 · 89615-22040 · 89615-22050 · 89615-52010 |
| 89620 | Ignition assembly | 89621-26010 |
| 89629 | Ignition bracket assembly | 89629-12070 |
| 89667B | No. 1 engine control ECU bracket | 89667-12160 · 89667-12170 |
