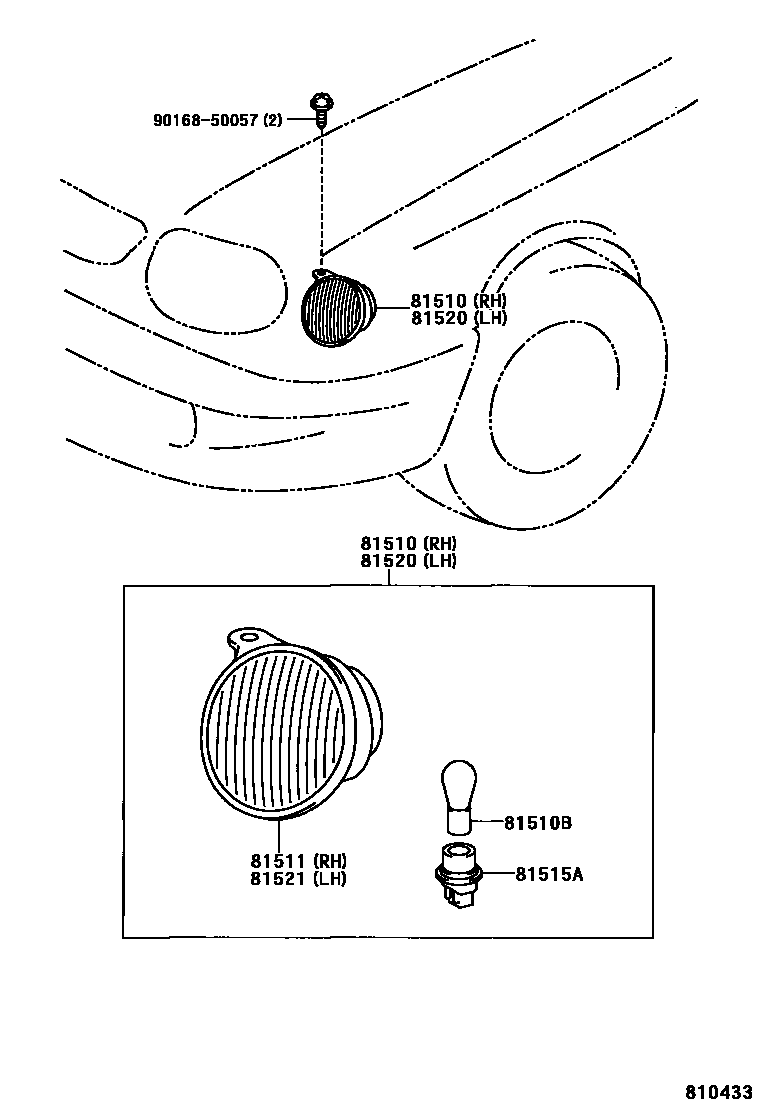

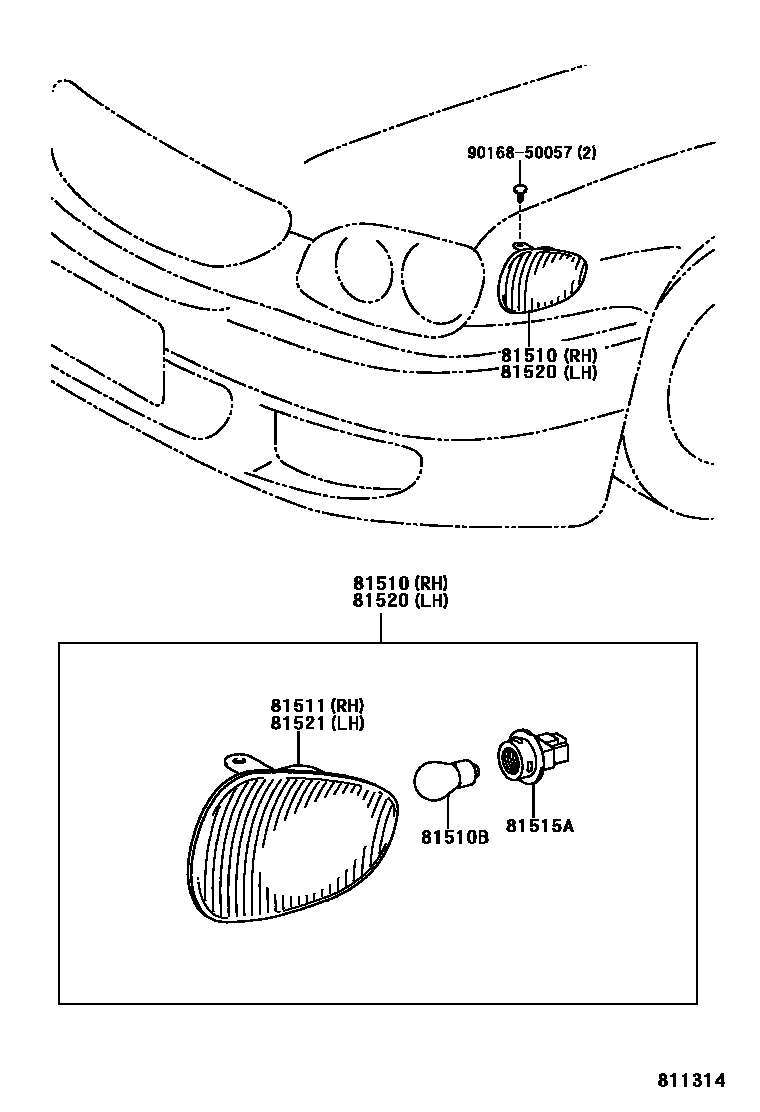

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-12830 · 81510-12890 |
| 81510B | Bulb (for front turn signal lamp) | 90981-15009 |
| 81511 | Right front turn signal lamp cover | 81511-12830 · 81511-12890 |
| 81515A | Front turn signal light plug assembly | 90075-60006 |
| 81520 | Left front turn signal lamp assembly | 81520-12820 · 81520-12870 |
| 81521 | Left front turn signal lamp cover | 81521-12820 · 81521-12870 |
