Toyota COROLLA accelerator pedal connecting rod — Figure 7801

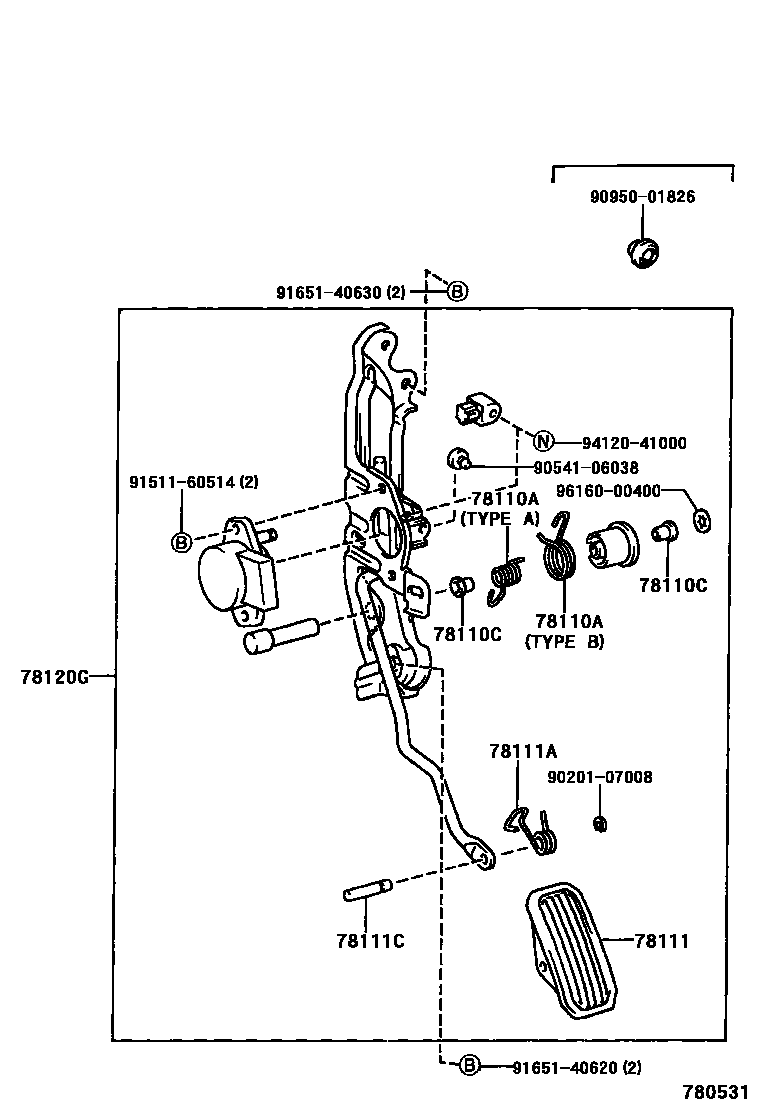

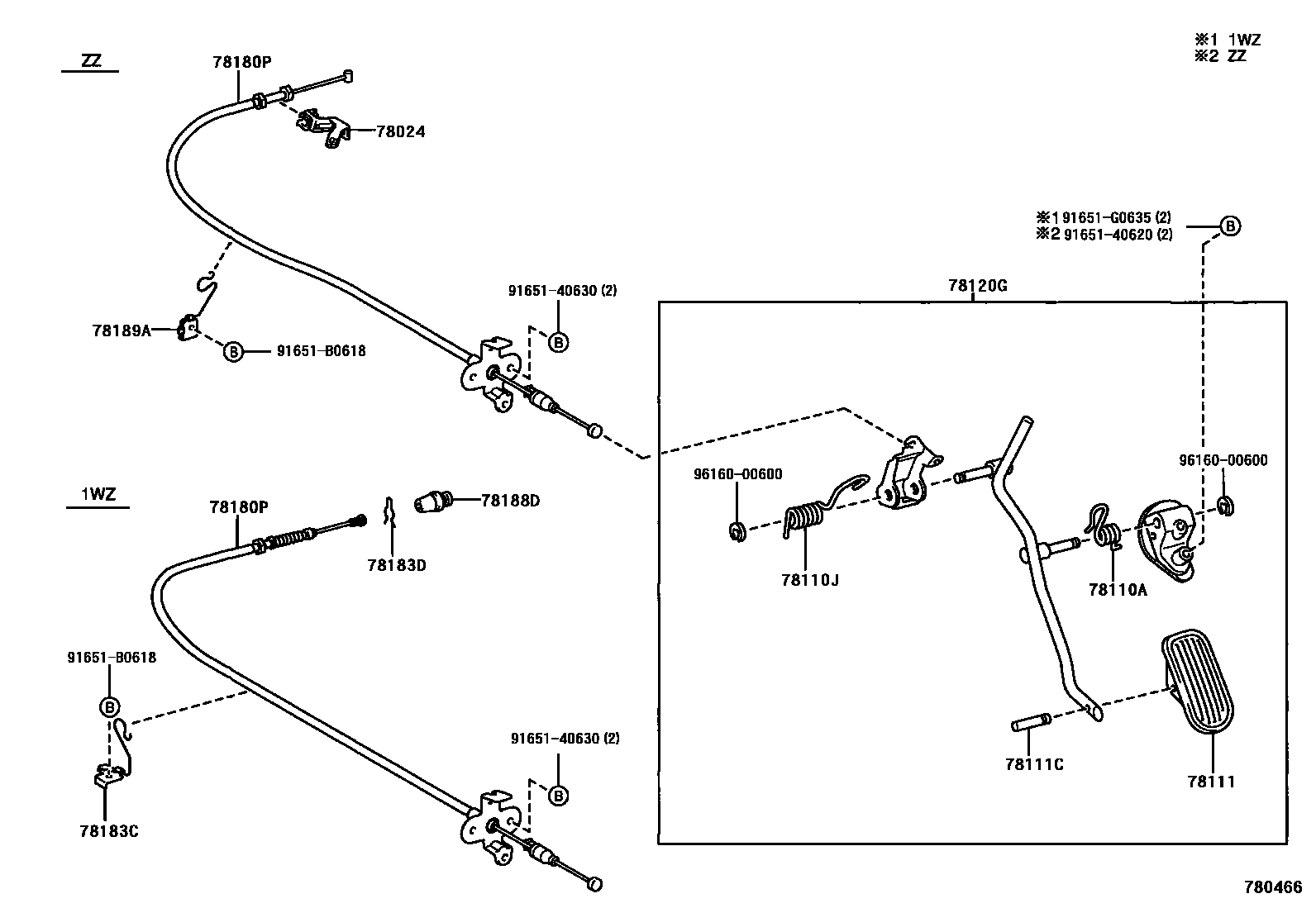

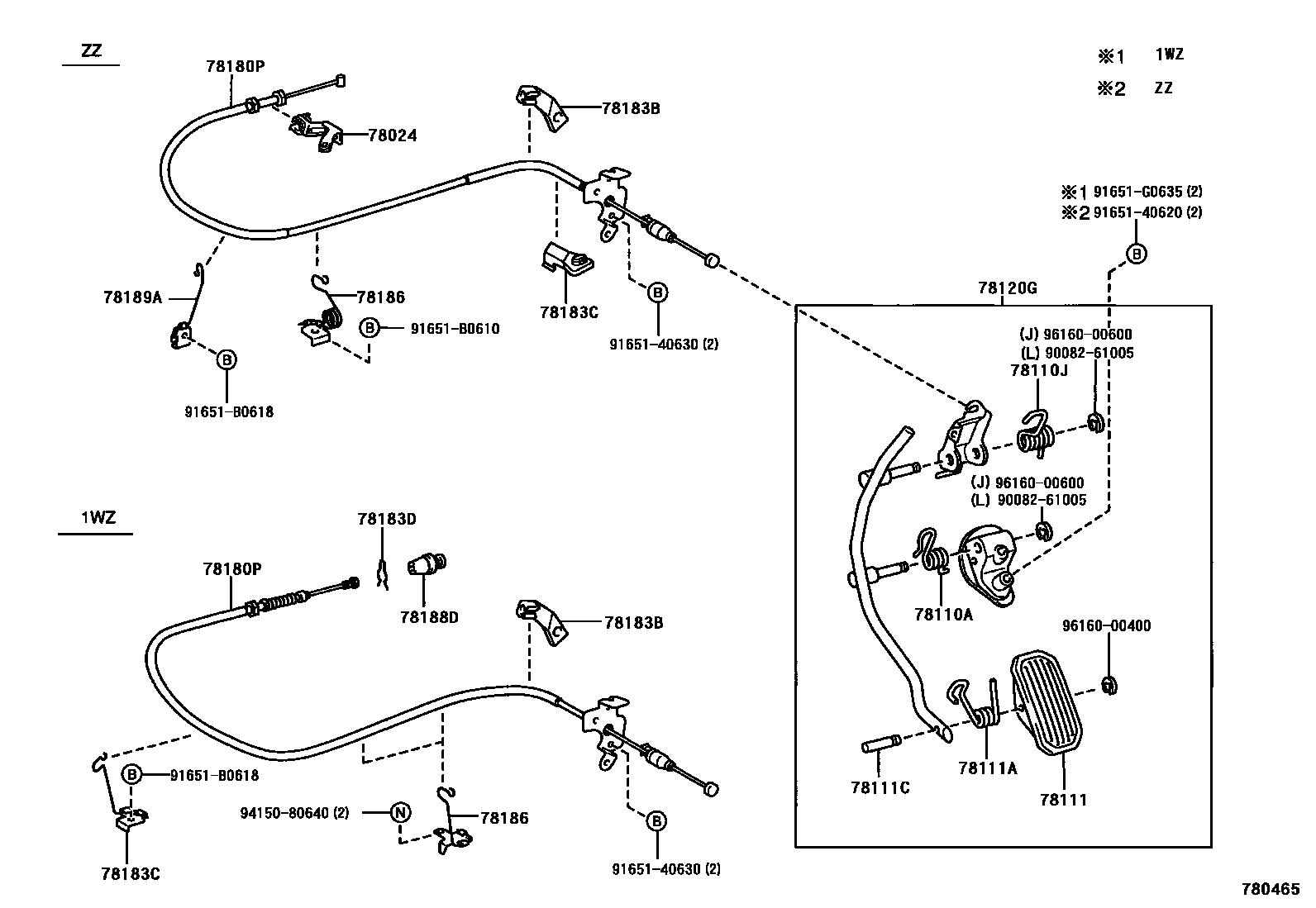

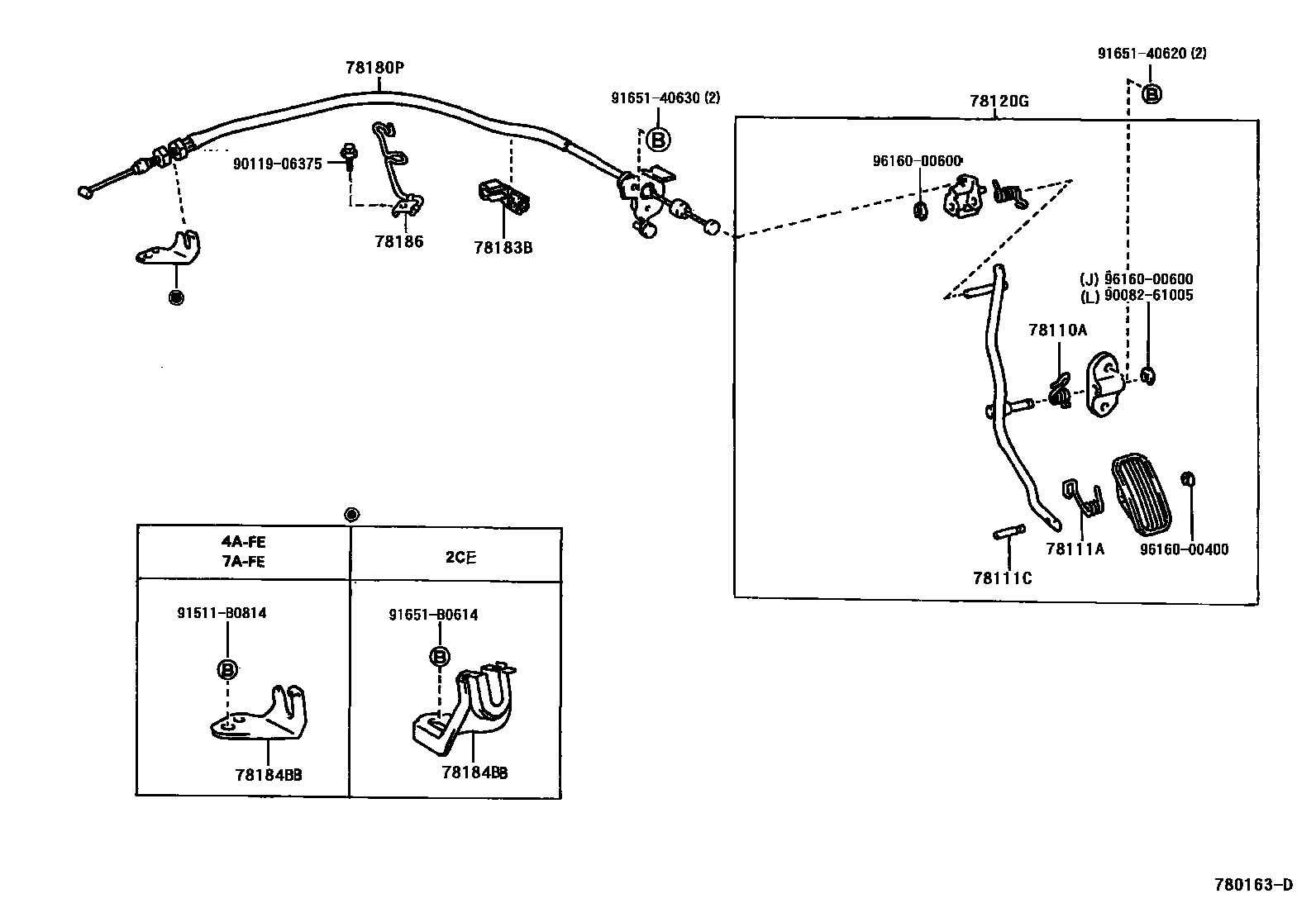

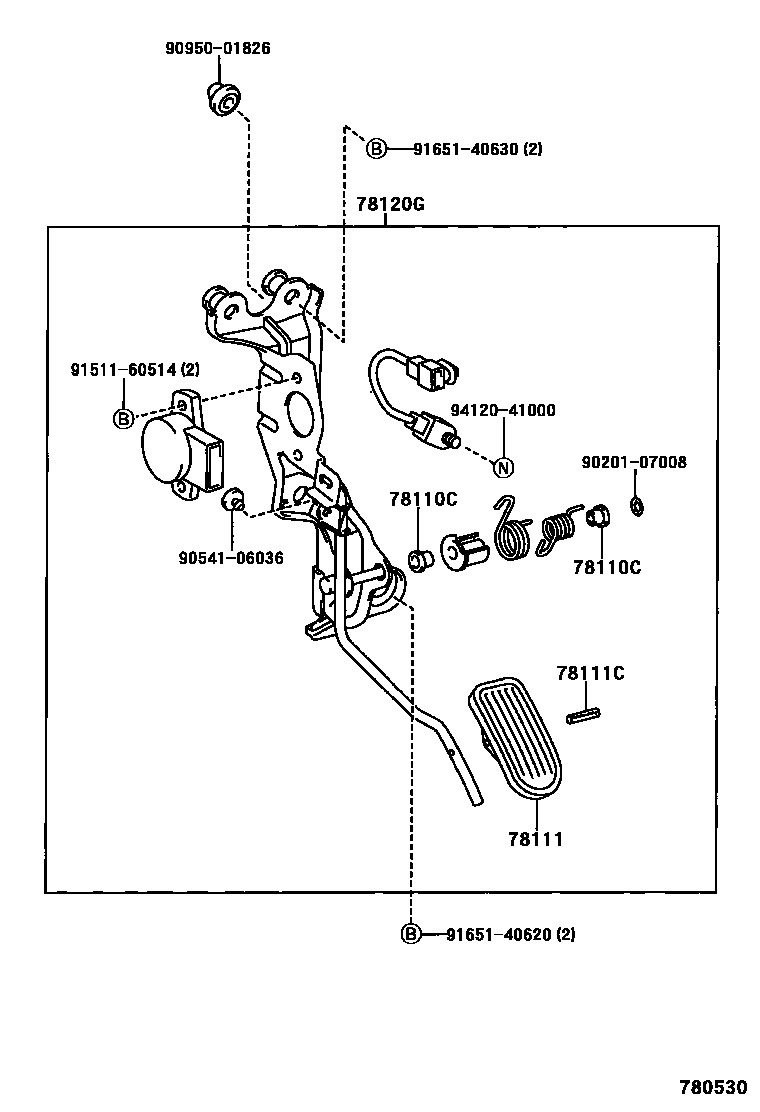

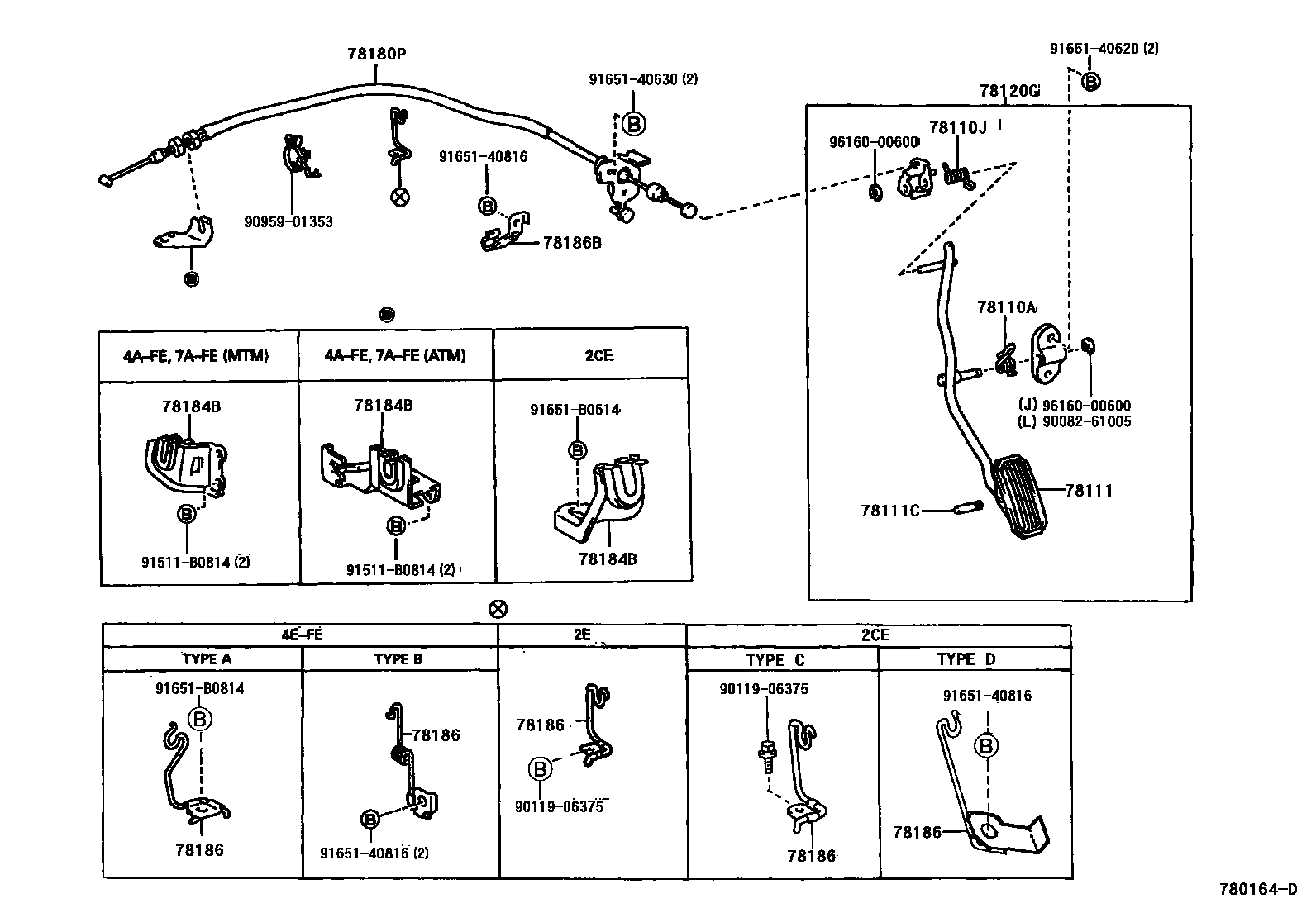

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12060 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 · 90959-03195 · 90959-03197 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08007 |
| 78110J | Spring (for accelerator pedal lever) | 90959-03020 · 90959-03277 · 90959-03278 |
| 78111 | accelerator pedal | 78111-20060 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 |
| 78111C | pin (for gas pedal) | 90249-05001 · 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78010-12130 · 78010-12160 · 78120-12150 · 78120-12160 · 78120-12201 · 78120-12221 · 78120-12230 · 78120-12260 · 78120-12270 · 78120-12280 |
| 78180P | Accelerator pedal control cable assembly | 78180-1A420 · 78180-1A520 · 78180-1A590 · 78180-1A610 · 78180-1A620 · 78180-1A630 · 78180-1A640 · 78180-1A670 · 78180-1A680 · 78180-1A681 · 78180-1A690 · 78180-1A700 · 78180-1A701 |
| 78183B | Accelerator pedal control cable clip | 78183-02080 · 78183-12160 |
| 78183C | Accelerator pedal control cable clip | 78183-12210 · 78183-12220 |
| 78183D | Accelerator pedal control cable clip | 78183-02070 |
| 78184B | Throttle pedal control cable bracket | 78024-12030 · 78024-12041 · 78024-12050 · 78184-12280 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78183-12180 · 78183-12190 · 78186-12170 · 78186-12290 · 78186-12350 · 78186-12360 · 78186-16150 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-12320 · 78186-12330 |
| 78188D | Accelerator pedal cable return spring shock absorber | 78188-02010 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12050 · 78189-12090 |
