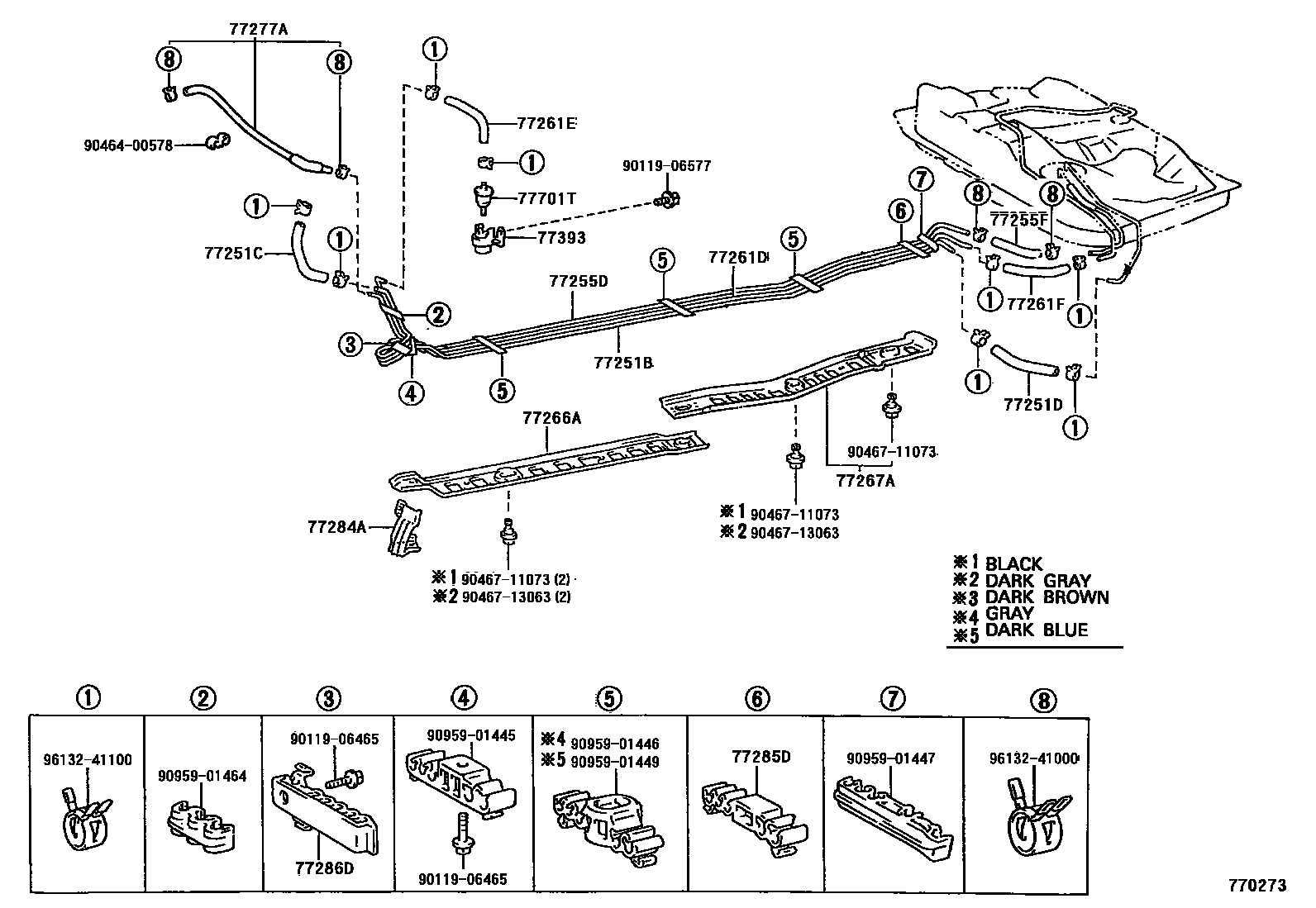

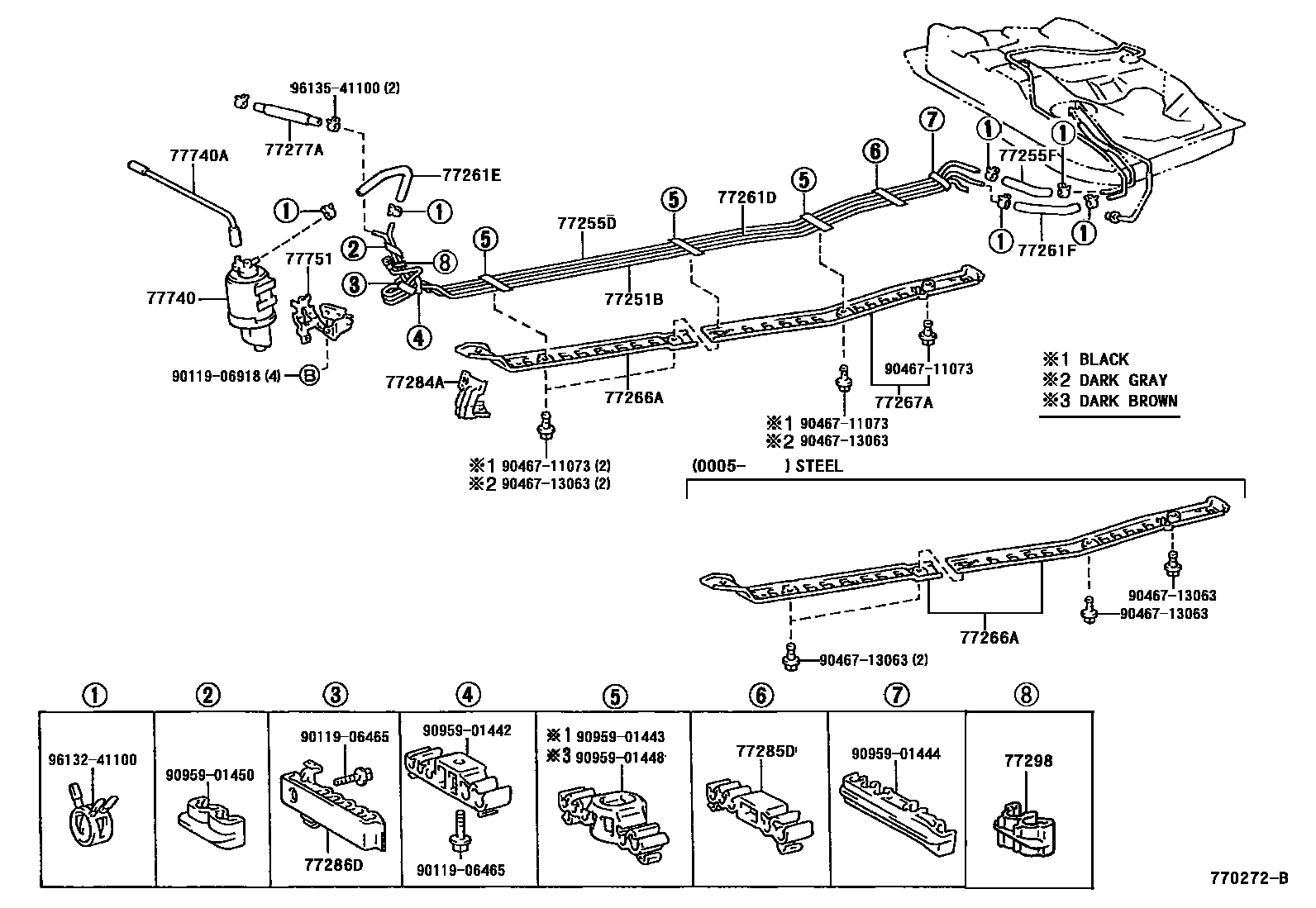

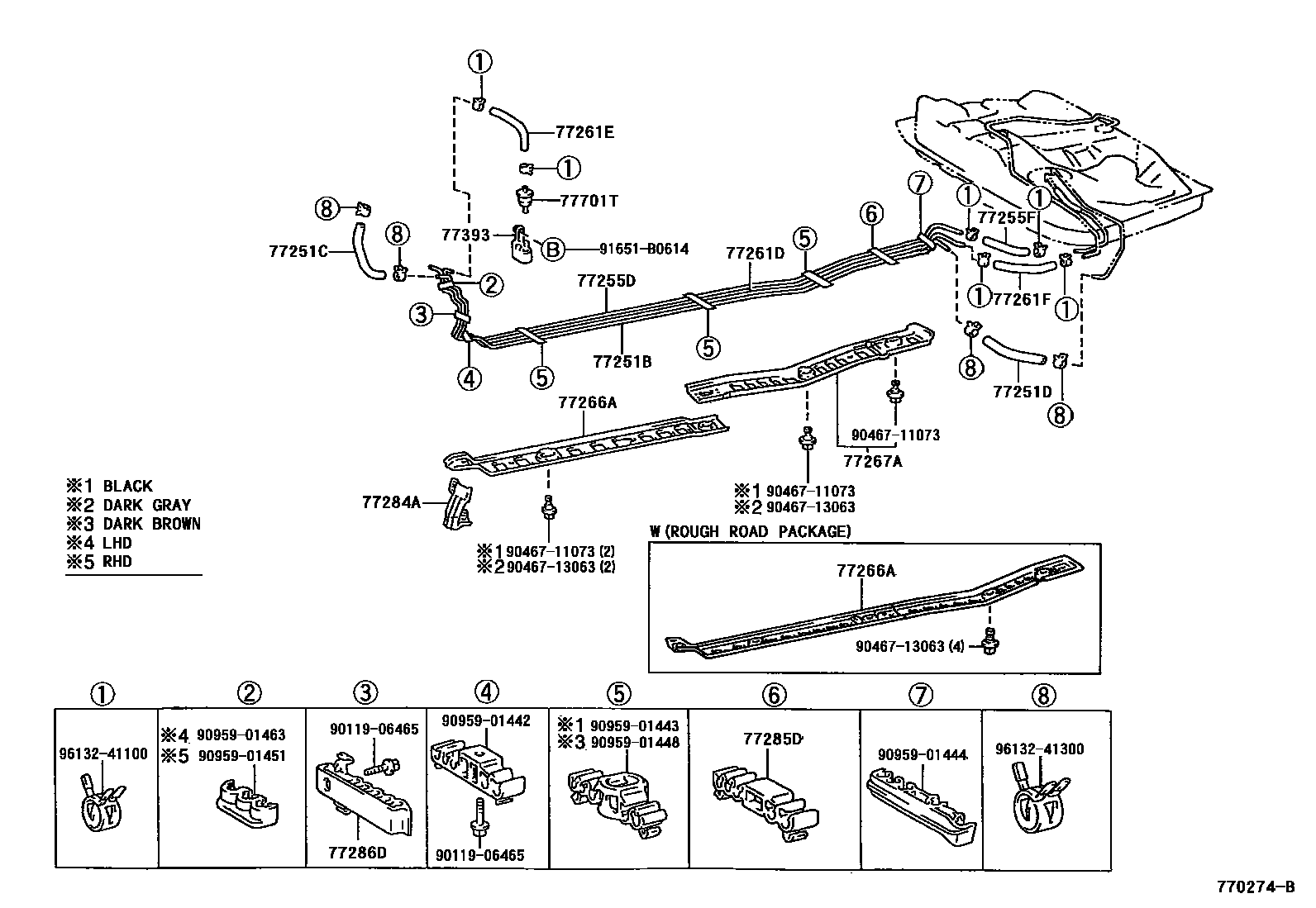

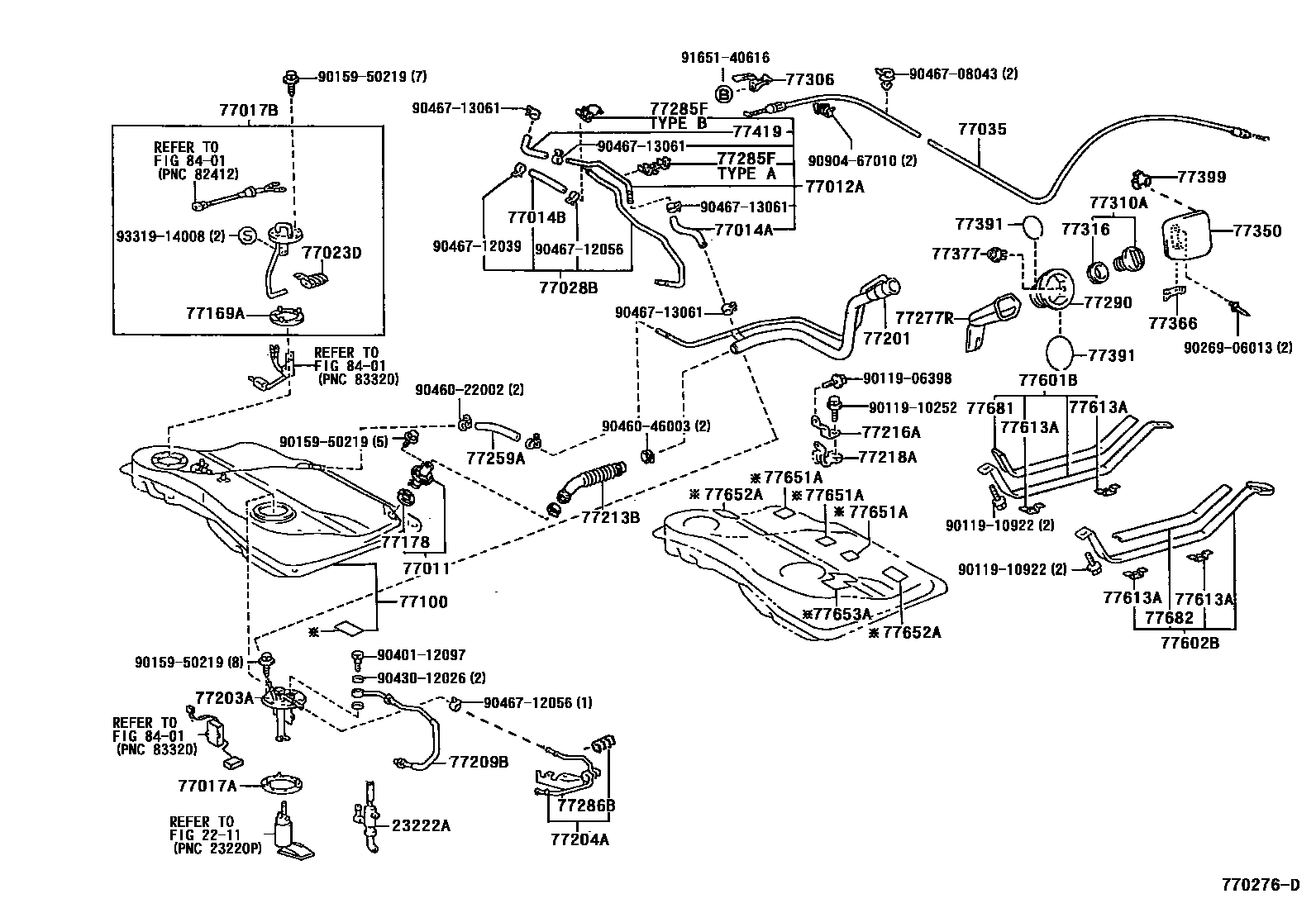

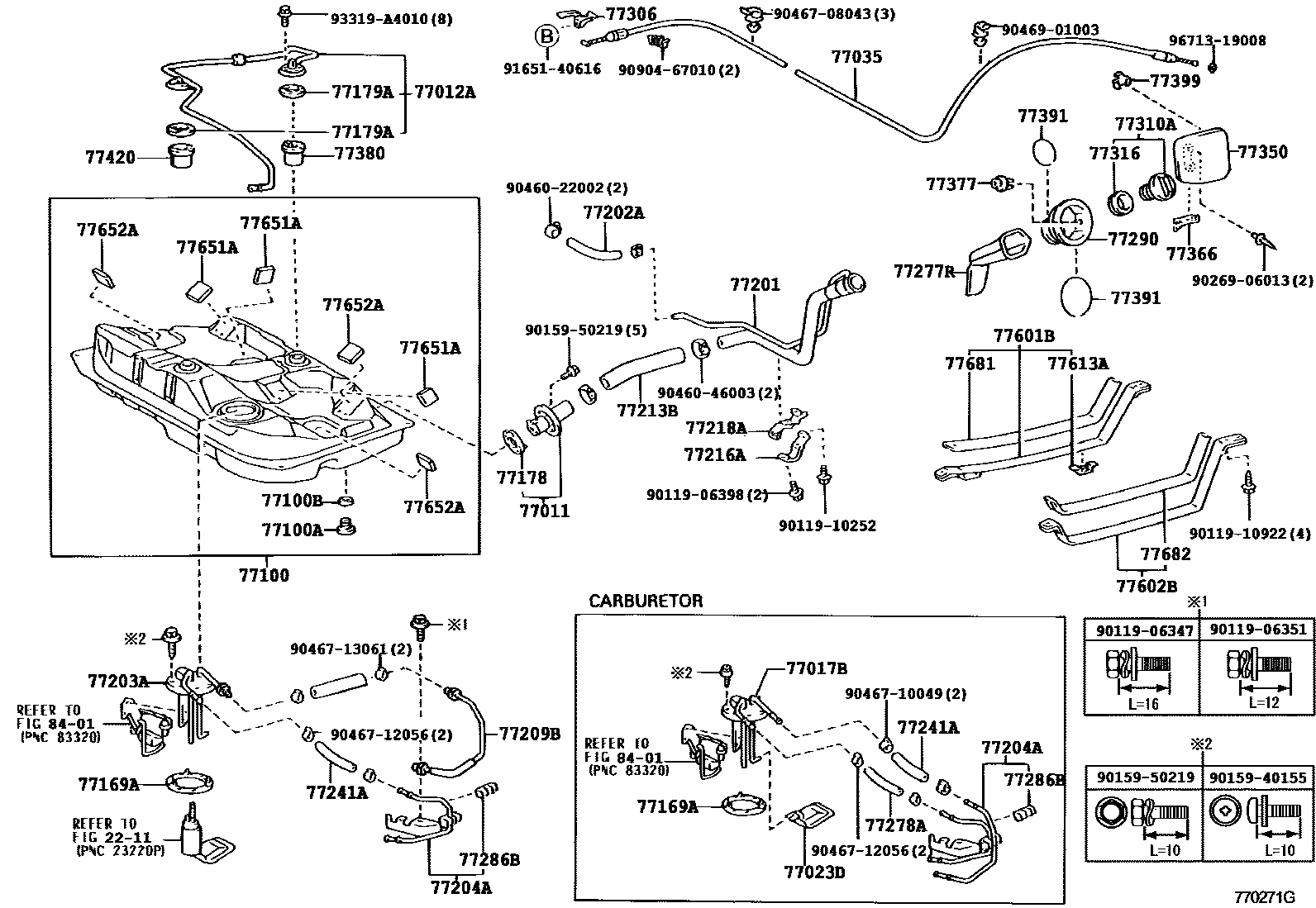

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23222A | fuel return nozzle | 23222-11010 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12090 · 77011-12130 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12140 · 77012-12150 · 77012-12180 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77279-12100 |
| 77017A | fuel tank vent pipe gasket | 77169-12030 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-12500 · 77017-12600 · 77017-12630 · 77017-12660 · 77017-12670 |
| 77023D | Fuel suction pipe filter sub-assembly | 77023-10010 · 77023-32030 · 77023-32040 |
| 77028B | No. 3 fuel evaporation pipe sub-assembly | 77028-12070 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12220 · 77035-12370 |
| 77100 | fuel tank assembly | 77001-12810 · 77001-12931 · 77001-12936 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77169A | Fuel suction pipe fixed gasket | 77169-12030 · 77169-14010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12430 · 77201-12500 · 77201-12550 |
| 77202A | No. 1 fuel hose (for breather pipe) | 77269-12050 · 95311-13022 |
| 77203A | Fuel suction pipe sub-assembly | 77203-12170 · 77203-12190 · 77203-12280 |
| 77204A | fuel tank return pipe | 77204-12010 · 77204-12020 · 77204-12030 · 77204-12060 |
| 77209B | Fuel pump pipe sub-assembly | 77209-12080 · 77209-12120 · 77209-12150 |
| 77213B | Fuel tank to filler pipe hose | 77213-12150 · 77213-12160 · 77213-12170 · 77213-12220 · 77213-12230 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12070 · 77216-12080 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-12030 · 77218-12040 |
| 77251B | main fuel pipe | 77251-12551 · 77251-12560 · 77251-12570 · 77251-12580 · 77251-12620 · 77251-12630 |
| 77251C | No. 1 fuel hose (for main fuel line) | 95334-06022 |
| 77255D | fuel return pipe | 77255-12490 · 77255-12500 · 77255-12510 · 77255-12520 · 77255-12560 · 77255-12570 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95334-04013 |
| 77259A | Fuel hose (for breather pipe) | 77269-12050 · 95311-13022 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12320 · 77261-12330 · 77261-12370 · 77261-12410 · 77261-12420 · 77261-12430 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12200 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77259-12180 |
| 77266A | No. 1 fuel line protection device | 77266-12070 · 77266-12080 · 77266-12110 |
| 77267A | No. 2 fuel pipe protection device | 77267-12100 · 77267-12120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23273-11010 · 90447-12139 · 90447-12150 |
| 77277R | Fuel tank filler pipe protection device | 77277-12160 |
| 77284A | No. 3 fuel pipe protection device | 77284-12030 · 77284-12050 |
| 77285D | No. 1 fuel pipe clamp | 77285-12020 · 77285-12030 |
| 77285F | No. 1 fuel pipe clamp | 77285-12060 · 77286-12050 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77285-12040 · 77285-12050 |
| 77286D | No. 2 fuel pipe clamp | 77286-12030 · 77286-12040 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12110 |
| 77298 | No. 4 fuel pipe clamp with retaining ring | 77298-12010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13060 · 77306-13081 |
| 77310A | Fuel tank cap assembly | 77300-12010 · 77300-52010 · 77310-12150 · 77310-16011 · 77310-32011 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12360 · 77350-12410 |
| 77366 | Fuel filler cap hinge spring | 77360-12080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77380 | Fuel shut-off valve assembly | 77380-12020 · 77380-26010 |
| 77391 | fuel inlet ring | 77391-12010 · 77391-12020 |
| 77393 | One-way valve protection device | 77393-12010 |
| 77399 | Fuel tank cap hanger | 77399-12020 |
| 77419 | No. 3 fuel hose | 77419-12010 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-12010 · 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12190 · 77601-12210 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12130 · 77602-12140 |
| 77613A | No. 1 fuel tank strap bracket | 77613-16030 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77652A | No. 2 fuel tank liner | 77652-12100 |
| 77653A | No. 3 fuel tank liner | 77653-12100 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77701T | Check valve (for main fuel tank) | 90917-10082 |
| 77740 | Carbon canister assembly | 77740-12630 · 77740-12680 · 77740-12690 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04147 |
| 77751 | Carbon canister base bracket | 77750-12090 · 77750-12100 · 77750-12130 · 77750-12140 · 77750-12150 |
