Toyota COROLLA 挡泥板和扰流板 — Figure 7601

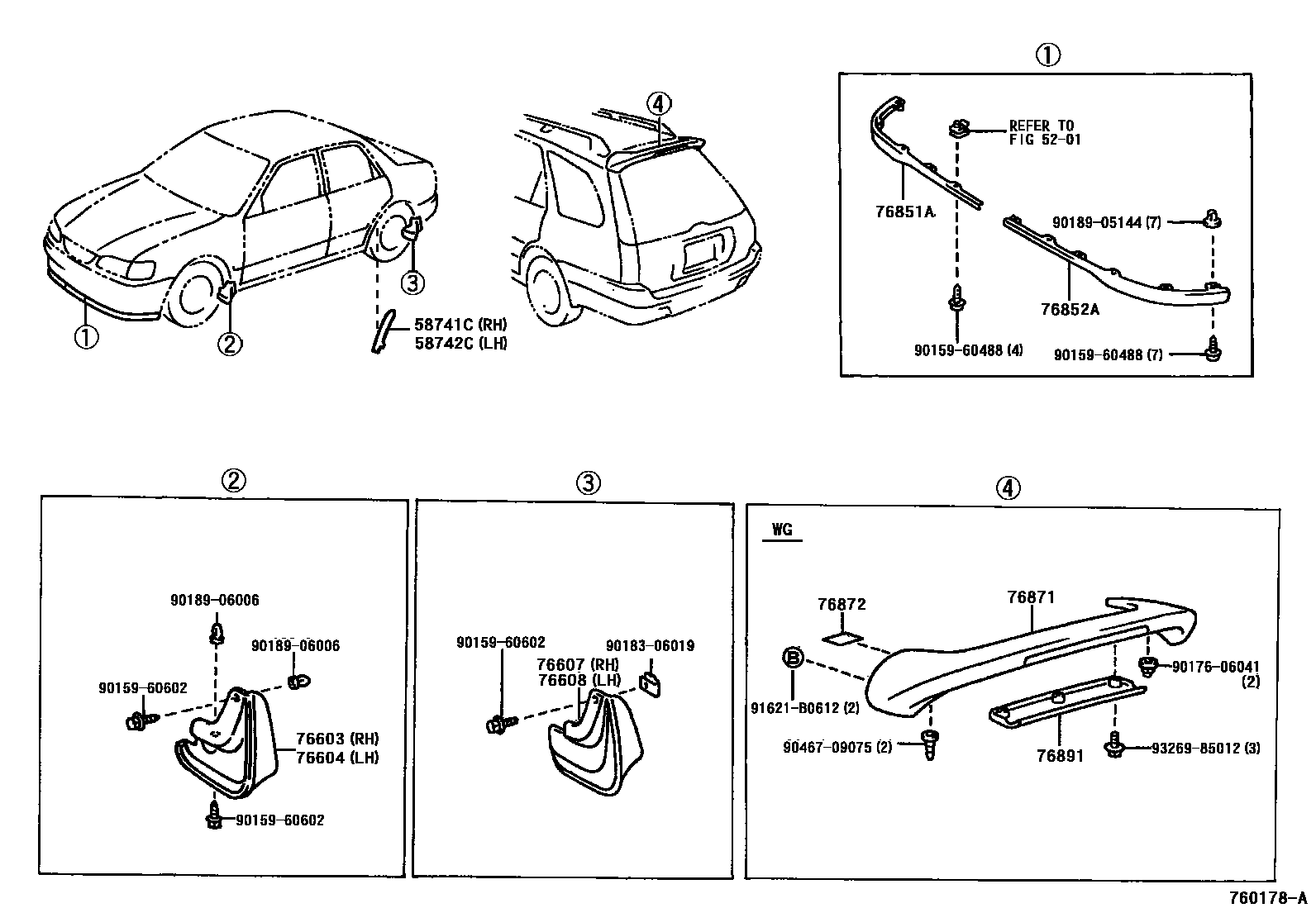

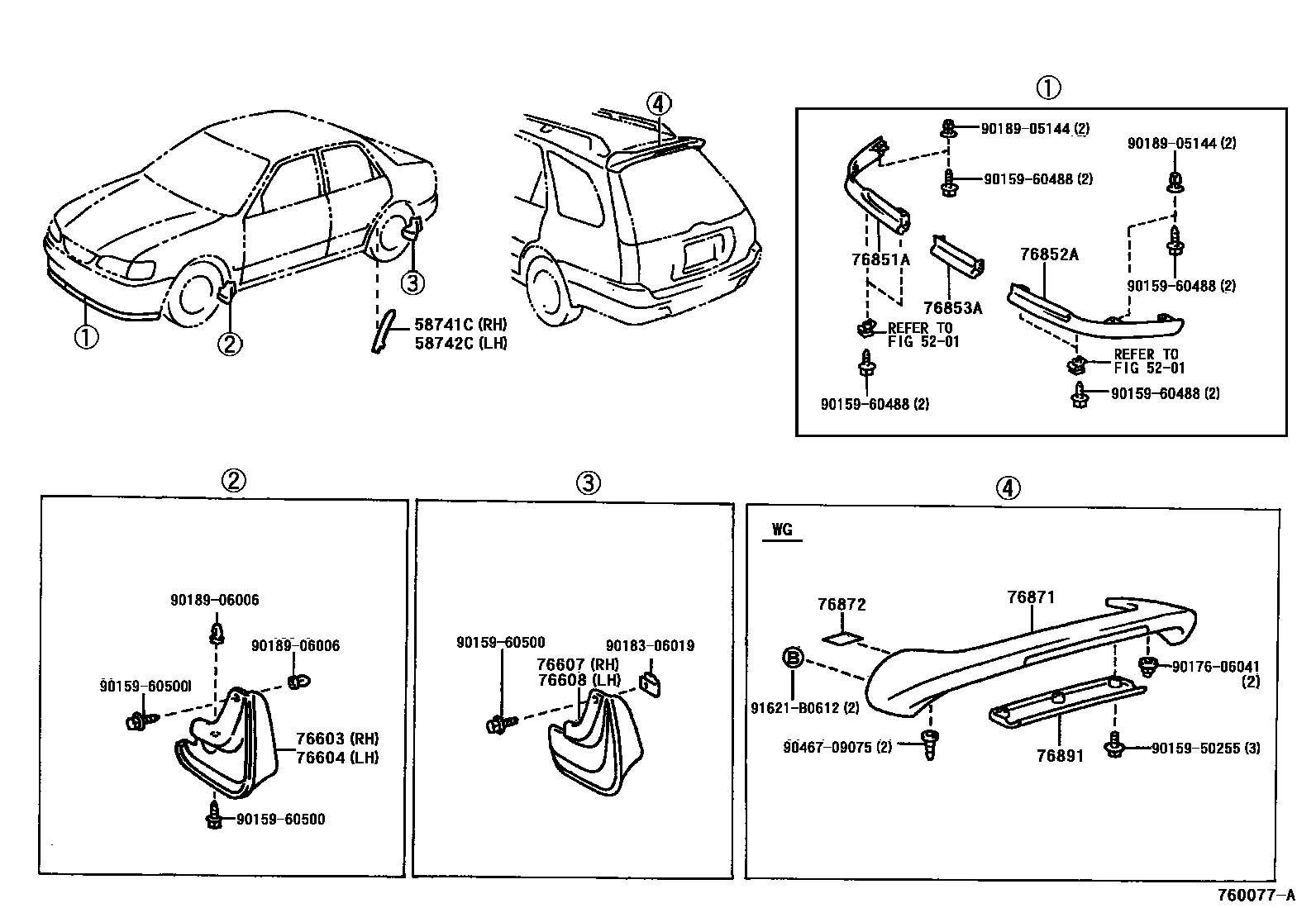

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741C | Right side enclosure protection panel | 58741-12130 |
| 58742C | Left side enclosure protection panel | 58742-12120 |
| 76603 | Right front fender fender sub-assembly | 76621-12181 |
| 76604 | Left front fender fender sub-assembly | 76622-12181 |
| 76607 | Right rear side fender sub-assembly | 76625-12440 |
| 76608 | Left rear side fender sub-assembly | 76626-12430 |
| 76851A | Right front spoiler cover | 76851-12090 · 76851-12130 |
| 76852A | Left front spoiler cover | 76852-12070 · 76852-12090 |
| 76853A | No. 1 front spoiler fixings | 76853-12070 |
| 76871 | rear spoiler | 76871-13901 |
| 76872 | No. 1 rear spoiler protective strip | 76872-13020 |
| 76891 | No. 1 rear spoiler | 76891-12110 |
