Toyota COROLLA 侧防护条 — Figure 7503

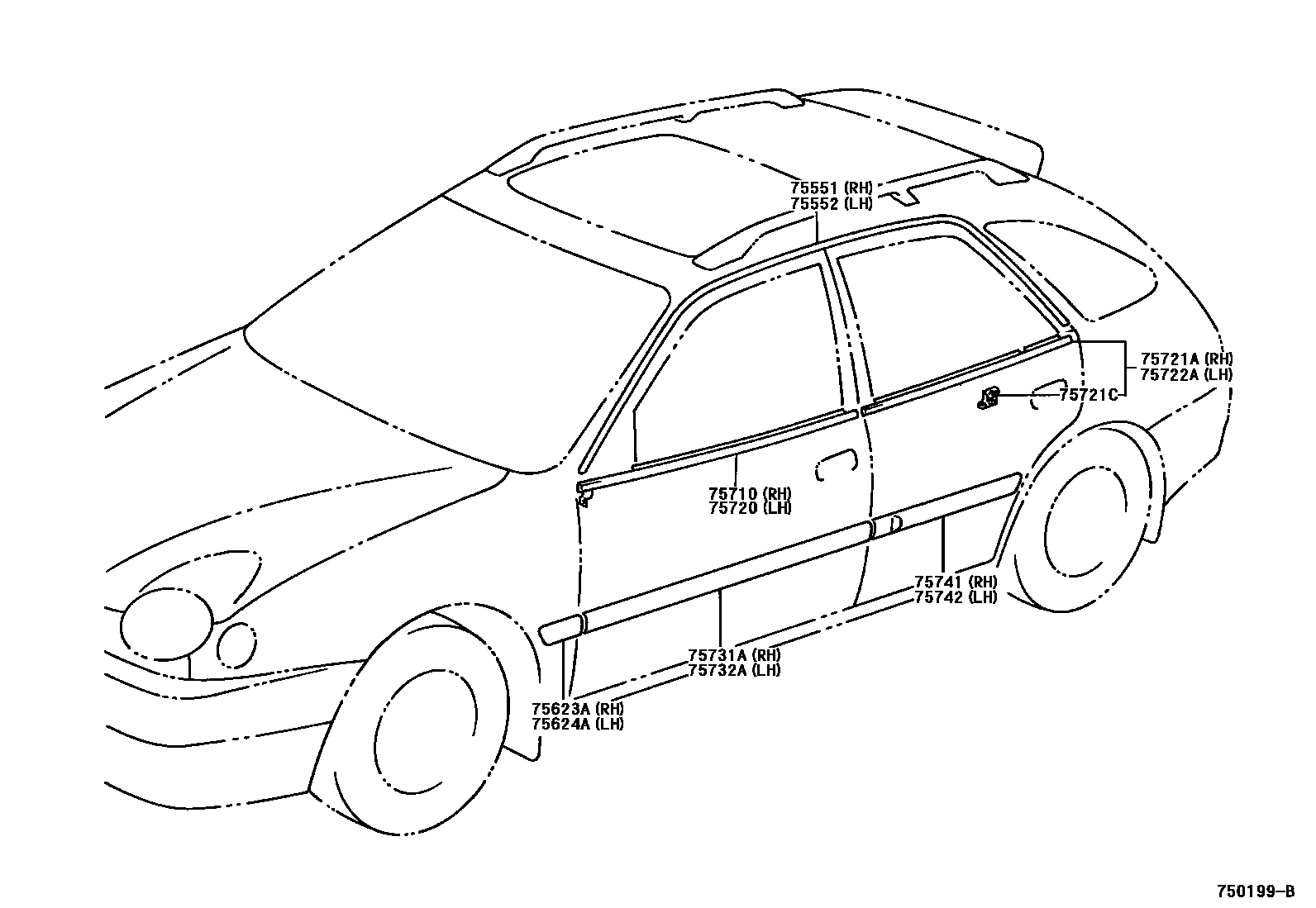

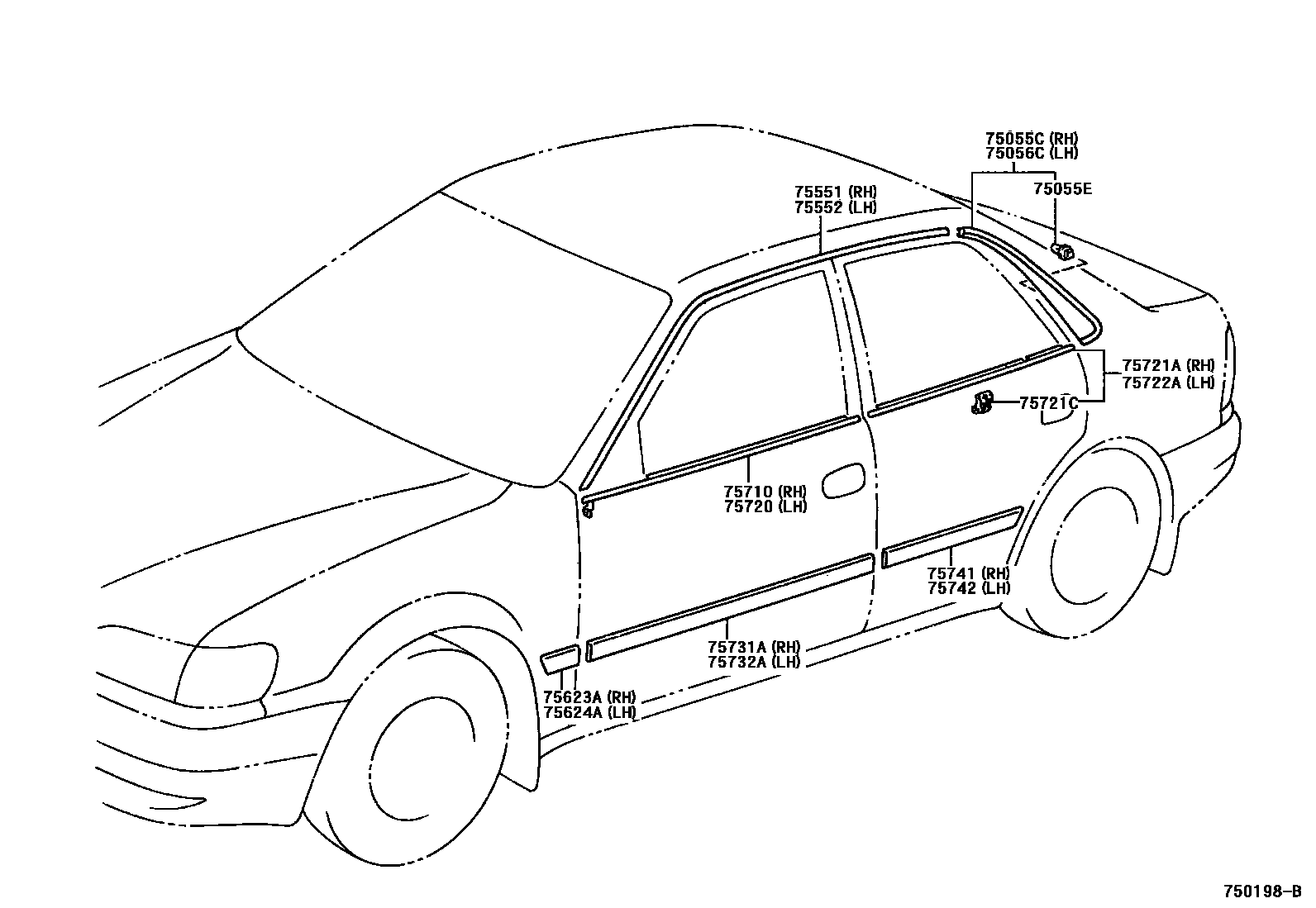

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75055C | Roof right rear gutter side decorative strip sub-assembly | 75055-12190 |
| 75055E | Roof drain gutter protection strip clip | 62955-12040 |
| 75056C | Roof left rear gutter side decorative strip sub-assembly | 75056-12190 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12670 · 75551-13150 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12670 · 75552-13150 |
| 75623A | Right front fender outer rear protective strip | 75623-12720 |
| 75624A | Left front fender outer rear protective strip | 75624-12720 |
| 75710 | Right front door waistline protection strip assembly | 75710-12670 · 75710-12710 |
| 75720 | Left front door waistline protection strip assembly | 75720-12670 · 75720-12710 |
| 75721A | Right rear door waistline protection strip | 75721-12450 |
| 75721C | Door glass seal strip clip | 68211-12240 |
| 75722A | Left rear door waistline protection strip | 75722-12450 |
| 75731A | Right front door outer protective strip | 75731-1A430 |
| 75732A | Left front door outer protective strip | 75732-1A270 |
| 75741 | Right rear door outer protective strip | 75741-1A020 |
| 75742 | Left rear door outer protective strip | 75742-1A010 |
