Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 11 PNC and OE references.

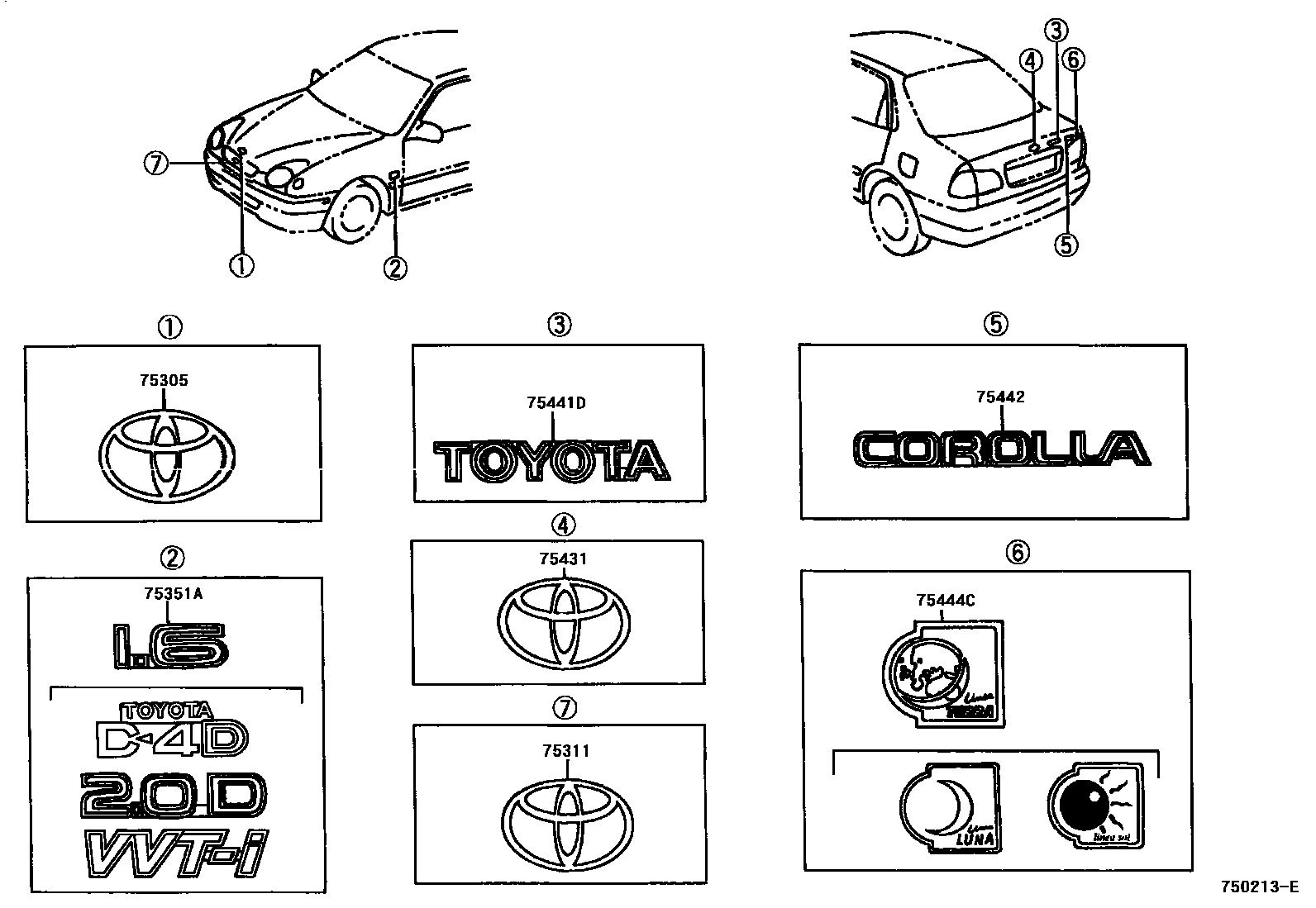

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750213E
丰田徽标和铭牌(车外和车内) — 750213E (199704 – 999999)

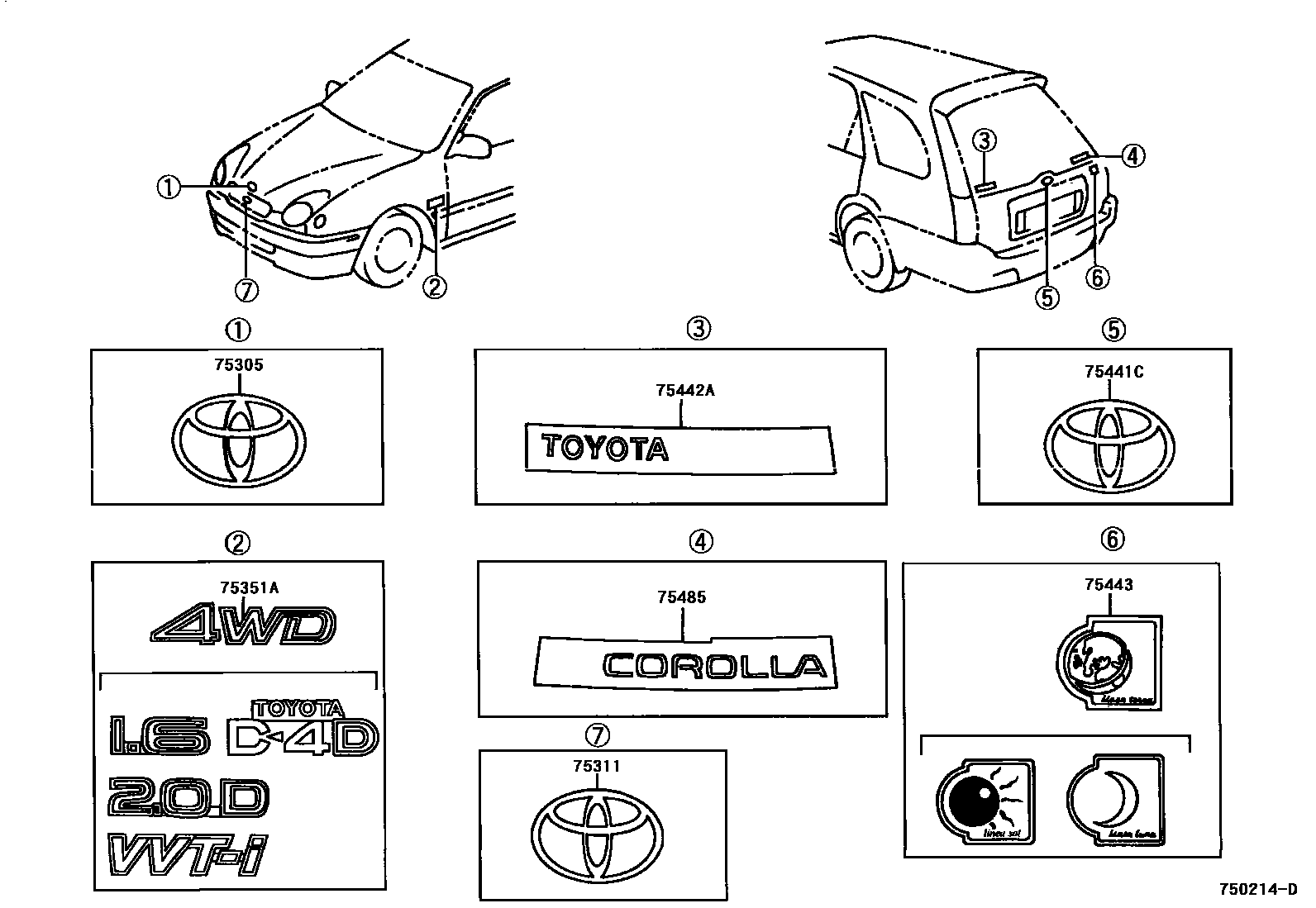

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750214D
丰田徽标和铭牌(车外和车内) — 750214D (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
75305engine cover plate75331-12100
75311Radiator grille (or front panel) plate75311-1E010
75351AFront fender label75351-12040 · 75351-12050 · 75351-12100 · 75351-12120 · 75351-12130 · 75351-12140 · 75351-12150 · 75351-13010
75431luggage compartment door sign75431-12110
75441CBack door nameplate75441-44010
75441DTrunk door No. 1 name plate75441-12830
75442Trunk door number plate No. 275442-1A370
75442ANo. 2 nameplate on back door75442-13200
75443No. 3 nameplate on back door75444-1A540 · 75444-1A550 · 75444-1A640
75444CTrunk door No. 4 nameplate75444-1A290 · 75444-1A450 · 75444-1A650
75485Back window nameplate75441-13170
