Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

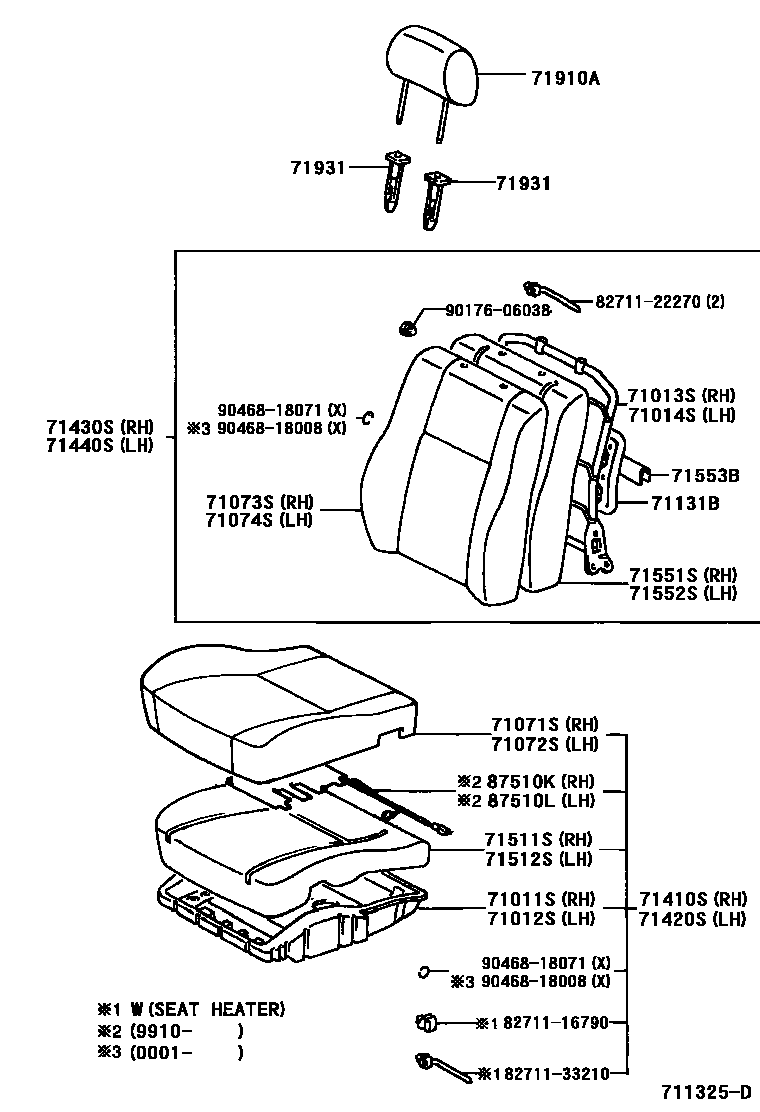

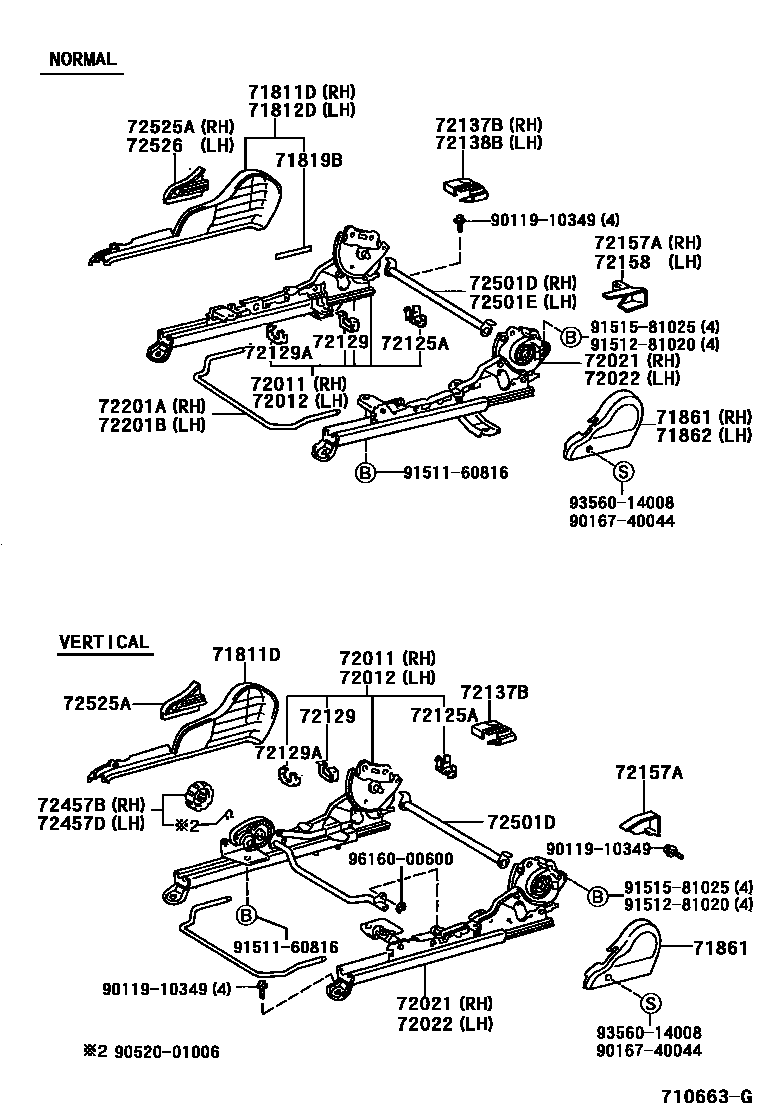

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-20430 · 71011-20440 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-20430 · 71011-20440 |
| 71013S | Front right seat back frame sub-assembly | 71013-12630 · 71013-12631 |
| 71014S | Front left seat back frame sub-assembly | 71013-12630 · 71013-12631 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-1H290 |
| 71131B | Front seat cushion 1 | 71131-12050 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-1L610 · 71410-1L620 · 71410-1L680 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-1H480 · 71420-1H530 · 71420-1H710 · 71420-1H891 |
| 71430S | Front right seat back assembly (for split seats) | 71040-12420 · 71430-1L310 · 71430-1L311 · 71430-1L320 · 71430-1L321 · 71430-1L340 · 71430-1L341 |
| 71440S | Front left seat back assembly (for split seats) | 71070-12340 · 71430-1L310 · 71430-1L311 · 71430-1L320 · 71430-1L321 · 71440-1L230 · 71440-1L231 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12890 · 71511-1A010 · 71511-1A020 · 71511-1A030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12890 · 71511-1A010 · 71511-1A020 · 71511-1A030 · 71511-1S020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12610 · 71551-12630 · 71551-12710 · 71551-12730 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12610 · 71551-12630 · 71551-12710 · 71551-12730 |
| 71553B | Front B seat back cushion | 71553-12360 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12250 · 72011-12260 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12210 · 72012-12280 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12220 · 72021-12230 · 72021-12360 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12270 · 72022-12280 · 72022-13050 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-20020 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12030 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12030 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 87510K | Front right seat cushion heater assembly | 87510-0W170 |
| 87510L | Front left seat cushion heater assembly | 87510-0W180 |
