Toyota COROLLA 锁芯组件 — Figure 6712

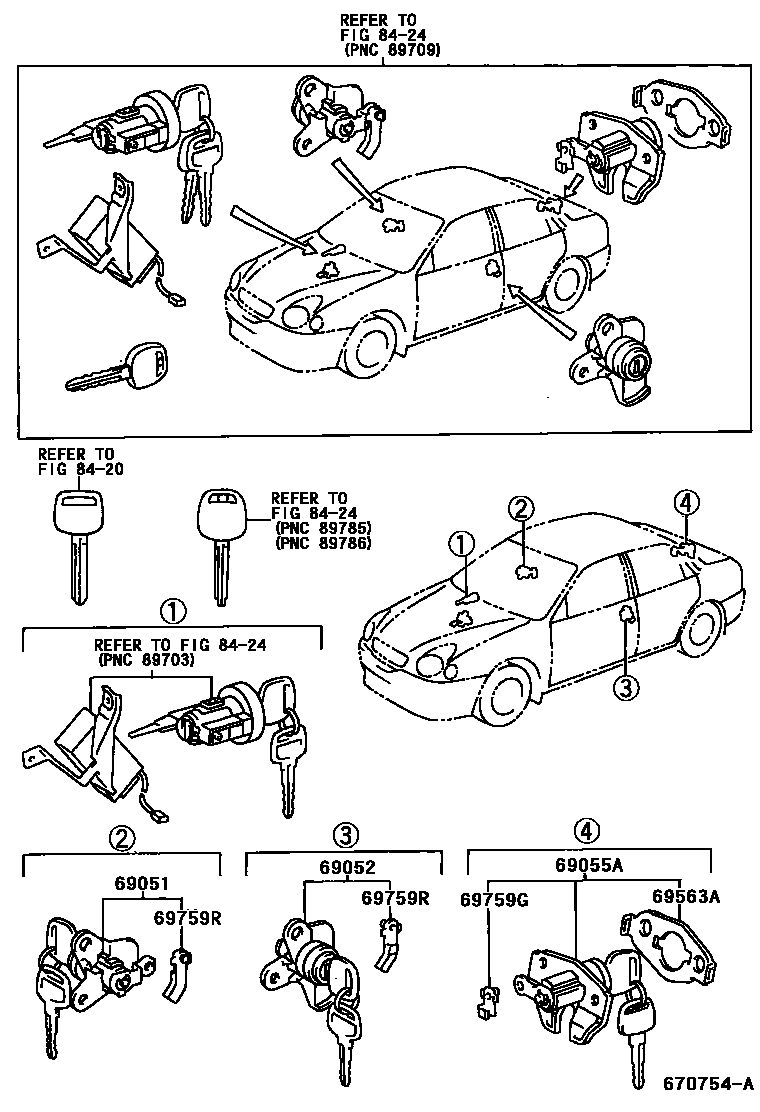

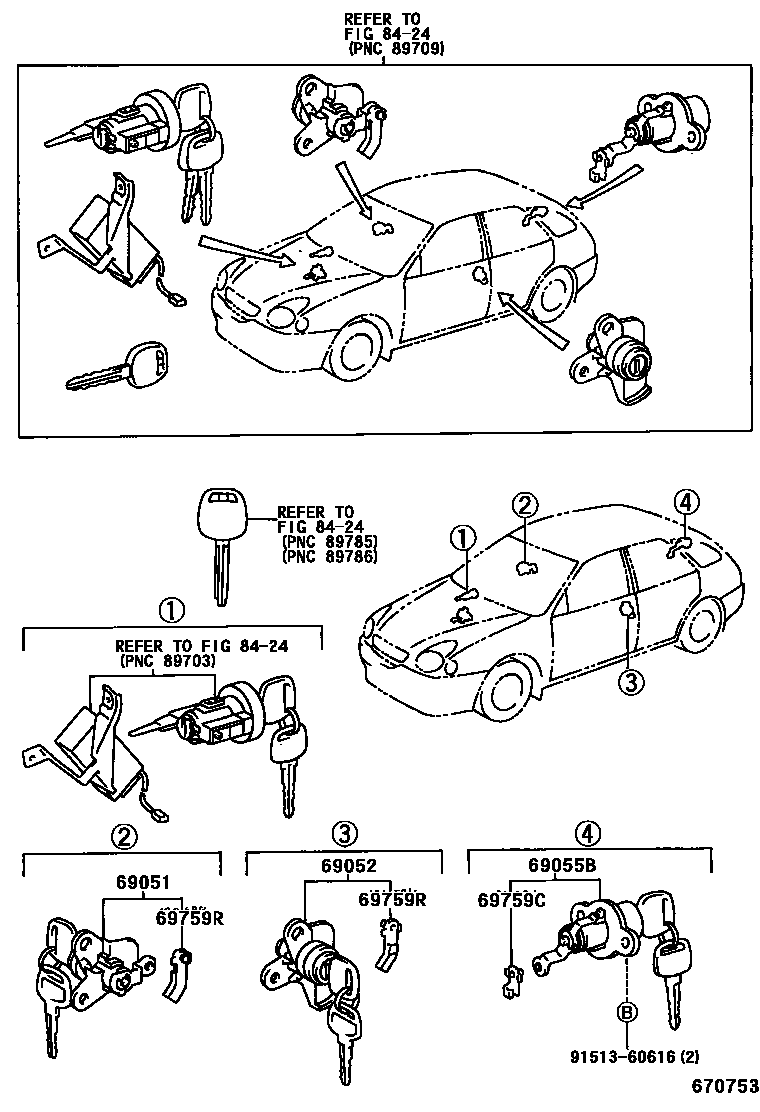

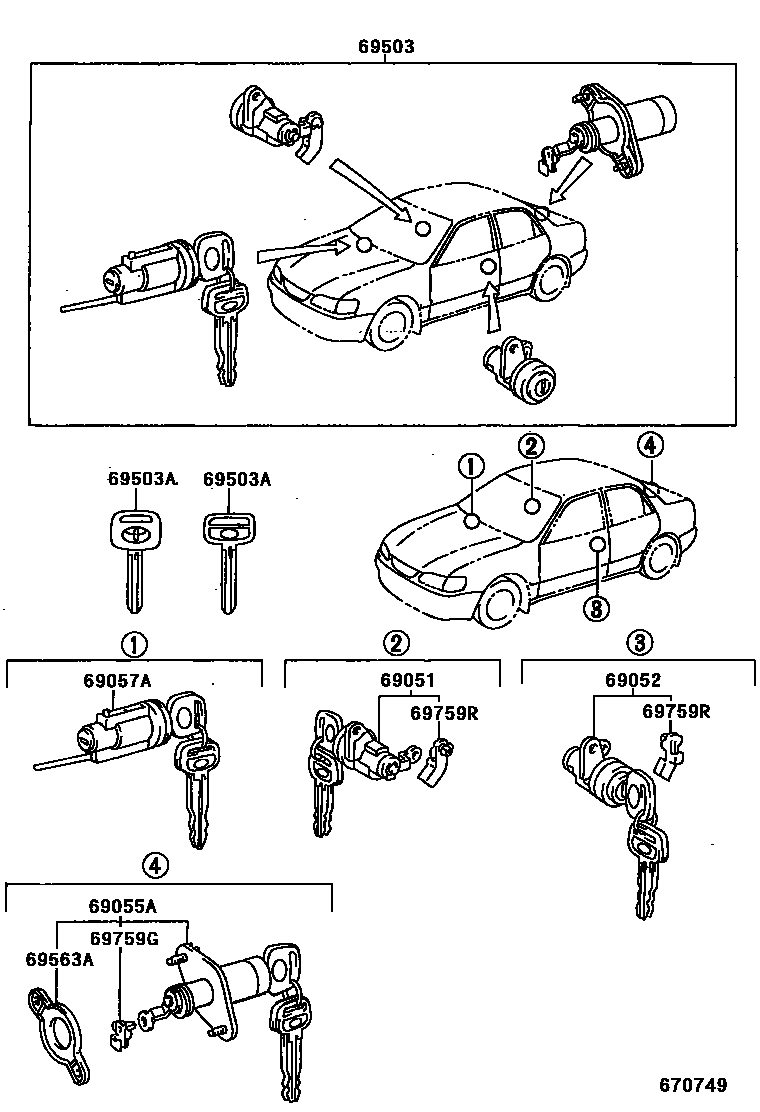

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12530 |
| 69052 | Left door lock cylinder and key assembly | 69052-12530 |
| 69055A | Luggage lock cylinder and key assembly | 69055-1A220 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13210 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12400 |
| 69503 | Door lock cylinder components | 69005-1E180 |
| 69503A | external tooth key | 90999-00185 · 90999-00187 |
| 69563A | Trunk door lock cylinder lining | 69563-12130 |
| 69759C | Back door lock cylinder buckle | 69759-24090 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
