Toyota COROLLA 背门板和背门玻璃 — Figure 6708

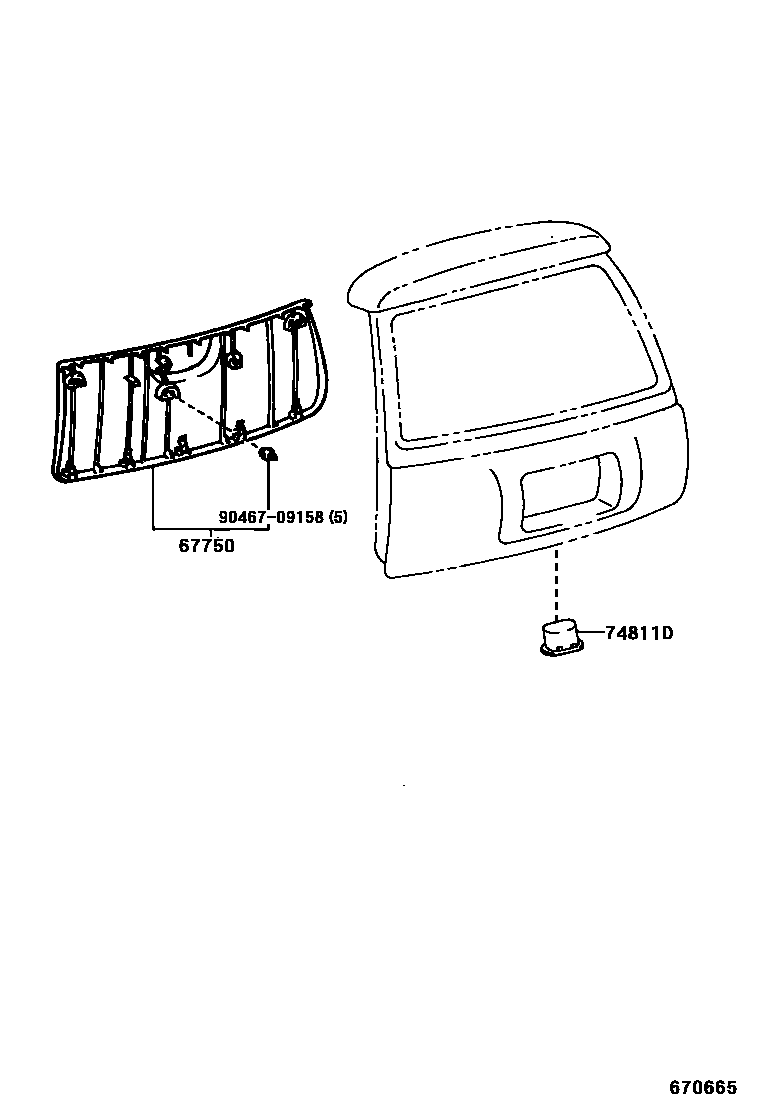

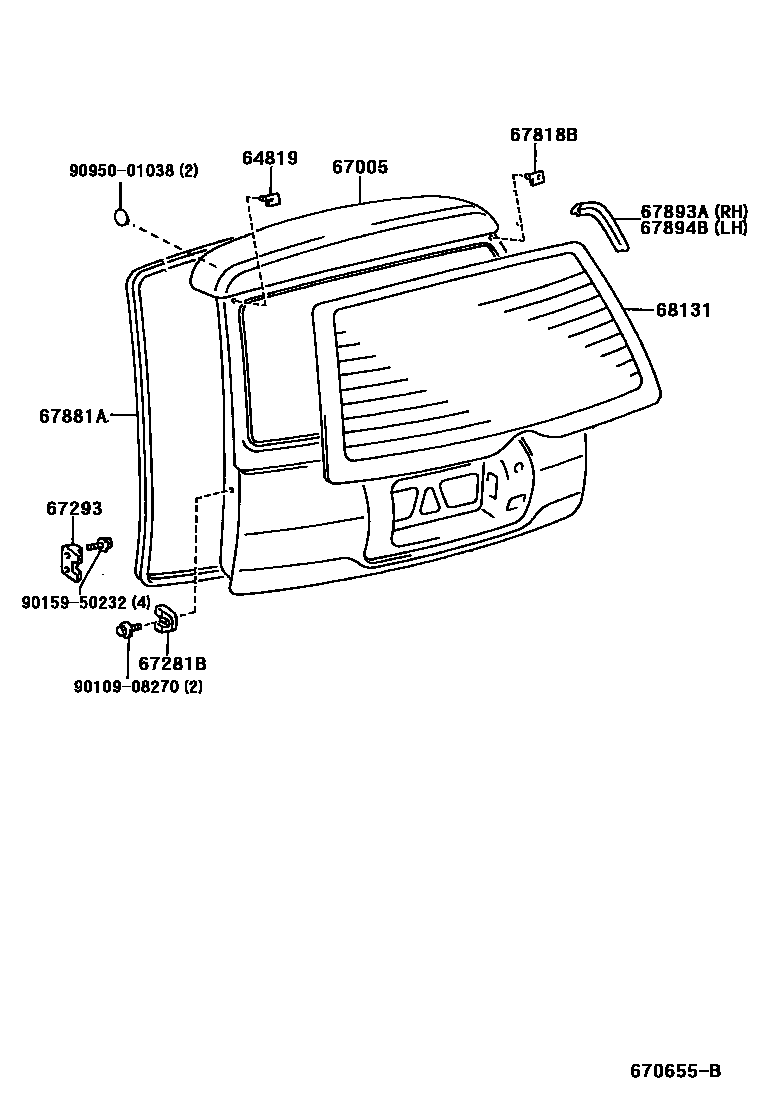

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64819 | No. 2 back window glass spacer | 64819-13010 |
| 67005 | Rear door panel sub-assembly | 67005-1F520 · 67005-1F530 |
| 67281B | Back door lower block | 67281-12061 |
| 67293 | Back door lower block cushion | 67293-13040 |
| 67818B | Back window glass spacer | 64818-13030 |
| 67881A | Back door seal | 67881-13220 |
| 67893A | Back door panel No. 1 protective piece | 67893-12010 |
| 67894B | Back door panel No. 2 protective piece | 67894-12010 |
| 68131 | back door glass | 68131-13350 · 68131-13360 |
