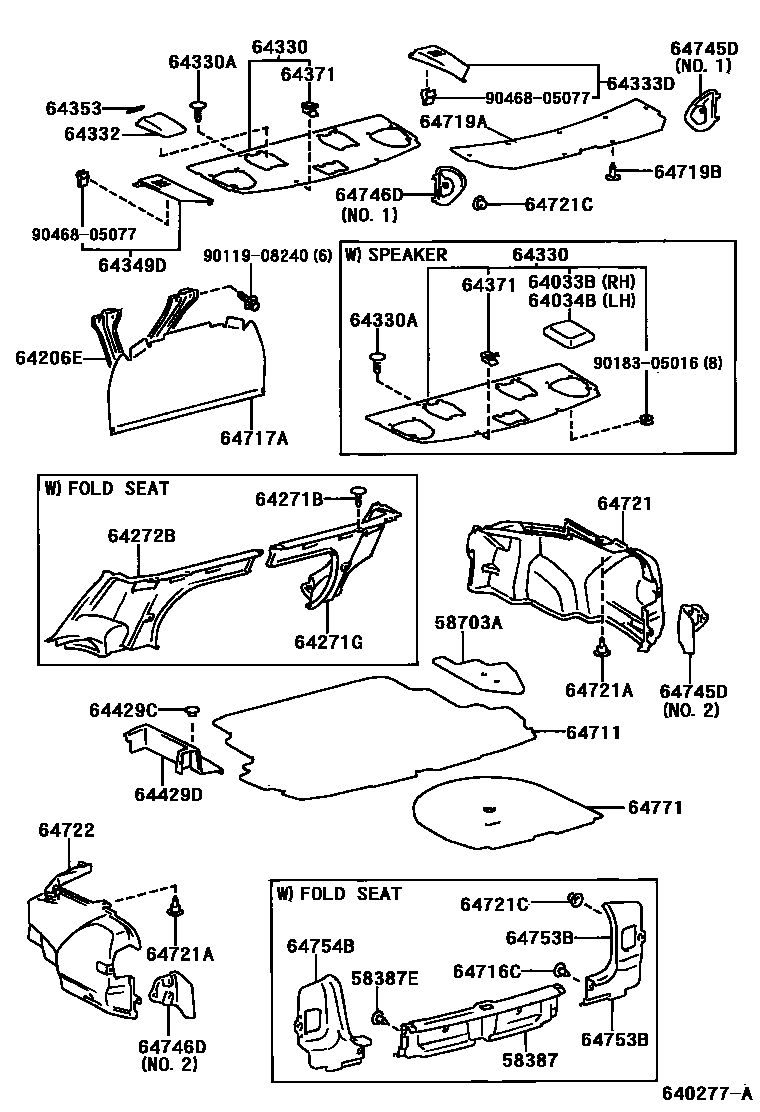

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-12080 |
| 64206E | Car partition sub-assembly | 64206-12010 |
| 64371 | Glove box decorative panel fixings | 64371-16010 |
| 64745D | Right rear combination light access hole cover | 64745-12100 |
| 64746D | Left rear combination light access hole cover | 64746-12120 |
| 64771 | Spare Wheel Cover | 64770-12240 |
