Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

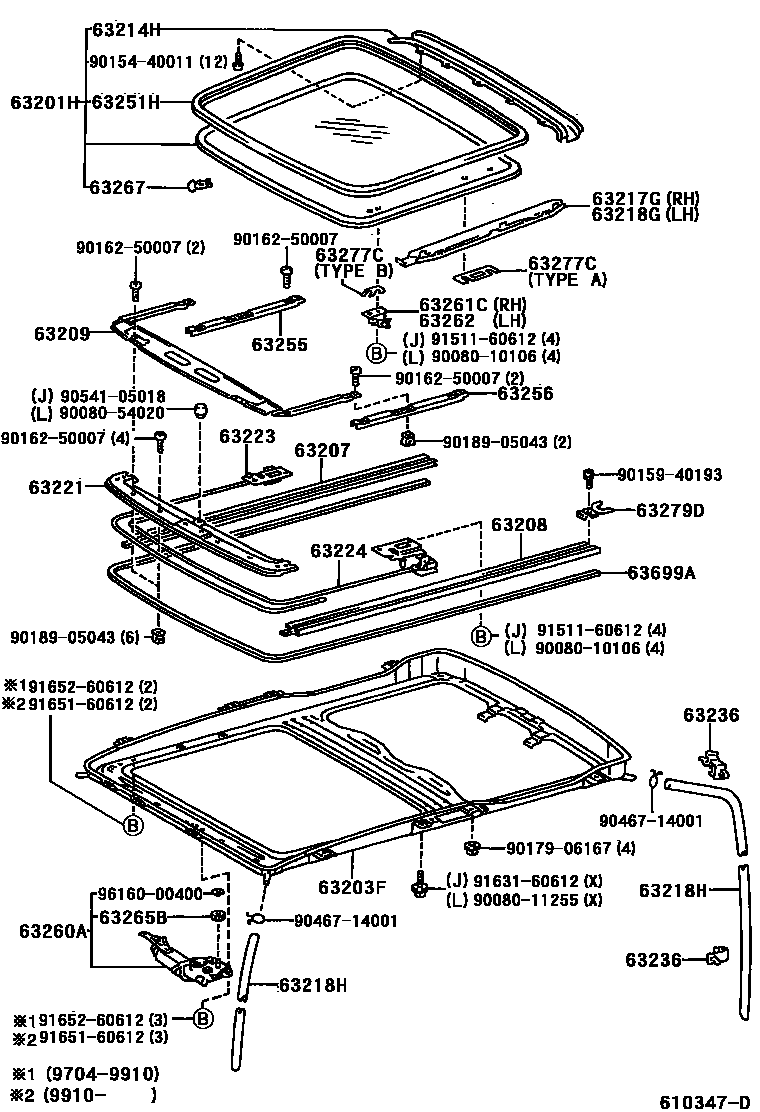

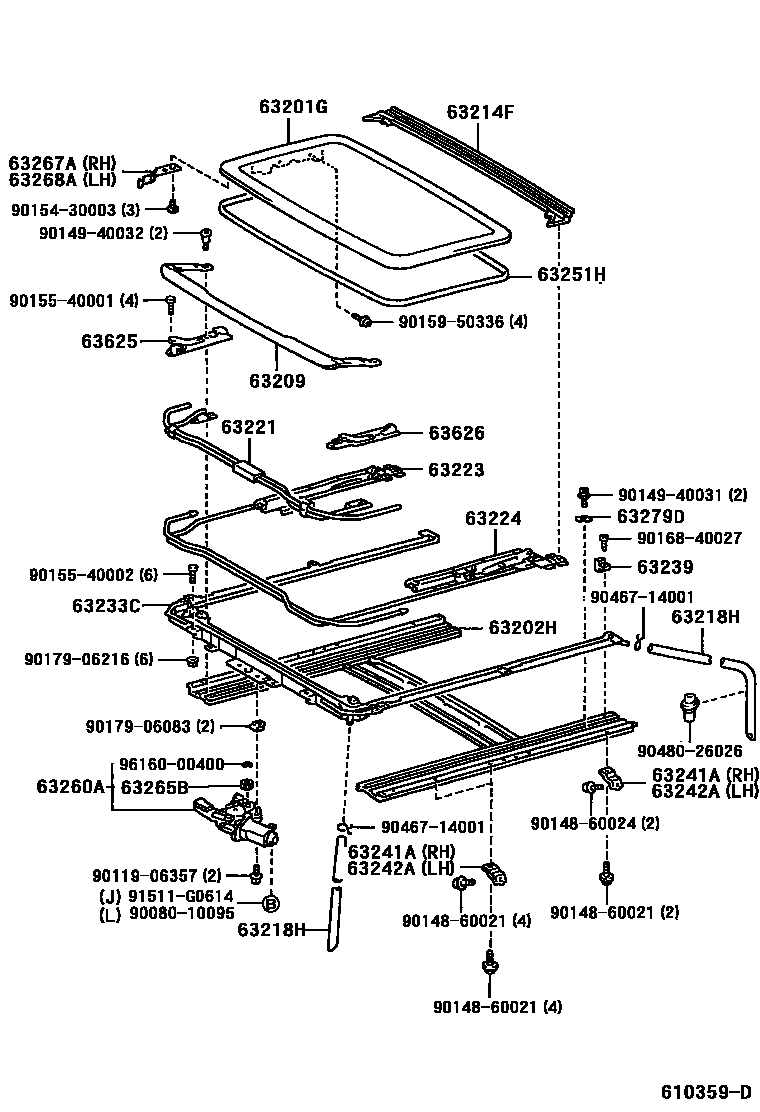

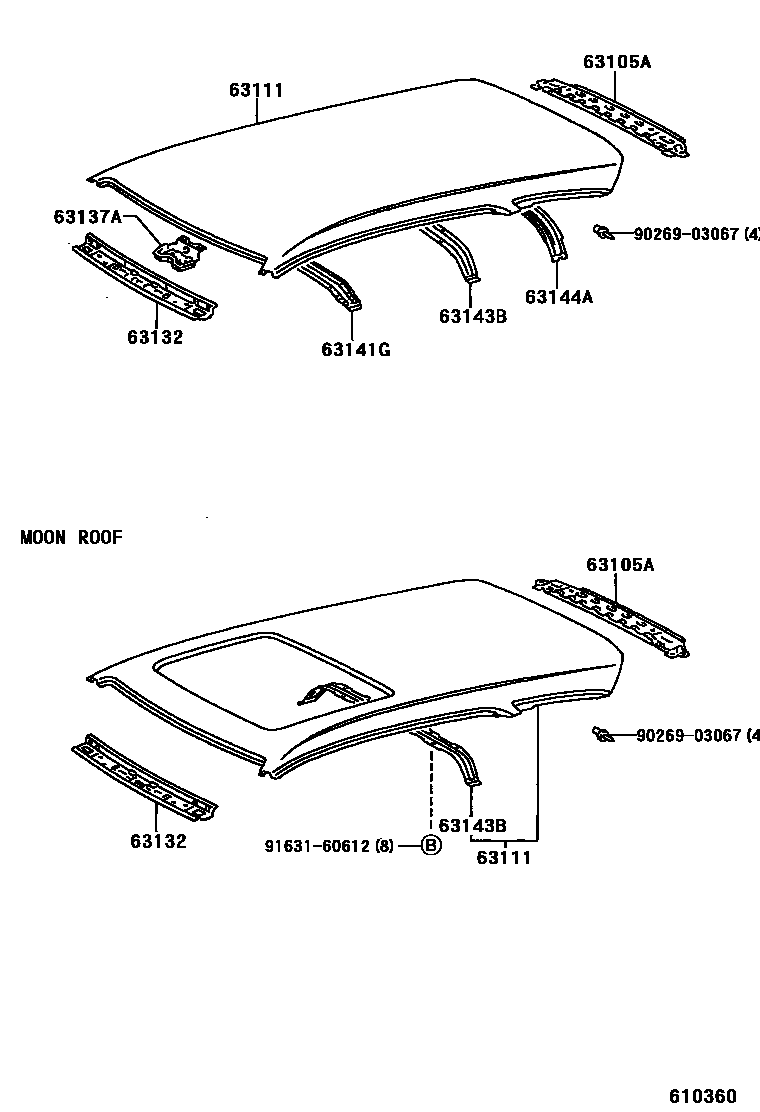

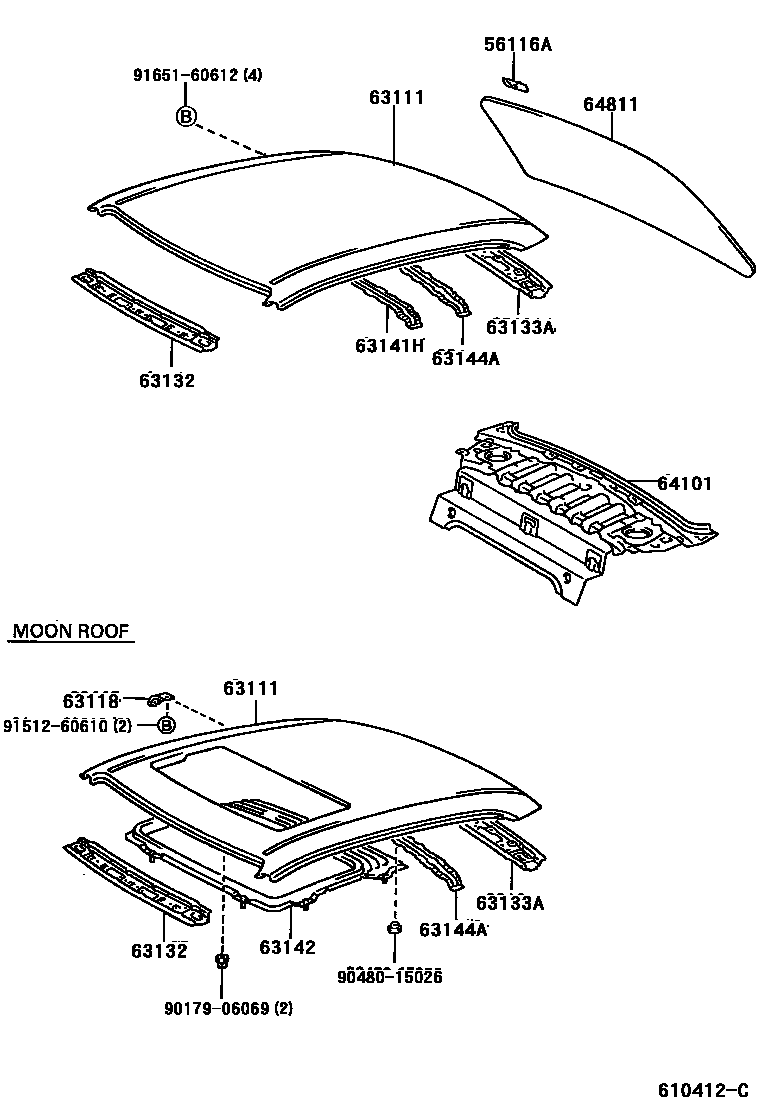

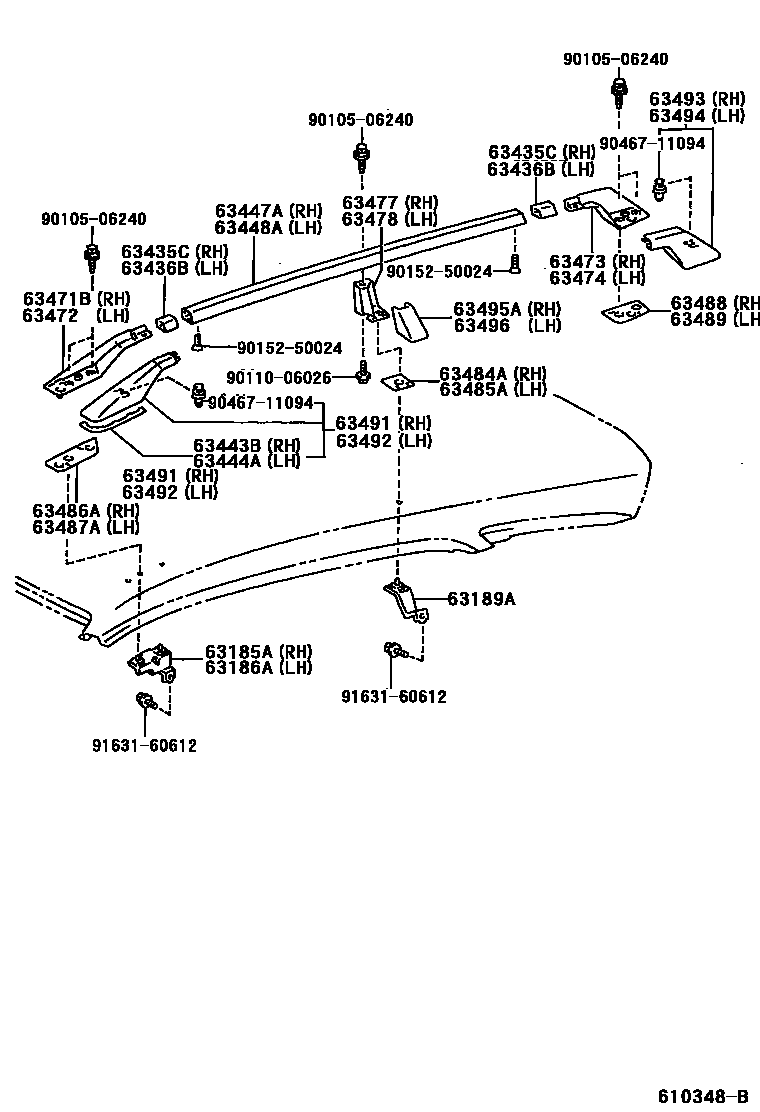

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56116A | windshield spacer | 56116-16050 |
| 63105A | Back door opening frame sub-assembly | 63105-13140 |
| 63111 | roof panel | 63104-12010 · 63109-13010 · 63109-13020 · 63111-12680 · 63111-13160 · 63111-13180 |
| 63118 | Right roof panel bracket | 63118-12080 |
| 63132 | Windshield inner roof panel | 63132-12210 · 63132-13040 |
| 63133A | upper frame of back window | 63133-12240 |
| 63137A | No. 1 ceiling light bracket | 63137-13030 |
| 63141G | No. 1 roof panel reinforcement | 63141-13070 |
| 63141H | Center roof panel reinforcement | 63141-12200 |
| 63142 | No. 2 roof panel reinforcement | 63142-12080 |
| 63143B | No. 3 roof panel reinforcement | 63127-13010 · 63143-13041 |
| 63144A | No. 4 roof panel reinforcement | 63144-12050 · 63144-13010 |
| 63185A | Right front roof rack bracket | 63185-13060 |
| 63186A | Left front roof rack bracket | 63186-13060 |
| 63189A | Center roof rack bracket | 63189-13030 |
| 63201G | Sliding sunroof glass sub-assembly | 63204-12080 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-13010 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-12020 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-13010 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-13010 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-13010 |
| 63209 | Roof deflector sub-assembly | 63209-12140 · 63209-12160 · 63209-13010 |
| 63214F | Roof rear drain channel | 63214-12060 |
| 63214H | Rear sliding sunroof panel | 63214-13011 |
| 63217G | Right sliding sunroof trim | 63217-13010 |
| 63218G | Sliding sunroof trim, left | 63218-13010 |
| 63218H | Sliding skylight drain hose | 63249-12160 · 63249-12210 · 63249-12280 · 63249-13020 |
| 63221 | Sliding sunroof cable duct | 63221-12080 · 63221-13010 |
| 63223 | Right sliding sunroof transmission cable | 63223-12130 · 63223-13010 |
| 63224 | Left sliding sunroof transmission cable | 63224-12120 · 63224-13010 |
| 63233C | Sliding skylight shelf | 63233-12080 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-13010 · 63236-13020 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12100 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-12100 |
| 63251H | Sliding skylight seal | 63251-12160 · 63251-13010 |
| 63255 | Right sliding sunroof guide cover | 63255-13010 |
| 63256 | Left sliding sunroof guide cover | 63255-13010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12100 · 63260-13010 |
| 63261C | Right front sliding sunroof slider | 63261-10030 |
| 63262 | Left front sliding sunroof slider | 63262-10020 |
| 63265B | Sliding sunroof driving gear | 63265-12040 · 63265-20010 |
| 63267 | Sliding sunroof sealing strip protection | 63267-12020 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12040 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-12040 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 · 63279-13010 |
| 63435C | Roof right storage rack No. 1 seal | 63435-13030 |
| 63436B | Roof left storage rack No. 1 seal | 63436-13020 |
| 63443B | Roof right luggage rack protector | 63443-13020 |
| 63444A | Roof left luggage rack protector | 63444-13020 |
| 63447A | Roof right side rail | 63447-13041 |
| 63448A | Roof left side rail | 63448-13041 |
| 63471B | Right front roof rack support | 63471-13030 |
| 63472 | Left front roof rack support | 63472-13030 |
| 63473 | Right rear roof rack support | 63473-13040 |
| 63474 | Left rear roof rack support leg | 63474-13040 |
| 63477 | Right center roof rack bracket | 63477-13020 |
| 63478 | Left center roof rack bracket | 63478-13020 |
| 63484A | Right center roof rack foot cushion | 63484-13030 |
| 63485A | Left center roof rack foot cushion | 63485-13030 |
| 63486A | Right front roof rack support foot cushion | 63486-13031 |
| 63487A | Left front roof rack support foot cushion | 63487-13031 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13040 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13040 |
| 63491 | Right front roof rack leg cover | 63491-13033 |
| 63492 | Left front roof rack leg cover | 63492-13033 |
| 63493 | Right rear roof rack foot cover | 63493-13041 |
| 63494 | Left rear roof rack leg cover | 63494-13041 |
| 63495A | Center roof rack foot cover | 63495-13031 |
| 63496 | Left center roof rack foot cover | 63496-13031 |
| 63625 | Right sliding sunroof guide block | 63625-12040 |
| 63626 | Left sliding sunroof guide block | 63626-12040 |
| 63699A | Sliding sunroof guide seals | 63699-12040 |
| 64101 | Upper back panel sub-assembly | 64101-12610 · 64101-12611 · 64101-12640 · 64101-12641 |
| 64811 | back window glass | 64811-1E080 · 64811-1E100 |
