Toyota COROLLA 角窗 — Figure 6103

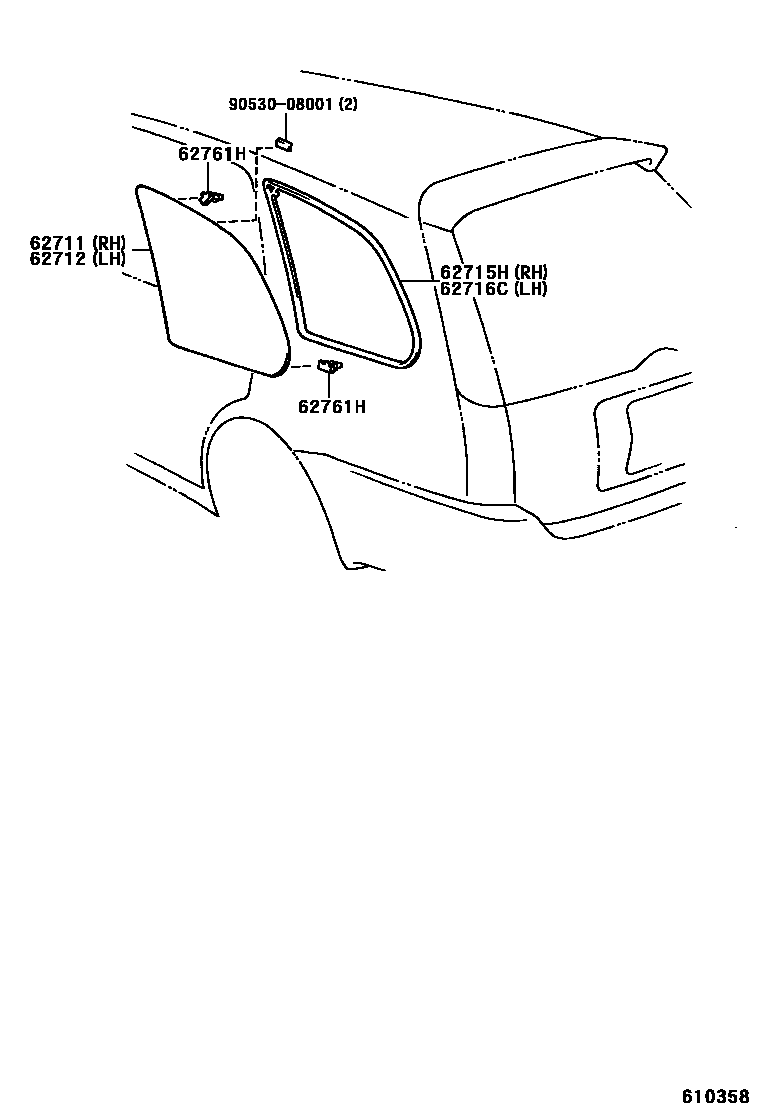

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-13100 |
| 62712 | Left corner window glass | 62712-13100 |
| 62715H | Right corner window glass adhesive seal | 62715-13010 |
| 62716C | Left corner window glass adhesive seal | 62716-13010 |
| 62761H | Front corner window glass fixings | 62761-13010 |
