Toyota COROLLA 制动配管和卡箍 — Figure 4708

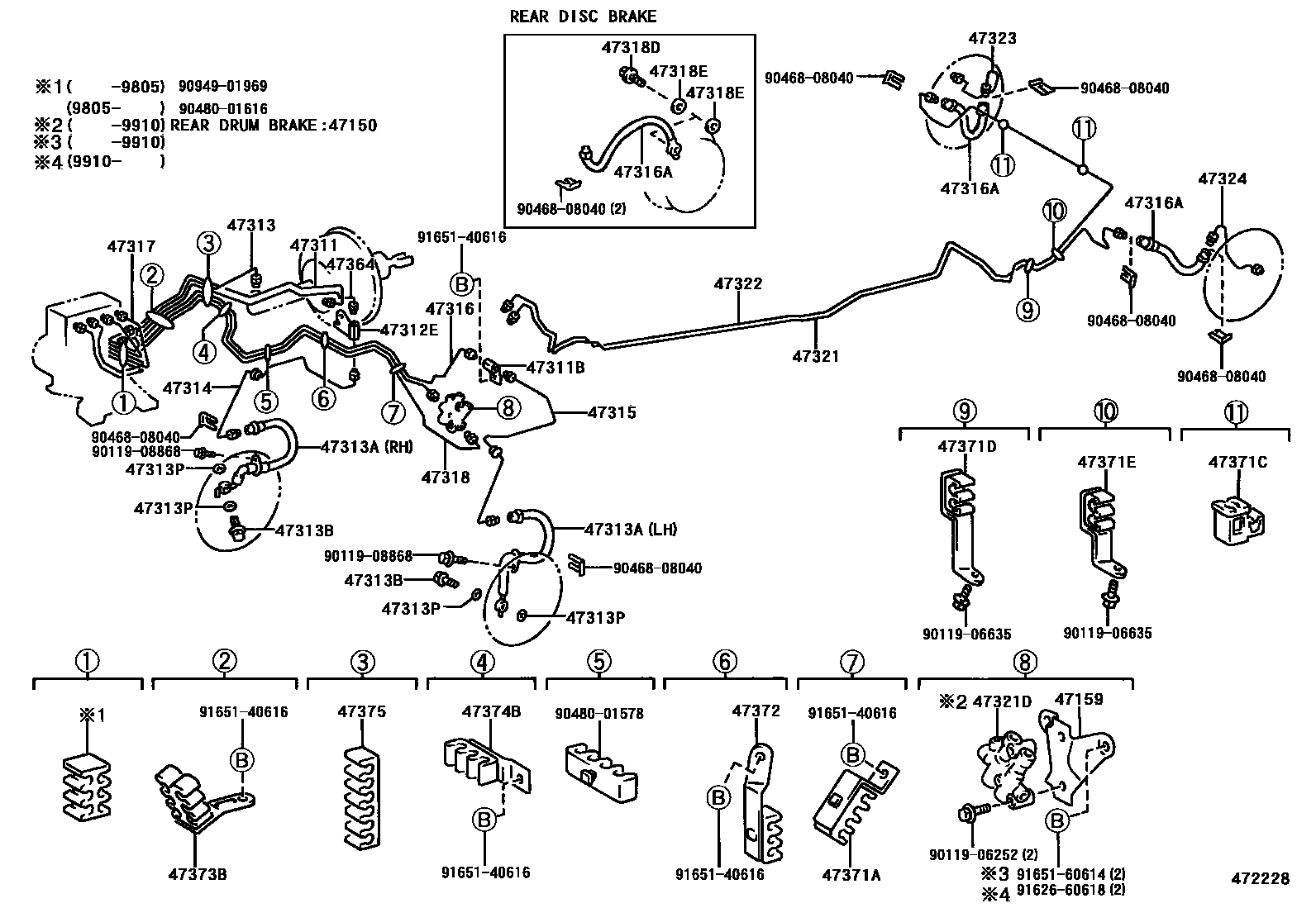

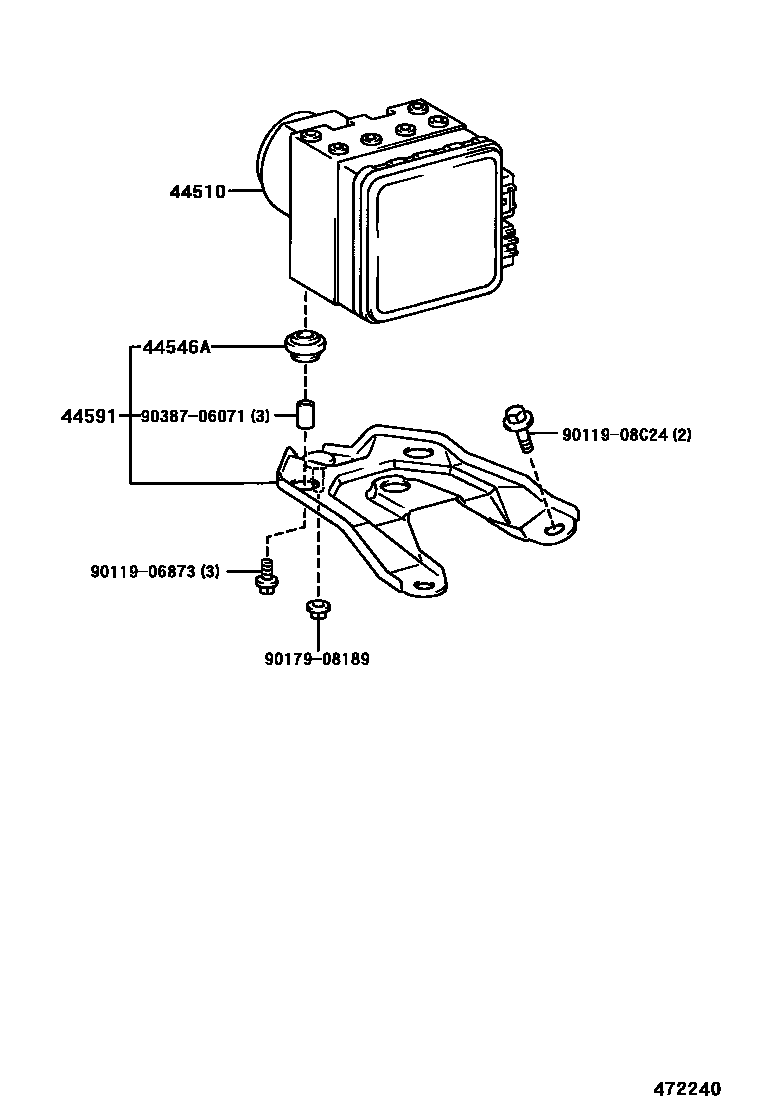

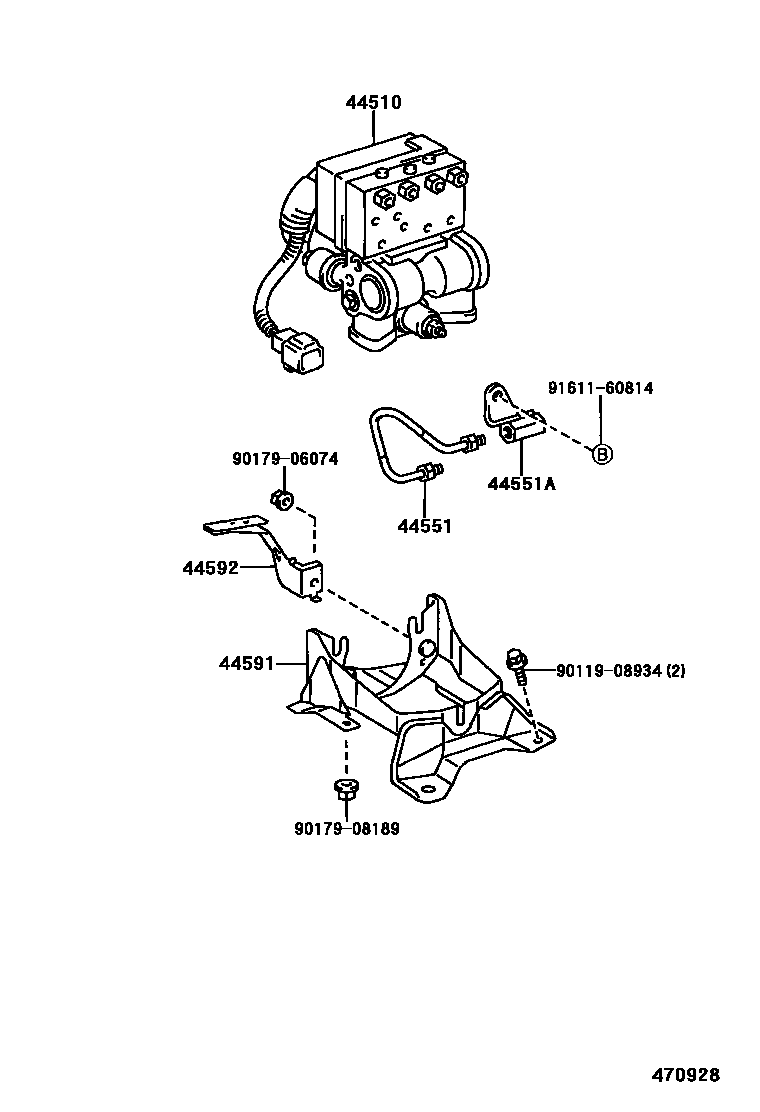

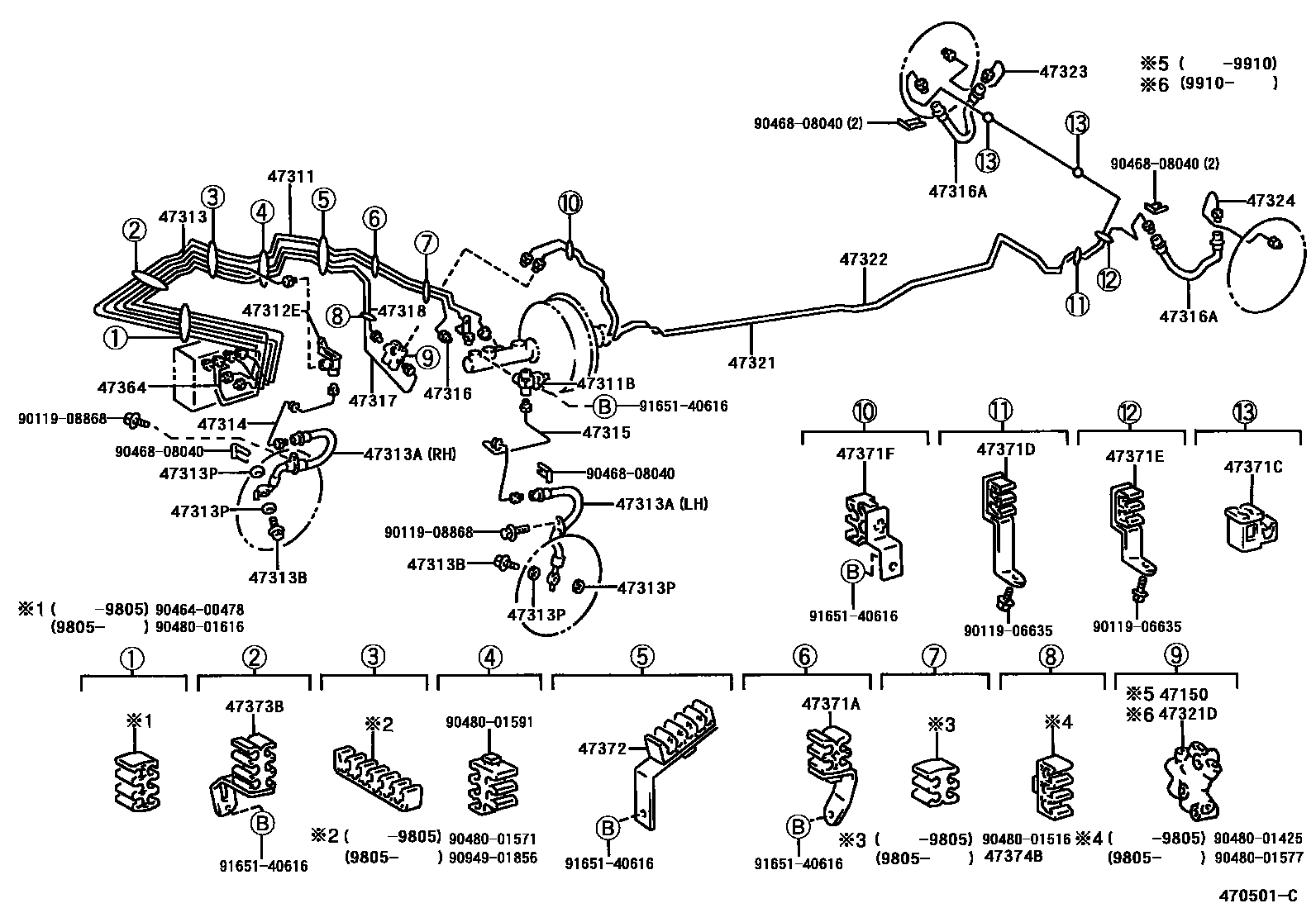

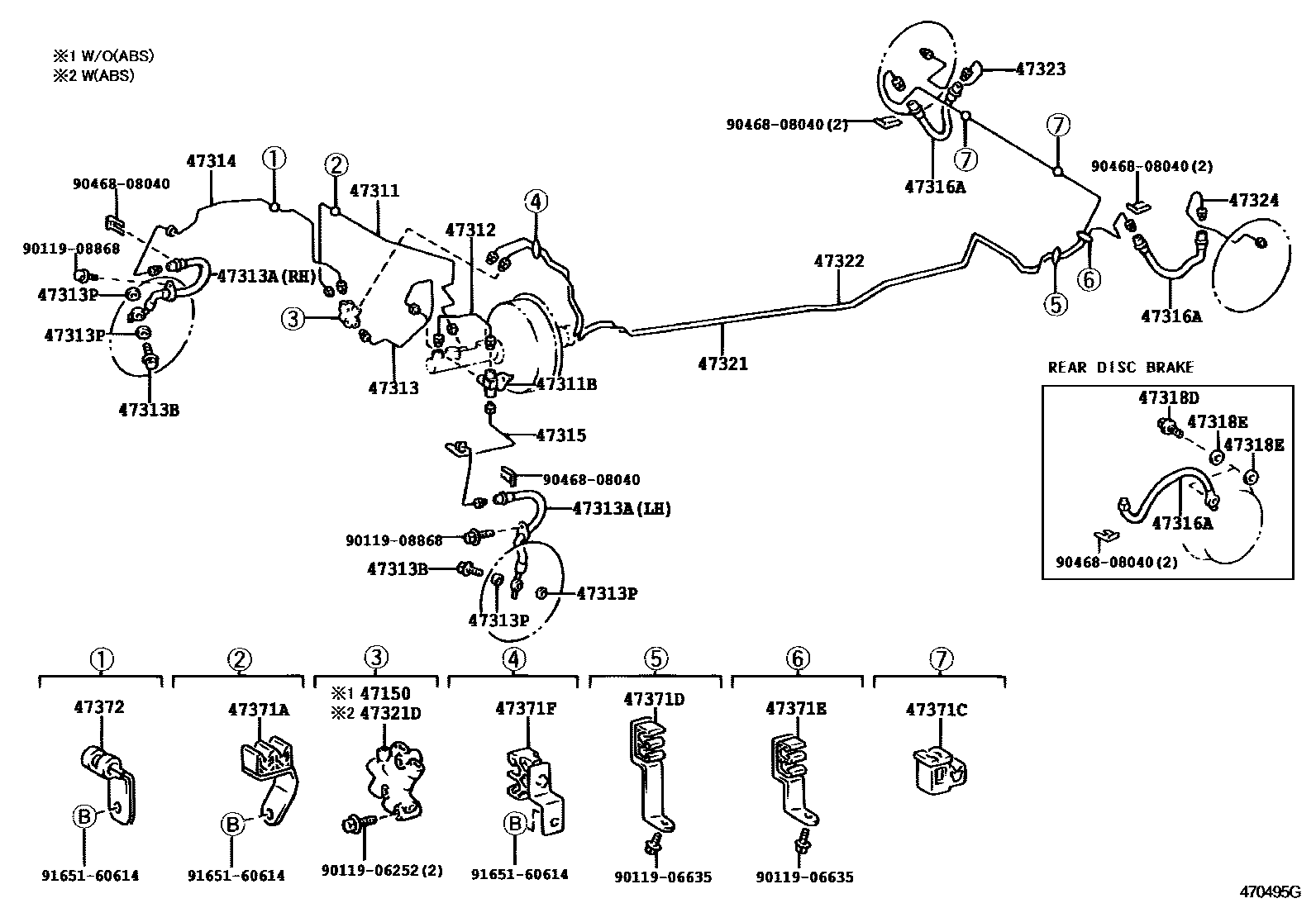

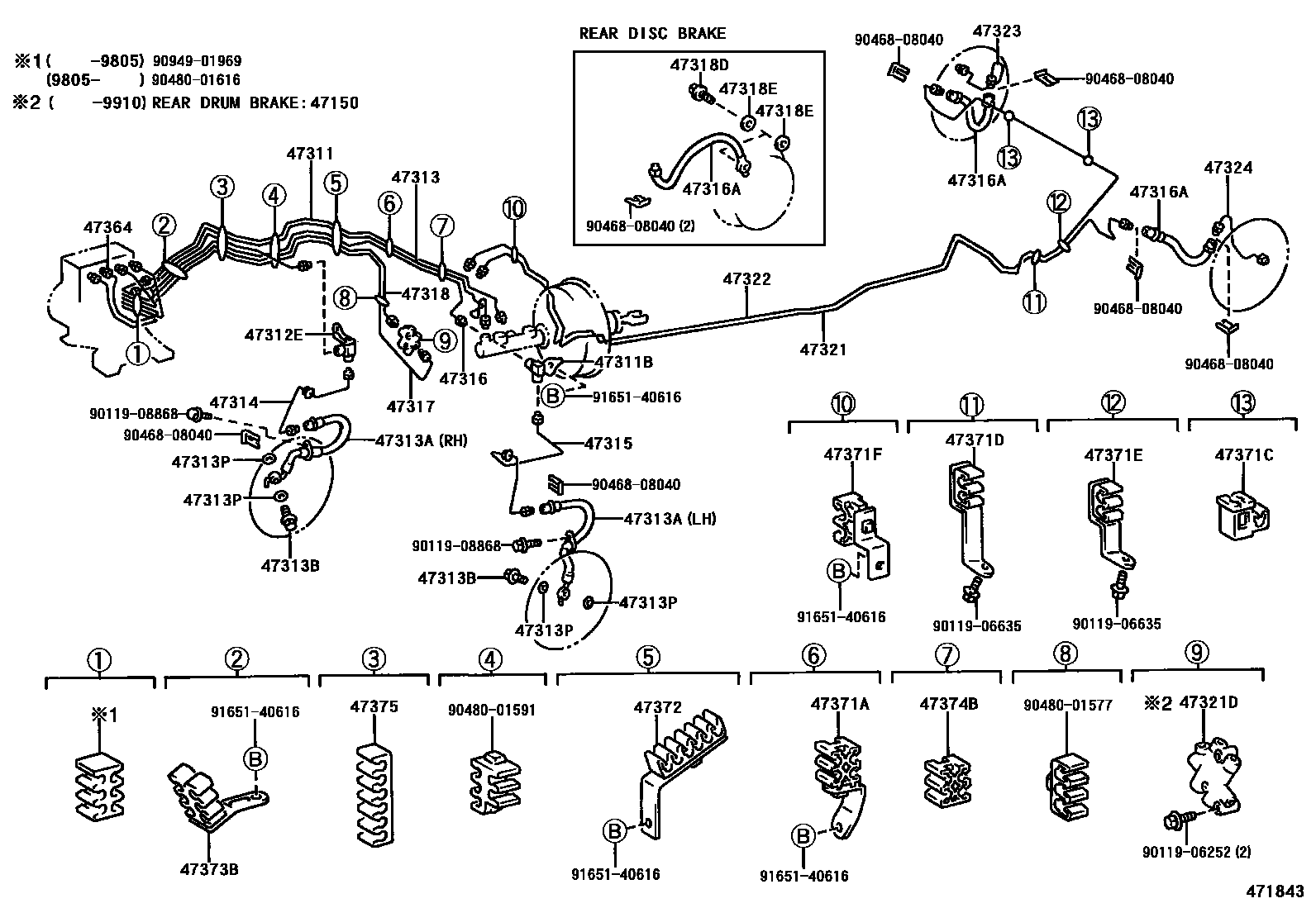

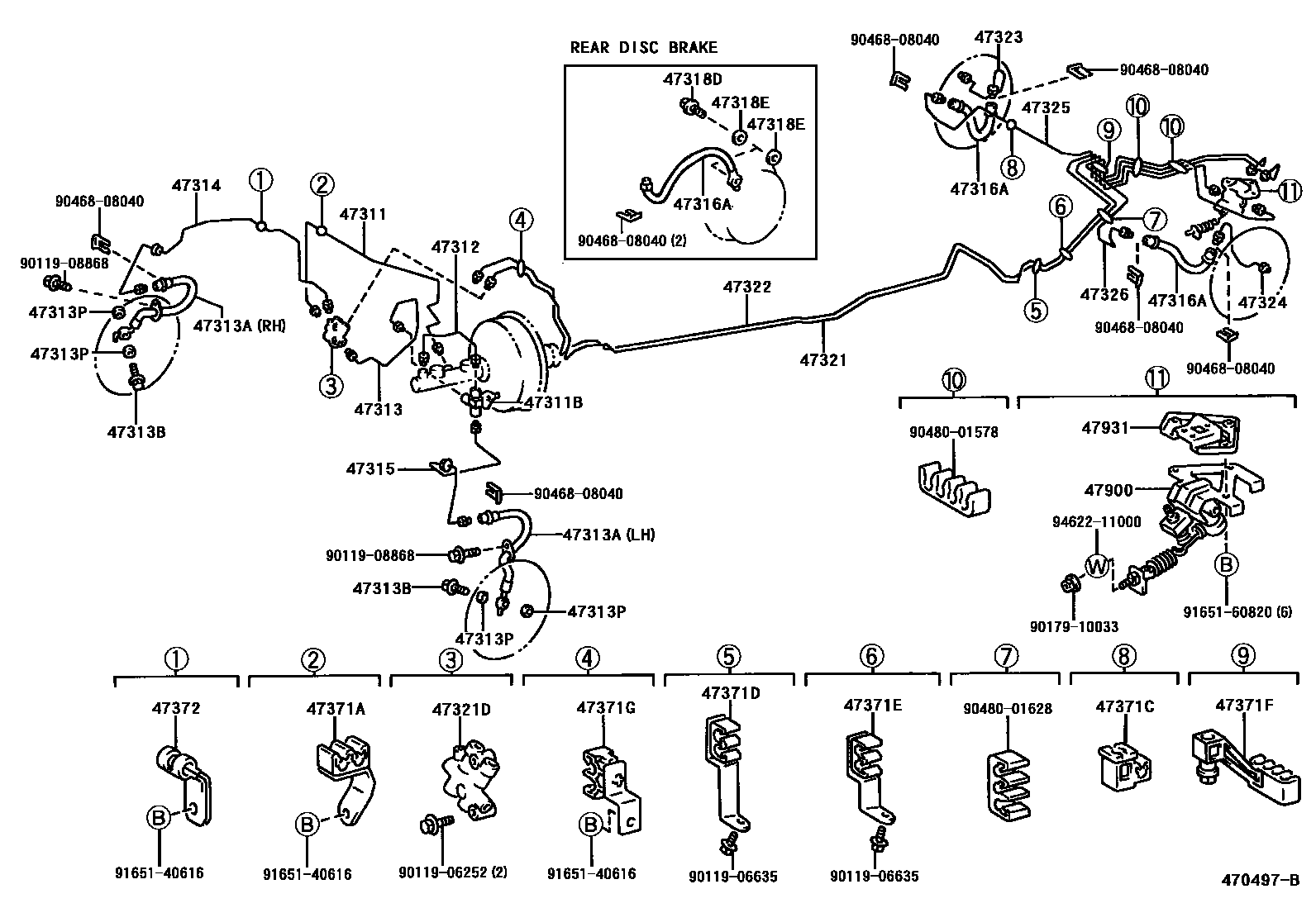

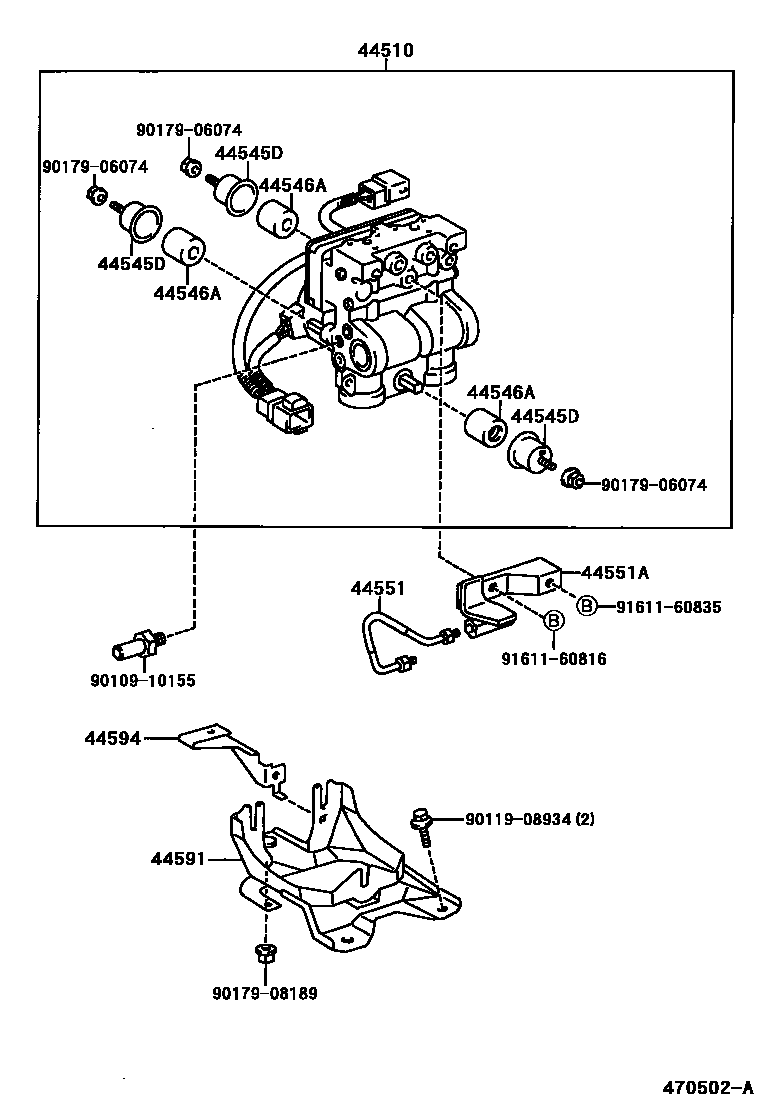

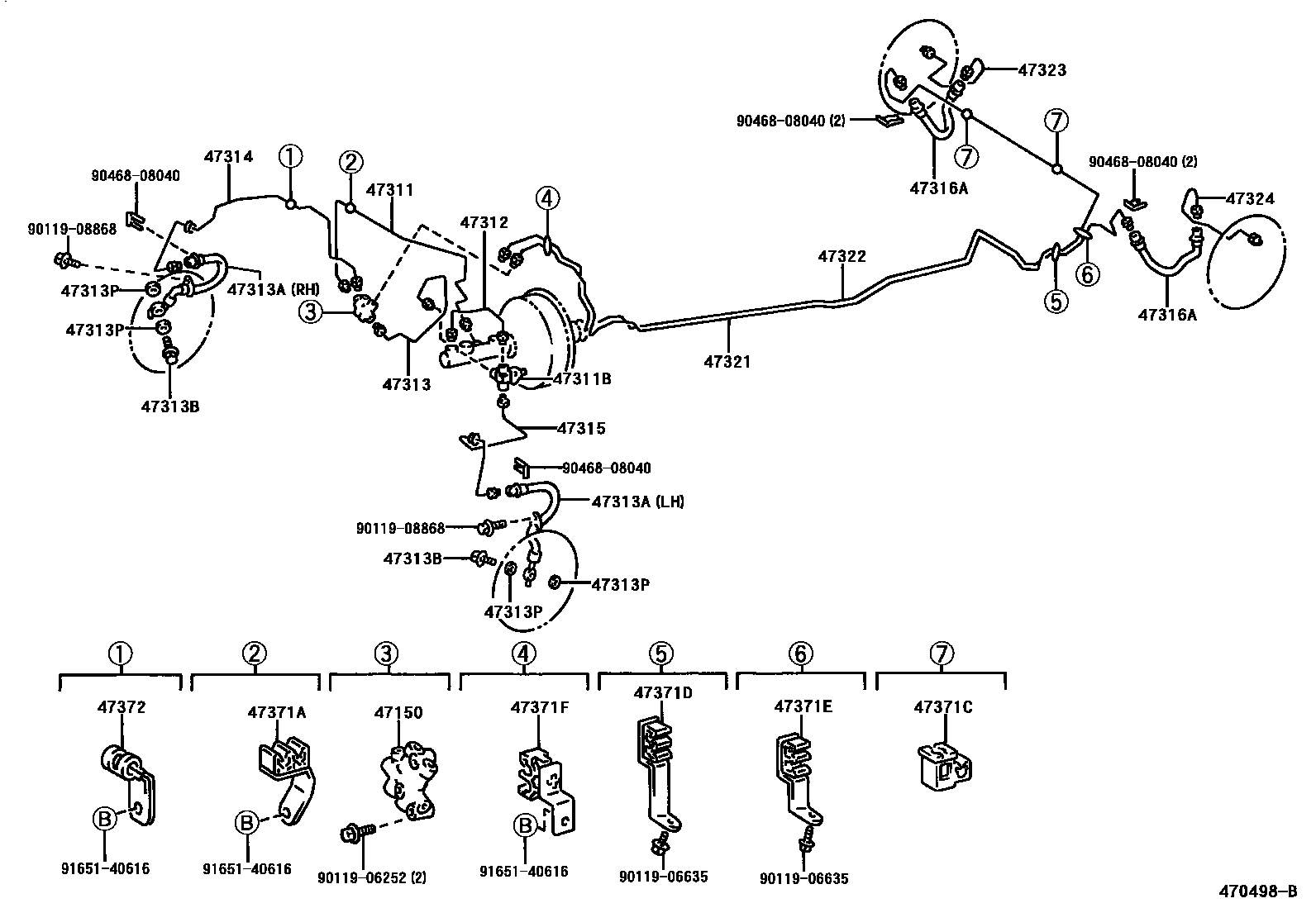

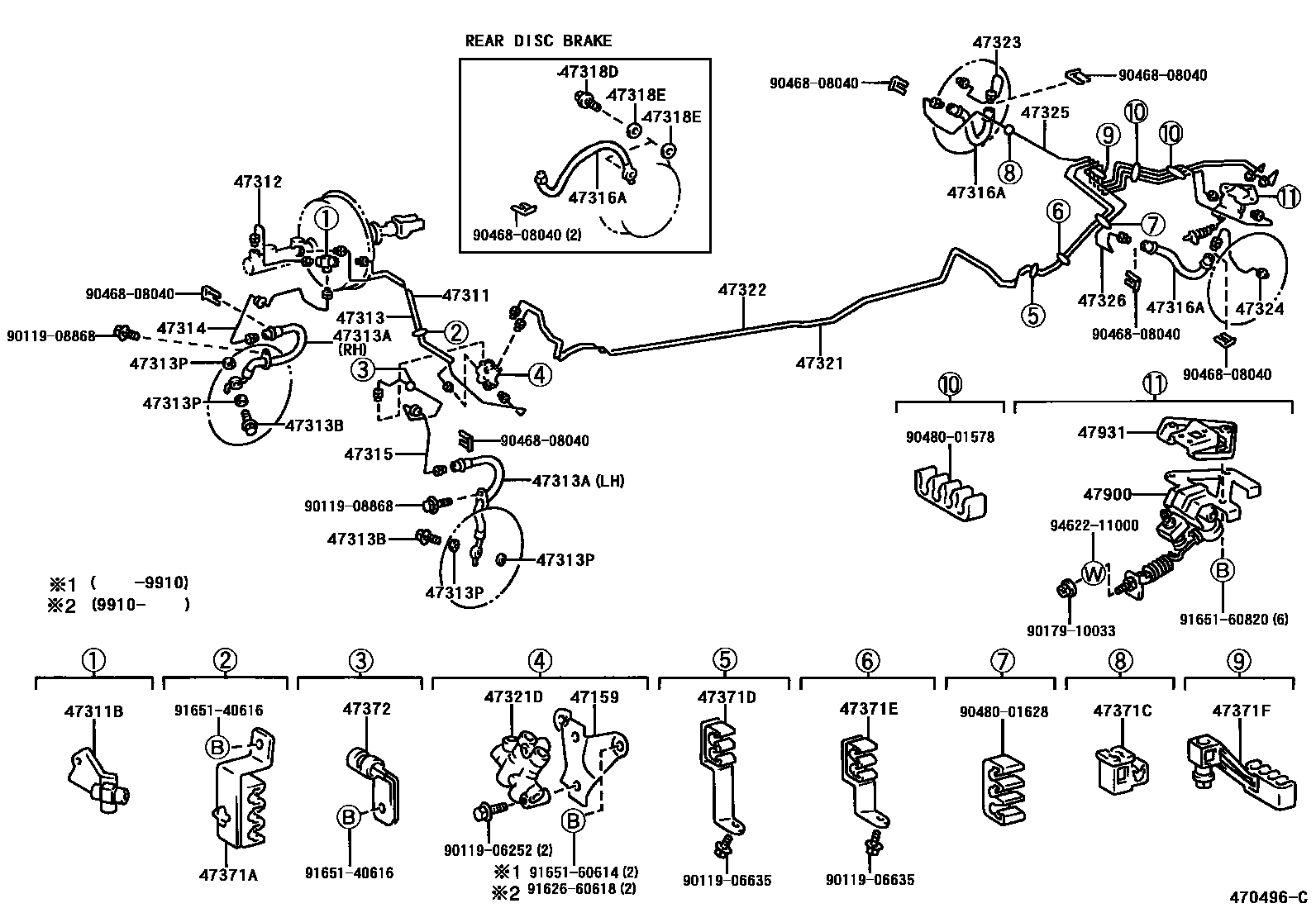

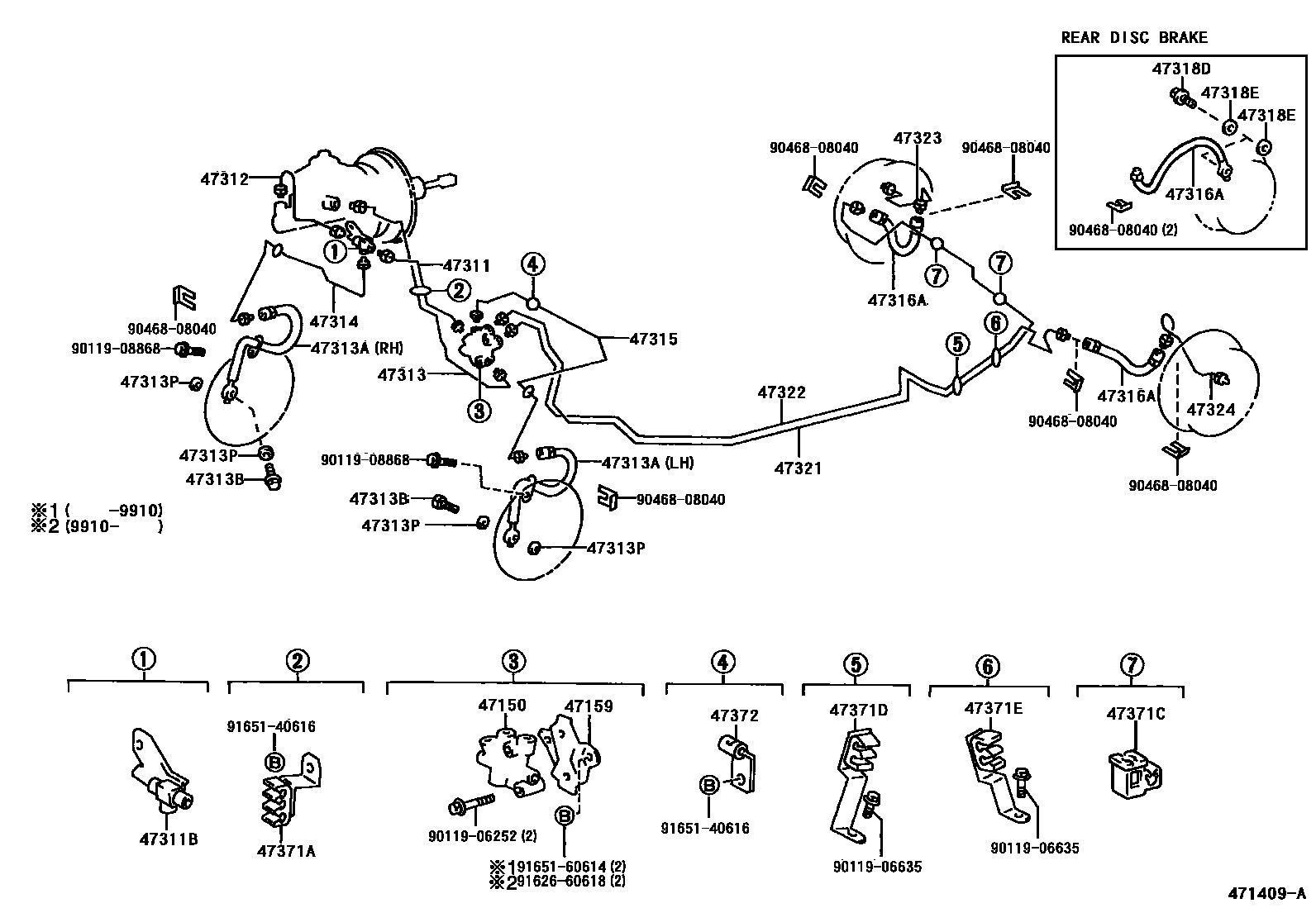

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 11 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12040 · 44050-12060 · 44050-12090 · 44050-12100 · 44050-12140 · 44050-12150 · 44510-12170 · 44510-12230 |
| 44545D | Brake actuator bolt mount | 44545-12020 · 44545-12090 |
| 44546A | Brake actuator bolt cushion | 44546-12010 · 44546-12090 · 44546-12100 |
| 44551 | No. 1 brake actuator pipe | 44551-12040 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90412-10197 · 90904-12006 |
| 44591 | No. 1 brake actuator bracket | 44590-12020 · 44590-12030 · 44590-12040 · 44591-12060 |
| 44592 | No. 2 brake actuator bracket | 44592-12020 |
| 44594 | No. 4 brake actuator bracket | 44594-12010 |
| 47150 | Proportional valve assembly | 47150-10090 · 47150-12220 · 47150-12230 · 47150-12250 · 47150-12270 · 47150-33020 · 47150-44020 |
| 47159 | Proportional valve bracket | 47159-12070 |
| 47311 | No. 1 front brake pipe | 47311-12400 · 47311-12560 · 47311-12570 · 47311-12600 · 47311-12610 · 47311-12620 · 47311-12630 · 47311-12640 · 47311-12770 · 47311-12780 · 47311-12790 · 47311-12800 · 47311-12850 · 47311-12860 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 47391-12010 · 90412-10116 · 90412-10208 · 90413-10159 · 90904-12090 · 90904-12092 · 90904-13064 |
| 47312 | No. 2 front brake pipe | 47312-12330 · 47312-12350 · 47312-12400 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10207 · 90904-12007 · 90904-12090 · 90904-12091 |
| 47313 | No. 3 front brake pipe | 47313-12211 · 47313-12370 · 47313-12380 · 47313-12410 · 47313-12420 · 47313-12430 · 47313-12440 · 47313-12450 · 47313-12570 · 47313-12580 · 47313-12590 · 47313-12600 · 47313-12610 |
| 47313A | No. 1 front flexible hose | 90947-02910 · 90947-02913 · 90947-02914 · 90947-02917 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 · 47314-12350 · 47314-12371 · 47314-12500 · 47314-12510 |
| 47315 | No. 5 front brake pipe | 47315-12420 · 47315-12450 · 47315-12460 · 47315-12480 |
| 47316 | No. 6 front brake pipe | 47316-12220 · 47316-12250 · 47316-12310 · 47316-12320 · 47316-12330 · 47316-12340 · 47316-12350 · 47316-12440 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02921 · 90947-02922 · 90947-02923 · 90947-02C41 |
| 47317 | No. 7 front brake pipe | 47317-12070 · 47317-12100 · 47317-12160 · 47317-12170 · 47317-12180 · 47317-12270 · 47317-12280 |
| 47318 | No. 8 front brake pipe | 47318-12210 · 47318-12270 · 47318-12300 · 47318-12310 · 47318-12320 · 47318-12390 · 47318-12420 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 90430-10074 |
| 47321 | No. 1 rear brake pipe | 47321-12130 · 47321-12160 · 47321-12190 · 47321-12200 · 47321-12210 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 · 90413-10205 |
| 47322 | No. 2 rear brake pipe | 47322-12280 · 47322-12310 · 47322-12340 · 47322-12350 · 47322-12360 |
| 47323 | No. 3 rear brake pipe | 47323-12240 · 47323-12250 |
| 47324 | No. 4 rear brake pipe | 47324-12200 · 47324-12210 |
| 47325 | No. 5 rear brake pipe | 47325-12180 |
| 47326 | No. 6 rear brake pipe | 47326-12070 |
| 47364 | No. 13 front brake pipe | 47364-12041 · 47364-12050 · 47364-12150 · 47364-12160 · 47364-12170 · 47364-12210 · 47364-12261 · 47364-12270 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 · 47371-12100 · 47371-12110 · 47371-12190 · 47371-12200 |
| 47371C | No. 7 brake pipe clamp | 47371-12150 · 90949-01B45 |
| 47371D | No. 8 brake pipe clamp | 47375-12040 |
| 47371E | No. 9 brake pipe clamp | 47375-12060 |
| 47371F | No. 10 brake pipe clamp | 47371-12160 · 47375-12030 |
| 47371G | No. 11 brake pipe clamp | 47375-12030 |
| 47372 | No. 2 brake pipe clamp | 47372-12040 · 47372-12060 · 47372-12070 · 90461-06119 |
| 47373B | No. 3 brake pipe clamp | 47374-12020 · 47374-12030 |
| 47374B | No. 4 brake pipe clamp | 47373-12010 · 47375-35120 |
| 47375 | No. 5 brake pipe clamp | 90949-01856 |
| 47900 | Load sensing valve assembly with spring | 47900-12030 |
| 47931 | Load sensing valve bracket | 47931-12011 |
