Toyota COROLLA 制动总泵 — Figure 4702

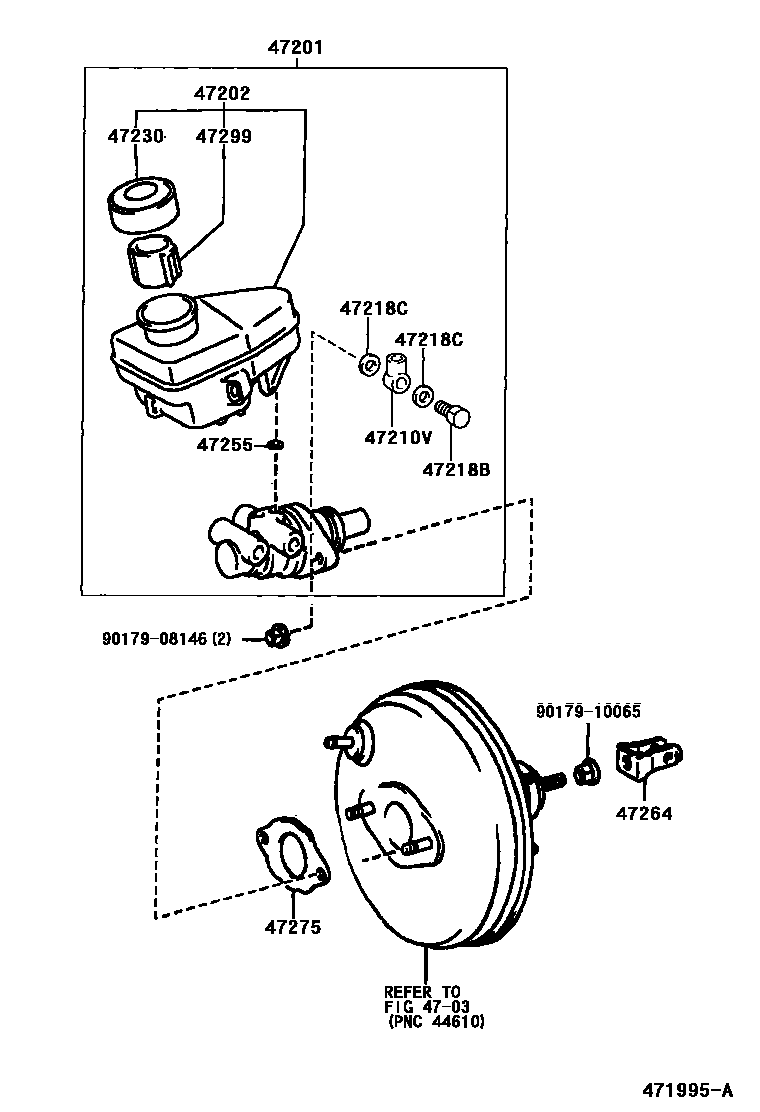

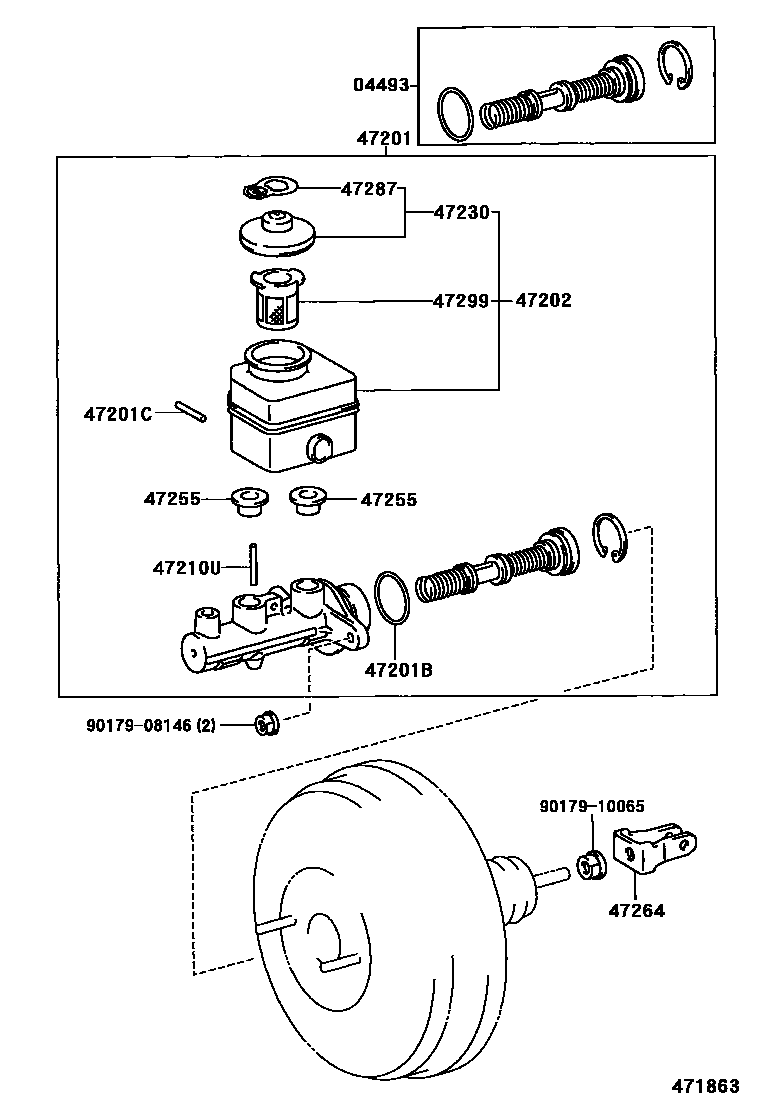

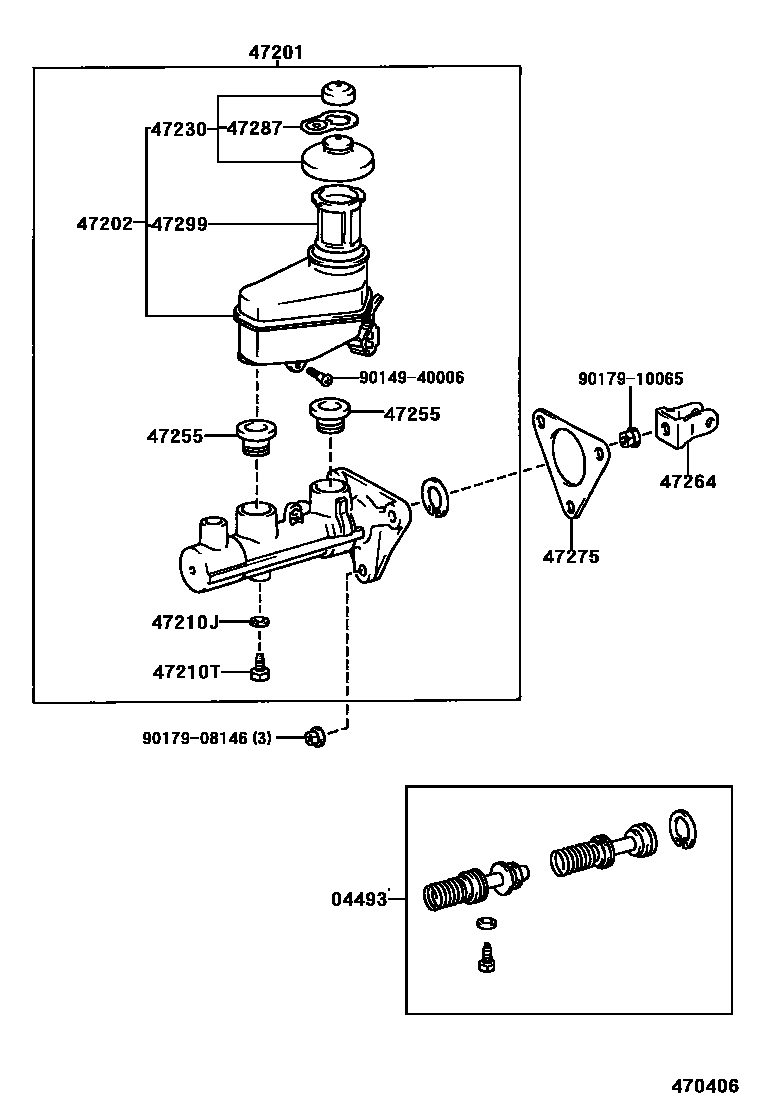

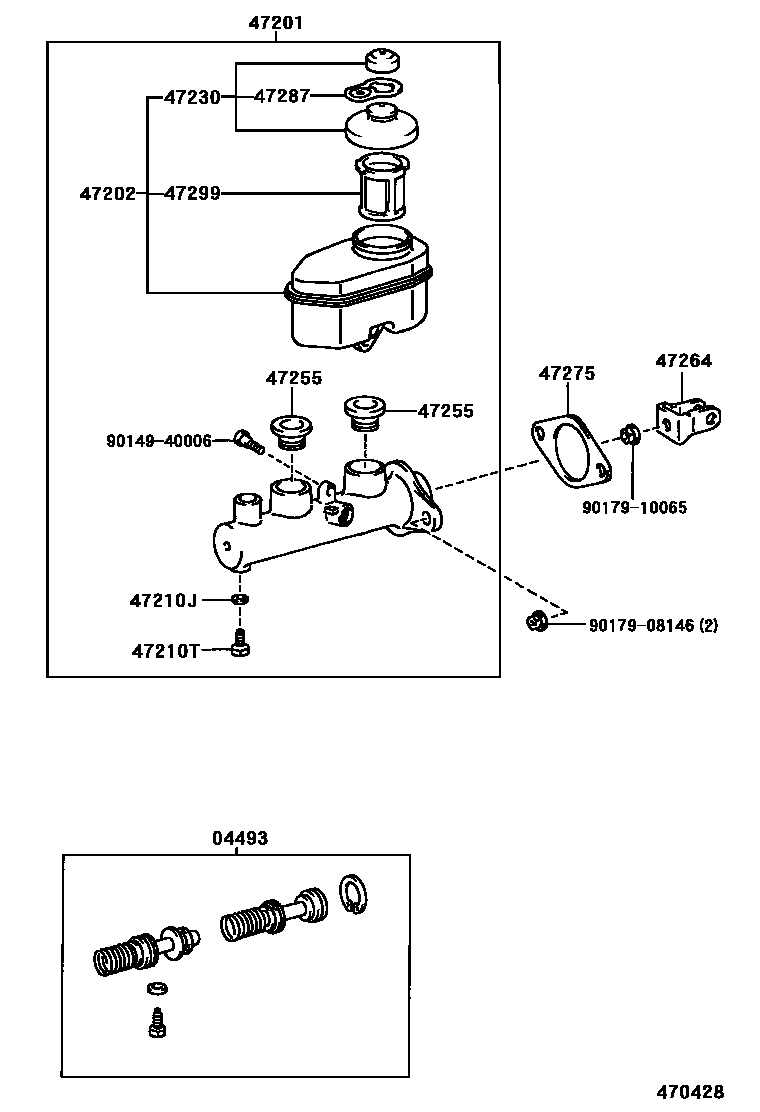

Toyota COROLLA EPC diagram 4702, 制动总泵, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-12200 · 04493-12220 · 04493-16080 · 04493-32080 |
| 47201 | Brake master cylinder sub-assembly | 47201-1A020 · 47201-1A040 · 47201-1A070 · 47201-1A140 · 47201-1A150 · 47201-1A210 · 47201-1A290 · 47201-1A300 · 47201-1A380 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47201C | Brake master cylinder ring pin | 90029-15804 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-12100 · 47220-12110 · 47220-17050 · 47220-32060 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90029-14204 |
| 47210V | Connector (for brake master cylinder) | 90405-10073 |
| 47218B | Connector bolt (for brake master cylinder fluid outlet) | 90401-10023 |
| 47218C | Pad (for brake master cylinder outlet) | 90430-10074 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 47230-20140 · 47230-52030 |
| 47255 | Master pump reservoir seal | 31417-35010 · 47255-16010 · 47255-52010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16020 · 47264-32020 · 47264-33010 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-32010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-24010 · 47299-52010 |
