Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

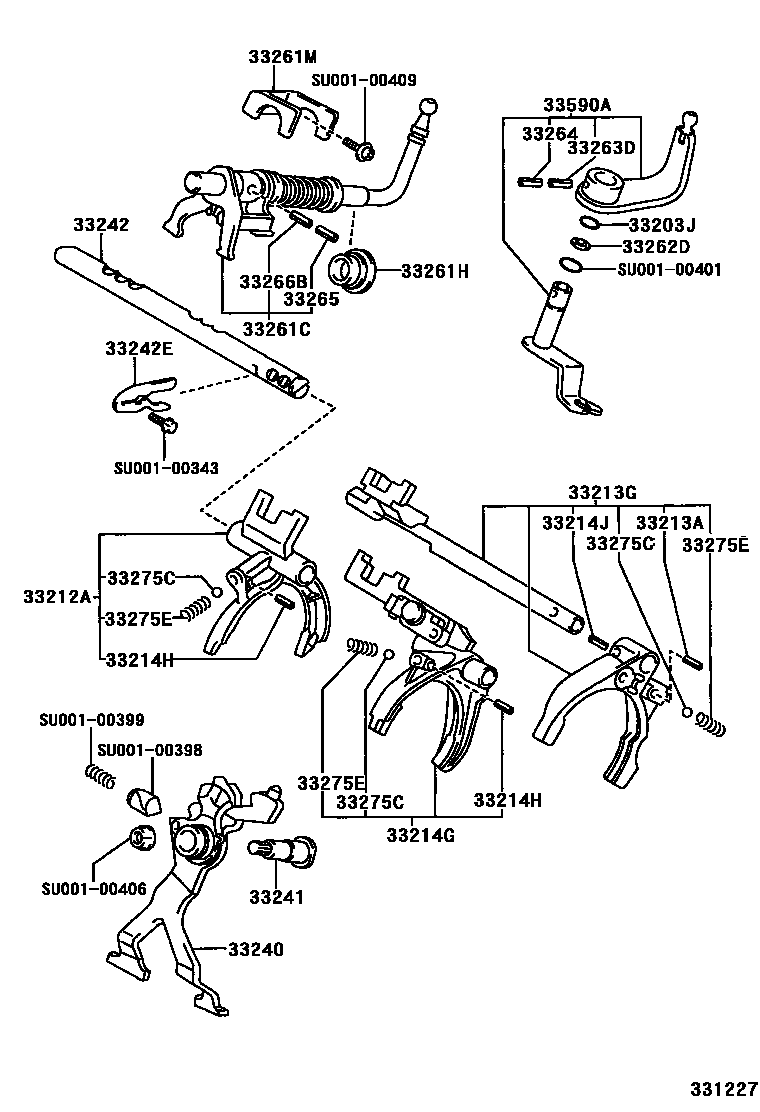

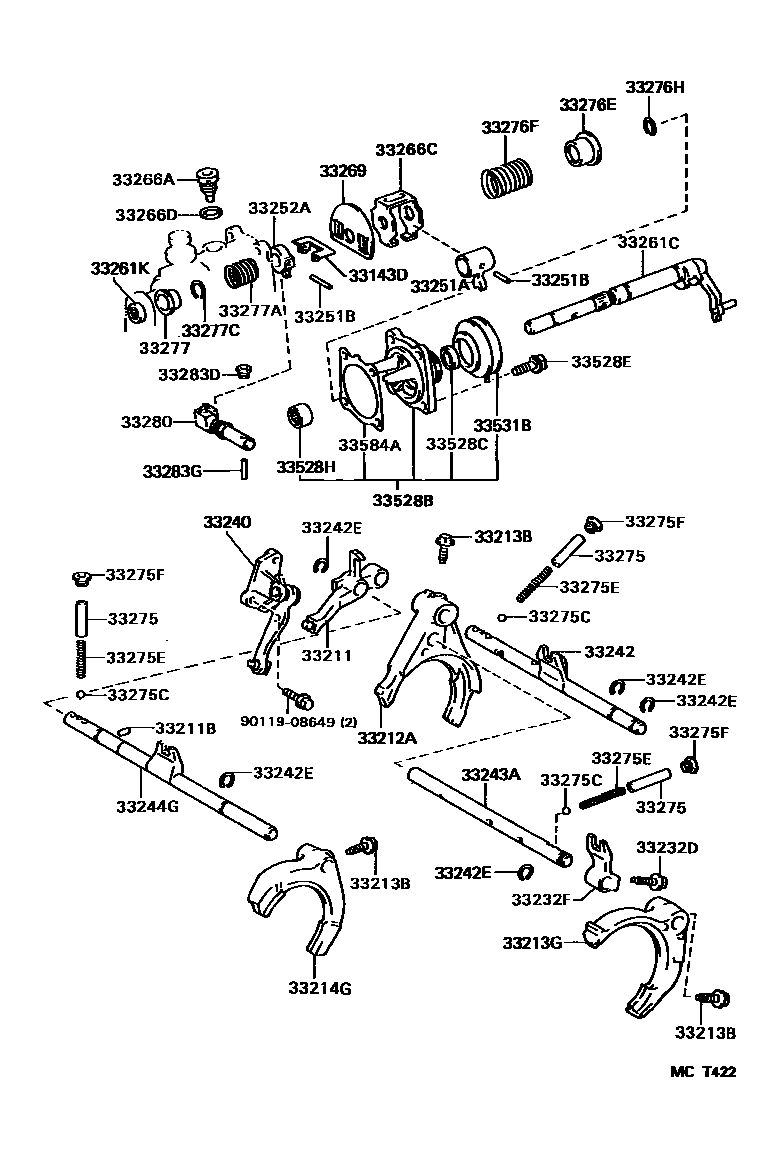

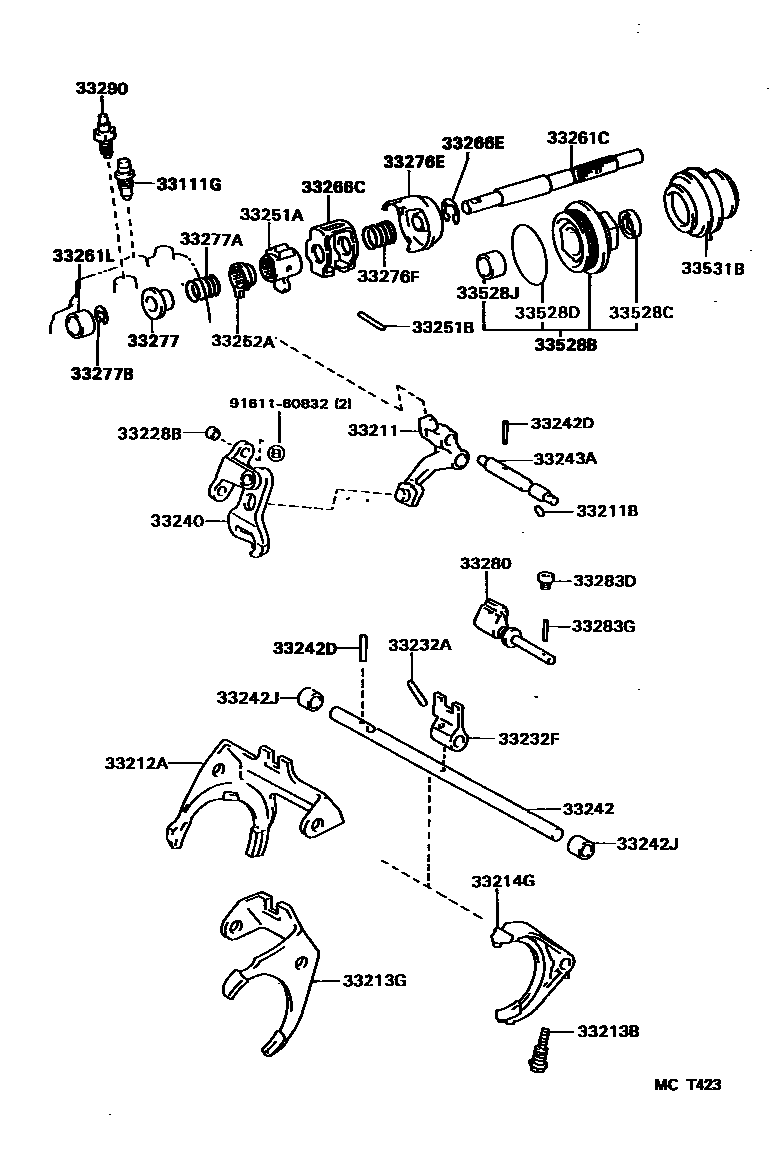

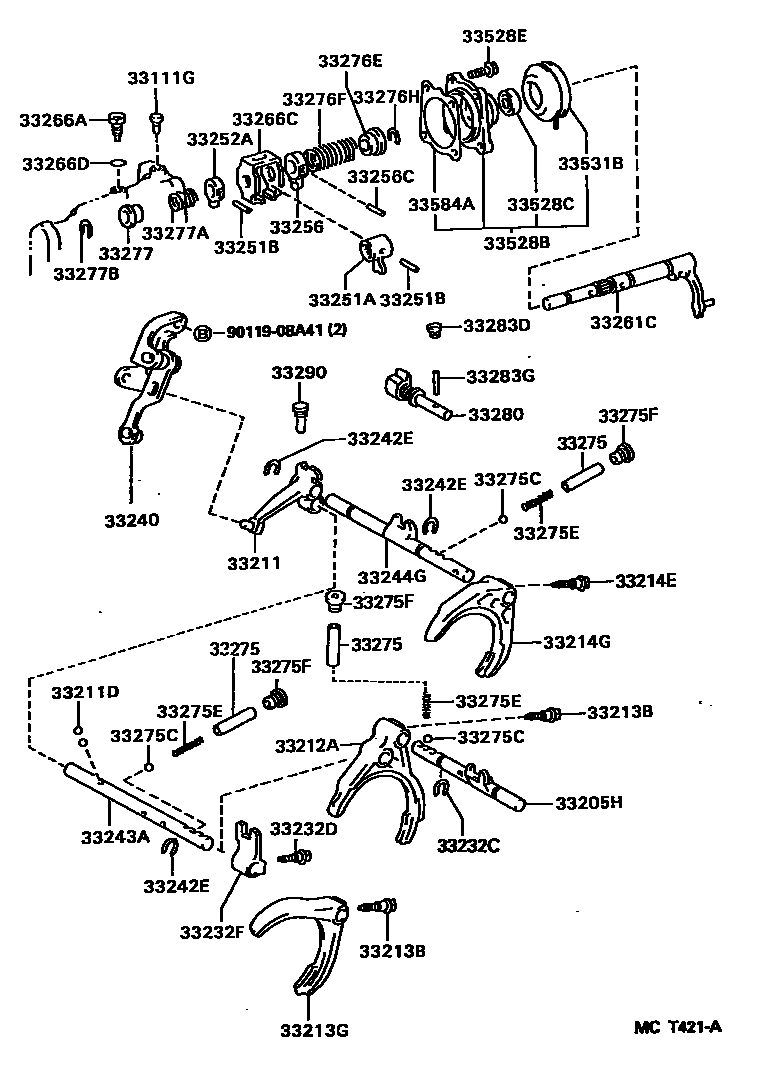

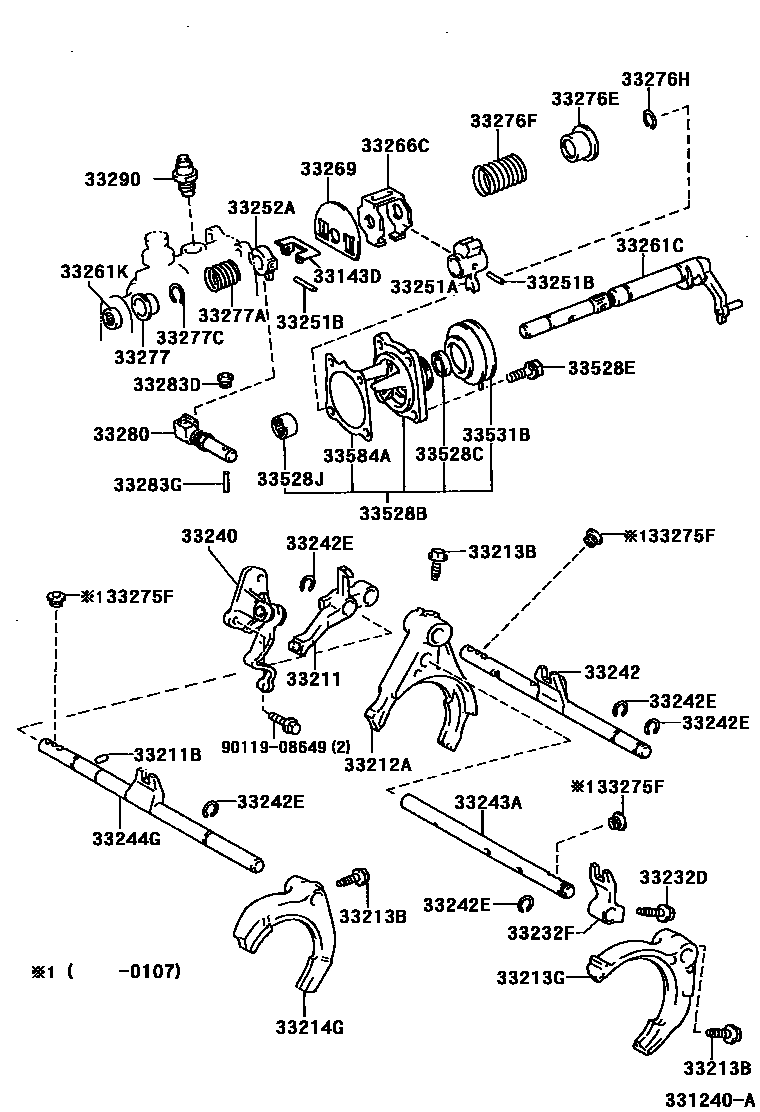

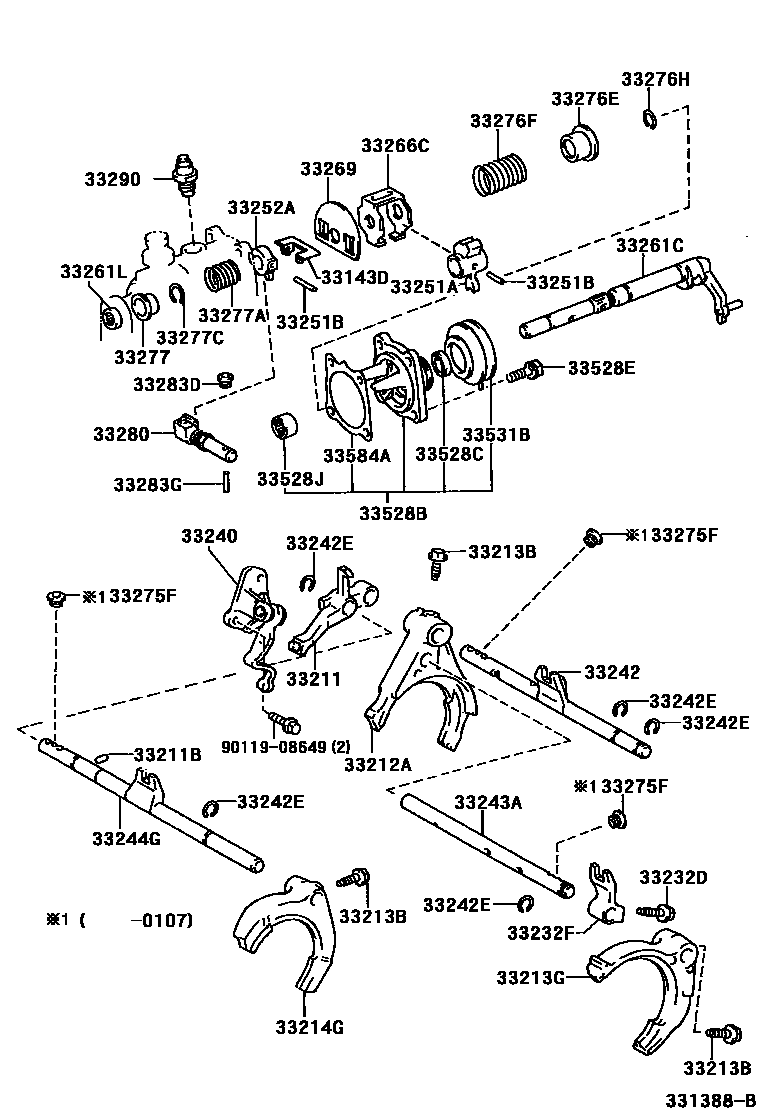

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 6 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03133 |
| 33143D | Transmission oil baffle | 33143-12020 |
| 33203J | Spring (steel ball for shift lever shaft) | SU001-00402 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-10072 · 33205-12022 · 33205-12060 · 33205-20030 |
| 33211 | Reverse Shift Fork | 33211-12021 · 33211-20020 · 33270-33011 |
| 33211B | Roller (for reverse shift fork) | 90361-08002 · 90361-08005 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33212A | No. 1 shift fork | 33210-32023 · 33212-10013 · 33212-12030 · SU001-00466 |
| 33213A | Slotted spring pin (for securing shift fork) | SU001-00407 |
| 33213B | Bolt (for securing shift fork) | 90105-06065 · 90105-06115 · 90105-07002 |
| 33213G | No. 2 shift fork | 33213-10022 · 33213-12032 · 33213-20050 · 33220-28020 · 33220-32023 · 33220-32024 · SU001-00395 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33214-12020 · 33214-12030 · 33214-20050 · 33214-33010 · SU001-00390 |
| 33214H | Slotted pin (for shift fork) | SU001-00405 |
| 33214J | Direct sales (for fifth-speed shift fork) | SU001-00408 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06115 · 90105-07002 |
| 33232F | No. 1 transmission guide block | 33232-10021 · 33232-12012 · 33232-12030 · 33232-32012 |
| 33240 | Reverse shift arm bracket assembly | 33240-12021 · 33240-16020 · 33240-28010 · 33240-33010 · SU001-00396 |
| 33241 | Reverse shift fork shaft | SU001-00397 |
| 33242 | No. 1 shift fork shaft | 33242-12061 · 33242-12062 · 33242-28030 · 33242-33020 · SU001-00391 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05001 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-13002 · SU001-00392 |
| 33242J | Bushing (for shift fork shaft) | 90384-14005 · 90389-14043 |
| 33243A | No. 2 shift fork shaft | 33243-10042 · 33243-12093 · 33243-12111 · 33243-12130 · 33243-20070 · 33243-28040 · 33243-32010 · 33243-32011 |
| 33244G | No. 3 shift fork shaft | 33244-10042 · 33244-12054 · 33244-12080 · 33244-12110 · 33244-20060 · 33244-28030 |
| 33251A | Internal shift lever No. 1 | 33251-10050 · 33251-12080 · 33251-20050 · 33251-28040 · 33251-33010 · 33251-33011 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12011 · 33252-20020 · 33252-33010 |
| 33256 | Internal gear selector | 33256-12022 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05016 |
| 33261C | shift lever shaft | 33261-10060 · 33261-10061 · 33261-12051 · 33261-20070 · 33261-20071 · 33261-33010 · SU001-00400 |
| 33261H | Oil seal (for shift lever shaft) | SU001-00404 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90364-15003 · 90384-15002 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-15002 |
| 33261M | Shift lever shaft bracket | SU001-00403 |
| 33262D | Flat washer (for selector lever shaft) | SU001-00410 |
| 33263D | Pin (for shift lever shaft) | SU001-00413 |
| 33264 | No. 1 shift interlock pin or steel ball | SU001-00411 |
| 33265 | No. 2 shift interlock pin | SU001-00412 |
| 33266A | Bolt (for shift interlock plate) | 90109-12073 · 90109-18002 · 90109-18005 |
| 33266B | No. 3 shift interlock pin | SU001-00414 |
| 33266C | shift interlock plate | 33266-12021 · 33266-12030 · 33266-28010 · 33266-33011 |
| 33266D | Pad (for shift interlock plate) | 90430-12008 · 90430-18008 |
| 33266E | E-ring (with shift interlock plate) | 90523-14001 |
| 33269 | Shift interlock plate cover | 33269-12010 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 · 33275-20010 |
| 33275C | Steel ball (for shift lock) | 90360-08009 · 90360-10003 · SU001-00393 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12168 · 90501-14104 · SU001-00394 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12022 · 33276-20020 · 33276-33011 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-13036 · 90501-16133 · 90501-16134 · 90501-16142 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12011 · 33277-17010 · 33277-33010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16136 · 90501-16144 · 90501-17028 · 90501-17030 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-10021 · 33280-12061 · 33280-20041 · 33280-32012 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04005 · 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 · 33290-28010 · 33290-33011 · 33290-33020 |
| 33528B | control shaft cover | 33506-12061 · 33506-20270 · 33506-28210 · 33506-33010 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528D | O-ring (used to control shaft cover) | 90301-65004 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91611-61025 |
| 33528H | Needle roller bearings (for control shaft housing) | 90364-18009 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 · 33531-32011 |
| 33584A | Shift lever stopper gasket | 33584-12050 · 33584-20020 |
| 33590A | Gear selection right-angle lever assembly | 33590-02020 |
