Toyota COROLLA 文氏管 — Figure 2606

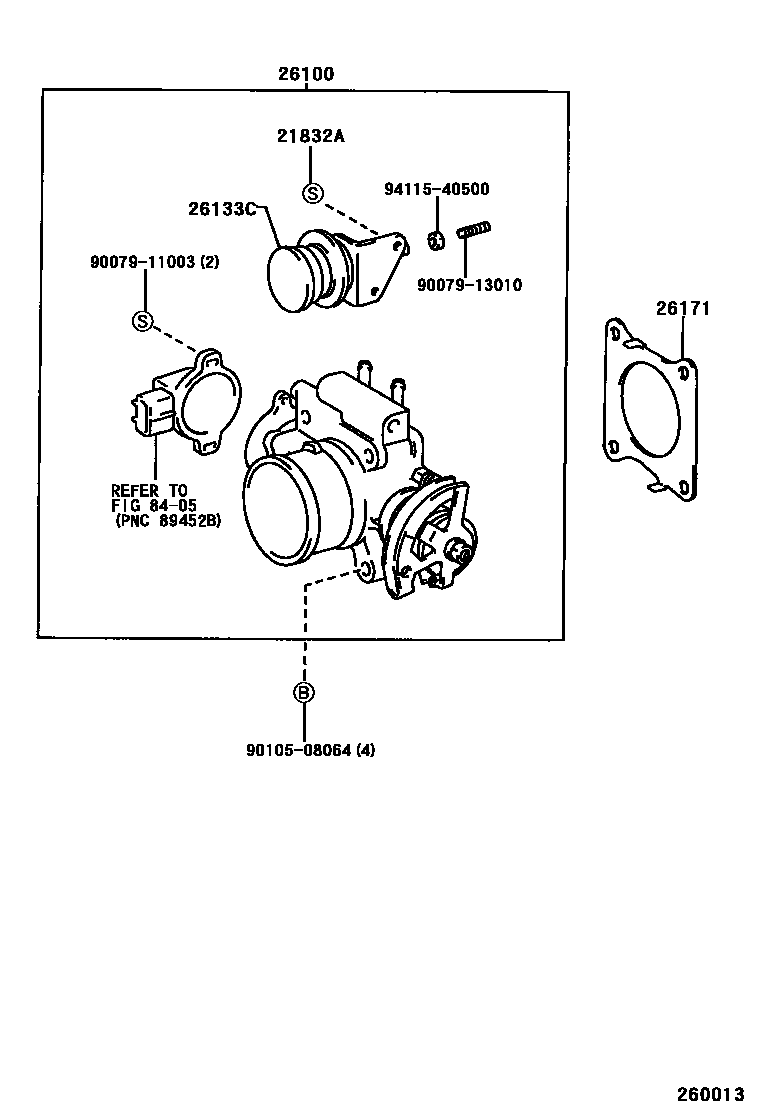

Toyota COROLLA EPC diagram 2606, 文氏管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21832A | Fixing screw (for diesel engine throttle) | 21832-60151 |
| 26100 | Venturi assembly | 26100-64030 |
| 26133C | Diesel engine throttle deceleration buffer | 26133-64030 |
| 26171 | Venturi gasket | 26171-64020 |
