Toyota COROLLA 喷油泵体 — Figure 2203

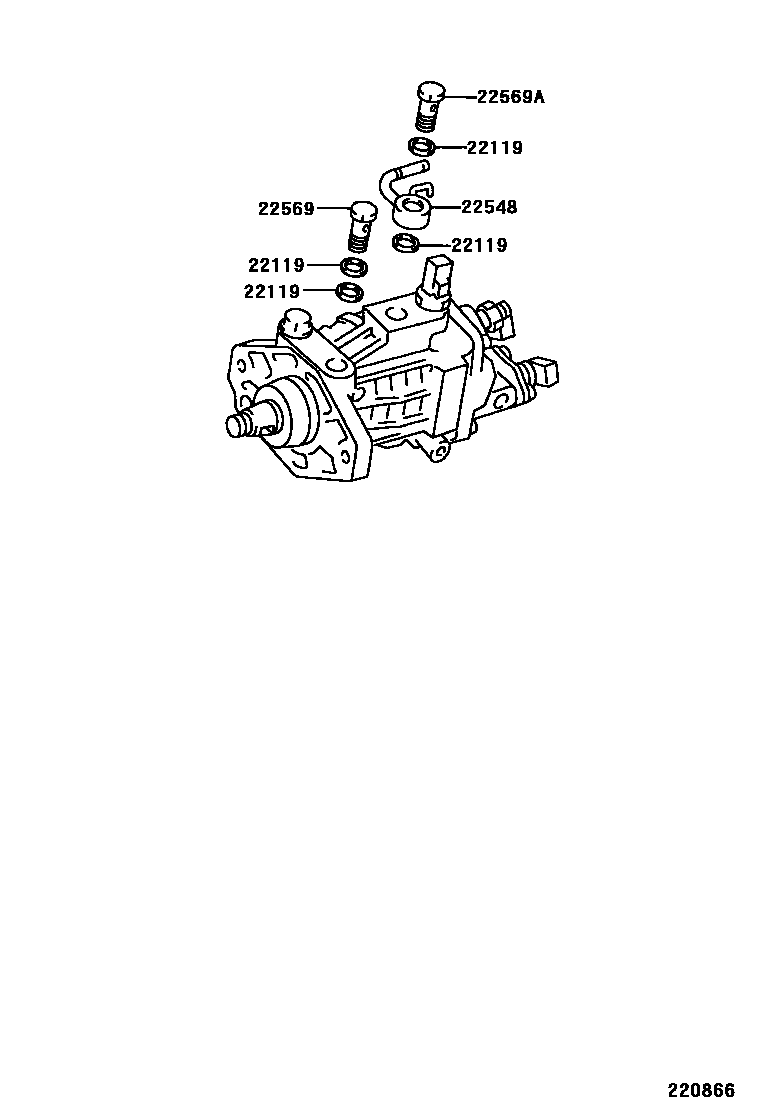

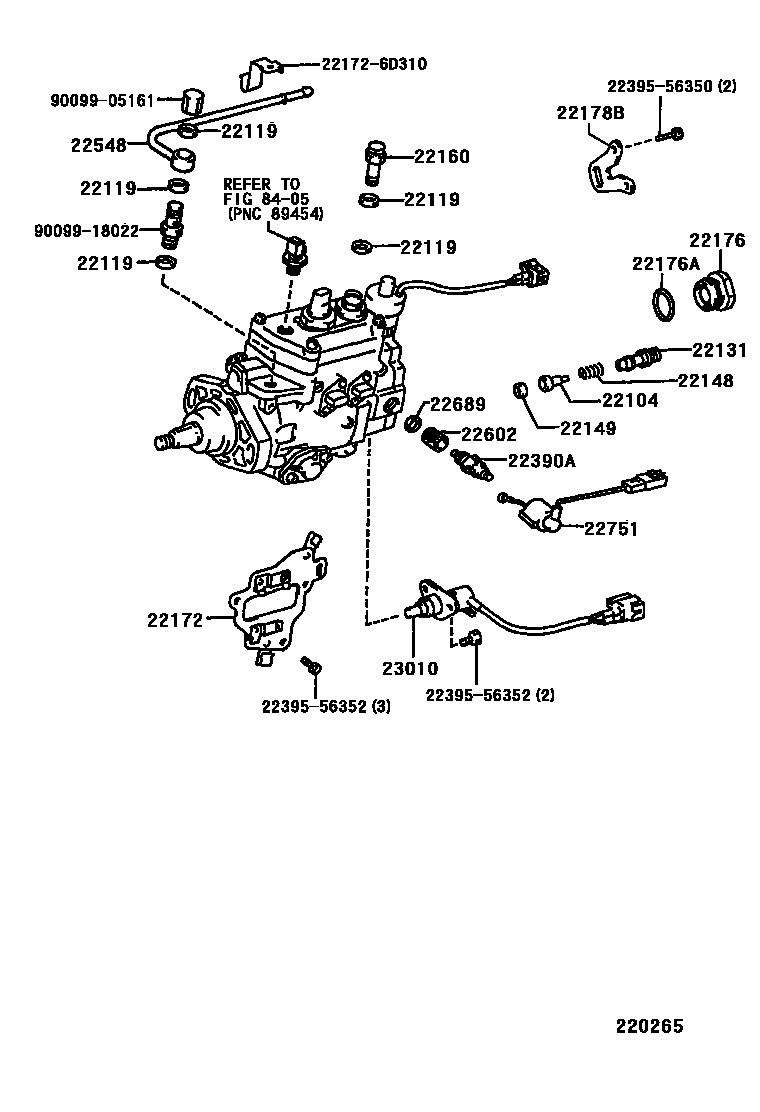

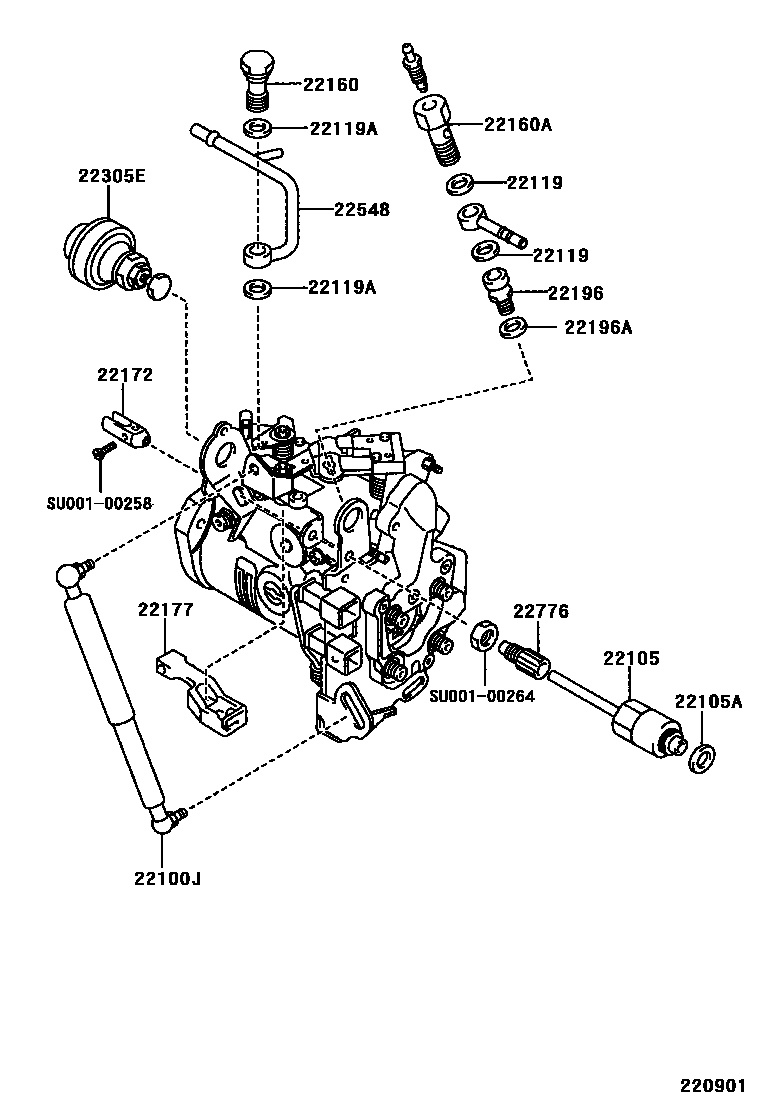

Toyota COROLLA EPC diagram 2203, 喷油泵体, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100J | Fuel injection pump shock absorber | 21308-0X010 |
| 22104 | Fuel injection pump delivery valve sub-assembly | 22104-6A640 |
| 22105 | Fuel injection pump parts sub-assembly | SU001-00254 |
| 22105A | O-ring (for plunger coupling) | SU001-00255 |
| 22119 | Bleed device oil nozzle gasket | 90201-12109 · SU001-00252 |
| 22119A | No. 2 bleeder device oil nozzle gasket | SU001-00016 |
| 22131 | Oil delivery valve pressing seat | 22190-6A680 |
| 22148 | Oil delivery valve spring | 22148-54010 |
| 22149 | Delivery valve gasket | 22149-56351 |
| 22160 | Overflow screw sub-assembly | 22160-54271 · SU001-00259 |
| 22160A | No. 2 overflow screw sub-assembly | SU001-00260 |
| 22172 | Solenoid valve connector bracket clip | 22172-67030 · SU001-00257 |
| 22176 | Distributor cap screw plug | 22176-54640 |
| 22176A | O-ring (for distributor cap screw plug) | 22193-54772 · 90099-14052 |
| 22177 | Fuel injection pump body stay | SU001-00251 |
| 22178B | Bracket (for fuel injection pump assembly) | 22178-64010 |
| 22196 | Oil inlet hollow screw | SU001-00261 |
| 22196A | Washer (for oil inlet hollow screw) | SU001-00262 |
| 22305E | Idle speed boost actuator | SU001-00277 |
| 22390A | Fuel cut-off solenoid valve assembly | 22390-6A511 |
| 22548 | Rotary oil nozzle | 22548-27010 · 22548-6E150 · 23762-0X010 |
| 22569 | overflow screw | 22569-27010 |
| 22569A | Fuel injection pump screw | 22569-1C170 |
| 22602 | Fuel injection pump filter sub-assembly | 22602-56350 |
| 22689 | Washer (for rotary grease nipple) | 22689-56350 |
| 22751 | Fuel cut-off solenoid valve wiring harness sub-assembly | 22751-6D470 |
| 22776 | Smoke assembly adjustment screw | SU001-00256 |
| 23010 | Timing control valve assembly | 23010-67030 |
