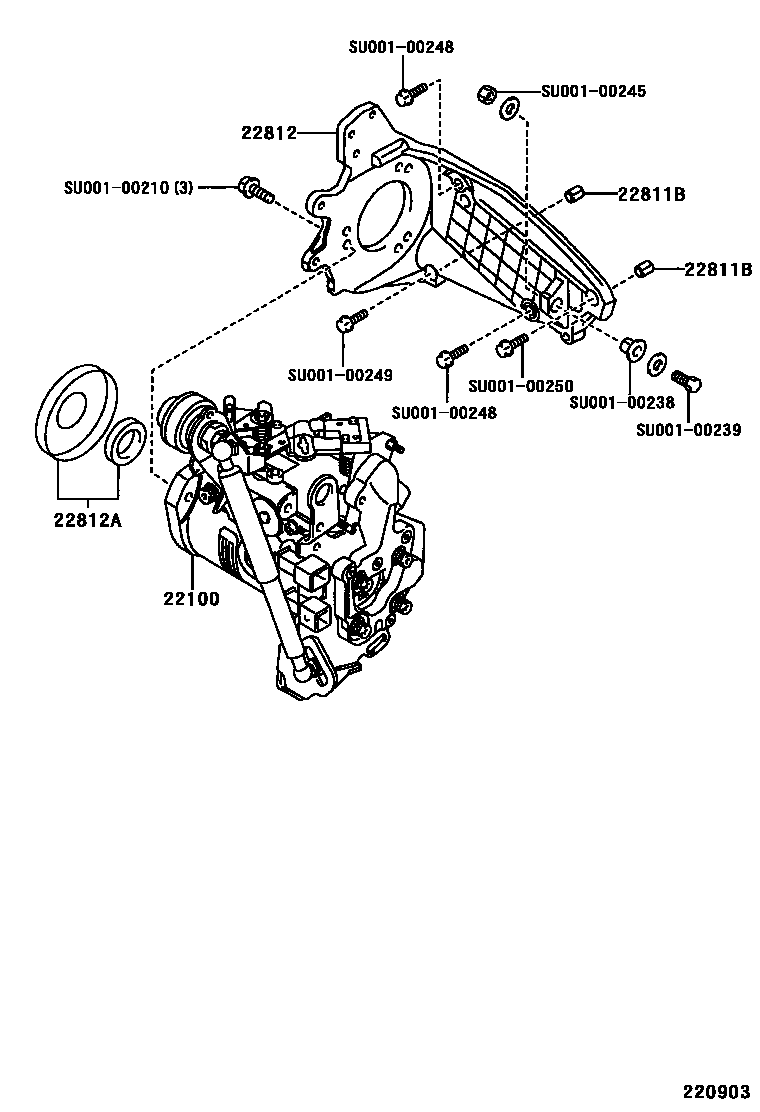

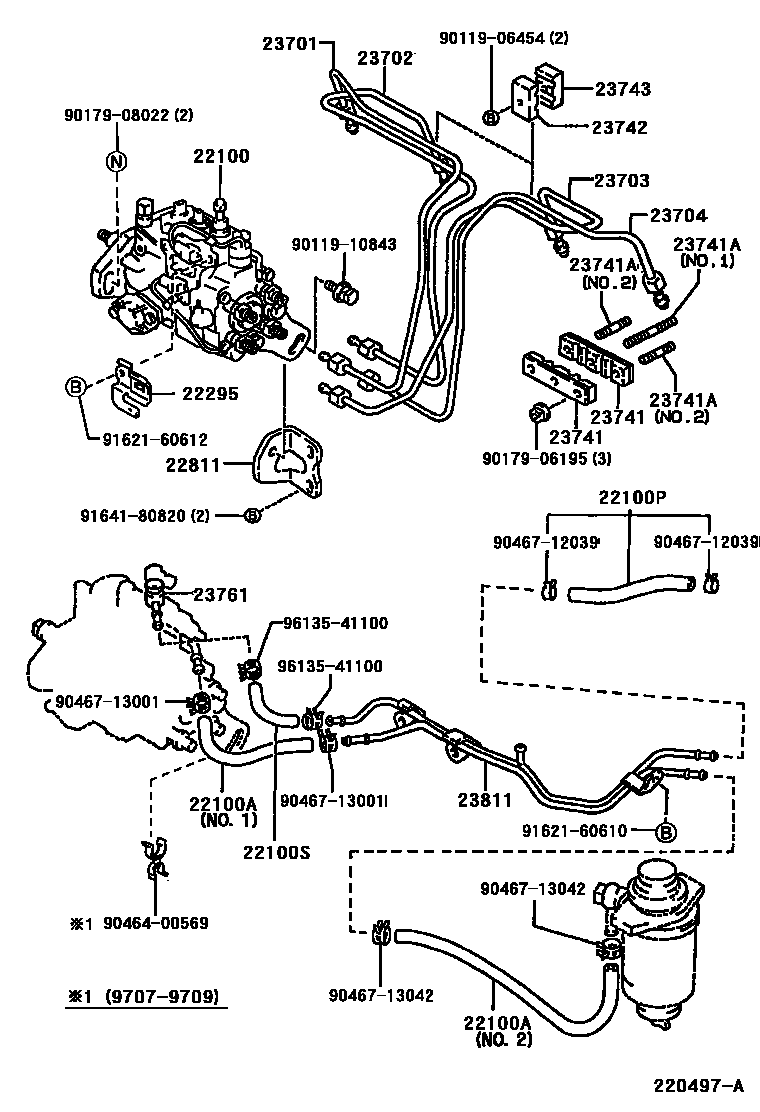

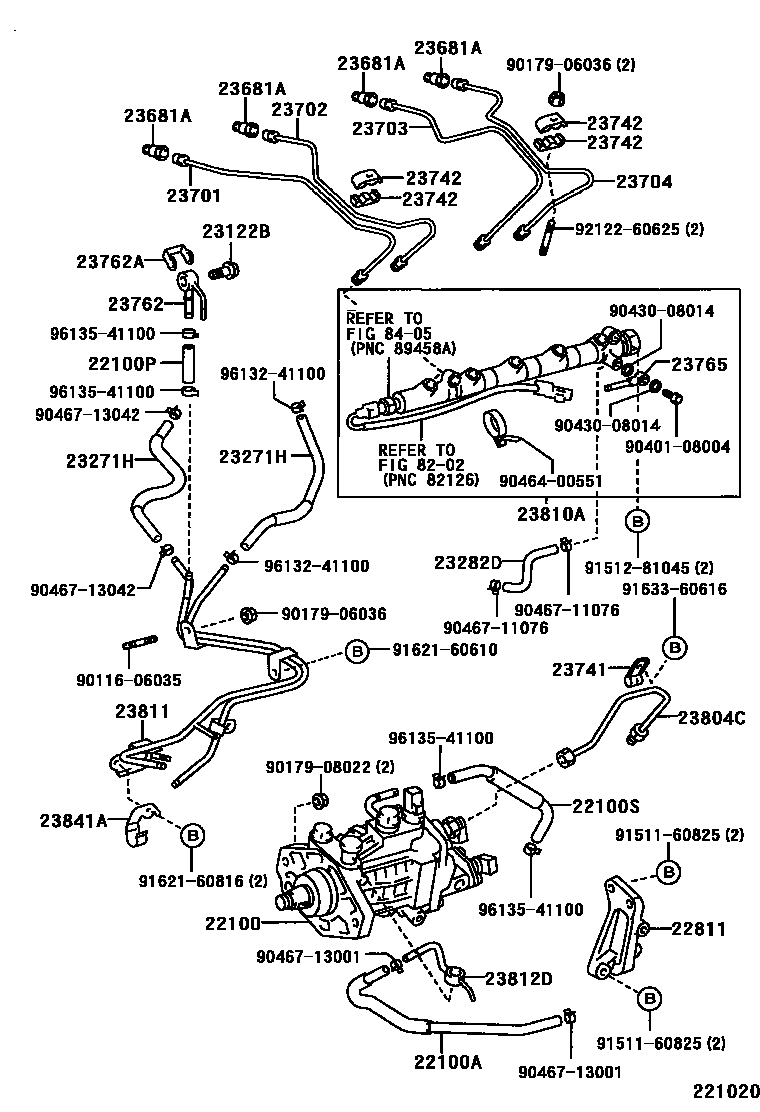

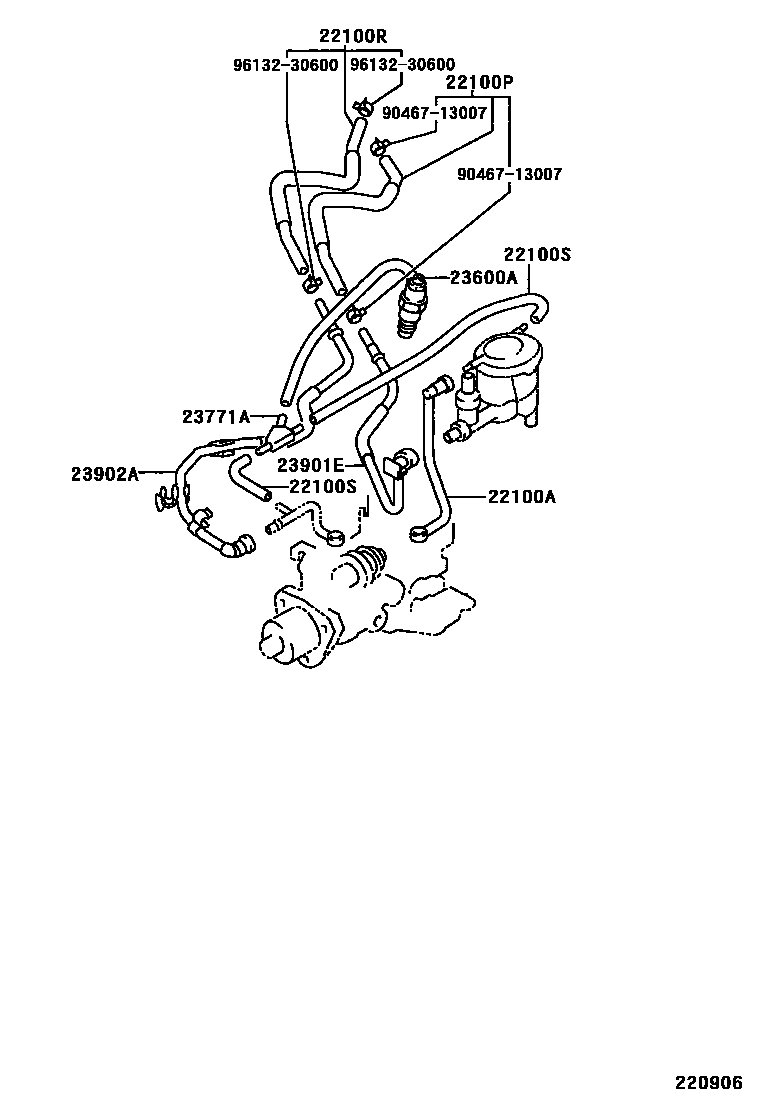

Toyota COROLLA 喷油泵总成 — Figure 2202
Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0X010 · 22100-27010 · 22100-6E150 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-64170 · 23273-27010 · 23273-64030 · SU001-00309 · SU001-00484 |
| 22100P | Fuel hose (for fuel line to fuel hose) | 23271-53010 · 23271-64160 · 95333-06020 |
| 22100R | Fuel hose (for fuel precipitator to filter) | 23273-53010 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23274-27010 · 23274-64020 · SU001-00310 |
| 22295 | Fuel injection pump connector bracket | 22295-64020 |
| 22811 | No. 1 fuel injection pump bracket | 22811-27010 · 22811-64020 |
| 22811B | Locating pin (for injection pump bracket) | 90080-24110 |
| 22812 | Fuel injection pump retaining ring | SU001-00242 |
| 22812A | O-ring | SU001-00243 |
| 23122B | One-way valve | 23122-27010 |
| 23271H | No. 1 fuel hose | 23271-27030 · 23271-27040 |
| 23282D | No. 4 fuel hose | 90445-11152 · 95333-04020 |
| 23600A | Hoses (for injector body and injector assembly) | SU001-00311 |
| 23681A | Injector body seal | 23681-17010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-27010 · 23701-64110 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-27010 · 23702-64110 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-27010 · 23703-64090 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-27010 · 23704-64110 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-27010 · 23741-64010 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06275 · 92122-60622 |
| 23742 | No. 2 fuel injection pipe clamp | 23741-54010 · 23742-27010 |
| 23743 | No. 3 fuel injection pipe clamp | 23742-54010 |
| 23761 | No. 1 fuel injector overflow pipe | 23764-64110 |
| 23762 | No. 2 fuel injector overflow pipe | 23762-27010 |
| 23762A | No. 2 fuel injector overflow pipe gasket | 90904-30012 |
| 23765 | No. 5 fuel injector overflow pipe | 23765-27010 |
| 23771A | Tee pipe (for fuel return) | SU001-00312 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-27010 |
| 23810A | Common rail assembly | 23810-27011 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-27010 · 23811-64120 |
| 23812D | No. 2 fuel pipe | 23812-27010 |
| 23841A | No. 1 fuel pipe clamp (for fuel injection pump) | 23841-27010 |
| 23901E | Fuel pipe sub-assembly | 23901-0X010 |
| 23902A | No. 2 fuel pipe sub-assembly | 23902-0X010 |
