Toyota COROLLA 化油器 — Figure 2103

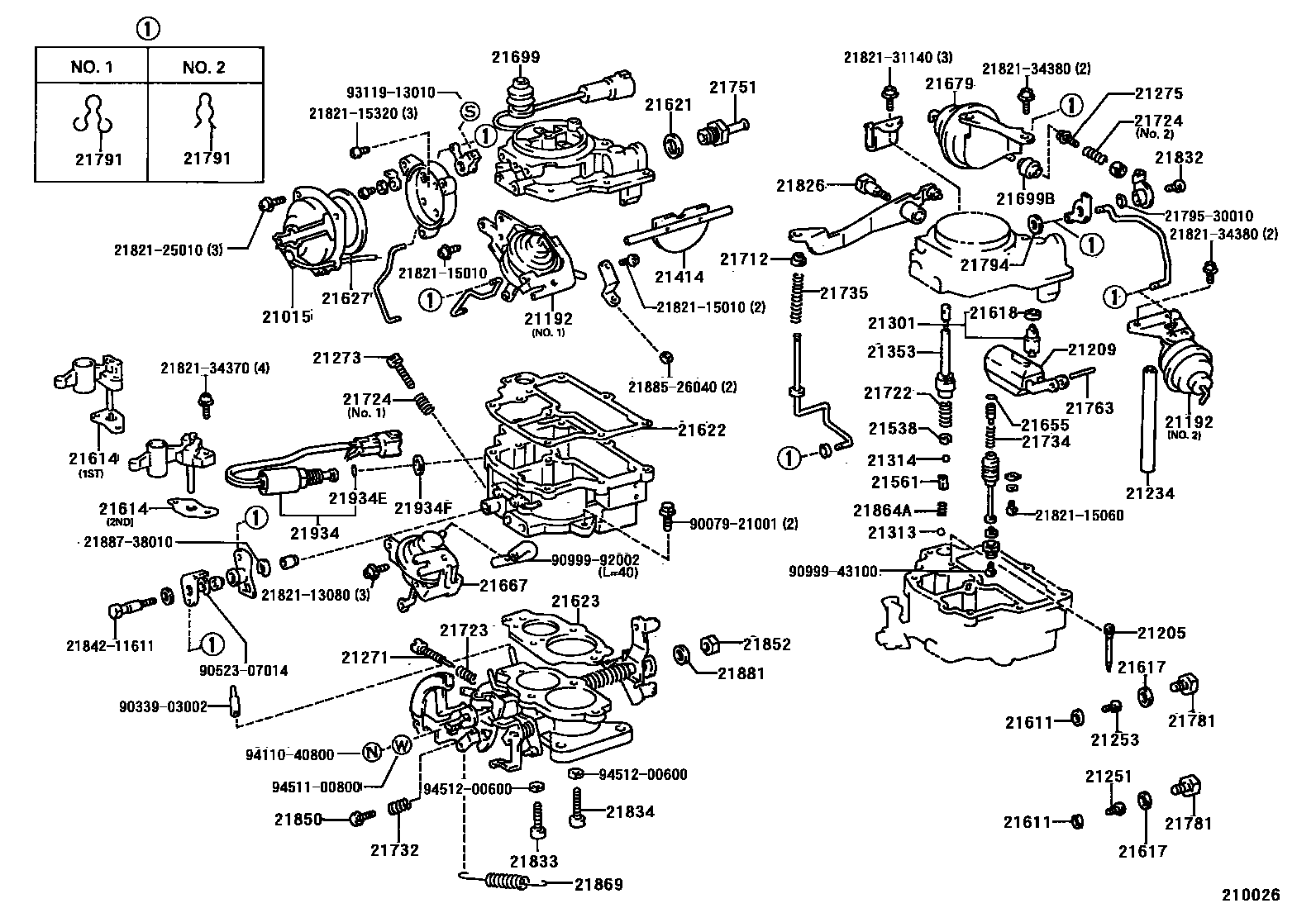

Toyota COROLLA EPC diagram 2103, 化油器, with 1 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-11880 |
| 21192 | breaker | 21192-11631 · 21192-11680 |
| 21205 | Idle speed measuring hole assembly | 21205-11840 |
| 21209 | Float sub-assembly | 21209-13310 |
| 21234 | pipe or hose | 21235-11840 |
| 21251 | first main measuring hole | 90999-41101 |
| 21253 | Deputy main measuring hole | 90999-42165 |
| 21271 | Idle speed adjustment screw | 21271-11630 |
| 21273 | Throttle adjustment screw | 21273-24231 |
| 21275 | Adjustment screw | 21275-11630 |
| 21301 | Needle valve sub-assembly | 21301-11620 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-60010 |
| 21353 | pump plunger | 21353-11840 |
| 21414 | choke shaft | 21054-11610 |
| 21538 | One way ball fixing | 21538-31010 |
| 21561 | Pump drain counterweight | 21575-11730 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21614 | Venturi gasket | 21614-13430 · 21614-24580 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-13430 |
| 21623 | Body hem pads | 21623-11611 |
| 21627 | Coil housing gasket | 21627-28090 |
| 21655 | O-ring (for tappet) | 21655-44101 |
| 21667 | Diaphragm | 21667-11611 |
| 21679 | locator | 21679-11680 |
| 21699 | Dust boot (for pump plunger) | 21699-28150 |
| 21699B | Dust boot (for compensator) | 21699-41010 |
| 21712 | Sliding connecting rod bushing | 21712-38010 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-21030 |
| 21724 | Throttle valve adjustment spring | 21864-24010 · 21864-24230 |
| 21732 | Throttle valve adjustment spring | 21726-38310 |
| 21734 | Thickening piston spring | 21734-11630 |
| 21735 | Pump rod spring | 21735-22010 |
| 21751 | Oil pipe joint | 21751-10050 |
| 21763 | floating lever pin | 21763-38010 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15230 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40070 |
| 21826 | Pump rod fixing screw | 21826-31012 |
| 21832 | Screw (for choke lever adapter assembly) | 21832-15320 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21835-40010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31010 |
| 21850 | Throttle switch adjustment screw | 21272-71010 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21864A | Spring (for pump drain counterweight) | 21864-11730 |
| 21869 | Spring (for main measuring hole) | 21869-11840 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-11840 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21649-38010 |
