Toyota COROLLA vacuum tube — Figure 1708

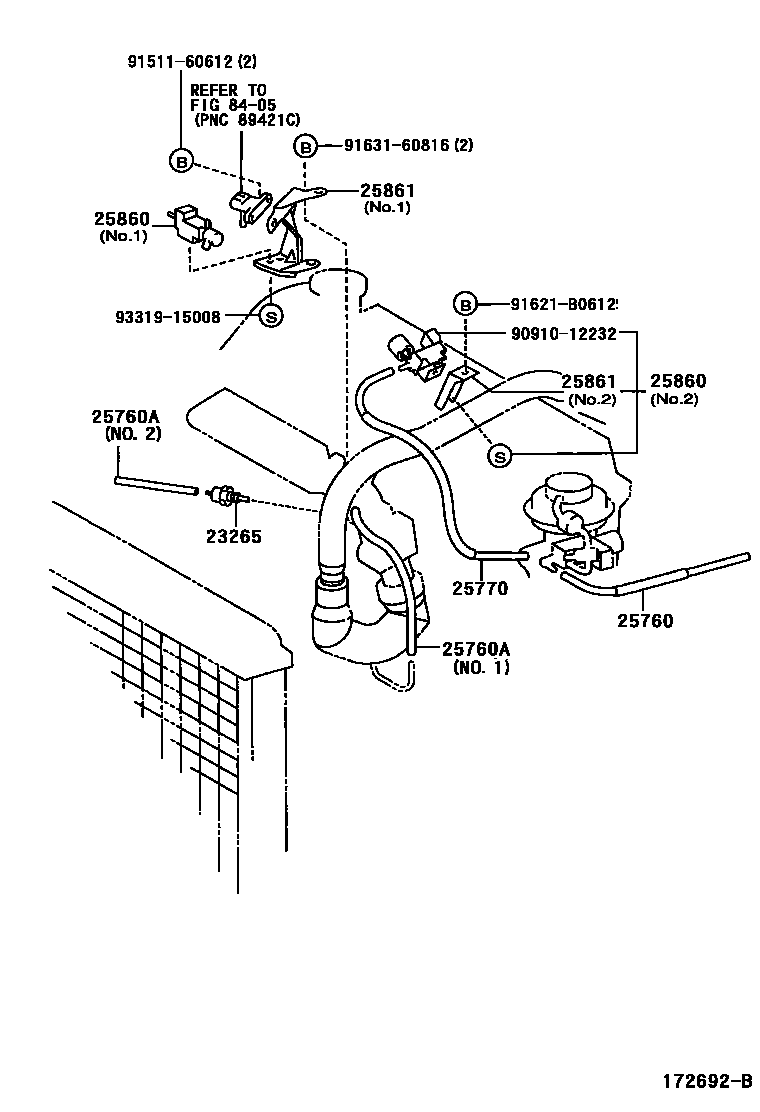

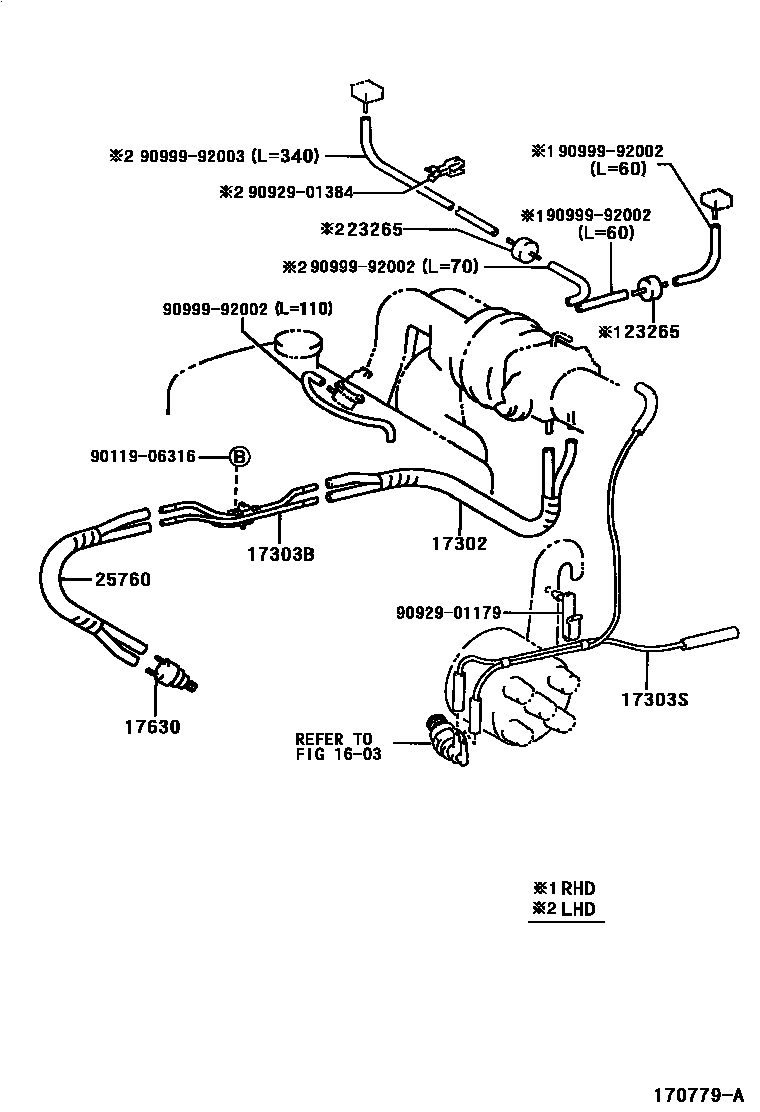

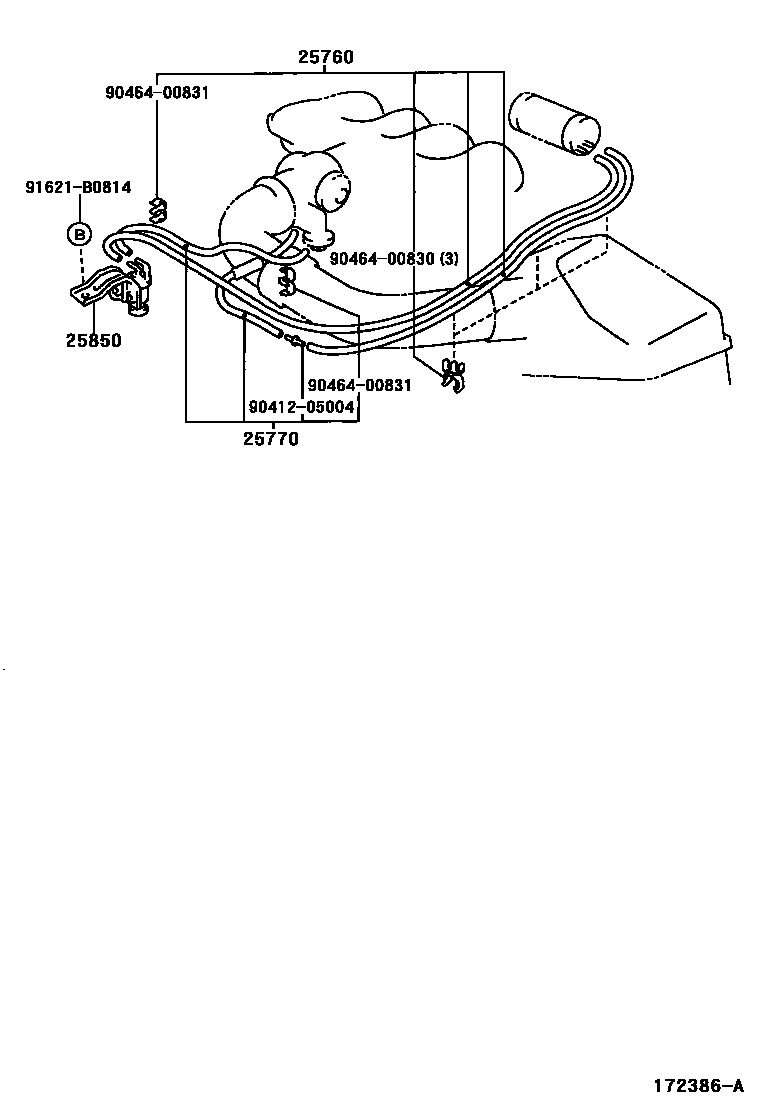

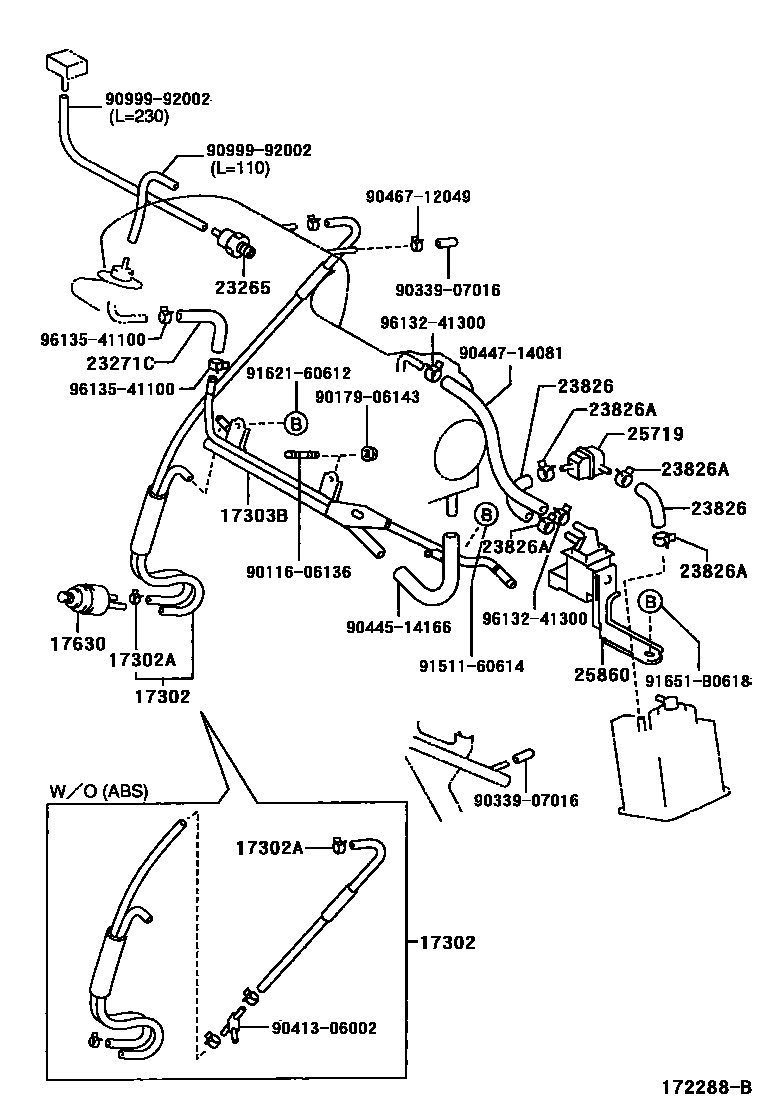

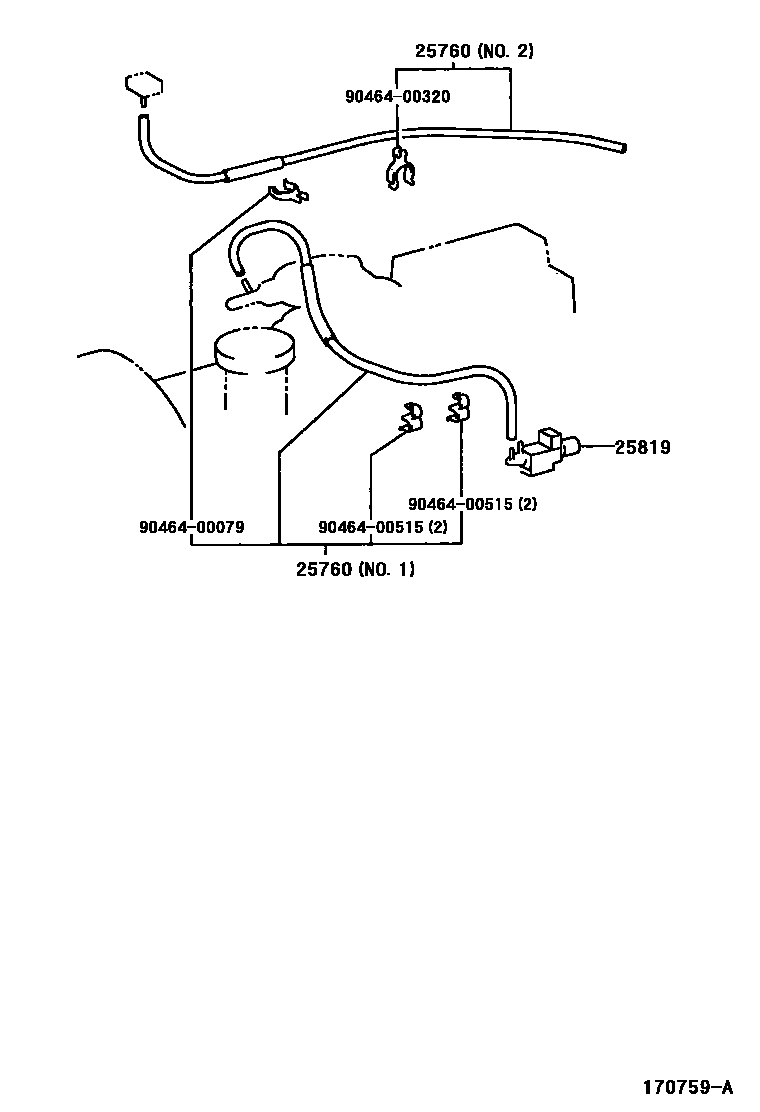

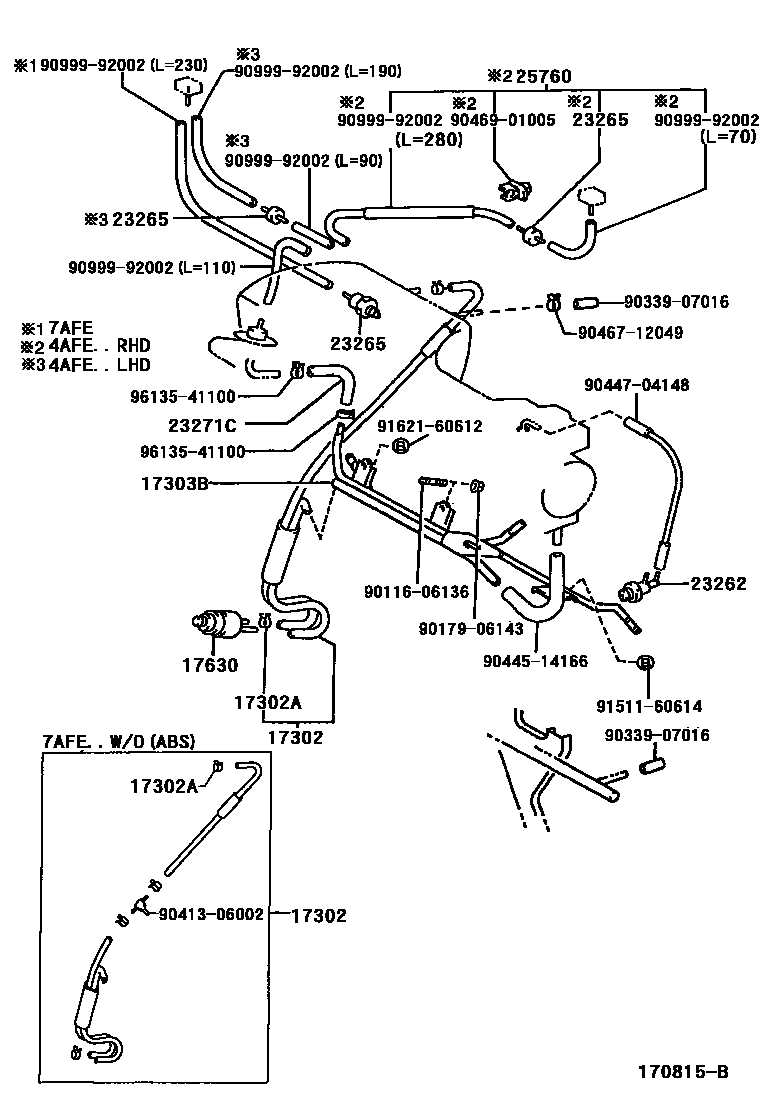

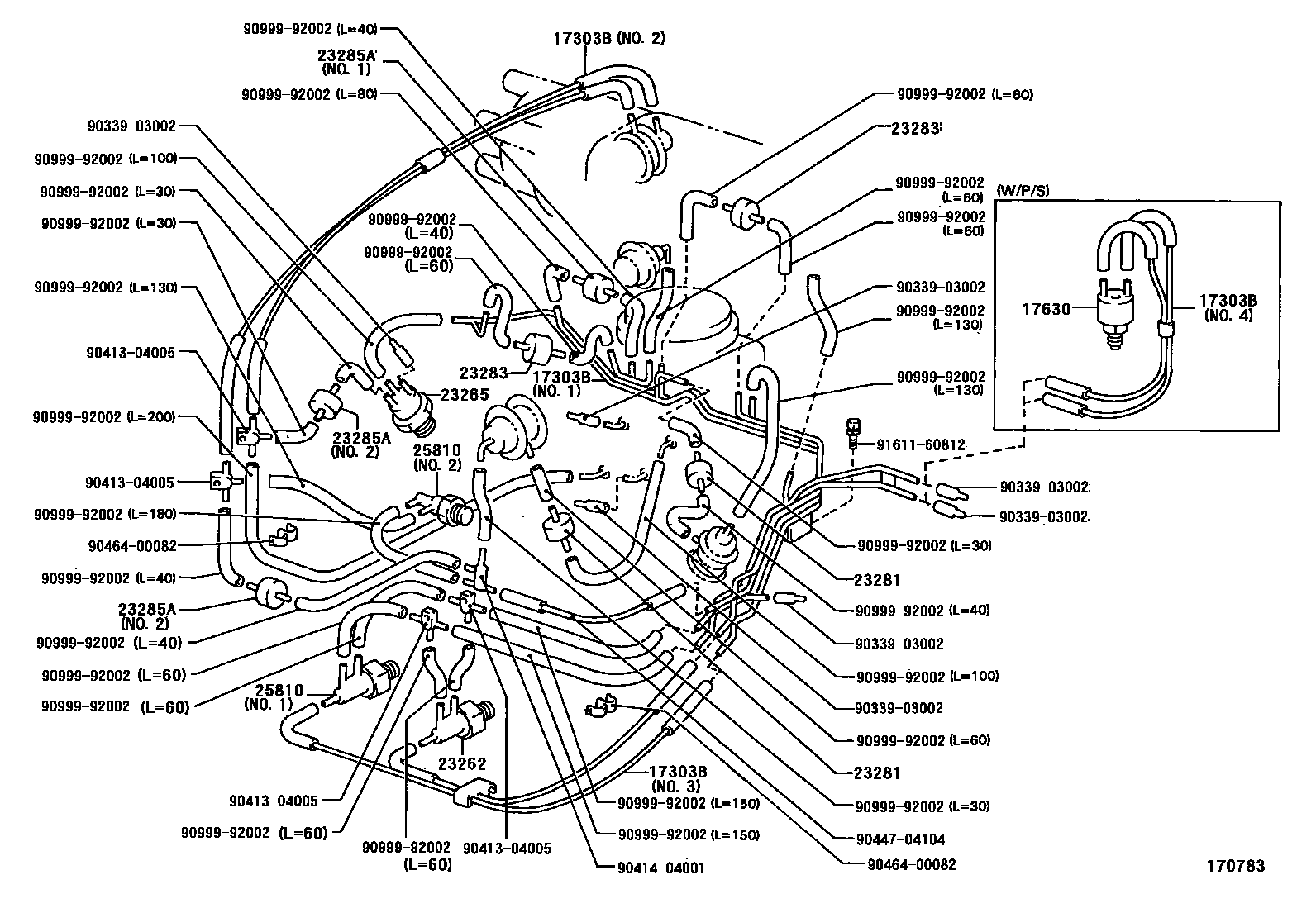

Toyota COROLLA EPC diagram 1708, vacuum tube, with 9 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-11100 · 17302-15010 · 17302-16050 |
| 17302A | Hose clip | 96132-51000 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11440 · 17303-11460 · 17303-11550 · 17303-11570 · 17303-11880 · 17303-15070 · 17303-15090 |
| 17303S | No. 3 air pipe sub-assembly | 17303-11800 |
| 17630 | Air control valve assembly | 17630-11060 · 17630-15030 · 17630-15080 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11040 · 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11027 · 90917-11030 · 90917-11037 |
| 23271C | fuel hose | 90910-05214 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01101 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23826 | No. 1 fuel vapor supply hose | 23826-22060 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-41100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22020 |
| 25719 | Vacuum pressure tank | 25719-62040 |
| 25760 | Vacuum transfer hose assembly | 25760-11260 · 25760-16010 · 25760-27020 · 25760-53020 · 25760-64230 · 25760-64250 |
| 25760A | Vacuum transfer hose assembly | 25760-27020 · 25760-27040 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-27020 · 25770-53010 |
| 25810 | Bimetal valve assembly | 25810-11070 · 25810-11080 |
| 25819 | Vacuum regulating valve assembly | 25819-64030 · 25819-64031 |
| 25850 | Electronic vacuum regulating valve assembly | 25850-53010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-22040 · 25860-27020 · 25860-64140 |
| 25861 | Vacuum switch valve bracket | 25861-27020 · 25861-27030 |
