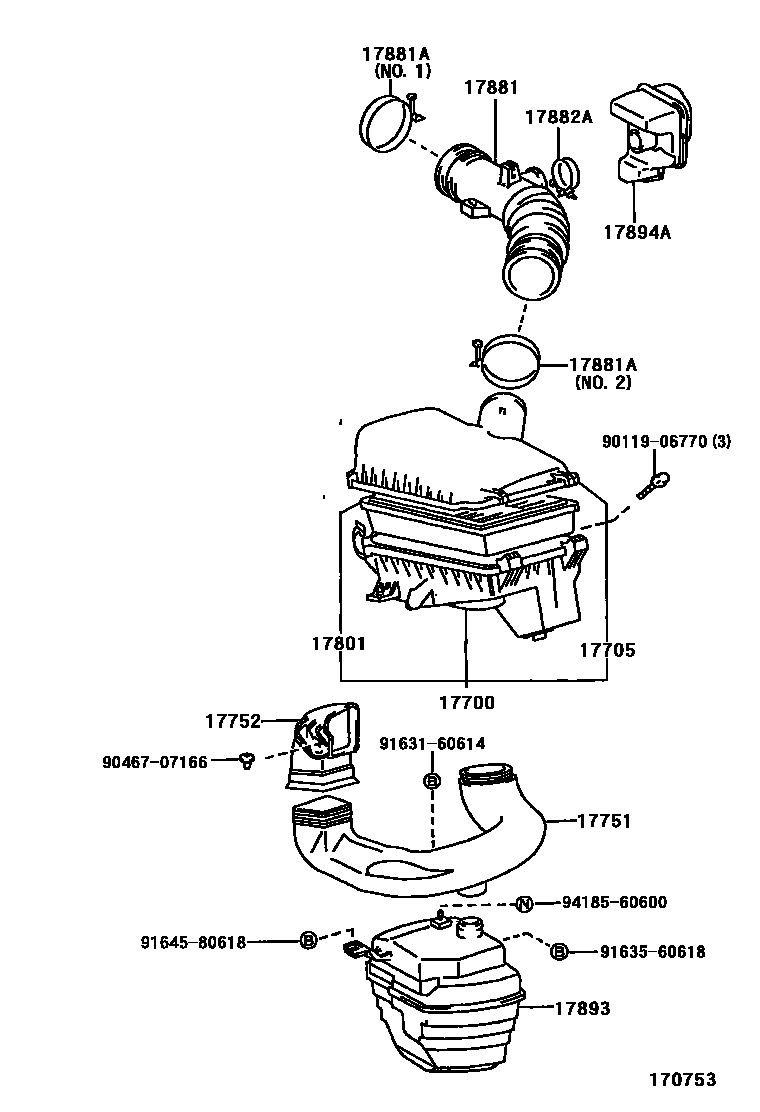

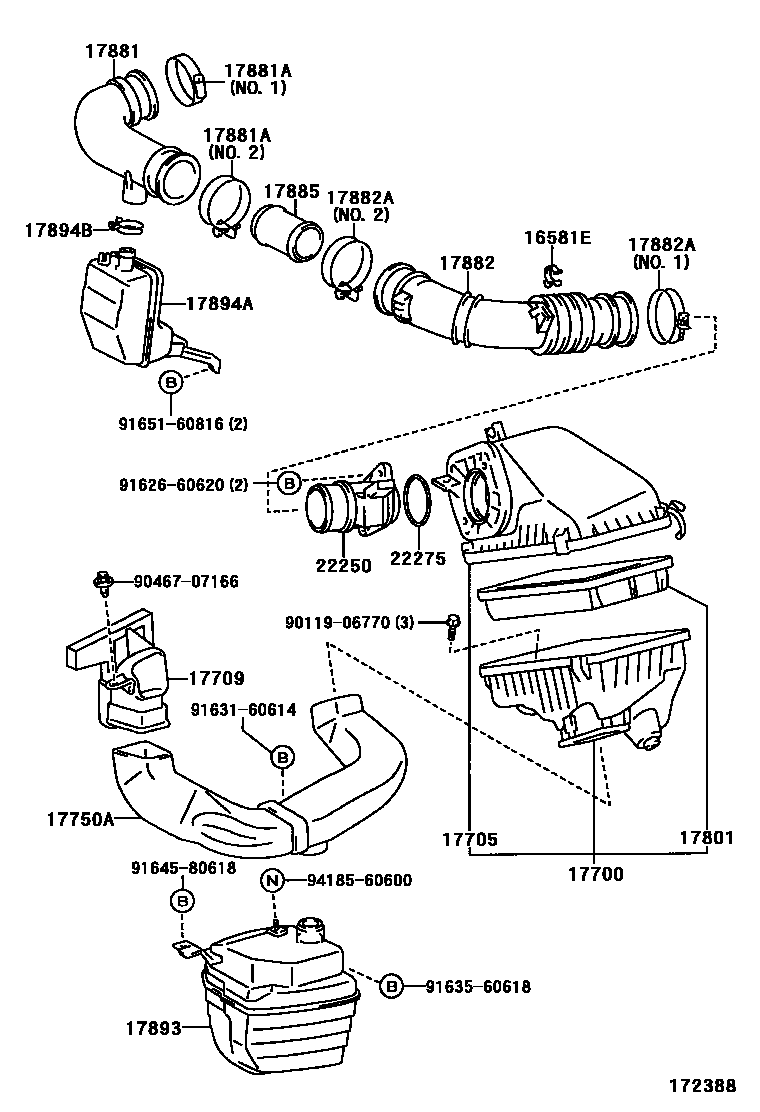

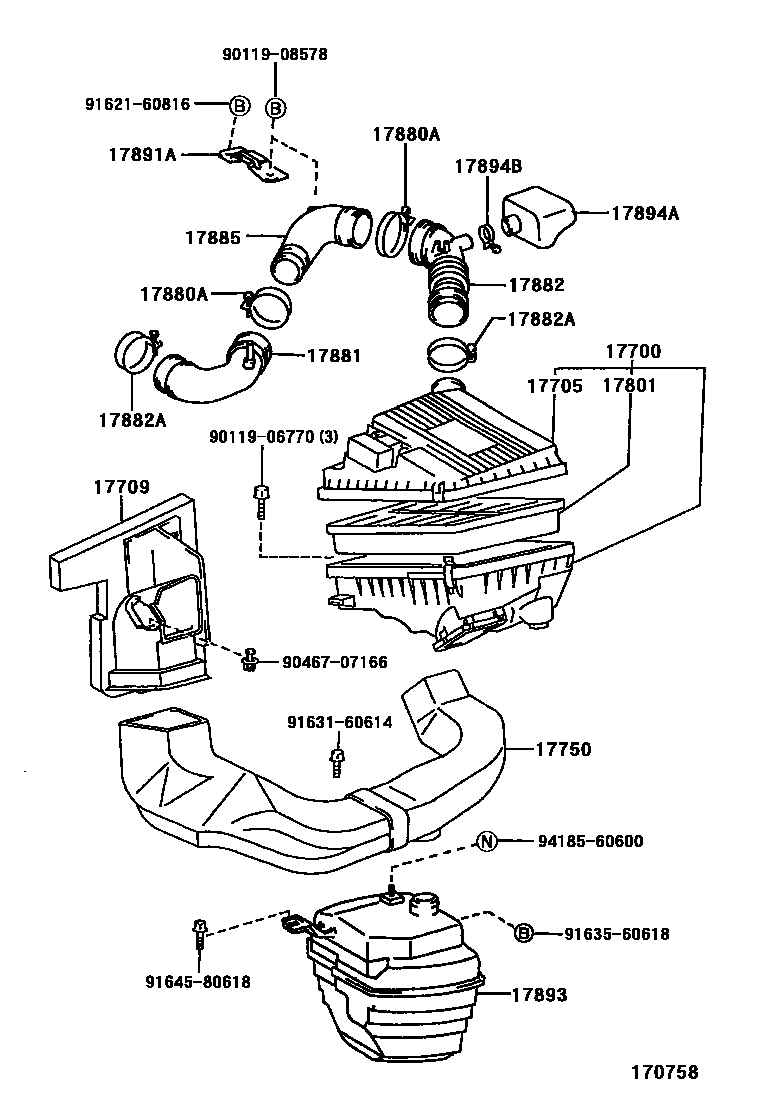

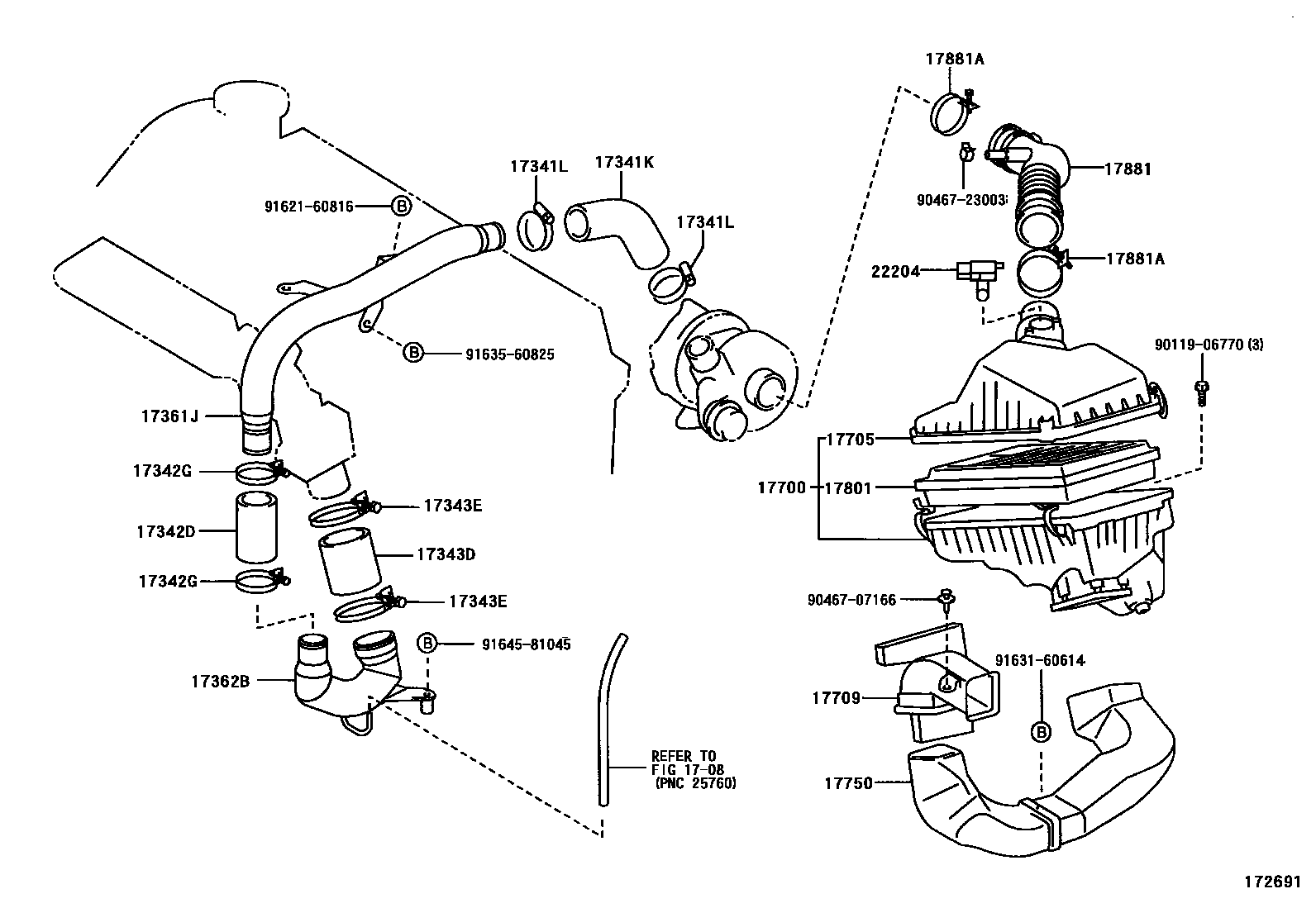

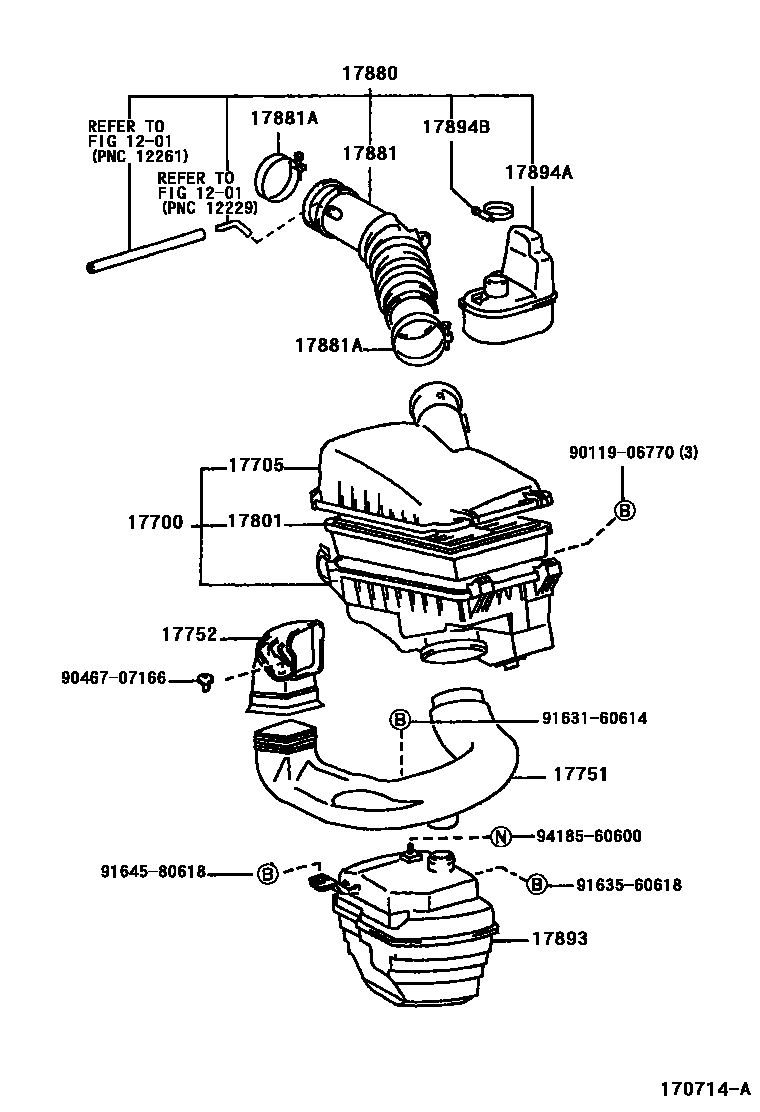

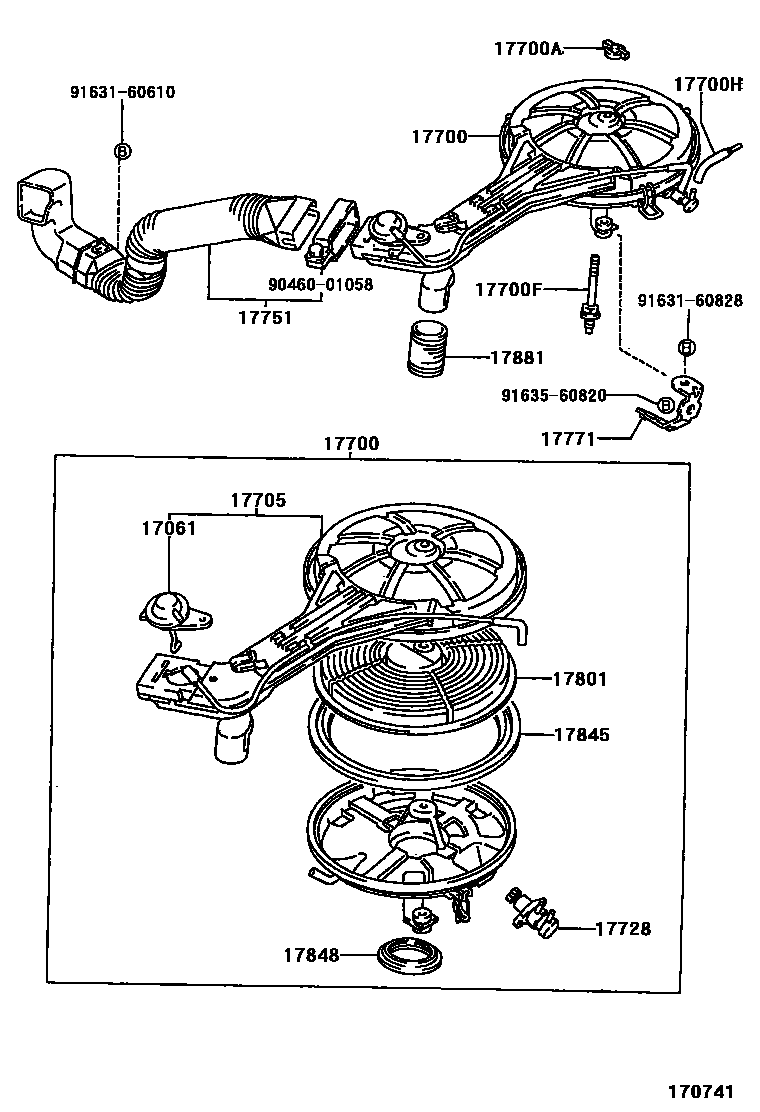

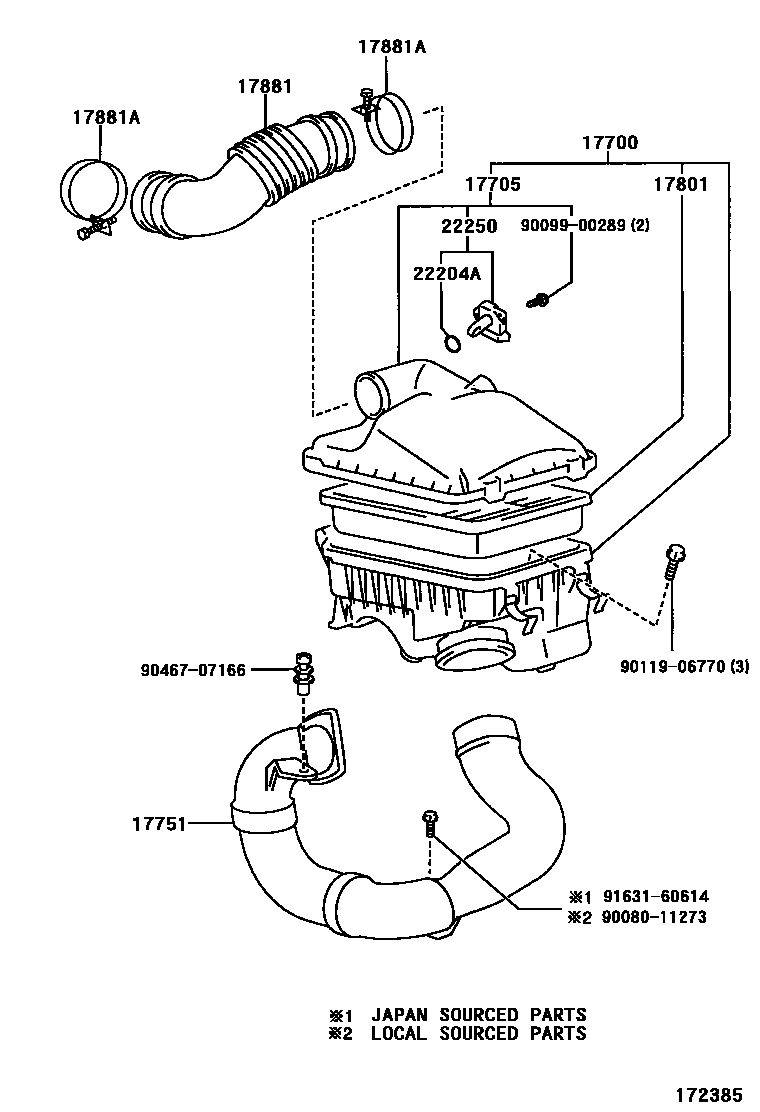

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 7 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16581E | Hose clamp (for air cleaner hose) | 16581-53010 |
| 17061 | Diaphragm sub-assembly | 17061-10010 |
| 17341K | Air hose No. 1 (for intercooler) | 17341-27020 |
| 17341L | hose clamp | 90460-50006 |
| 17342D | Air hose No. 2 | 17342-27020 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-50006 |
| 17343D | No. 3 air hose | 17343-27020 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-73011 |
| 17361J | Air tube No. 1 | 17361-27040 |
| 17362B | No. 2 air pipe | 17362-27020 |
| 17700 | air filter assembly | 17700-11790 · 17700-15360 · 17700-1A050 · 17700-1B040 · 17700-22070 · 17700-27150 · 17700-53010 · 17700-64400 · 17700-64401 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06142 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-11360 · 17705-11600 · 17705-15190 · 17705-22080 · 17705-27020 · 17705-53010 · 17705-64280 · 17705-64281 |
| 17709 | Air filter air inlet sub-assembly | 17709-64020 |
| 17728 | thermostat valve | 17728-11080 |
| 17750 | Air filter air inlet cover seal assembly | 17750-27010 · 17750-64020 |
| 17750A | Air filter air inlet assembly | 17750-64020 |
| 17751 | No. 1 air filter air inlet | 17750-11040 · 17751-15070 · 17751-22040 |
| 17752 | No. 2 air filter air inlet | 17752-15030 |
| 17771 | Air filter inlet pipe bracket | 17771-11020 |
| 17801 | Air filter element sub-assembly | 17801-02030 · 17801-11090 · 17801-11100 · 17801-15070 · 17801-64060 · 17801-64070 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10021 |
| 17880 | Air cleaner hose assembly | 17880-11350 |
| 17880A | hose clamp | 96111-10630 |
| 17881 | No. 1 air cleaner hose | 17880-27020 · 17881-10033 · 17881-11560 · 17881-15200 · 17881-22040 · 17881-53010 · 17881-64360 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-58003 · 90460-73001 · 90460-73009 · 96111-10690 · 96111-10730 · 96111-10750 |
| 17882 | No. 2 air cleaner hose | 17882-53010 · 17882-64110 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10480 · 96111-10650 · 96111-10750 · 96111-10800 |
| 17885 | air cleaner tube | 17885-53010 · 17885-64010 |
| 17891A | Air filter hose clamp | 17891-64020 |
| 17893 | Intake resonator | 17893-15050 |
| 17894A | No. 2 intake resonator | 17894-11130 · 17894-15050 · 17894-53010 · 17894-64070 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10330 · 96111-10380 · 96111-10480 |
| 22204 | Intake air flow meter assembly | 22204-27010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
| 22250 | Intake air flow meter assembly | 22204-15010 · 22250-0X010 |
| 22275 | air flow meter gasket | 22275-0X010 |
